Key Features
How The Whynter UIM-502SS Compares To The MIM-14231SS Marine Ice Maker
Homeowners and bar operators evaluating a built-in ice maker usually face this question: should I choose this UIM-502SS for maximum daily output and NSF-filtered clear ice, or the compact MIM-14231SS built specifically for marine and mobile installations.
| Feature | Whynter UIM-502SS, Kitchen/Bar | Whynter MIM-14231SS, Marine |
|---|---|---|
| Ice Production | Up to 80 lbs per 24 hrs | 23 lbs per 24 hrs |
| Ice Type | Clear cubes with water recirculation and NSF filter | Crescent-shaped |
| Certification | Energy Star, ETL-S Sanitation | UL Listed |
| Best Suited For | Fixed kitchen or bar installations wanting maximum daily ice | Mobile, marine, or harsh-environment installations |
Product Description

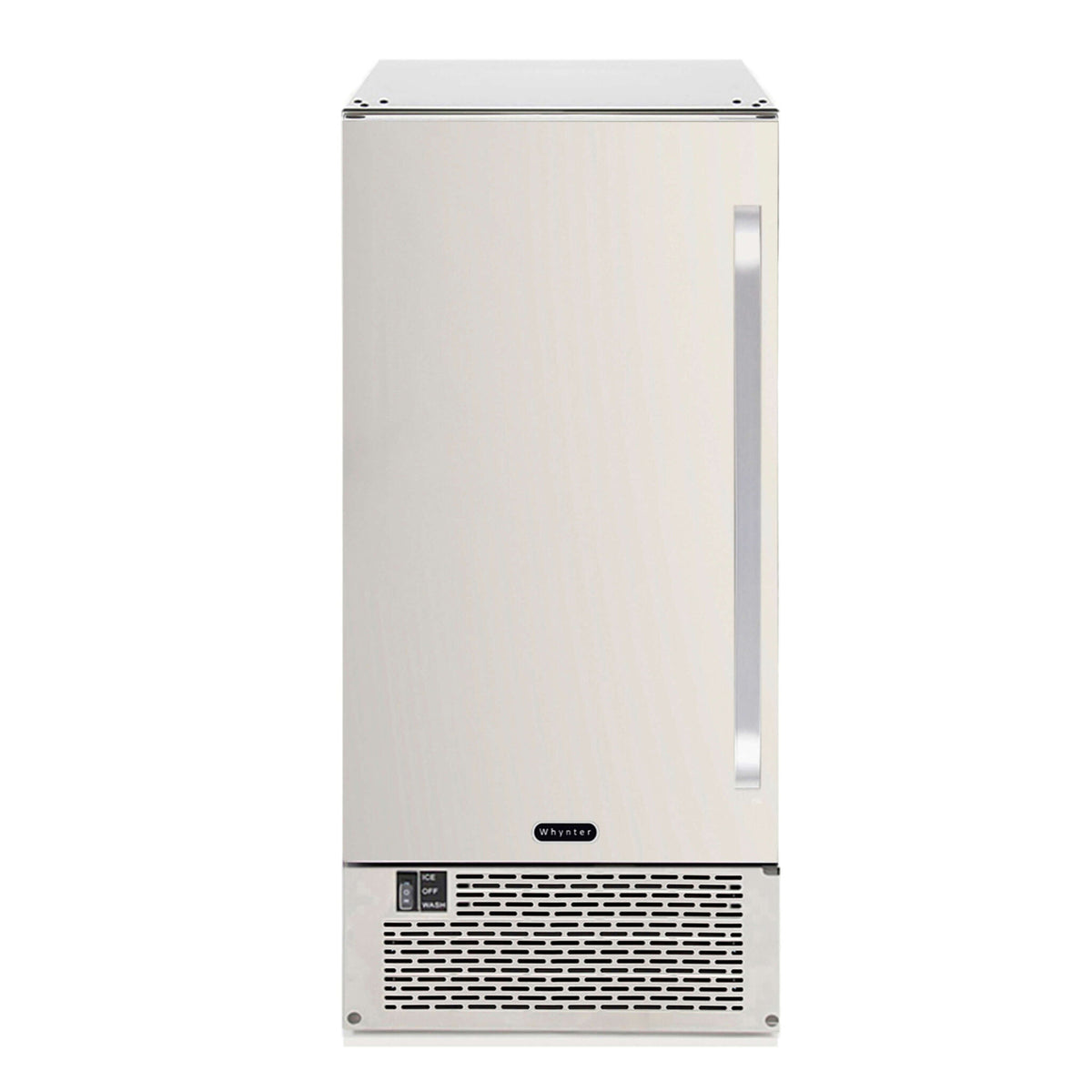

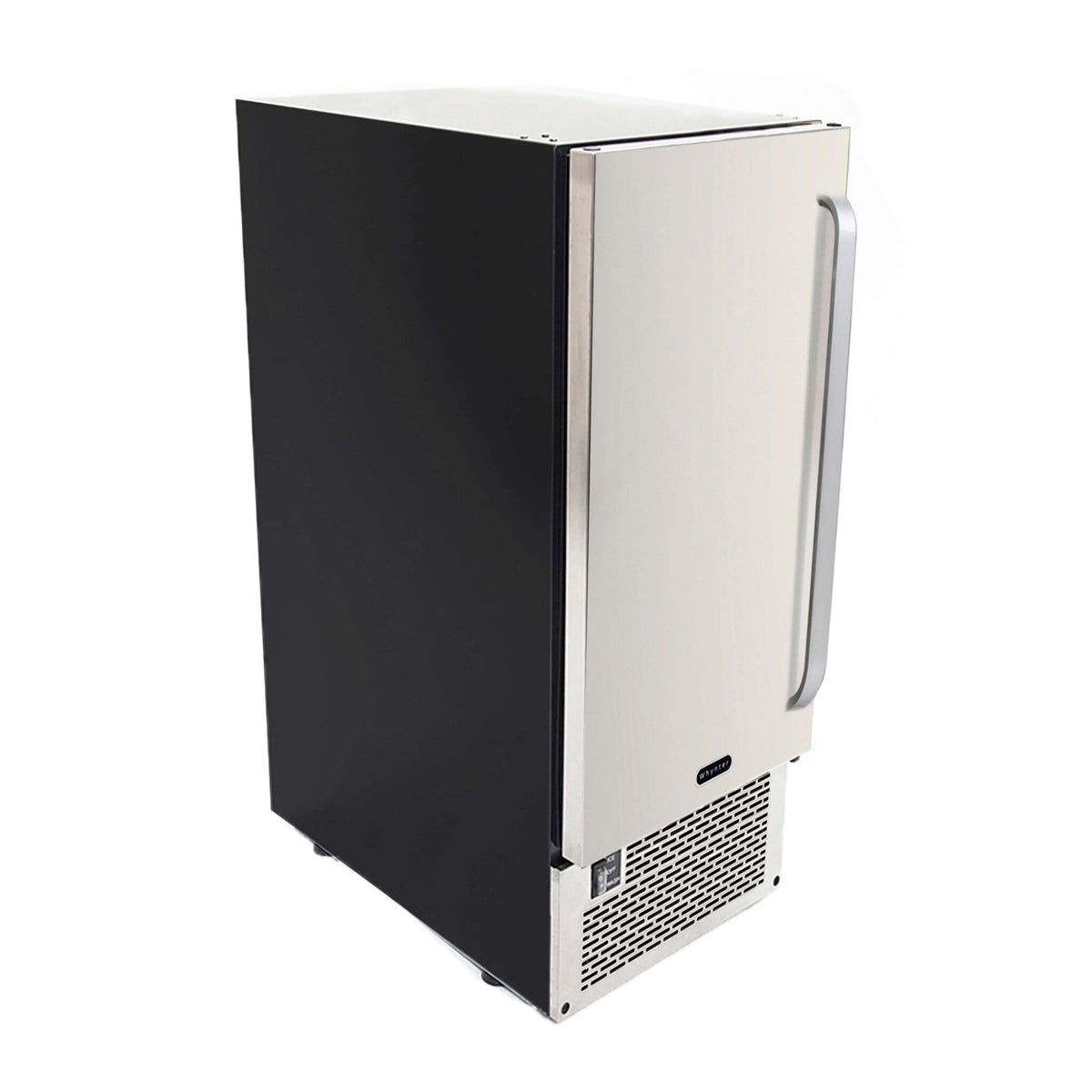

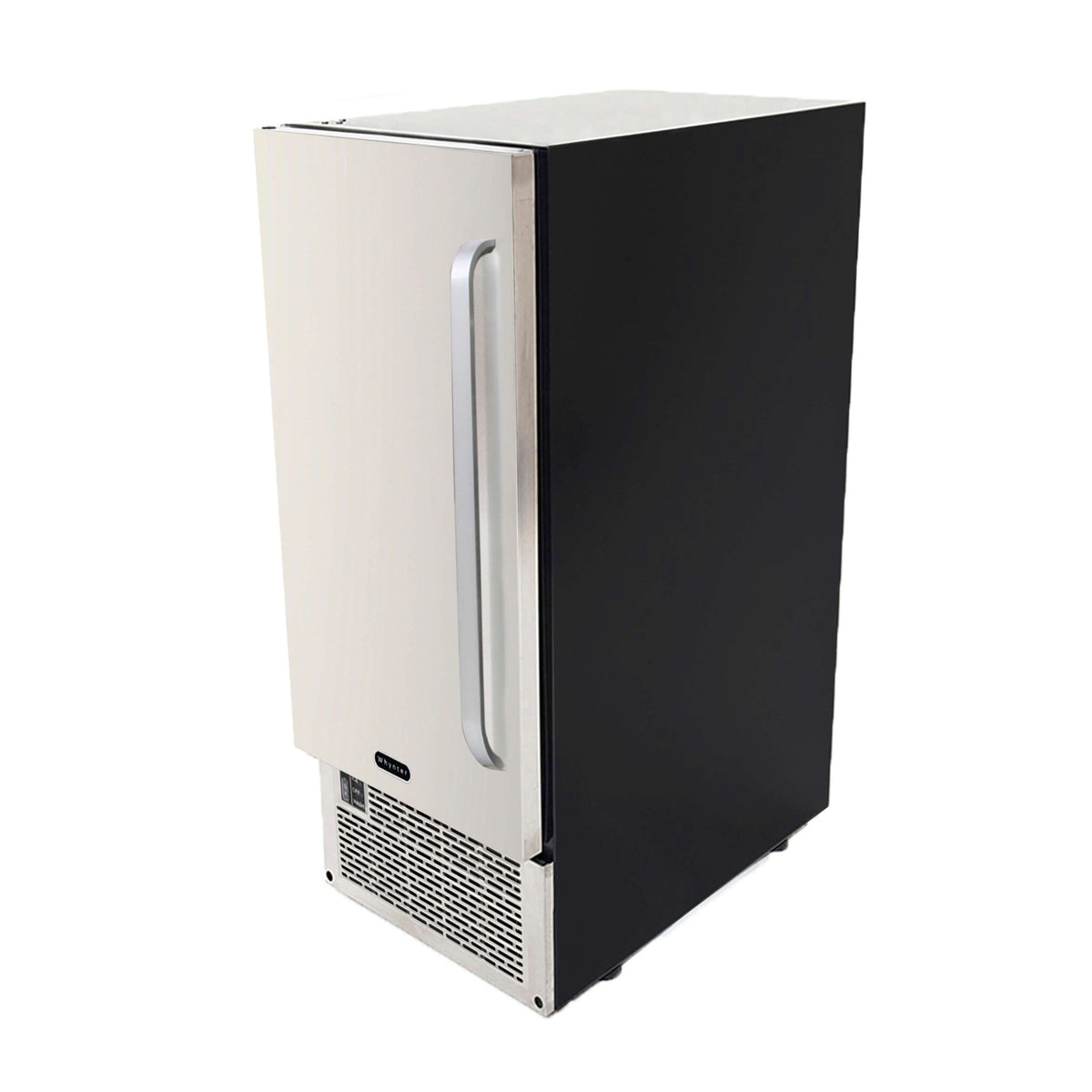

The Whynter UIM-502SS / UIM-502SSa Stainless Steel Built-In Ice Maker is a sleek and reliable addition to any modern kitchen or bar area. Designed for both performance and style, this unit produces up to 80 lbs of clear ice cubes per day and offers a storage capacity of up to 25 lbs, ensuring a steady supply of ice for entertaining or everyday use.

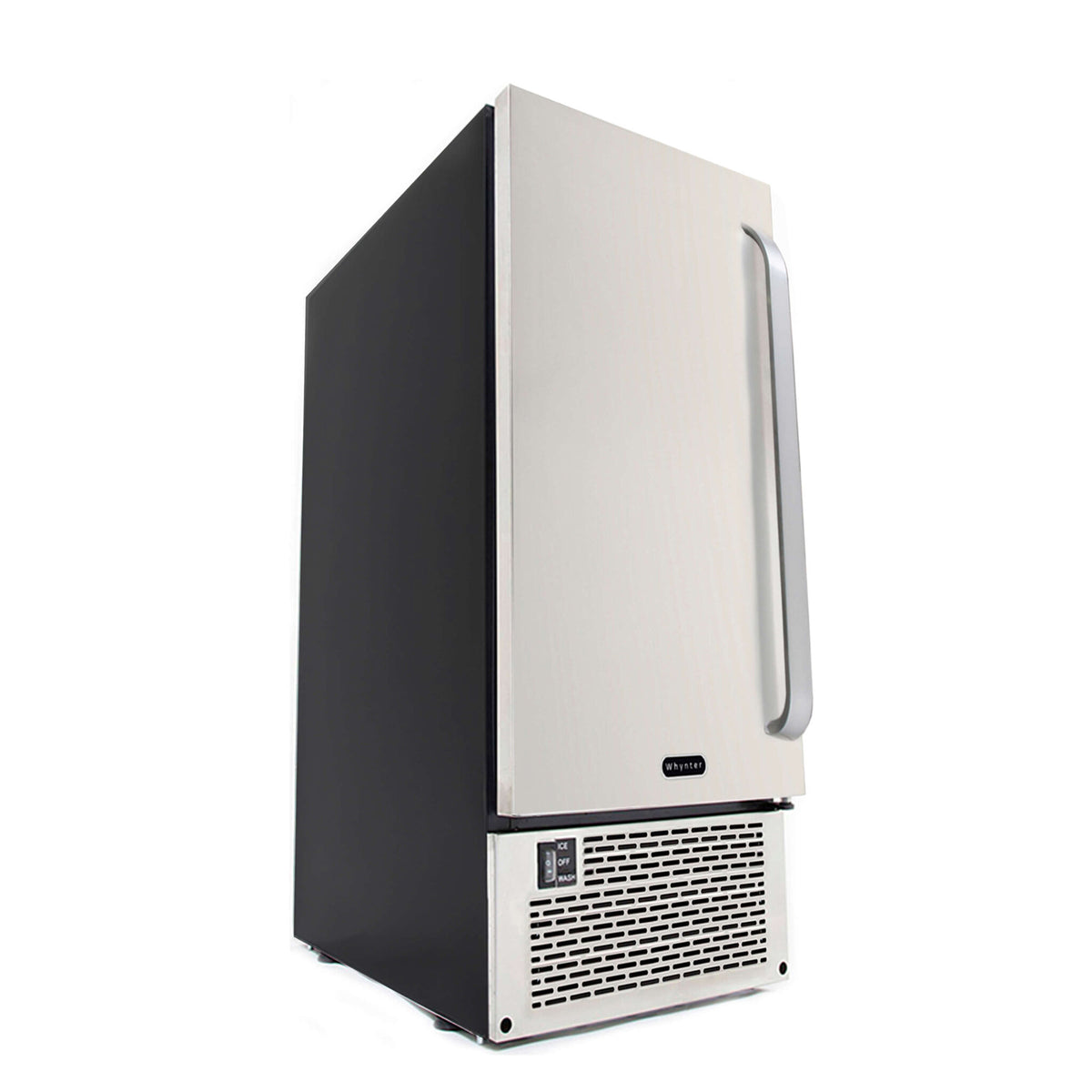

Constructed with a durable stainless steel exterior, it resists fingerprints and smudges while providing enhanced protection against everyday wear and tear, maintaining a clean and polished appearance over time.
CLEAR ICE CUBES
A water recirculation system removes minerals and impurities to ensure only clean water is used for ice production. This process creates crystal-clear cubes, while continuous water circulation delivers consistent quality and adjustable ice thickness.

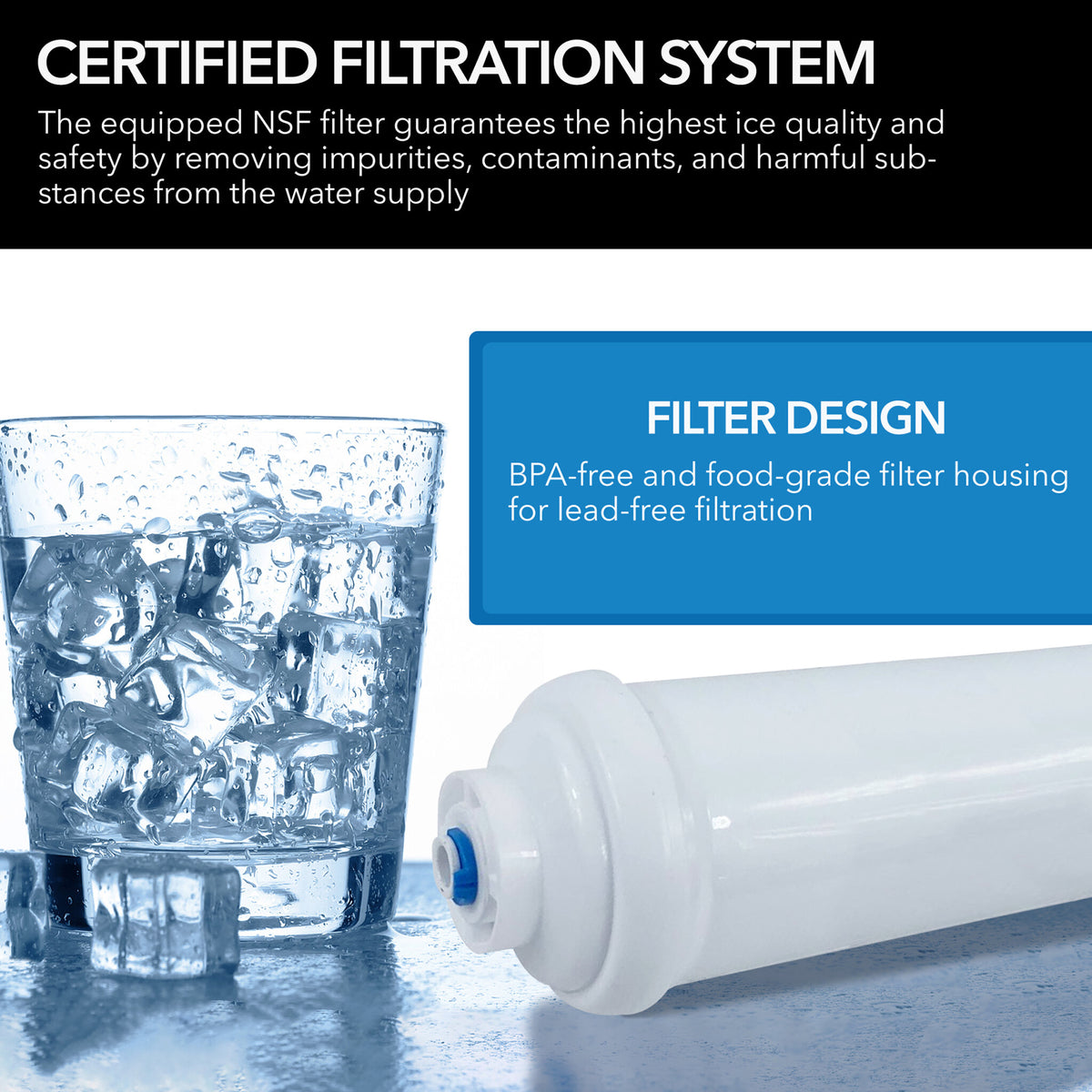

INLINE WATER FILTER
Includes an NSF-certified inline water filter that reduces chlorine and helps prevent contaminants, ensuring cleaner, better-tasting ice.
SAFE AND FRESH
Safe and Fresh
The advanced evaporator system produces crystal-clear, odorless, and great-tasting ice. Designed for efficiency, this direct plumbing ice maker delivers a continuous supply of restaurant-quality ice while helping reduce energy costs.
Professional installation by a licensed plumber is recommended.
| Color |
Stainless Steel |
|---|---|
| Installation Type |
Freestanding / Built-in |
| Energy Star Rated |
Yes |
| Ice Capacity lbs |
up to 80 lbs per day |
| Ice Storage lbs |
25 lbs |
| Accessories |
Scoop, NSF water filter, Inlet water hose, Drain hose, etc. |
| Reversible Door |
Yes |
| Auto Restart / Shut off |
Yes |
| Refrigerant |
R290a |
| Maximum Power Consumption |
155W / 3.0A |
| Unit Dimensions |
32.8” H x 14.6” W x 23.6” D (Add 2" in depth with handle installed) |
Features
● Sleek stainless steel door and black cabinet
● Built-in or freestanding installation
● Makes 80 lbs of restaurant-quality clear ice cubes in 24 hours
● Energy Star Certified
● Comes with NSF Inline Water Filter pre-installed

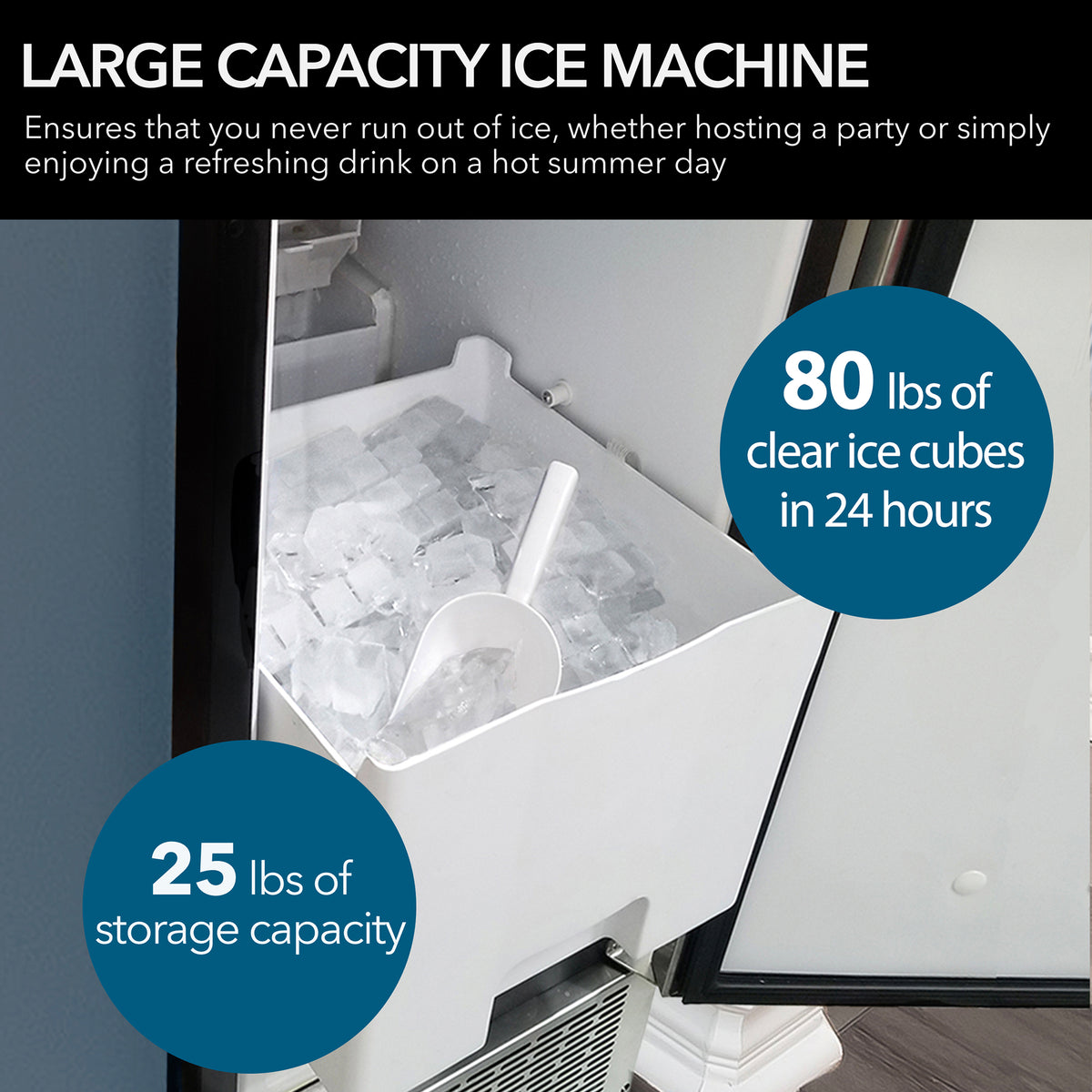

● Stores up to 25 lbs of ice
● Auto shut-off when ice bin is full

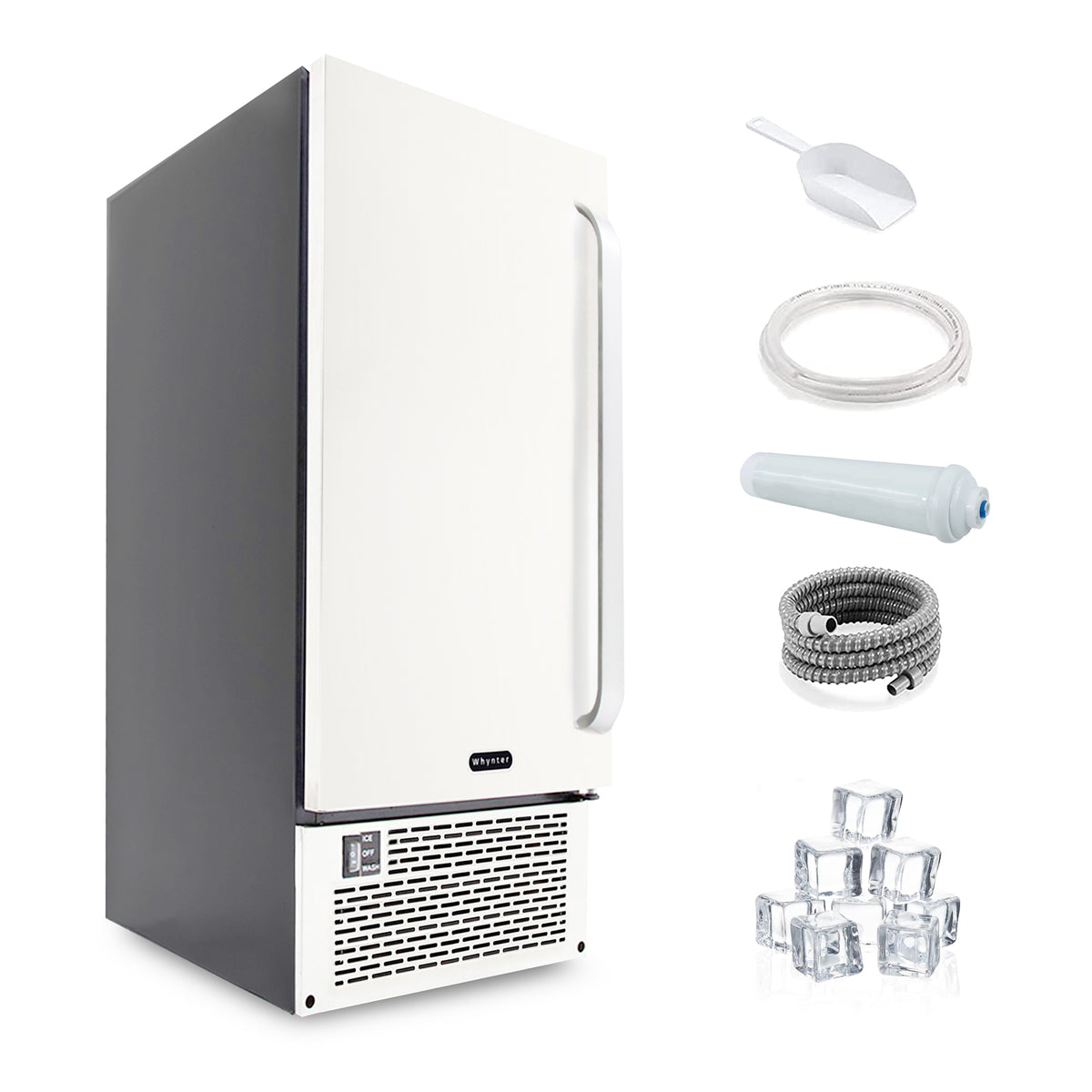

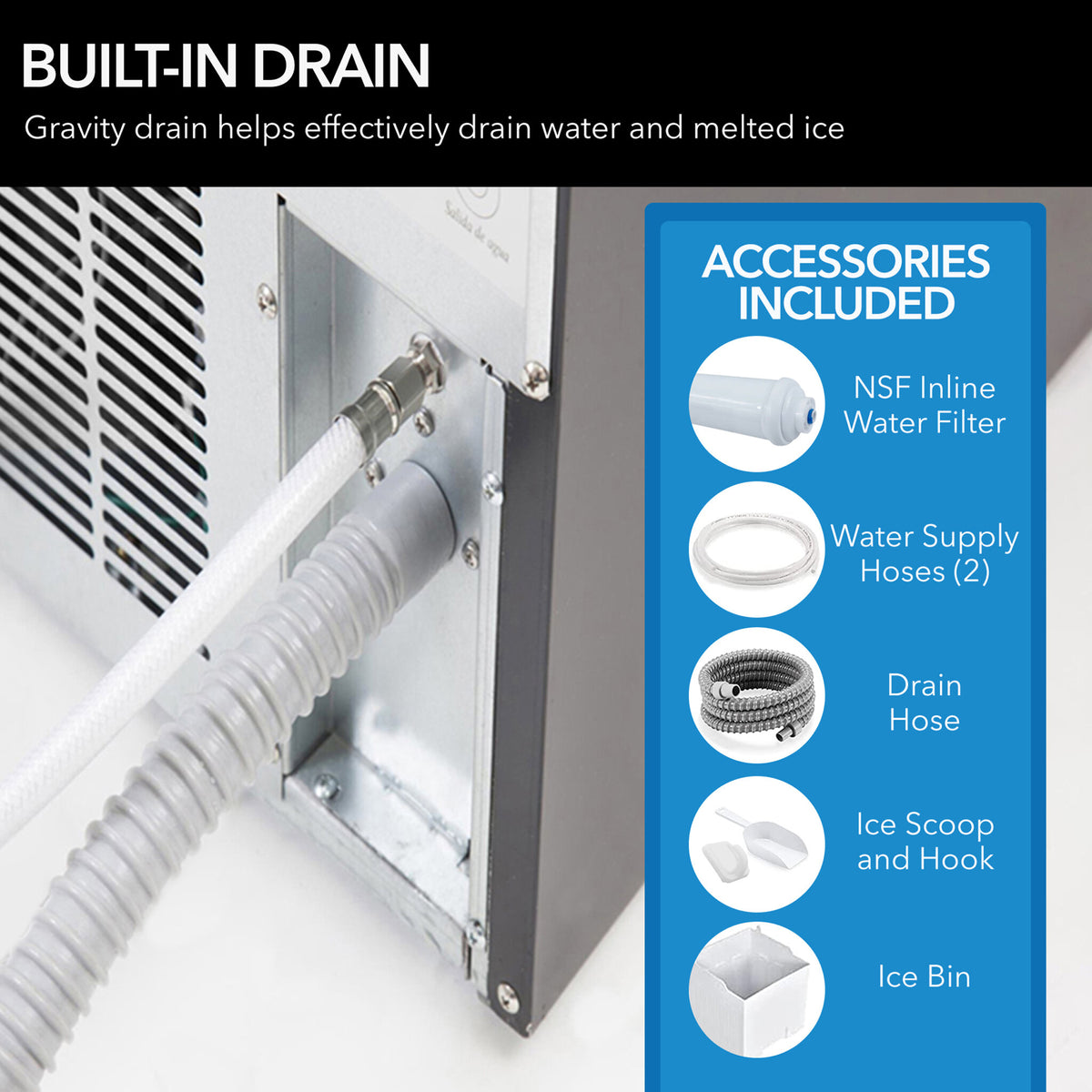

● Ice scoop, Water Hose and Drain Hose included
● Simple one-switch operation for easy use

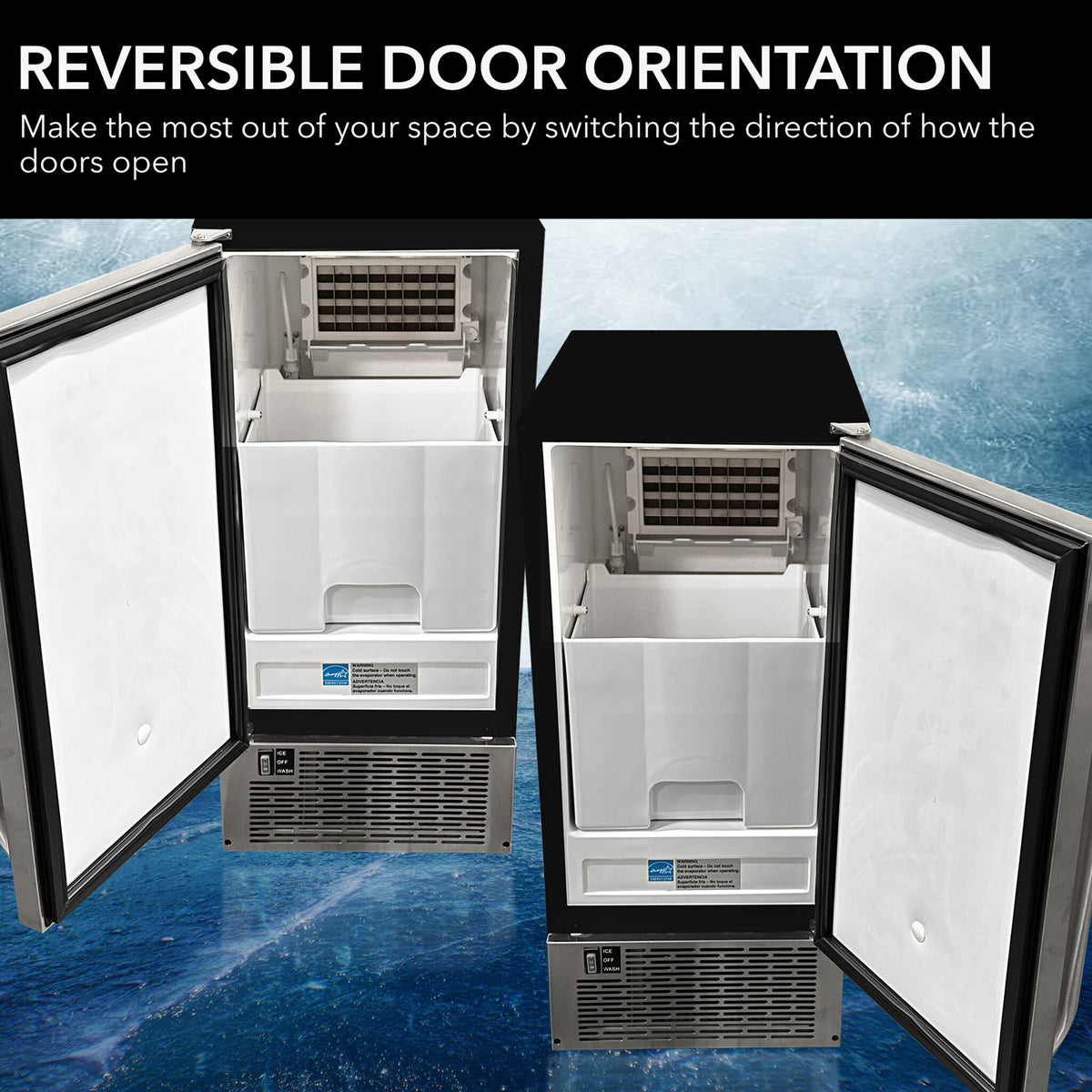

● Reversible door swing
● Manual Defrost
● Power consumption: 155 Watts / 12.2kWh/2.3A
● ETL-S® Sanitation Certified for food grade standard

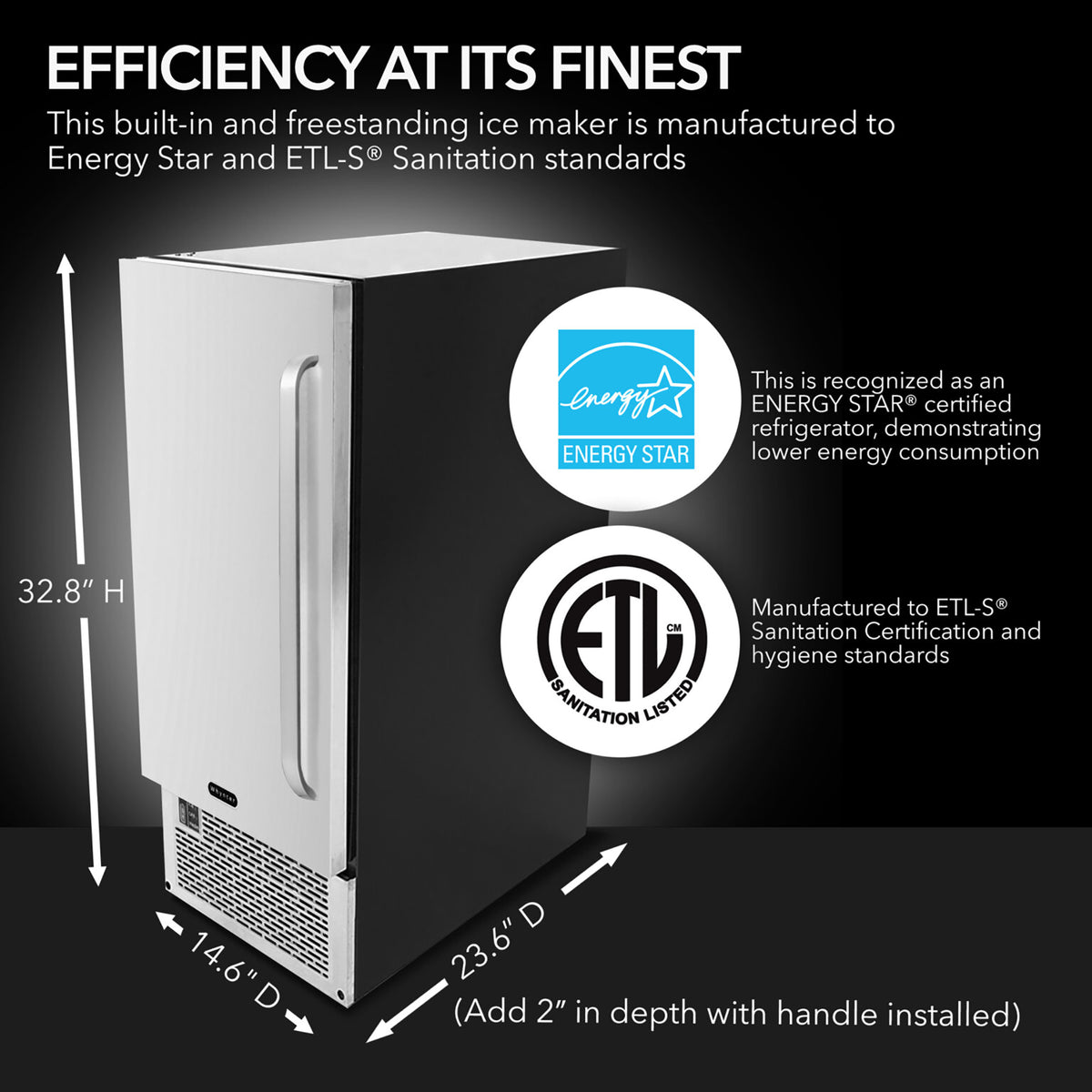

● Product dimensions: 32.8” H x 14.6” W x 23.6” D
● Package dimensions: 35” H x 17” W x 26” D”
● Net weight: 91 lbs
● Gross weight: 104 lbs
● UPC: 852749006016 (UIM-502SS)
● UPC: 850014459468 (UIM-502SSa)
*This unit comes with one year limited warranty. See product chemical disclosures here.
Full Spec Sheet
| Model | UIM-502SS |
| Ice Type | Clear cubes |
| Ice Production | Up to 80 lbs per 24 hrs |
| Ice Storage | 25 lbs |
| Installation | Freestanding or built-in |
| Water Filter | NSF-certified inline, pre-installed |
| Refrigerant | R290a |
| Power | 155W, 3.0A |
| Dimensions | 32.8 in H x 14.6 in W x 23.6 in D |
| Net Weight | 91 lbs |
| Certification | Energy Star, ETL-S Sanitation |
| Warranty | 1-year limited |
