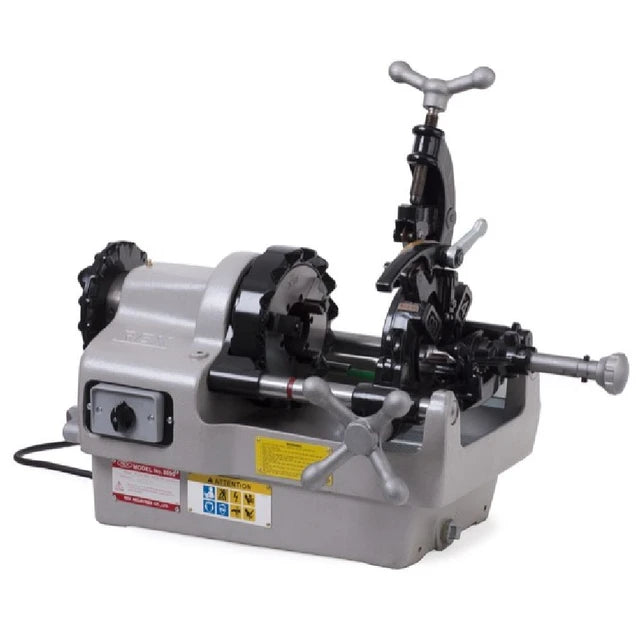

WheelerRex Threading Machine 1/2"-2" Capacity 8190

Features complete interchangeability with the Model 300 dies and die heads.
This portable and compact, high-performance threading machine has a self-opening die head and through the die head oiling. Completely equipped to cut, thread and ream.

• For 1/2" to 2" pipe
• 110/120 V
• Single phase 700W series motor
• Average noise level: 85db
• Maximum amperage under load: 15.3
• No load RPM: 39
• 3/4 HP
• 50/60Hz
• 8090 Shipping weight - 186 lbs. (84.5kg)
• THREE YEAR WARRANTY, INCLUDING ELECTRIC MOTORS

Includes:

• 70201 - 1/2" - 3/4" NPT Dies
• 70209 - 1" - 2" NPT Dies
• 80118 - 1/2" - 2" NPT Auto Open Lever Die Head
• 60324 - HSS Cutter Wheel
• 60601 - 1 Gallon ThreadMaster Oil
• Foot Switch
• Four Legs
