Product Description

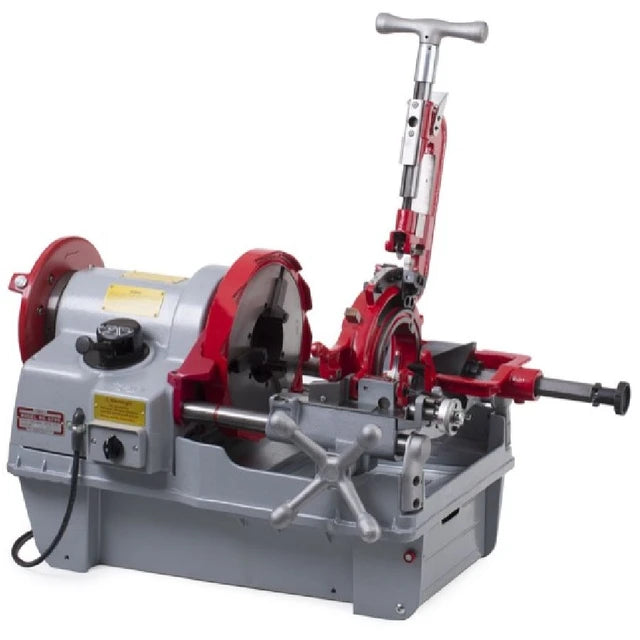

The WHEELER-REX 6790 has a self-opening die head with through-the-die-head oiling, giving ultimate accuracy and quick changes between pipe sizes. It offers adjustable thread length, a three-stage oil filtration system and a sturdy three-flute reamer that covers the entire 1/2"-4" range. The 6790 is a three-speed machine powered by a durable condenser motor with an extremely low noise level, and is completely equipped to cut, thread and ream.
Includes:
- 60118 1/2"-2" auto-open die head
- 60106 2-1/2"-4" auto-open notch die head
- Three sets of NPT dies: 1/2"-3/4", 1"-2", 2-1/2"-4"
- Spare cutter wheel
- Foot switch
- Four legs and built-in tool tray
| Pipe Capacity | 1/2"-4" (1/4"-4" with optional 60115 die head) |
| Motor | 1 kW (1 hp) single-phase condenser motor, 50/60 Hz |
| Voltage | 110/120V or 220/230V |
| Speeds | 3 - no-load 15 / 27 / 48 rpm |
| Max Amps Under Load | 18.5 |
| Noise Level | 72 dB average |
| Shipping Weight | 409 lbs (186kg) |
| Net Weight | 326 lbs (148kg) |
Optional: 1/4"-3/8" NPT, 3/4"-4" beveling and grooving, 5/16"-2" UNC bolt, and 1/2"-4" NPSM die heads and dies. Three year warranty, including electric motors.
Reference Documents:
