Description

Efficiently mulch 6-8” diameter trees and quickly cut up to 14” diameter trees.

  • BENT-AXIS PISTON MOTOR WITH RELIEF VALVES
  • STANDARD MOTOR GUARD & SPINDLE GUARD
  • 60″ FULLY-MACHINED PERFECTLY BALANCED QUADCO® DISC

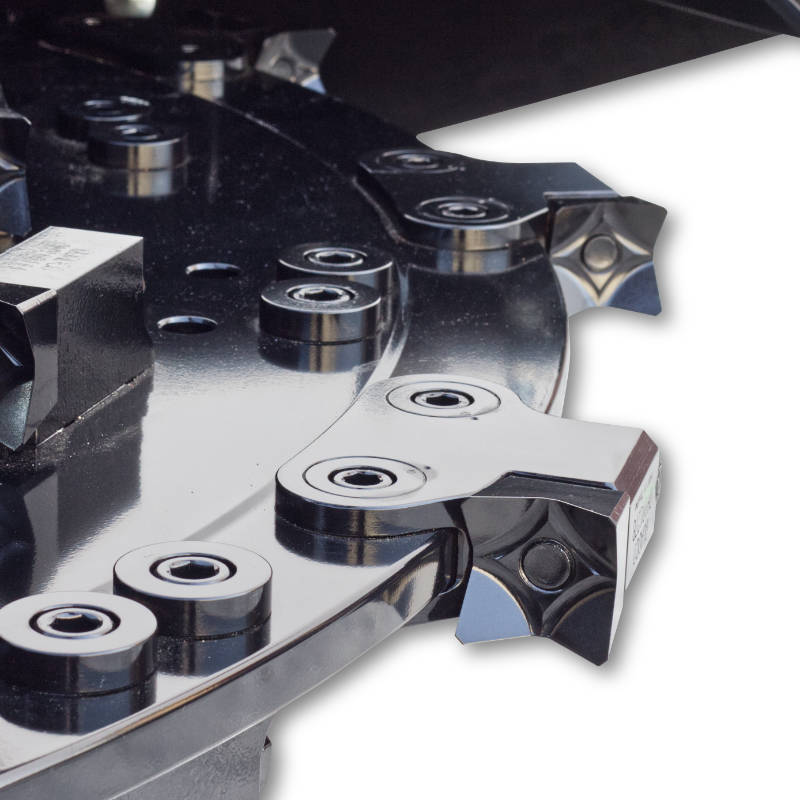

  • BOLT-ON STEEL TOOTH MOUNTS WITH FOUR-SIDED ROTATABLE & REPLACEABLE TEETH
  • 3 DECK MOUNTED TEETH & RECUTTER BAR FOR A FINER FINISH
  • 3/8″ GRADE 80 INTERIOR DECK WELDMENT
  • REPLACEABLE PUSH BAR, CHUTE & DEFLECTOR

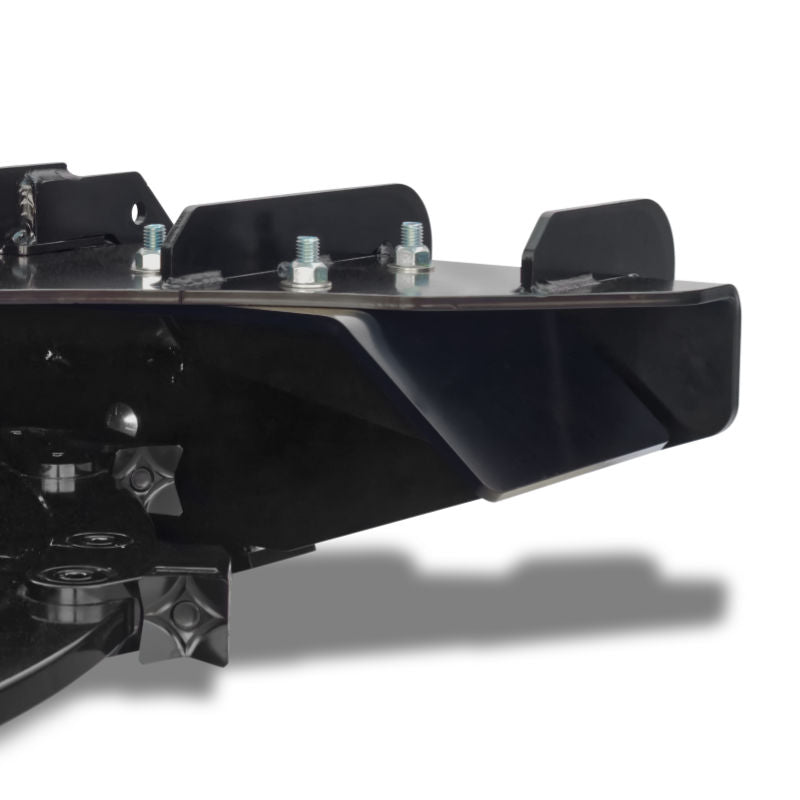

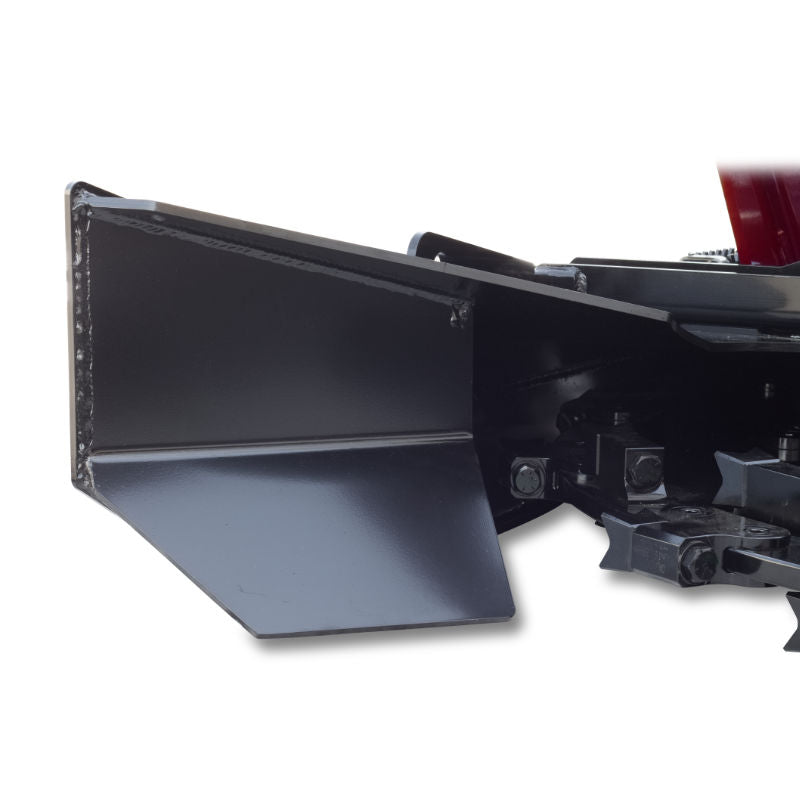

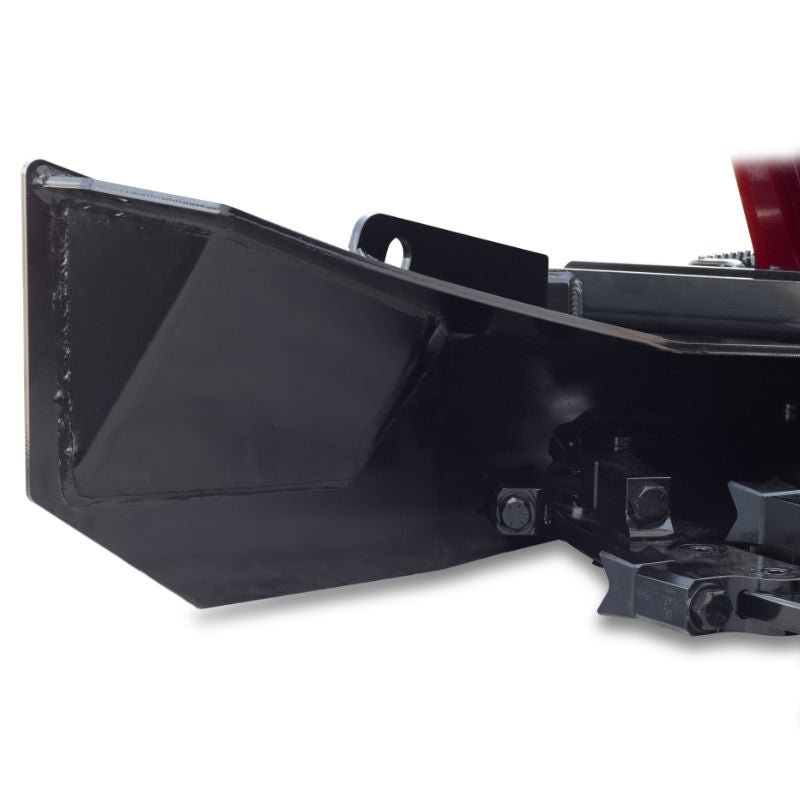

  • TWO CHUTE STYLES Choose from two chute styles; standard or open. See options tab for details.

Requires a high flow loader with a flow rate of 30-50 GPM. Max operating pressure is 4,200 PSI. DO NOT OPERATE MULCHER WITHOUT A SHATTERPROOF CAB ON LOADER.

MODEL TDM60
Cut Width (Inches) 60.0
Overall Width (Inches) 70.0
Overall Height (Inches) 40.5
Overall Depth (Inches) 77.5
Deck Height (Inches) 11.0
Push Bar Height (Inches) 40.5
Minimum Cut Height (Inches) 2.1
Cutting Capacity, Diameter (Inches) 14.0
Number of Teeth: Top / Bottom / Outside 12 / 20 / 12
Maximum Disc Thickness (Inches) 1.25
Deck Thickness: Top, Side / Inside (Inches) 0.25 / 0.375¹
Recommended Flow Rate (GPM) 30-50 High Flow Only
Max Operating Pressure (PSI) 4500
Approximate Weight (Pounds) 2710
Recommended Loader Capacity Greater than 2800 pounds

*Inside Deck Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

DISC TIP SPEEDS (FPM)

Requires a High Flow Loader with a Flow Rate of 30-50 GPM.
Max Operating Pressure is 4,200 PSI
MODEL 30 GPM 35 GPM 40 GPM 45 GPM 50 GPM
TDM60-HF45 11,155 13,006 14,875 16,730
TDM60-HF50 14,810 16,460

Flow rates in gallons per minute (GPM) and blade tip speeds in feet per minute (FPM).
