Description

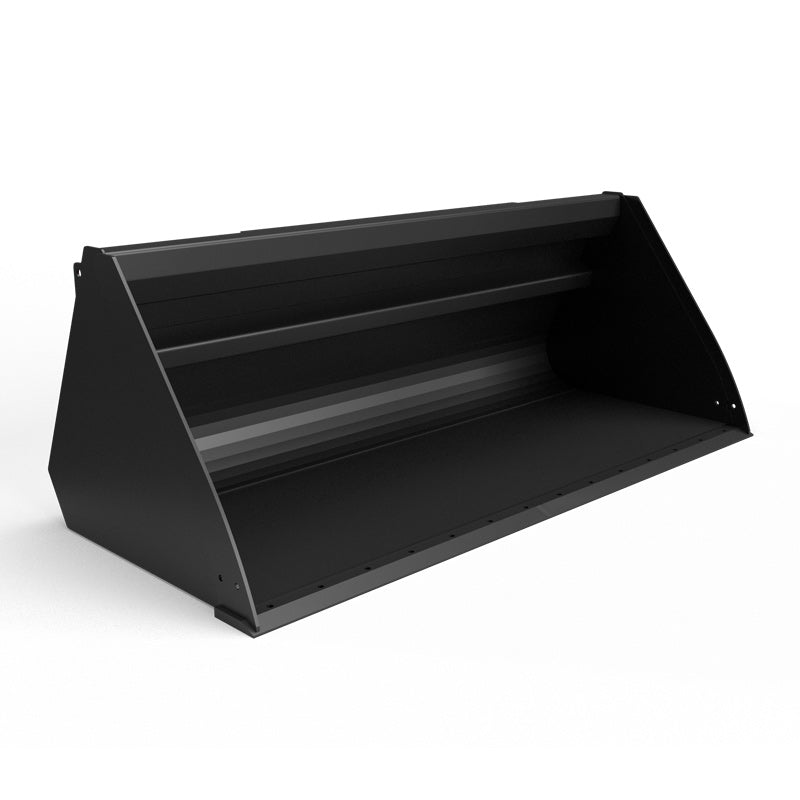

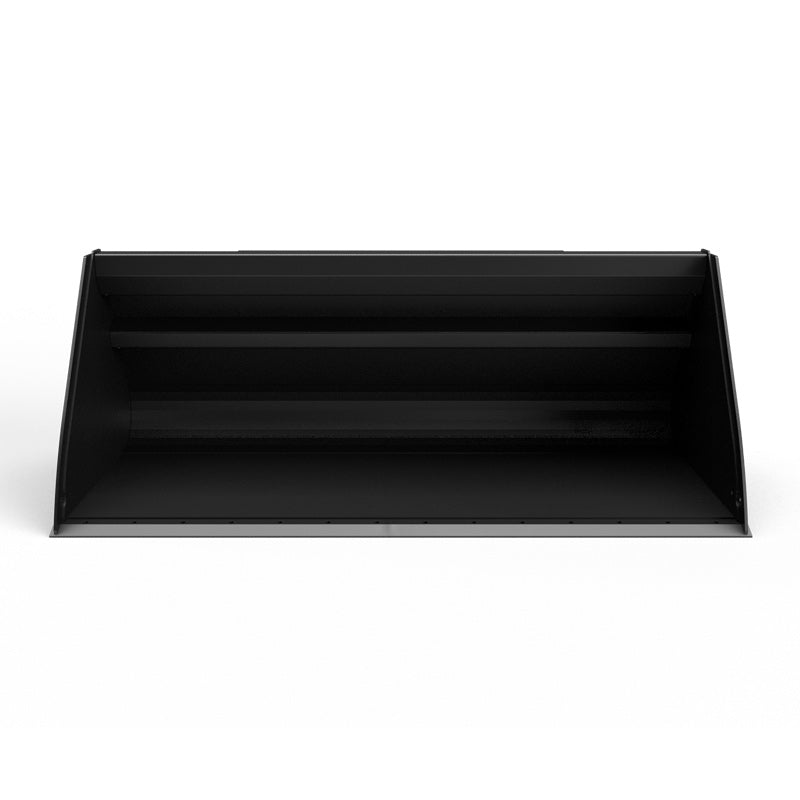

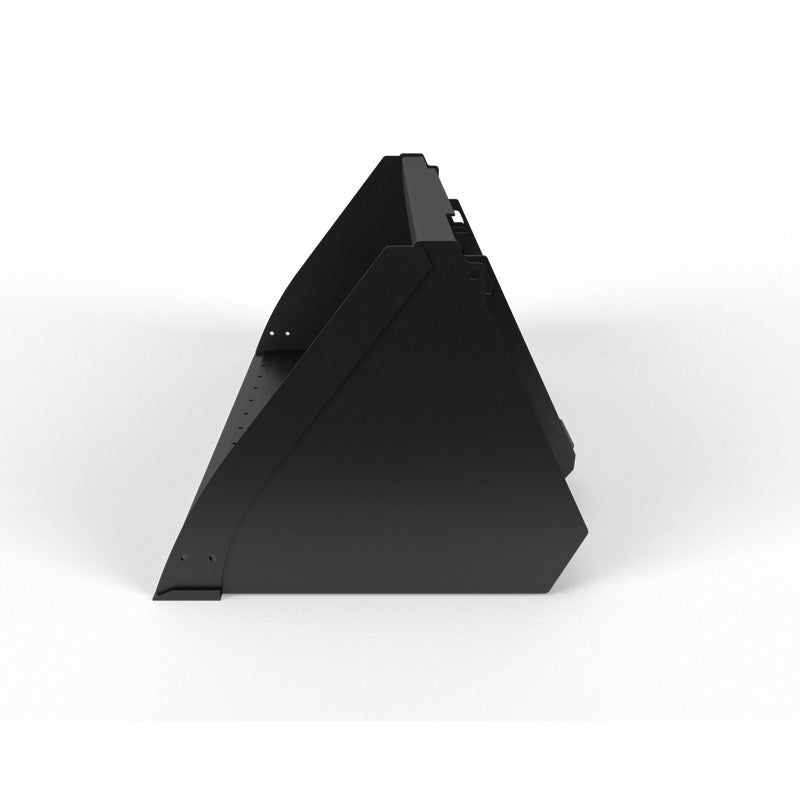

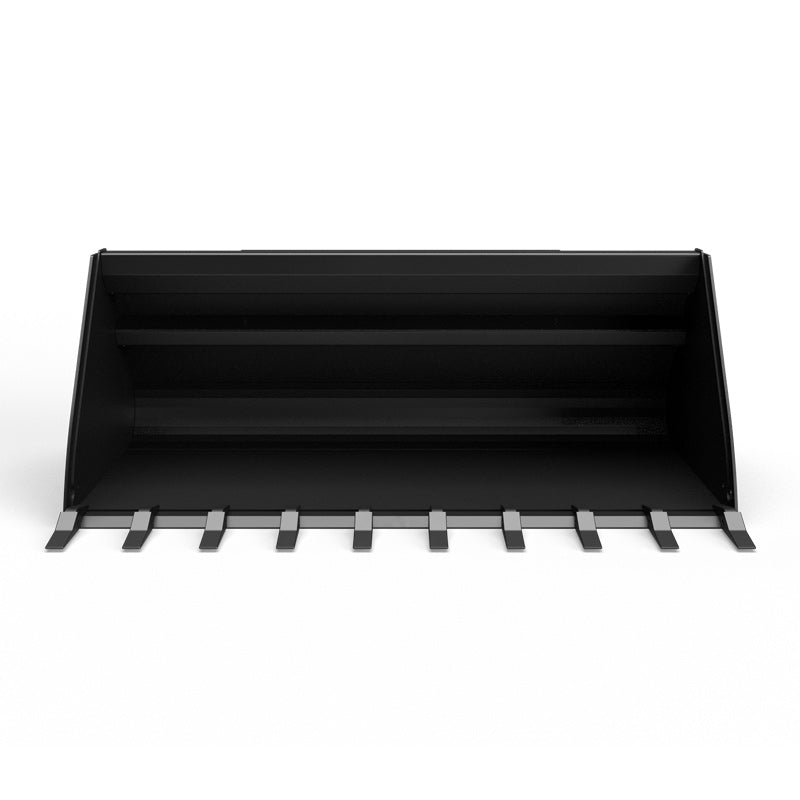

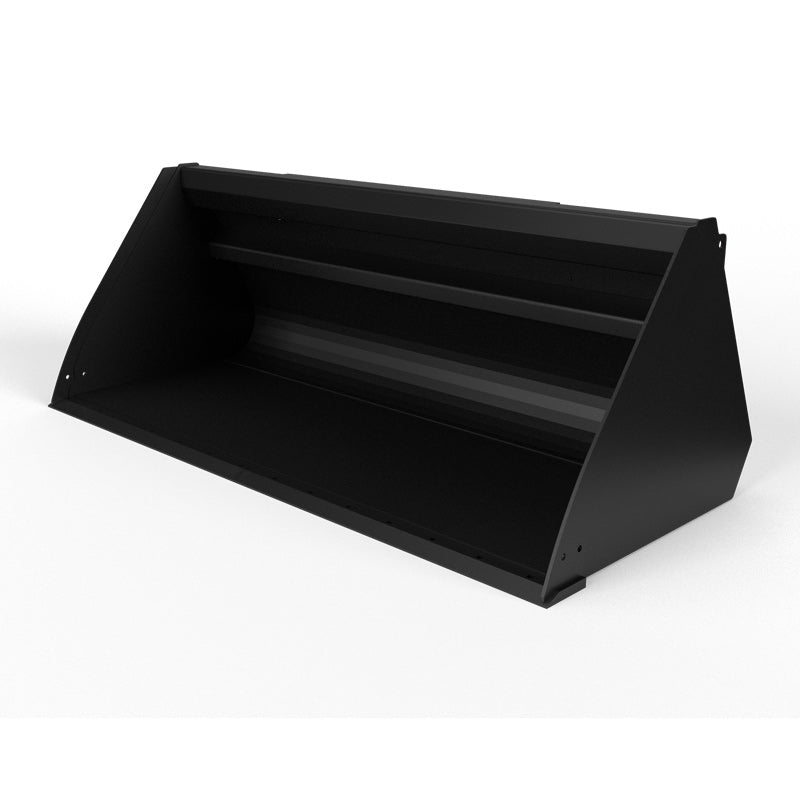

Designed taller and deeper than V70 General Purpose Bucket for 15% more capacity.

  • FLAT TOP HELPS OPERATORS GAUGE WHEN BUCKET IS LEVEL
  • CURVED INSIDE FOR EASIER MATERIAL CLEANOUT
  • 1/4” THICK SHELL & SIDE PLATES
  • 1″ x 6″ WELD-ON EDGE

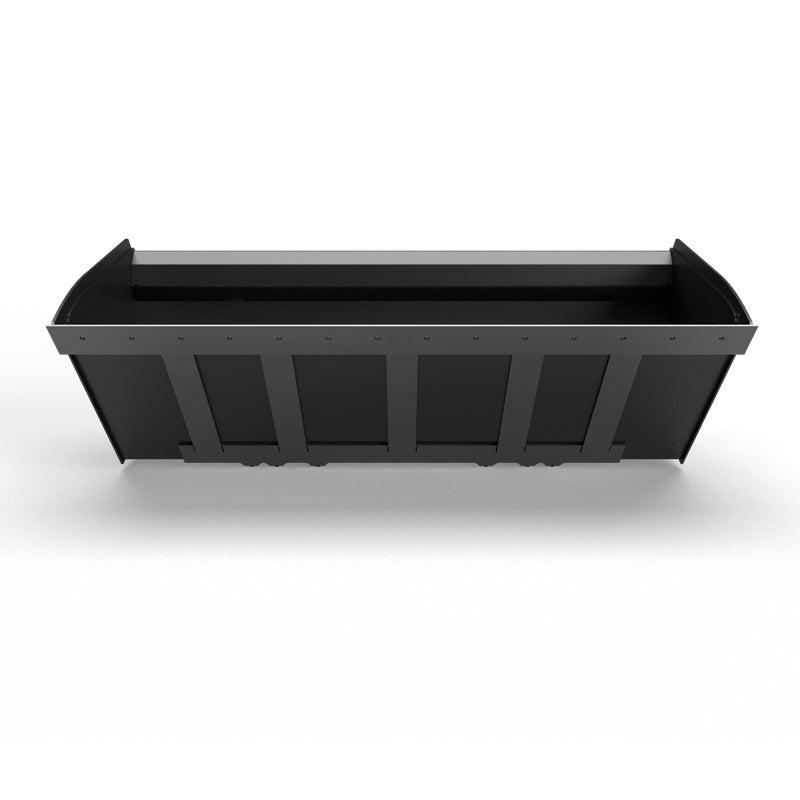

  • 1/2″ x 4″ WEAR BARS PROTECT THE BUCKET BOTTOM

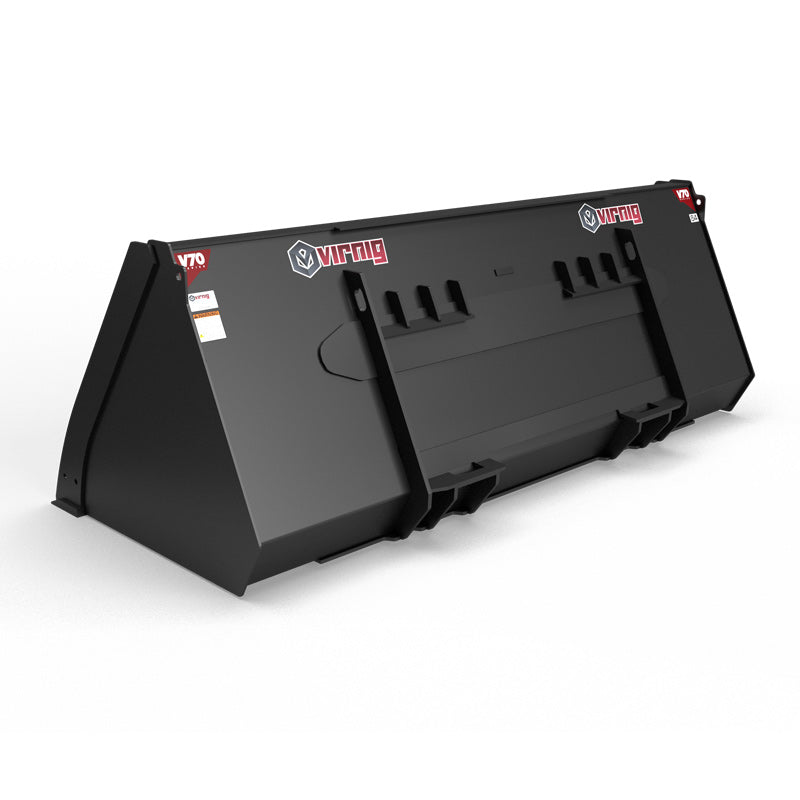

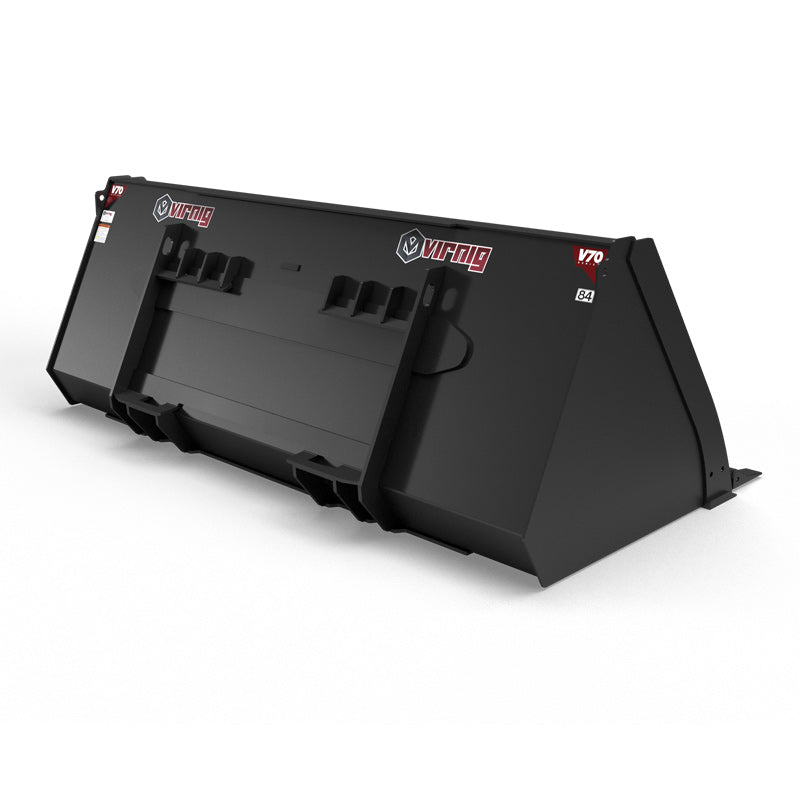

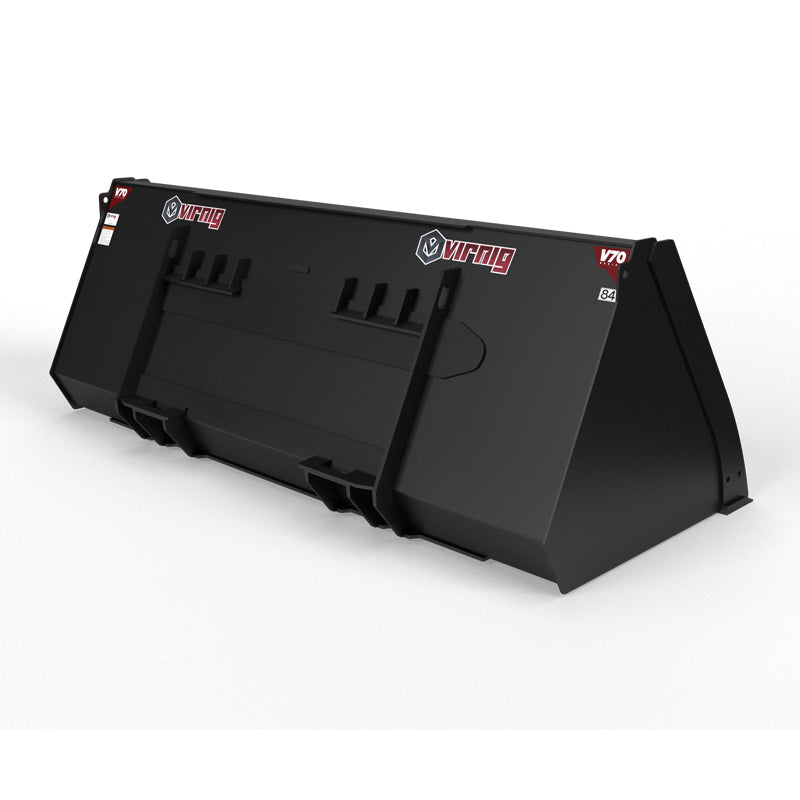

Universal skid steer mount only. ISO or pin-on mounts not available.

Not compatible with skid steers and track loaders, exclusively designed for CWLs with universal quick attach mount.

MODELS WHC72 WHC78 WHC84 WHC90 WHC96 WHC101
Width: Overall / Inside (Inches) 73.5 / 71.3 79.5 / 77.3 85.5 / 83.3 91.5 / 89.3 97.5 / 95.3 101.5 / 99.3
Overall Height (Inches) 32.1
Depth: Overall / Inside (Inches) 40.8 / 36.5
Struck Capacity (Cubic Feet / Cubic Yard) 27.0 / 1.0 29.3 / 1.08 31.6 / 1.17 33.8 / 1.25 36.1 / 1.34 37.6 / 1.40
Heaped Capacity (Cubic Feet / Cubic Yard) 32.4 / 1.20 35.2 / 1.30 37.9 / 1.40 40.6 / 1.50 43.3 / 1.60 45.1 / 1.68
Bucket Back Angle (Degrees) 65
Shell Thickness (Inches) 0.25
Side Plate Thickness (Inches) 0.25
Structural Wear Bars Under Bucket (1/2″ x 4″) 5
Approximate Weight (Pounds) 940 990 1040 1100 1150 1185
Recommended Loader Capacity Greater than 1800 pounds
Download Spec Sheet (PDF)
Download Manual >>
