Description

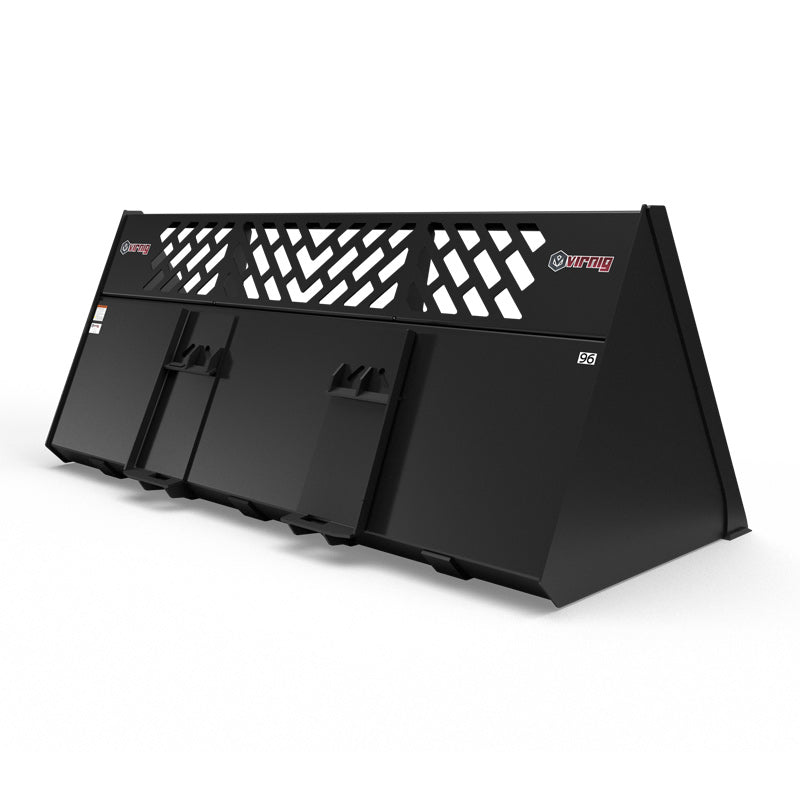

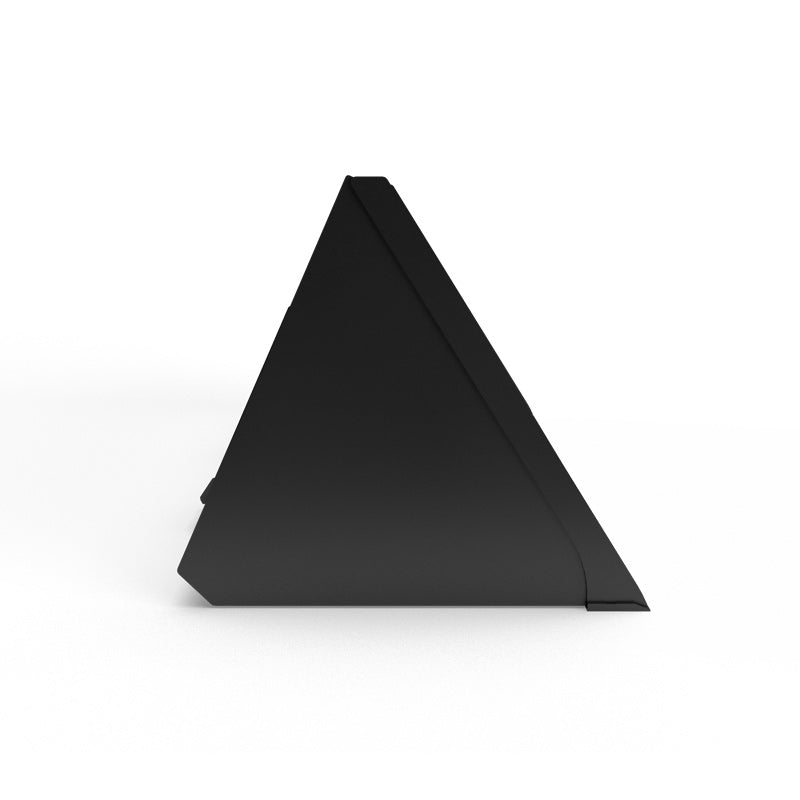

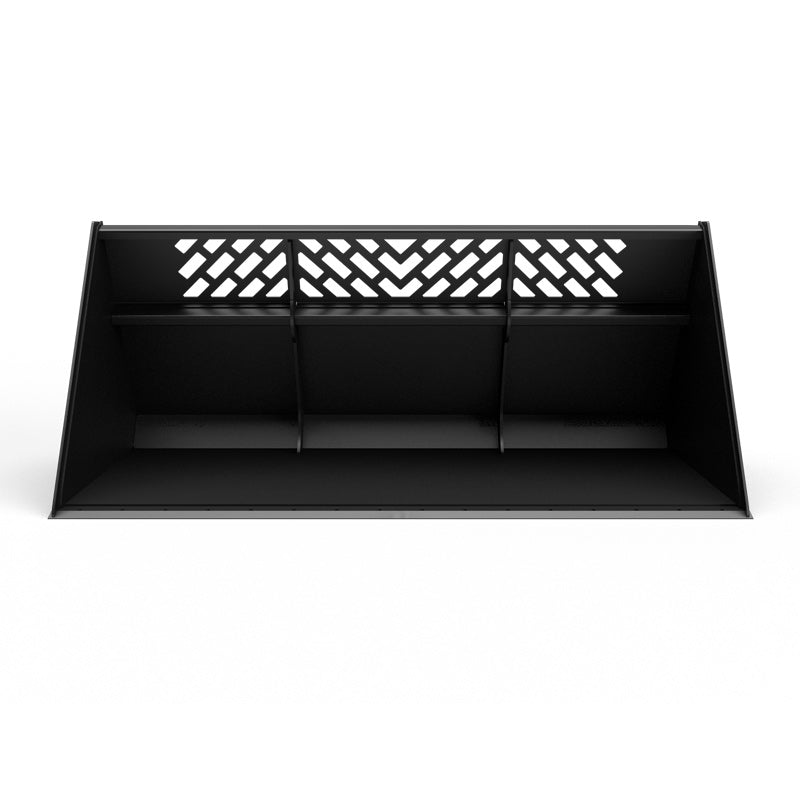

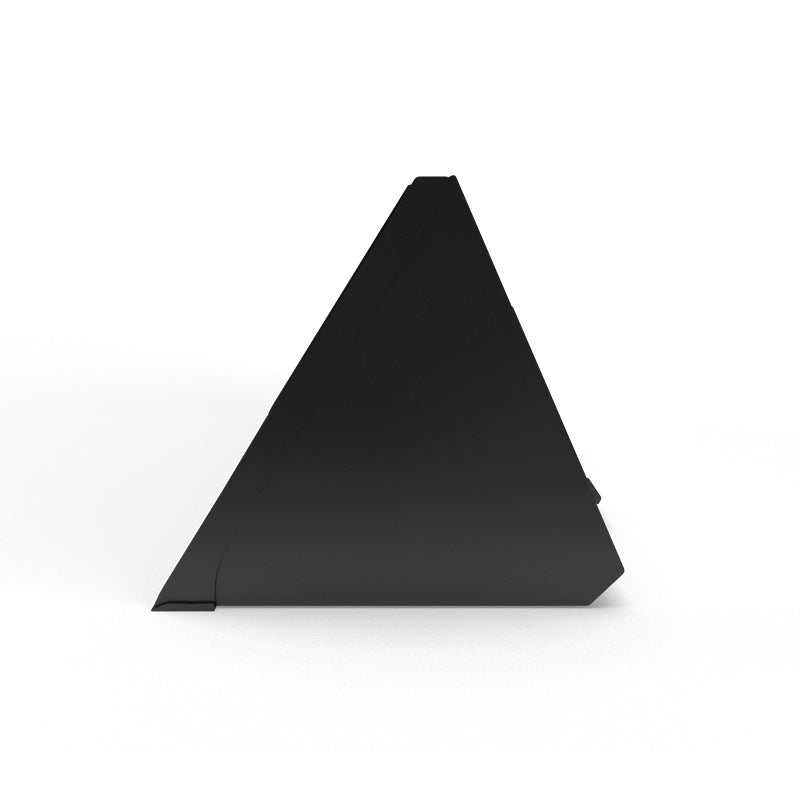

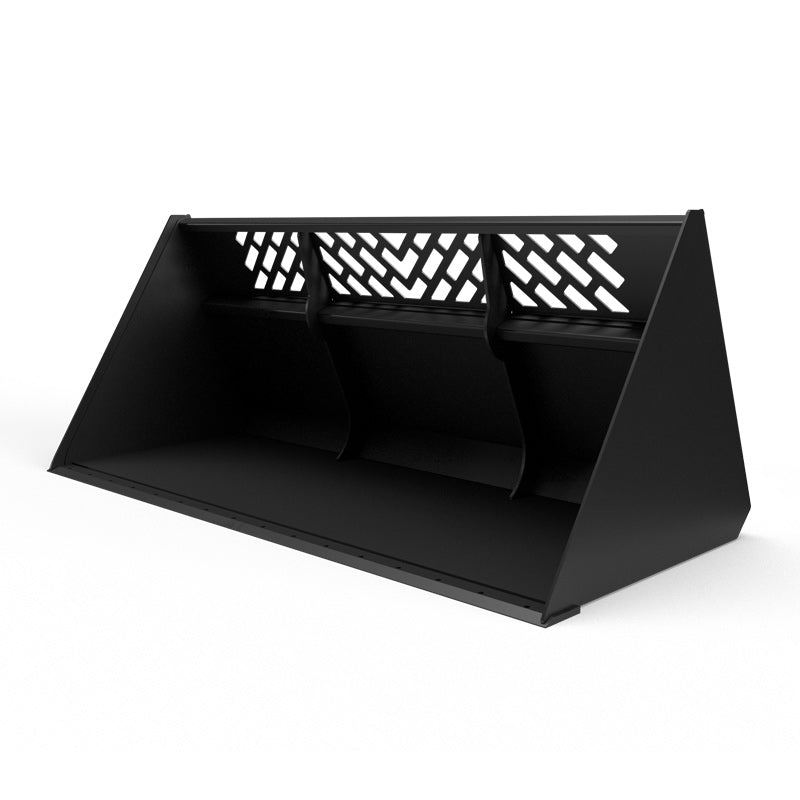

The heaviest and toughest light material bucket with the most capacity.

  • EXTRA BRACE PLATE INSIDE BUCKET FOR ADDED STRENGTH
  • 1/4” SHELL & SIDE PLATES
  • 1/2” VERTICAL BRACES INSIDE BUCKET
  • 3/8” SIDE EDGES & GUSSETS
  • WINDOWS FOR BETTER OPERATOR VISIBILITY. AVAILABLE WITH SOLID BACK
  • 3/4″ x 6″ WELD-ON EDGE
MODELS SBHV78 SBHV84 SBHV96 SBHV101
Width: Overall / Inside (Inches) 79.5 / 77.3 85.5 / 83.3 97.5 / 95.3 101.5 / 99.3
Overall Height (Inches) 40.5
Depth: Overall / Inside (Inches) 47.6 / 43.0
Window Height (Inches) 12.0
Capacity: Struck / Heaped (Cubic Feet) 40.1 / 48.1 43.2 / 51.8 49.4 / 59.3 52.2 / 62.6
Bucket Back Angle (Degrees) 66
Shell Thickness (Inches) 0.25
Side Plate Thickness (Inches) 0.25
Structural Wear Bars Under Bucket (1/2″ x 4″) 5 5 5 5
Approximate Weight (Pounds) 1045 1095 1195 1225
Recommended Loader Capacity

Greater than 2400 pounds
