Description

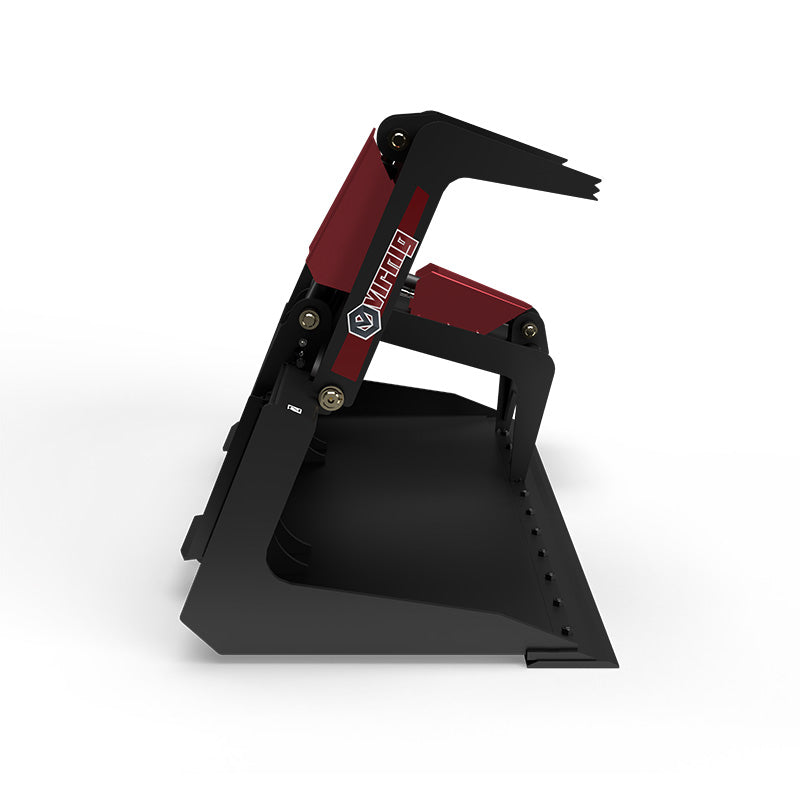

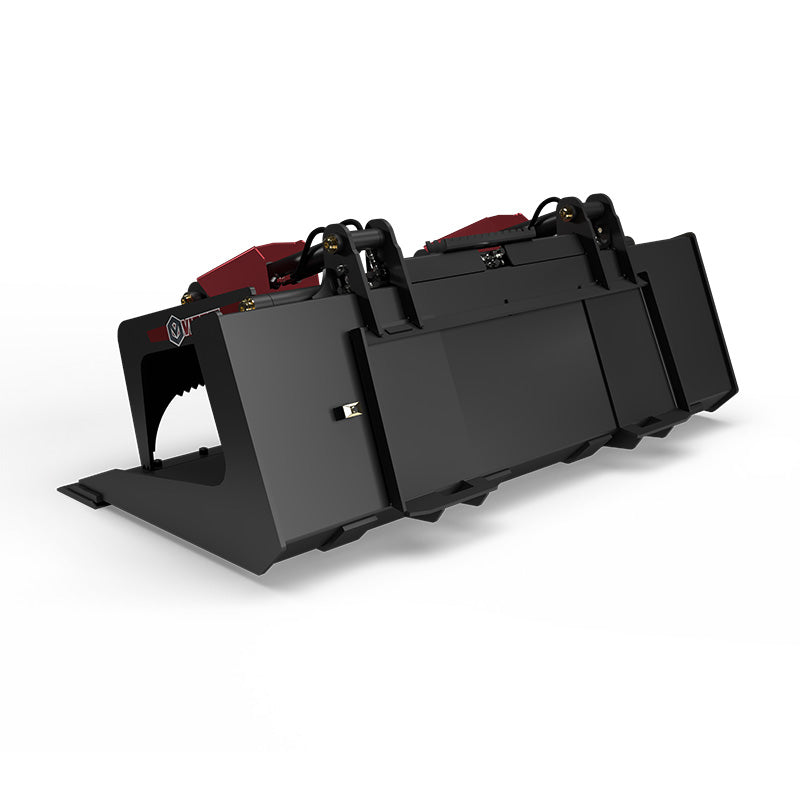

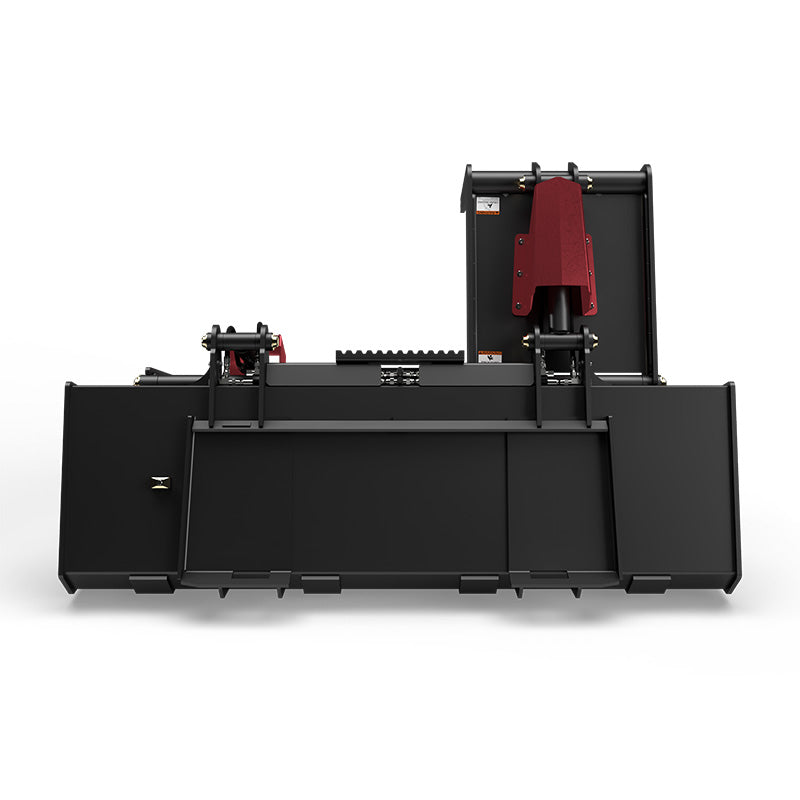

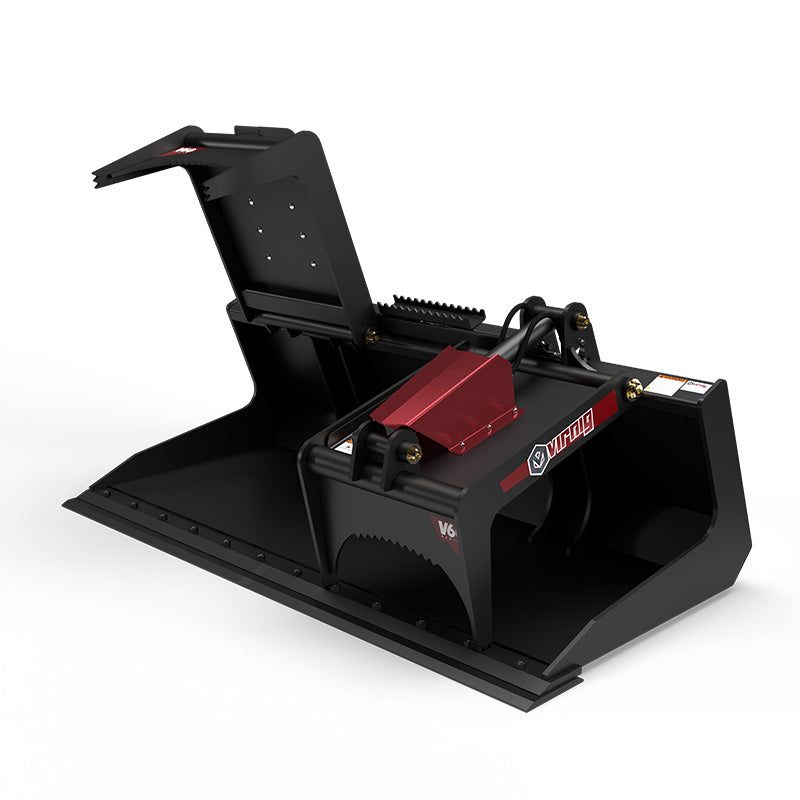

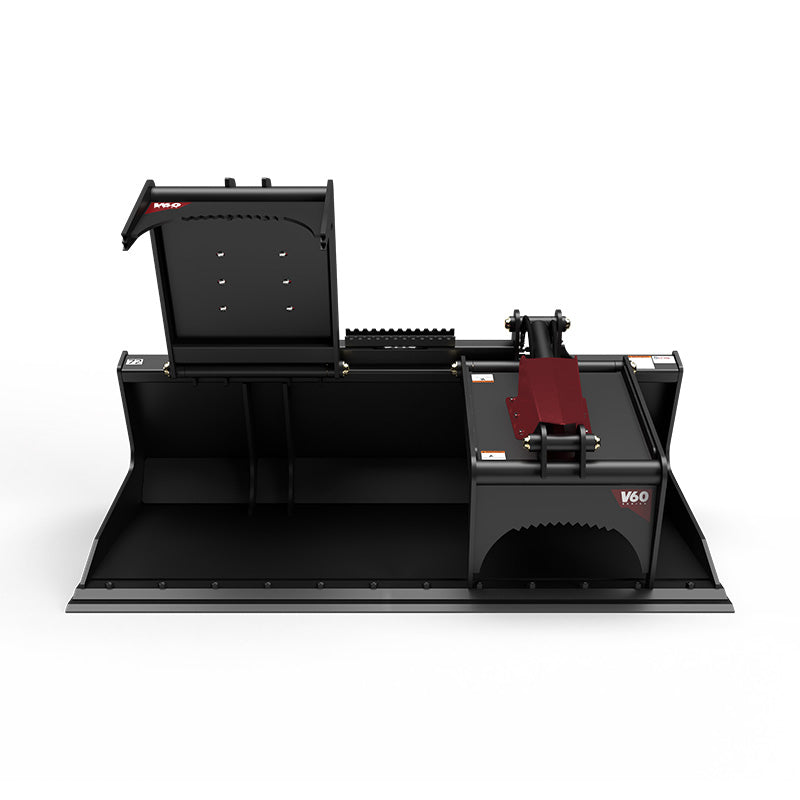

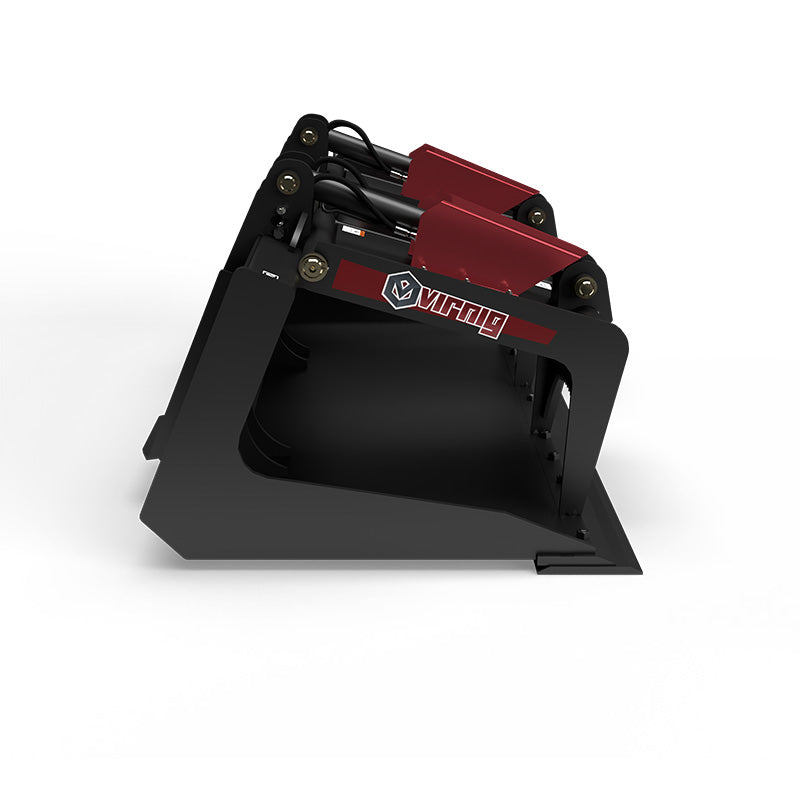

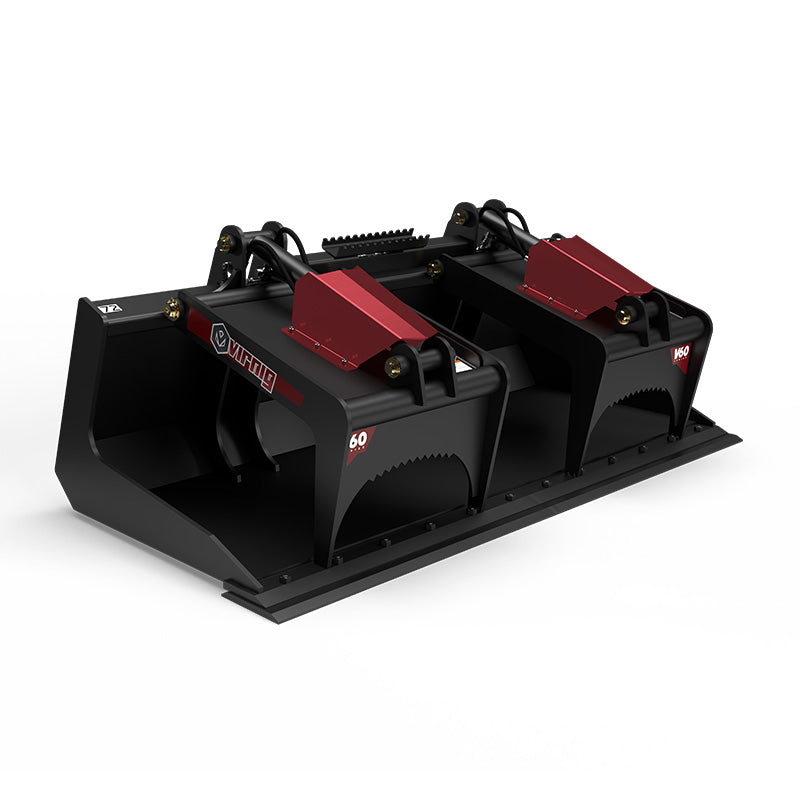

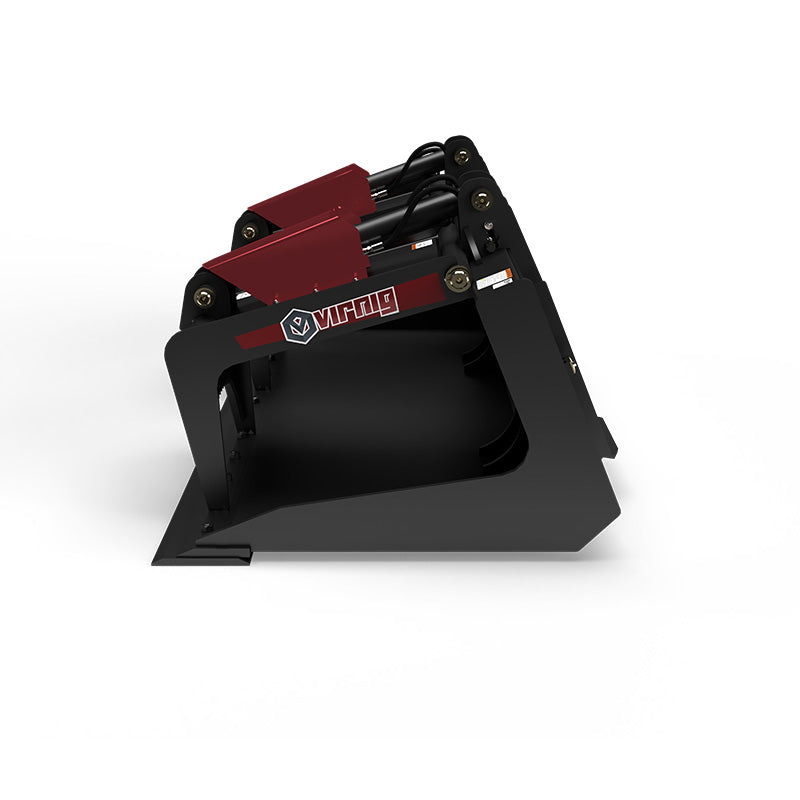

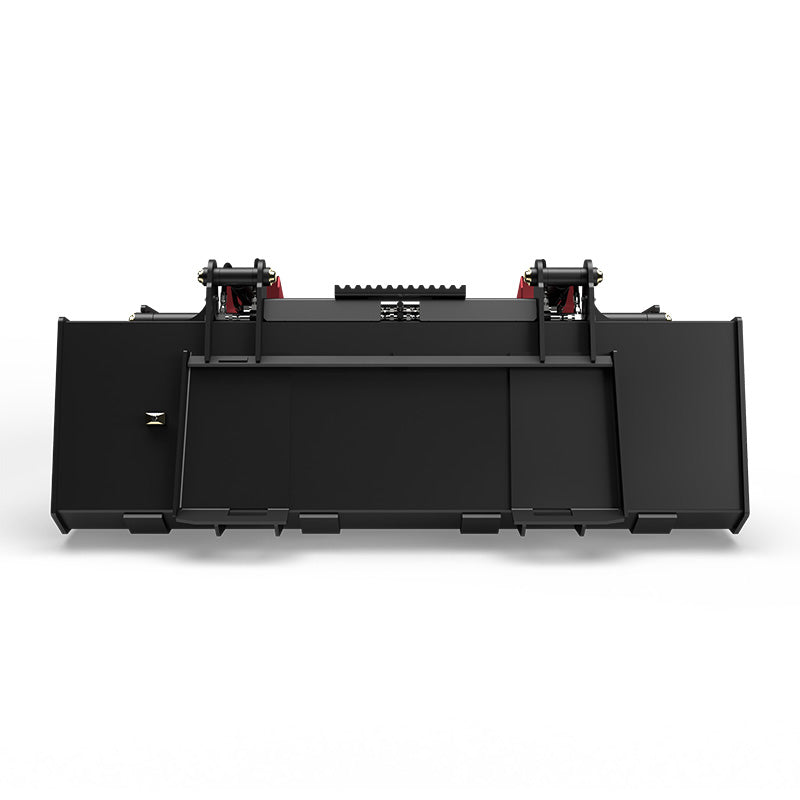

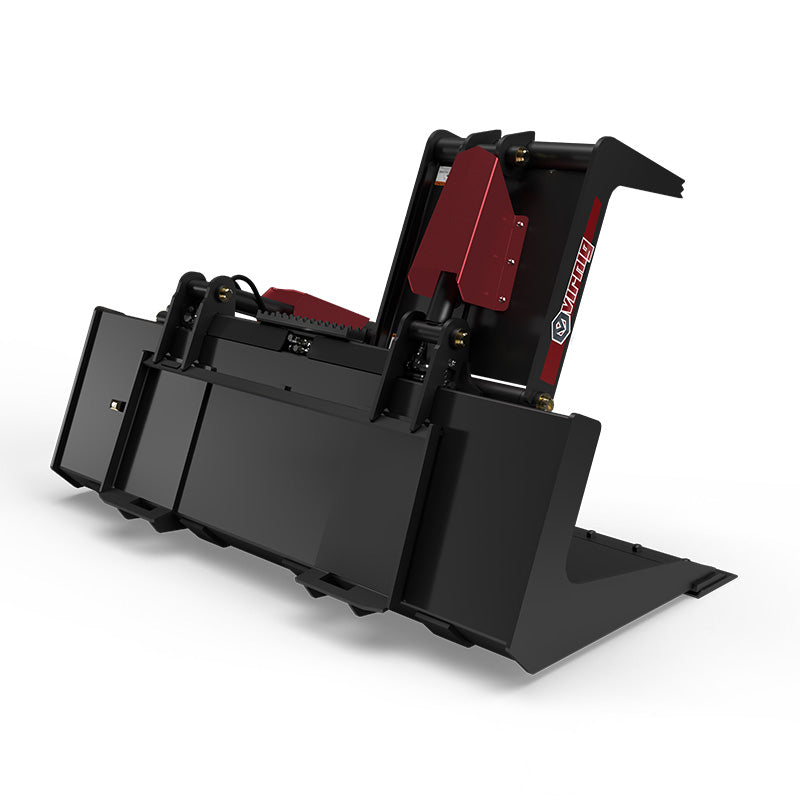

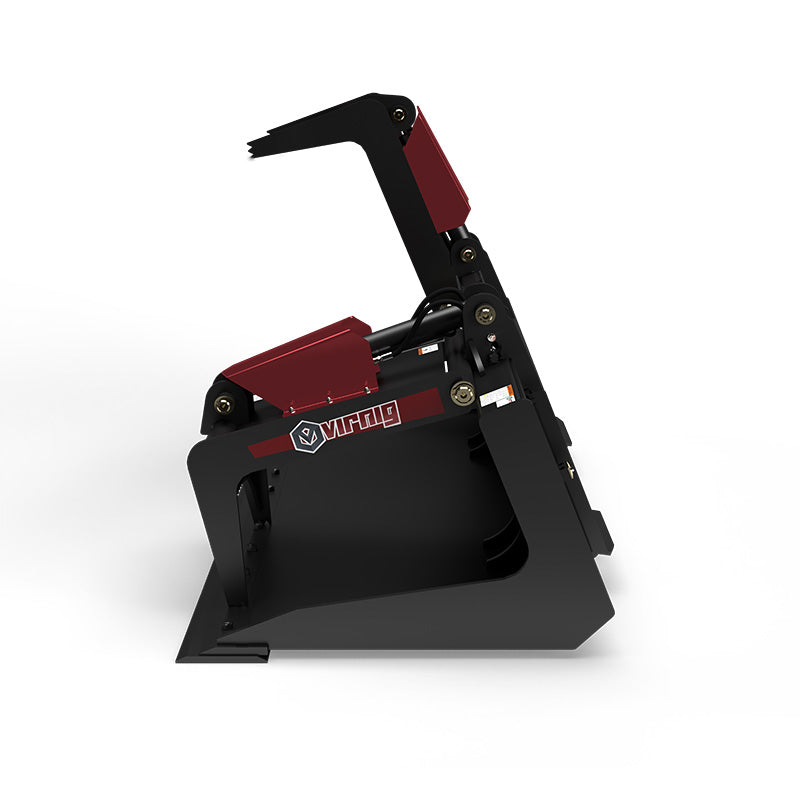

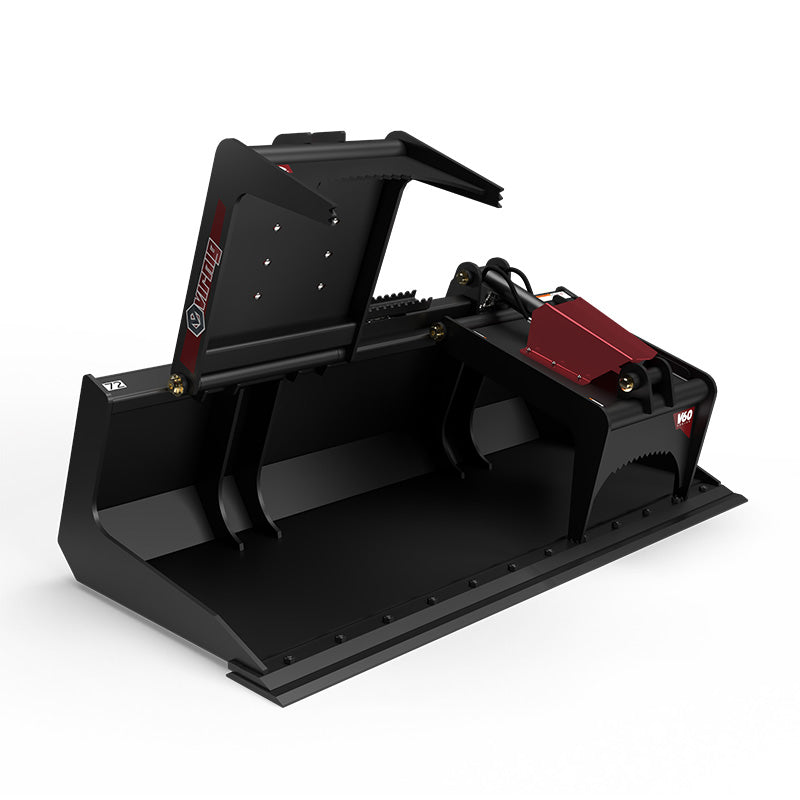

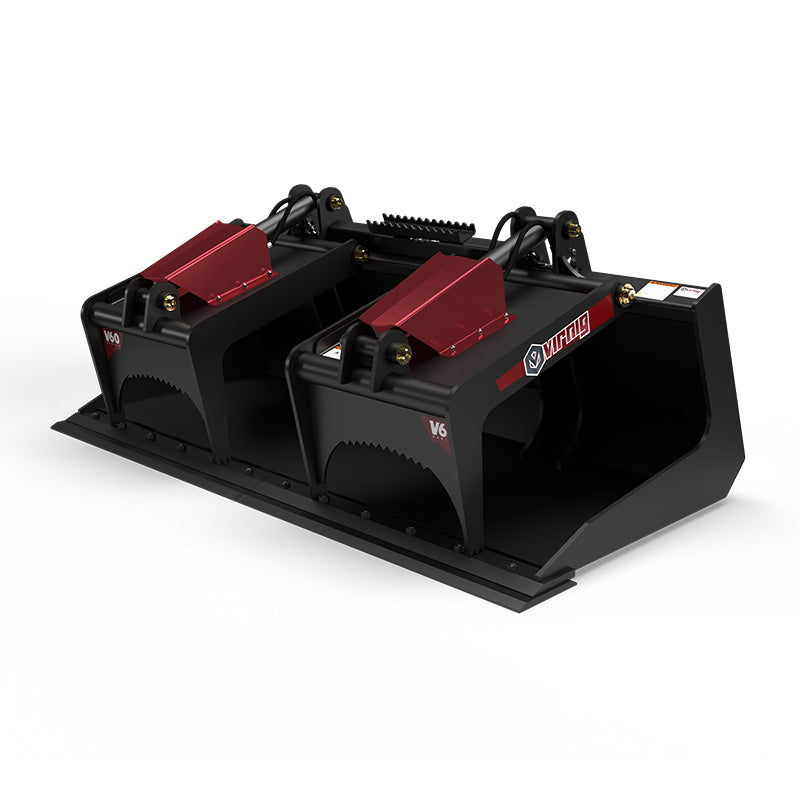

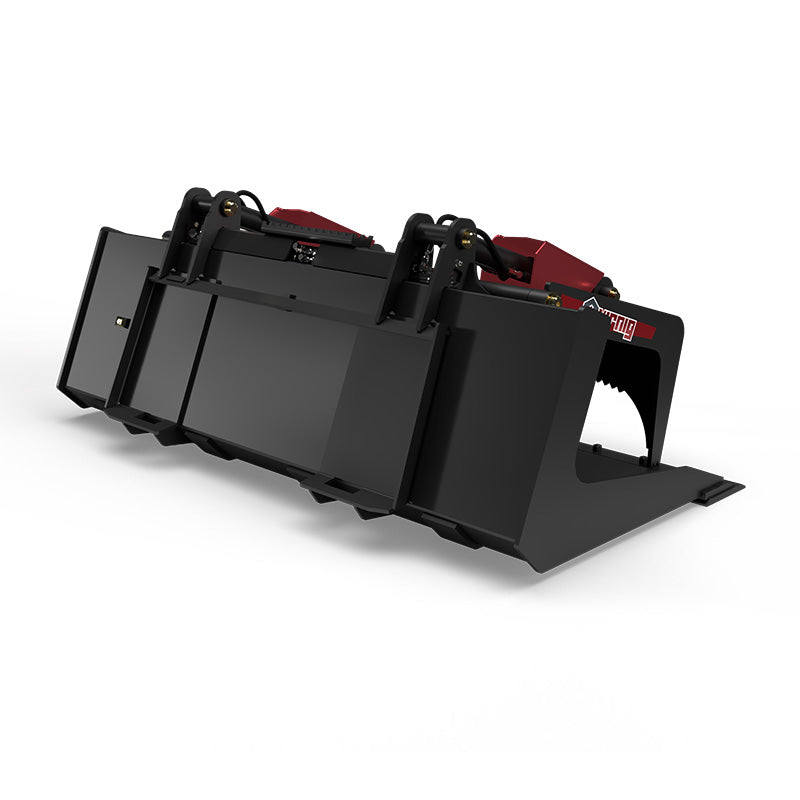

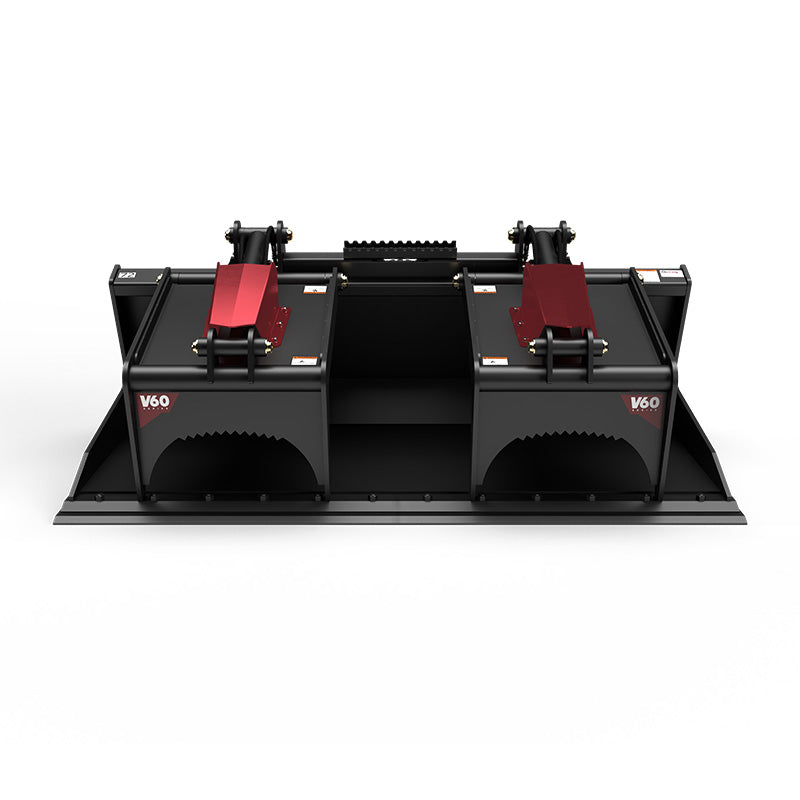

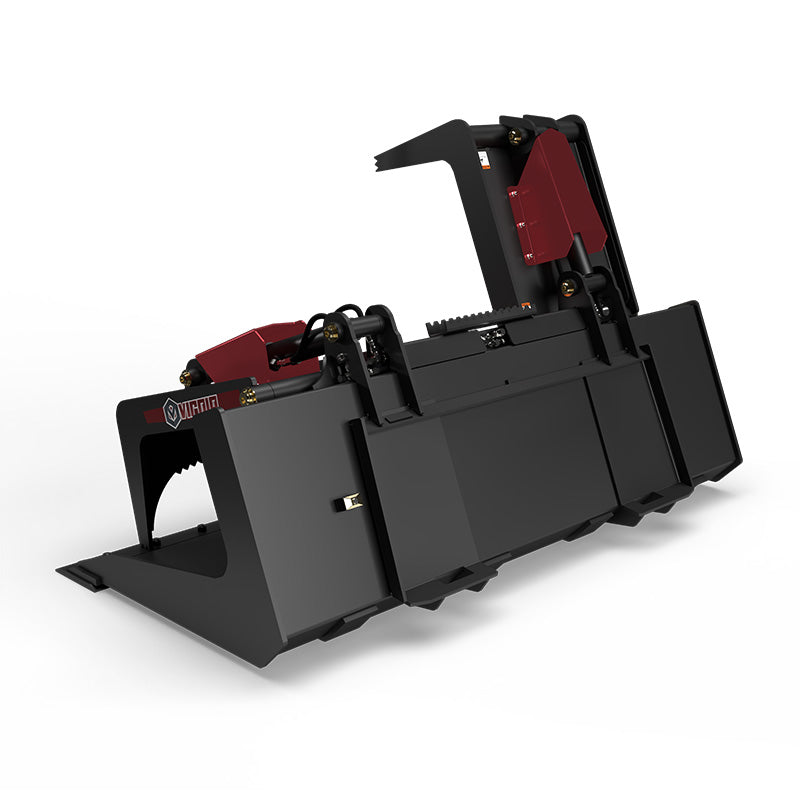

The toughest solid bottom grapple for scooping and hauling loose and bulky debris.

  • EXTRA BRACE PLATE & 1/2” VERTICAL BRACES INSIDE BUCKET FOR ADDED STRENGTH
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • 3/4″ x 6″ WELD-ON EDGE

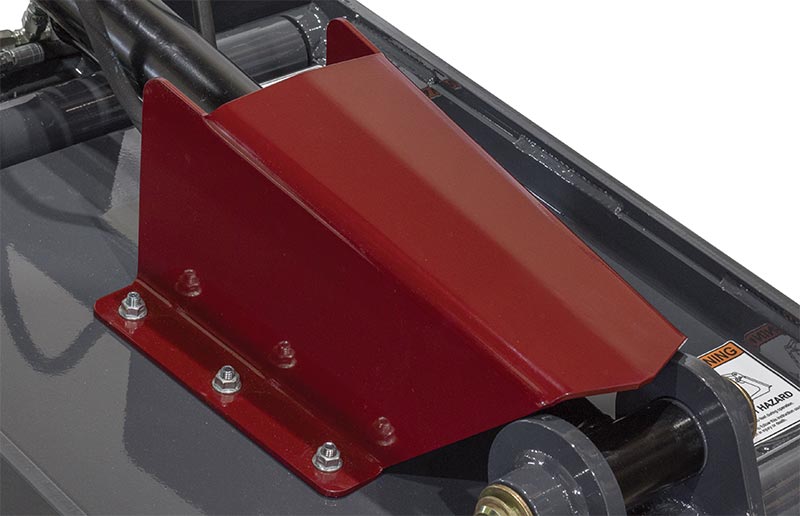

  • STANDARD WITH CYLINDER GUARDS
MODEL ISG72 ISG78 ISG84 ISG90
Overall Width (Inches) 73.5 79.5 85.5 91.5
Height: Overall / Bucket (Inches) 29.0 / 22.5
Overall Depth (Inches) 35.5
Structural Wear Bars Under Bucket (1/2″ x 4″) 4 5 5 5
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
Grapple Jaw Opening (Inches) 38.8
Approximate Weight (pounds) 1080 1130 1170 1210
Recommended Loader Capacity Greater than 2400 pounds
