Description

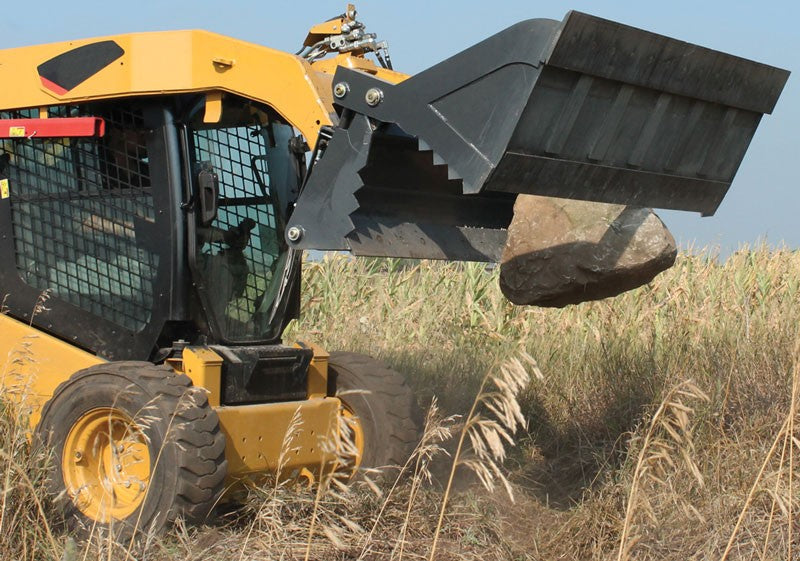

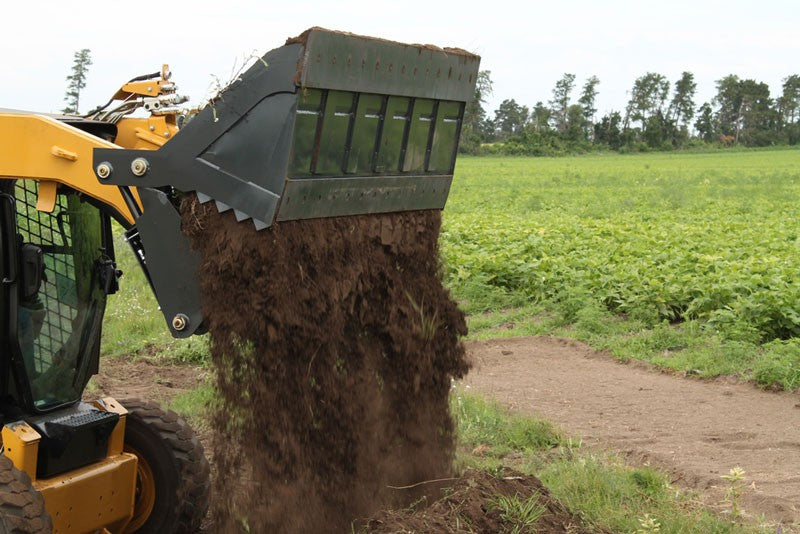

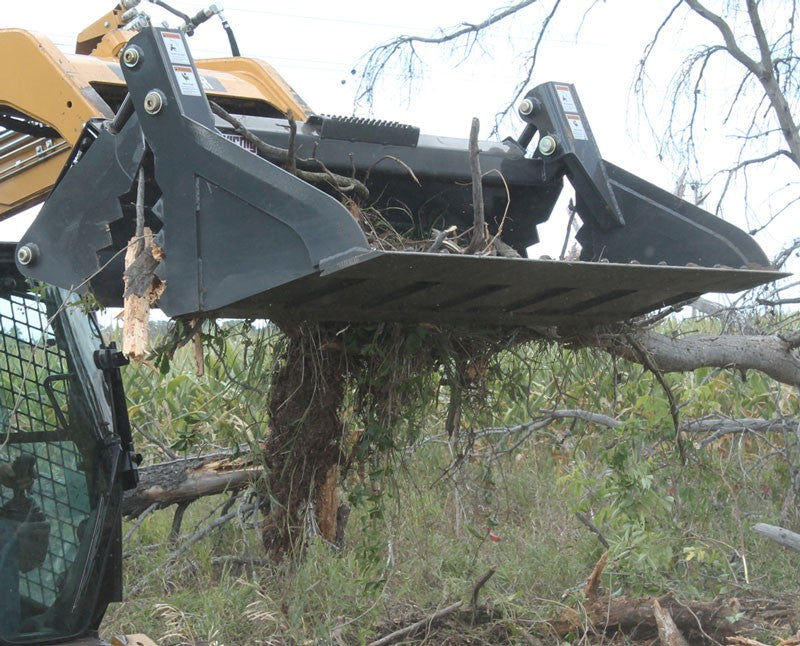

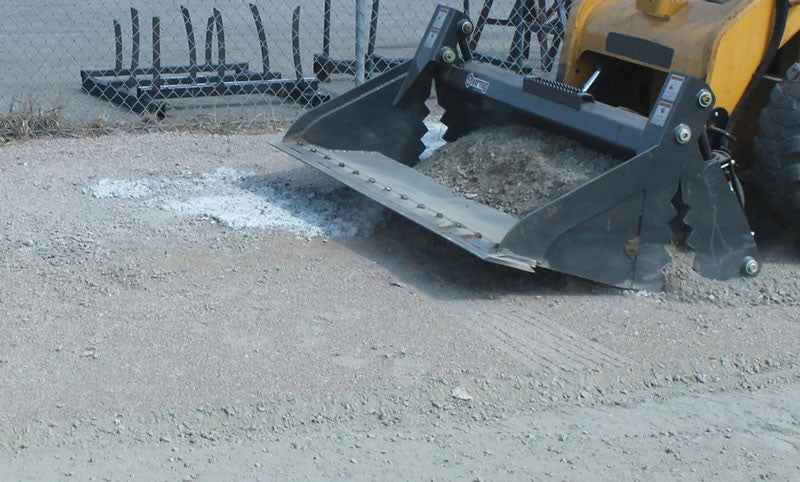

Heavily built bucket for dozing, clamming, leveling and bottom dumping.

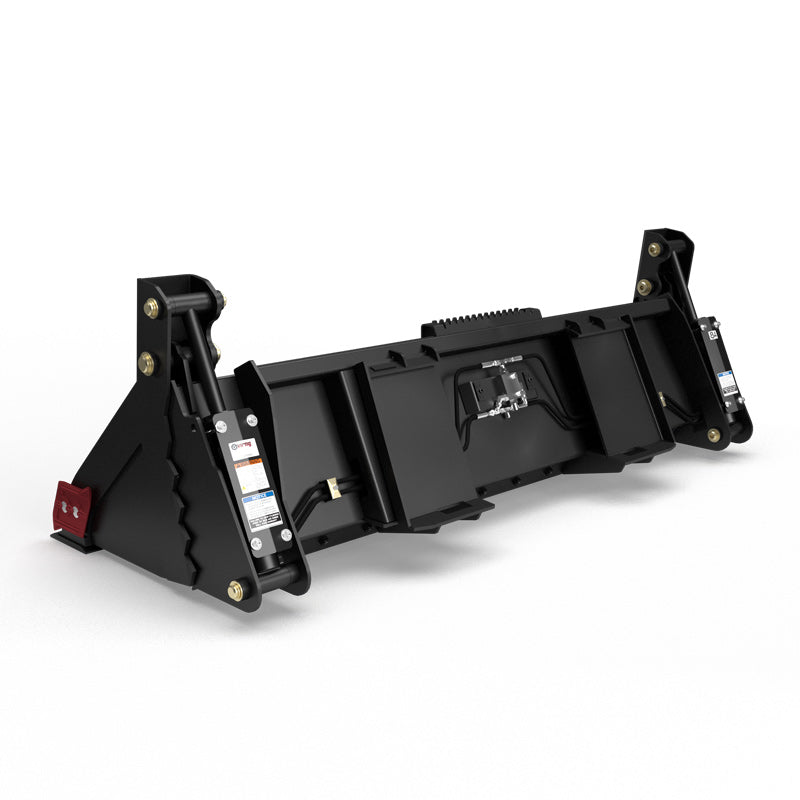

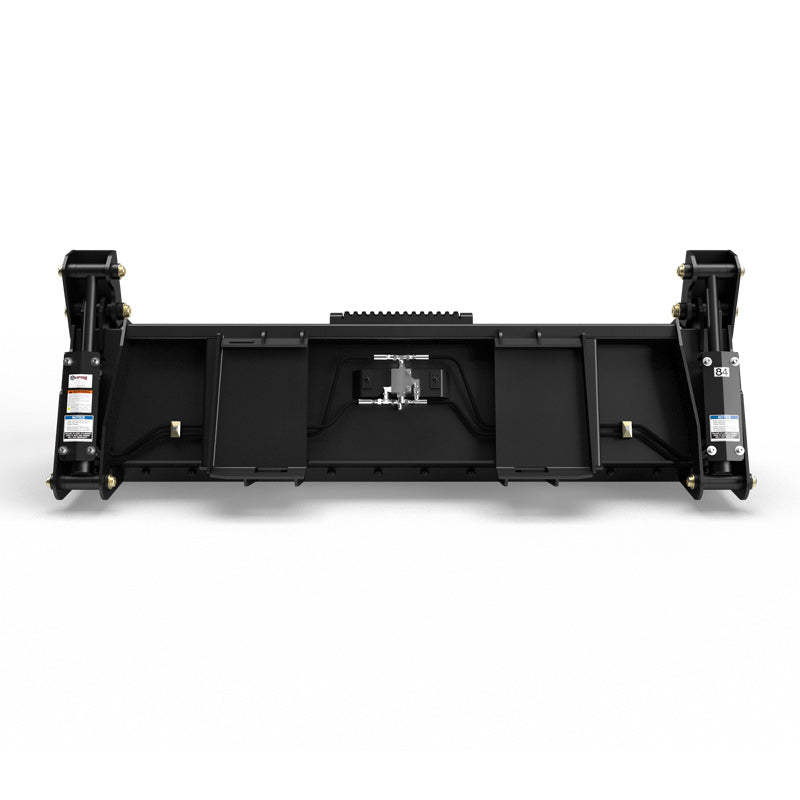

  • STANDARD WITH CYLINDER GUARDS
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • 5/8″ x 6″ REVERSIBLE STEEL BOLT-ON EDGES
  • 1″ x 6″ WELD-ON EDGE

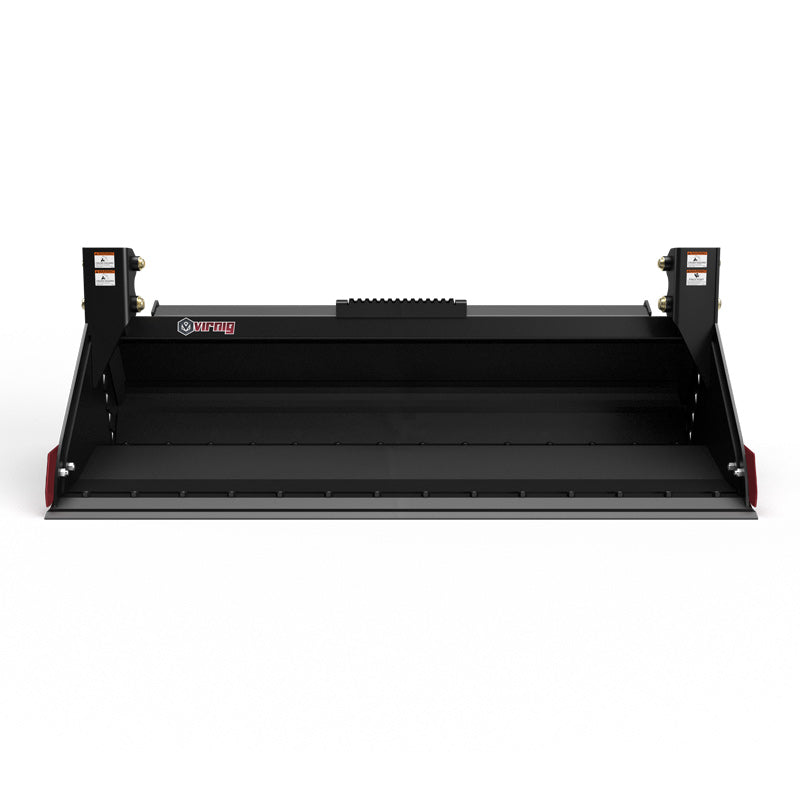

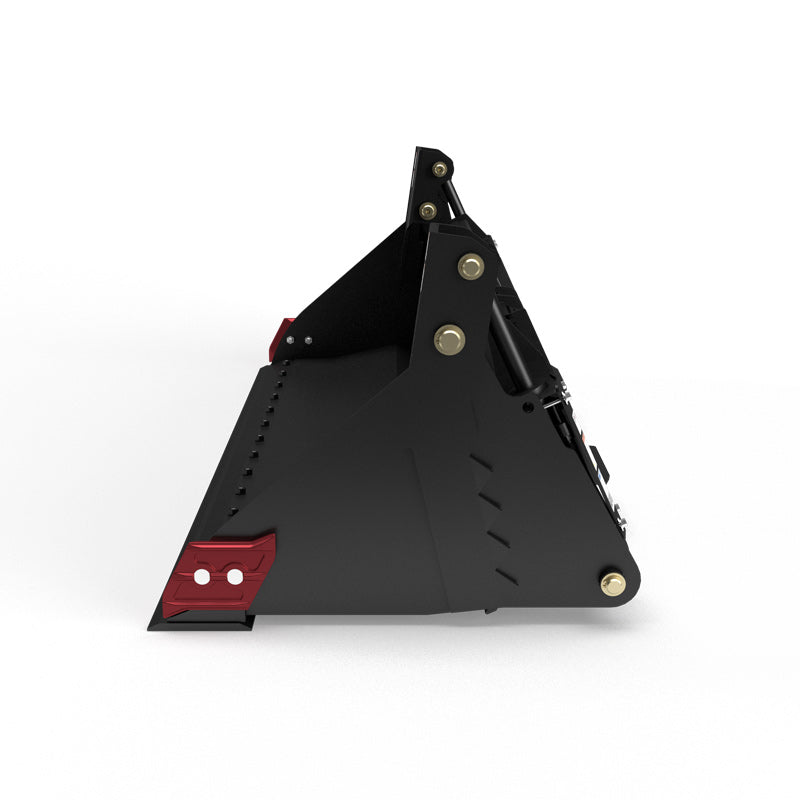

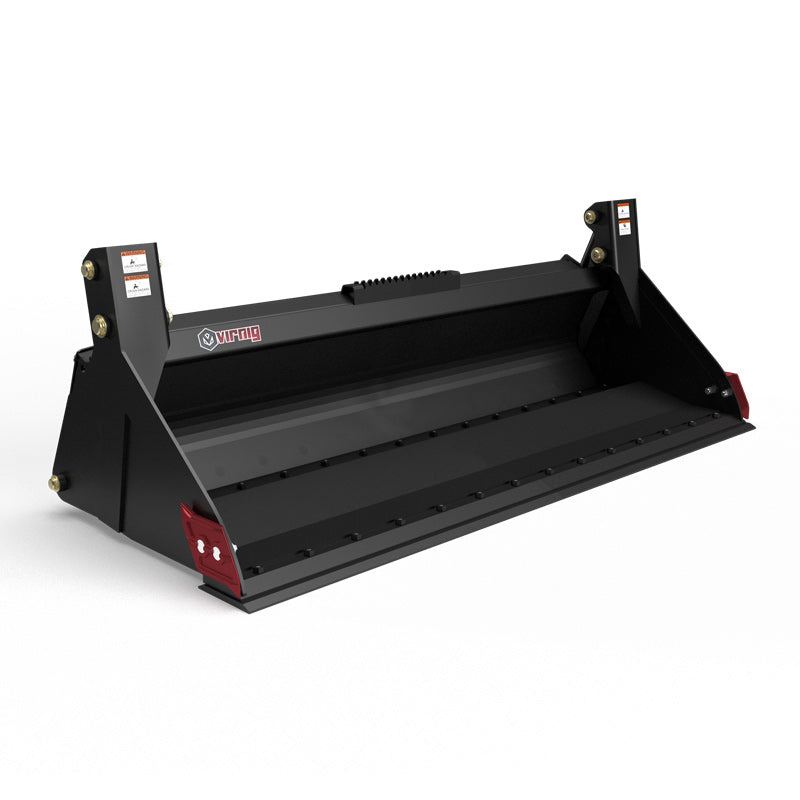

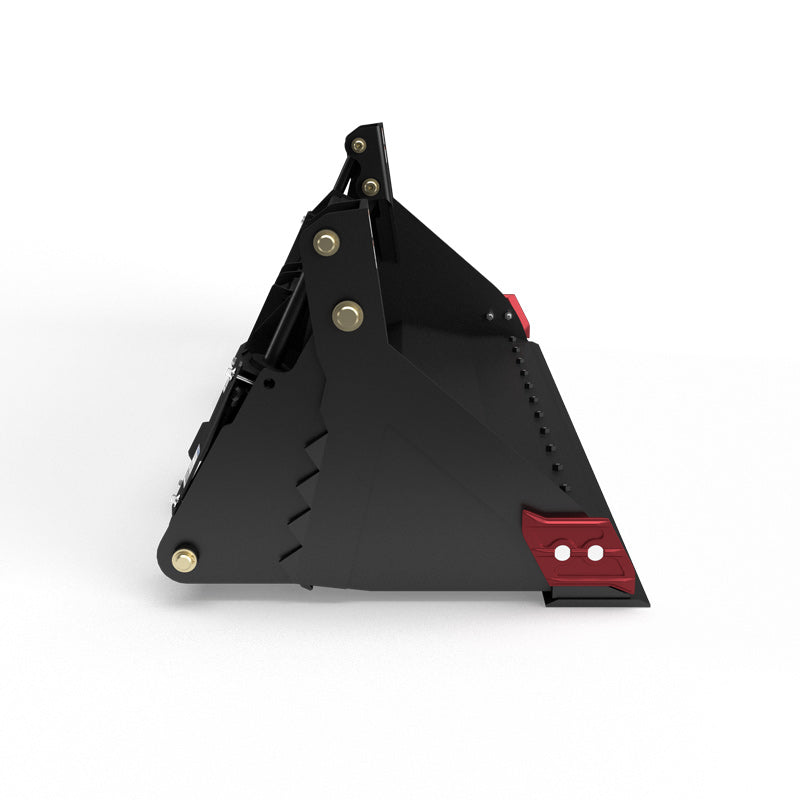

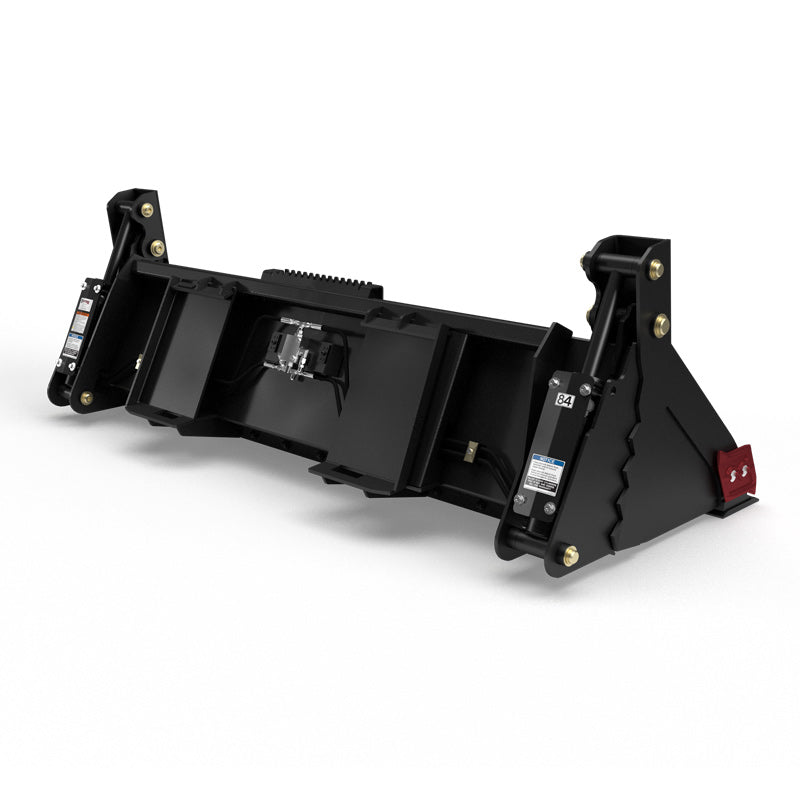

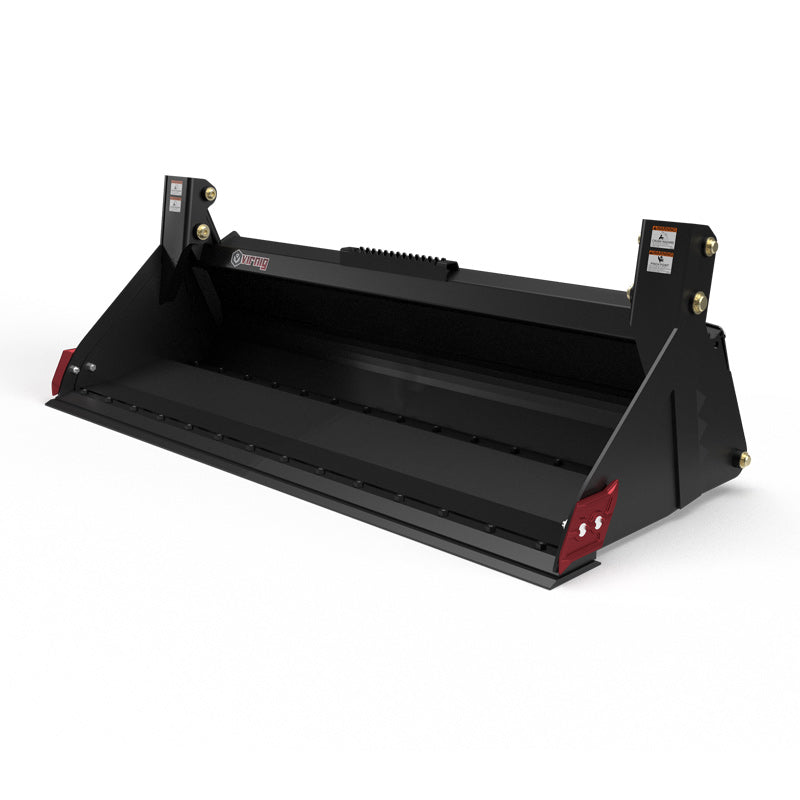

Bucket shown with optional bolt-on edge.

MODEL HMPV66 HMPV72 HMPV78 HMPV84
Width: Overall / Inside (Inches) 67.5 / 65.5 73.5 / 71.5 79.5 / 77.5 85.5 / 83.5
Height: Overall / Bucket / Open (Inches) 29.8 / 21.3 / 46.0
Depth: Overall / Inside (Inches) 37.0 / 28.5
Dozer Width (Inches) 65.9 71.9 77.9 83.9

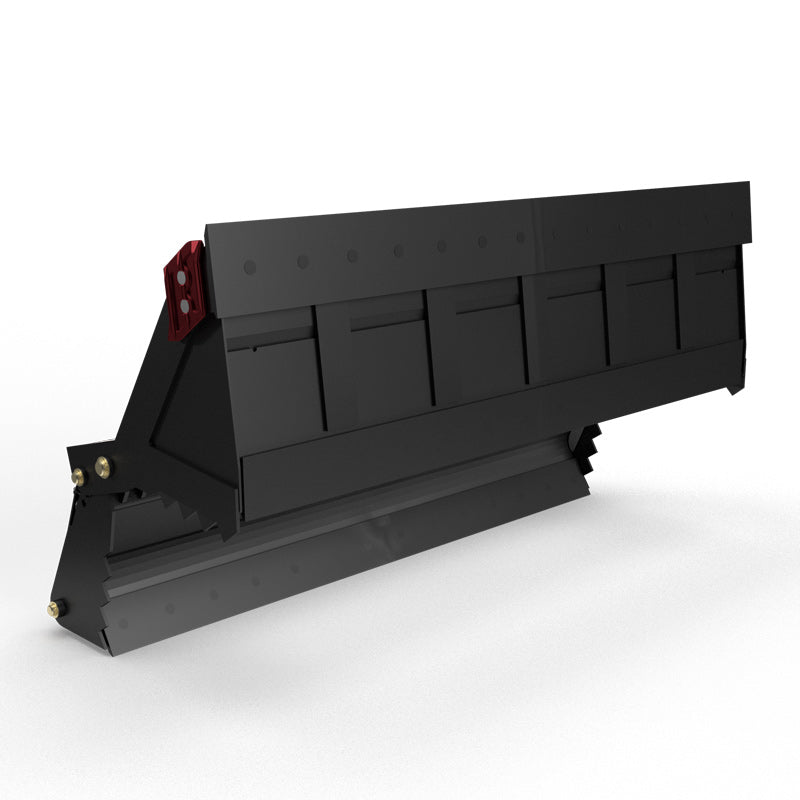

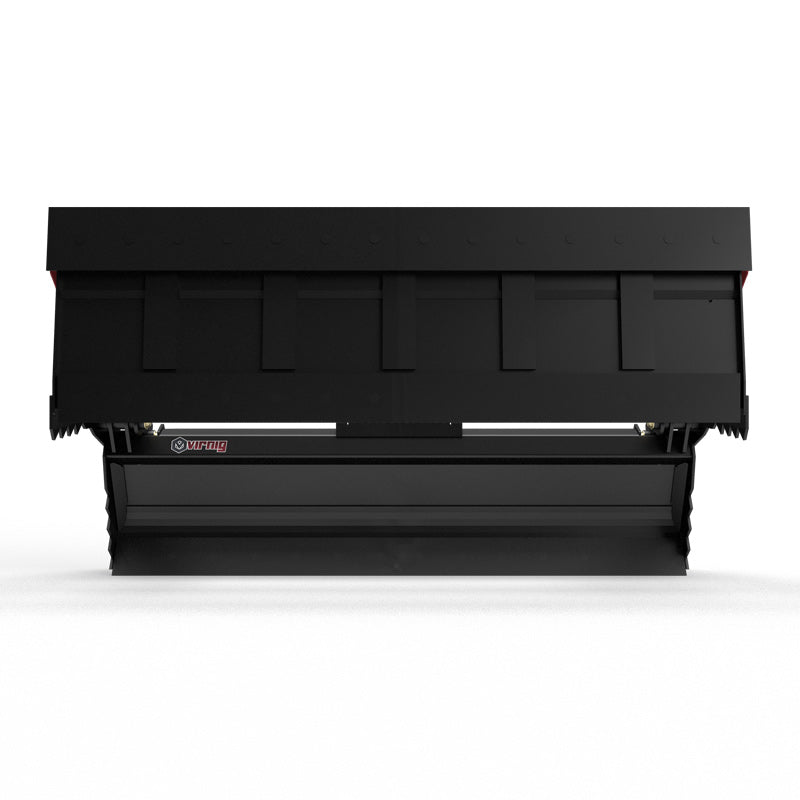

Clam Opening (Inches) 33.0
Thickness: Shell / Hinge Structure (Inches) 0.25 / 0.5
Structural Wear Bars Underneath Bucket (1/2″ x 4″) 4 4 5 5
Cylinder Bore / Stroke (Inches) 2.5 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
Approximate Weight (Pounds) 1045 1100 1165 1220
Recommended Loader Capacity Greater than 2400 pounds
Download Spec Sheet (PDF)
Download Manual >>
