Description

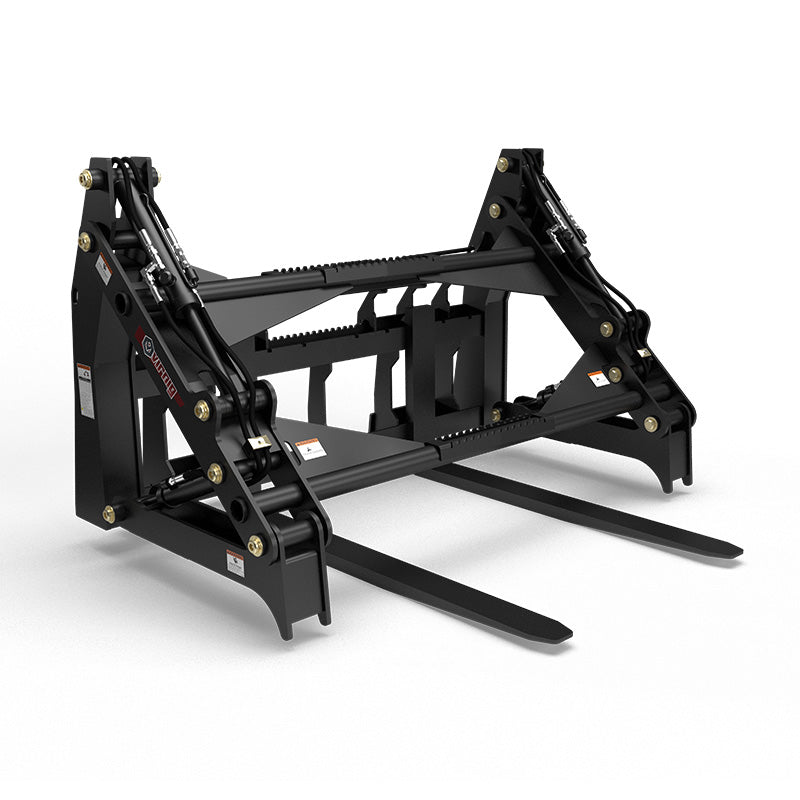

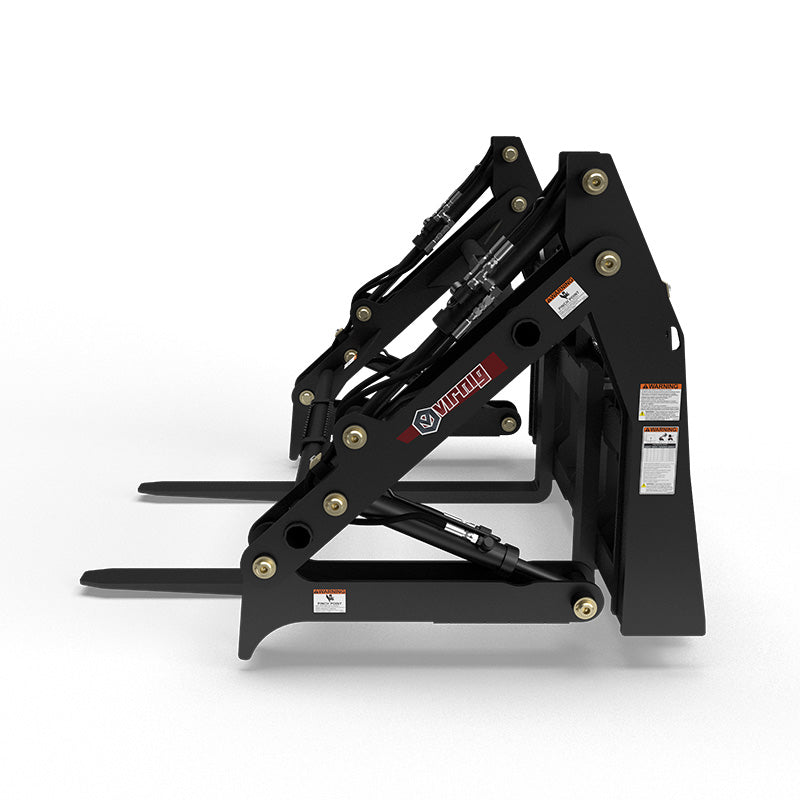

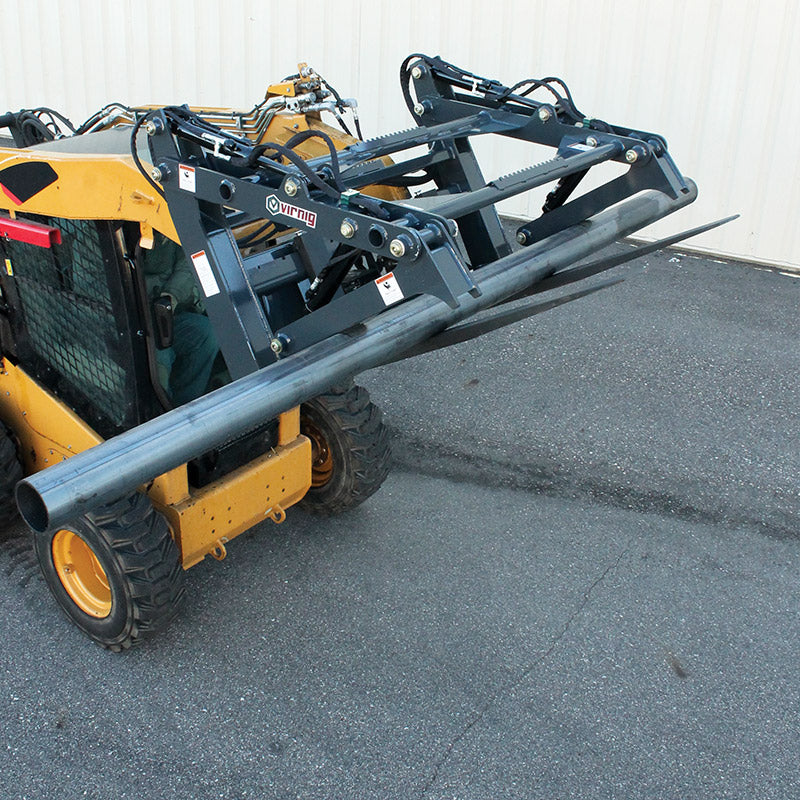

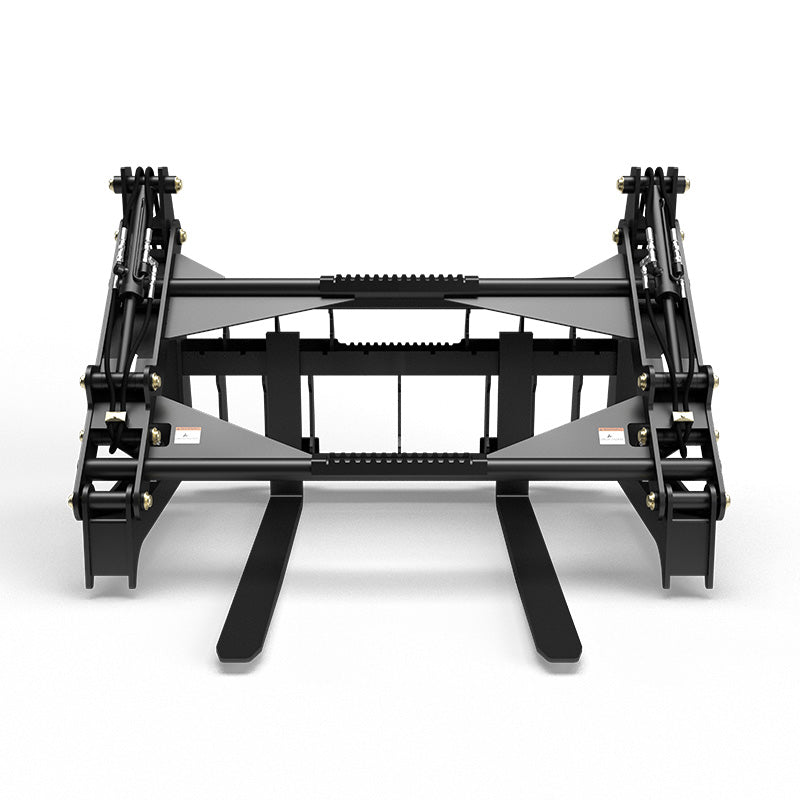

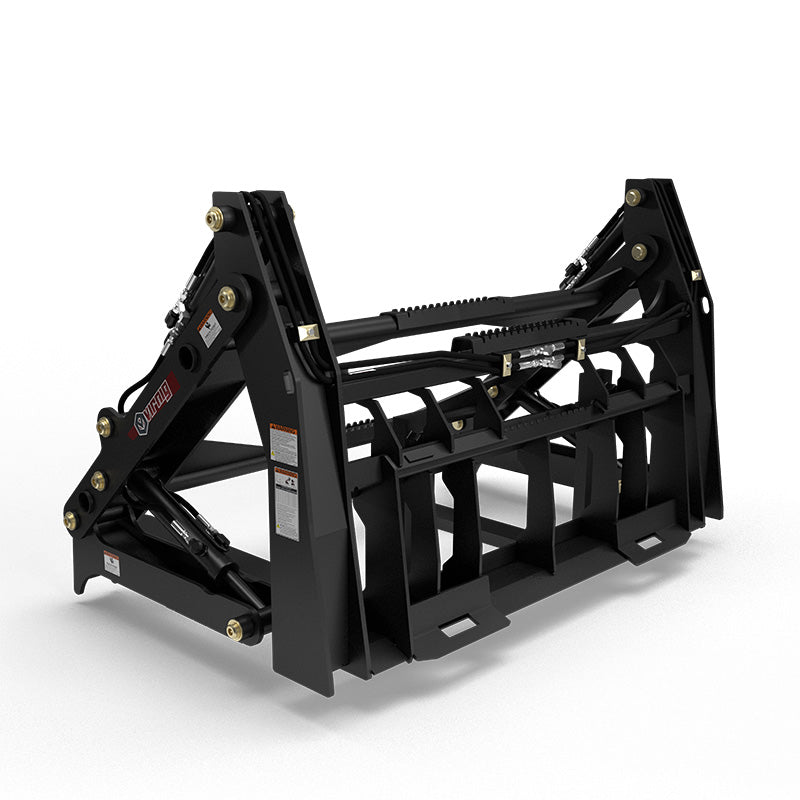

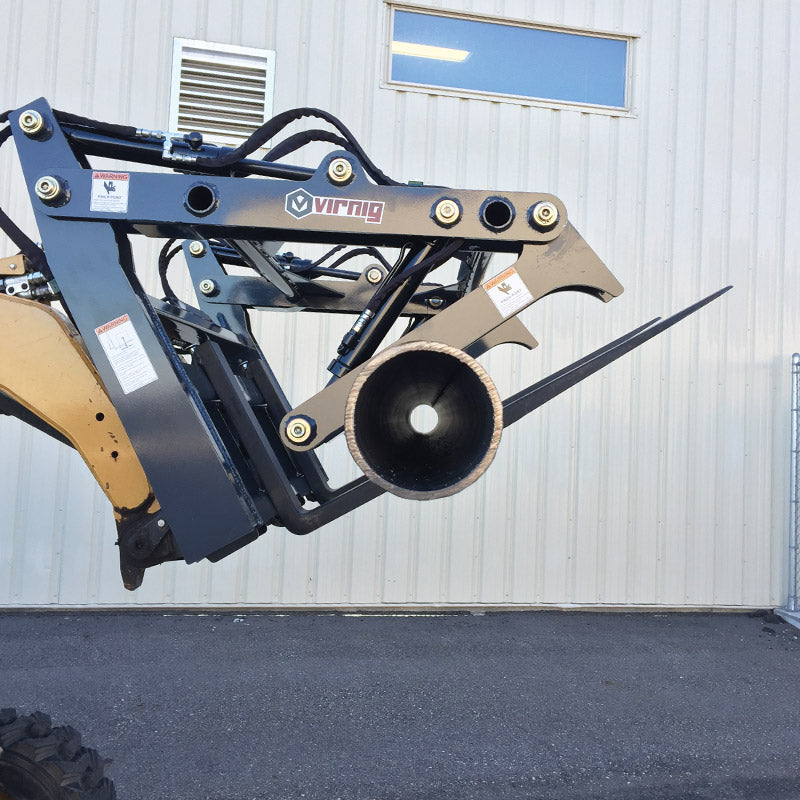

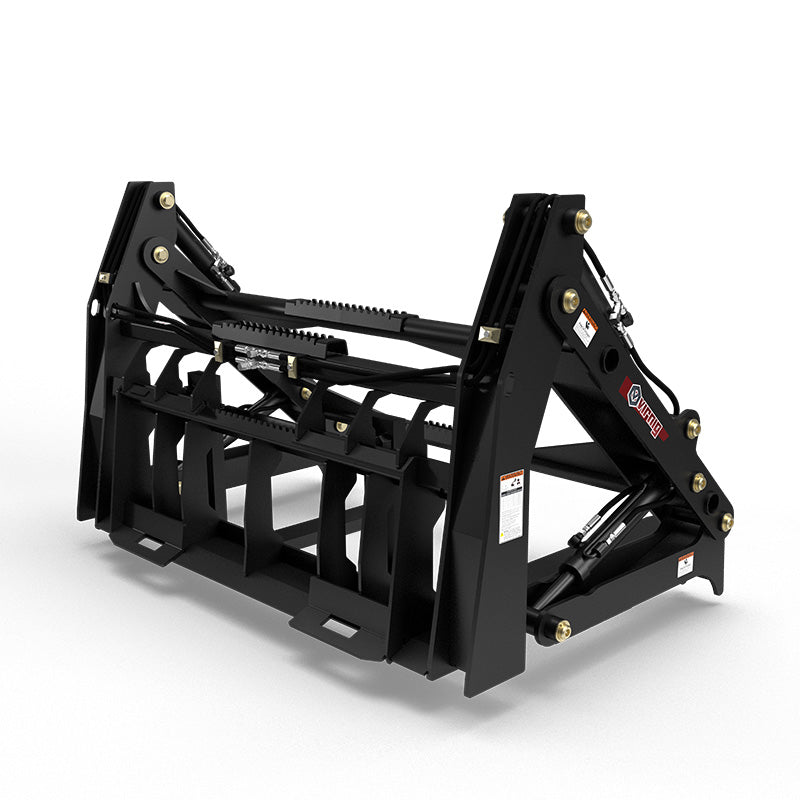

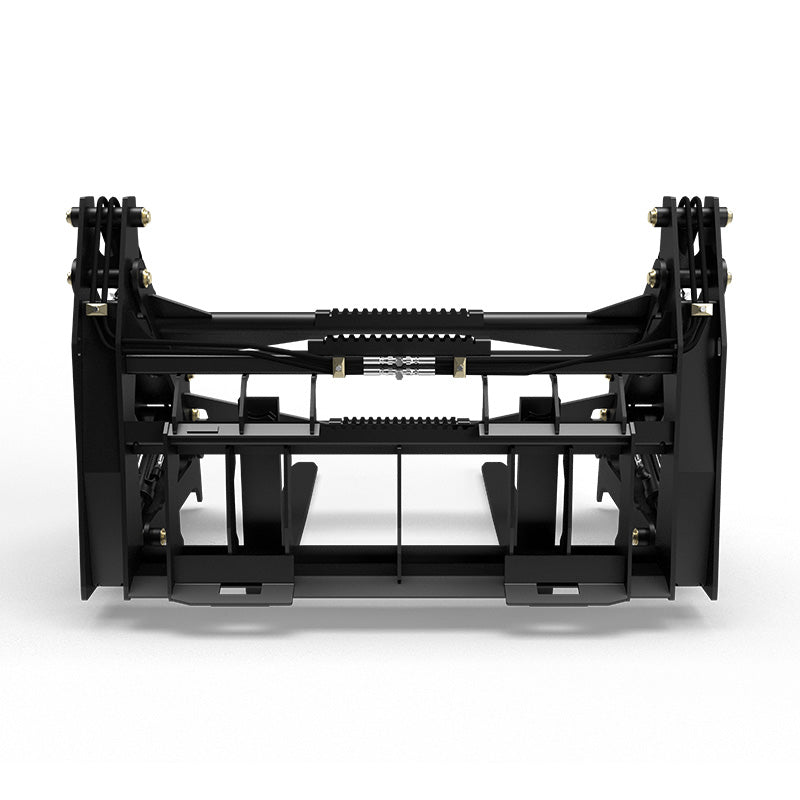

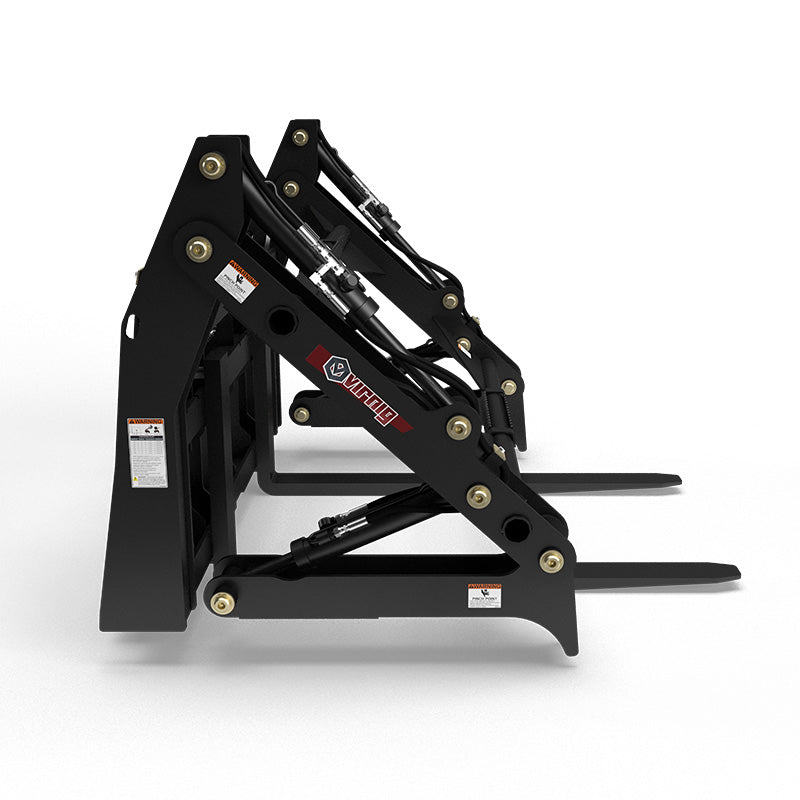

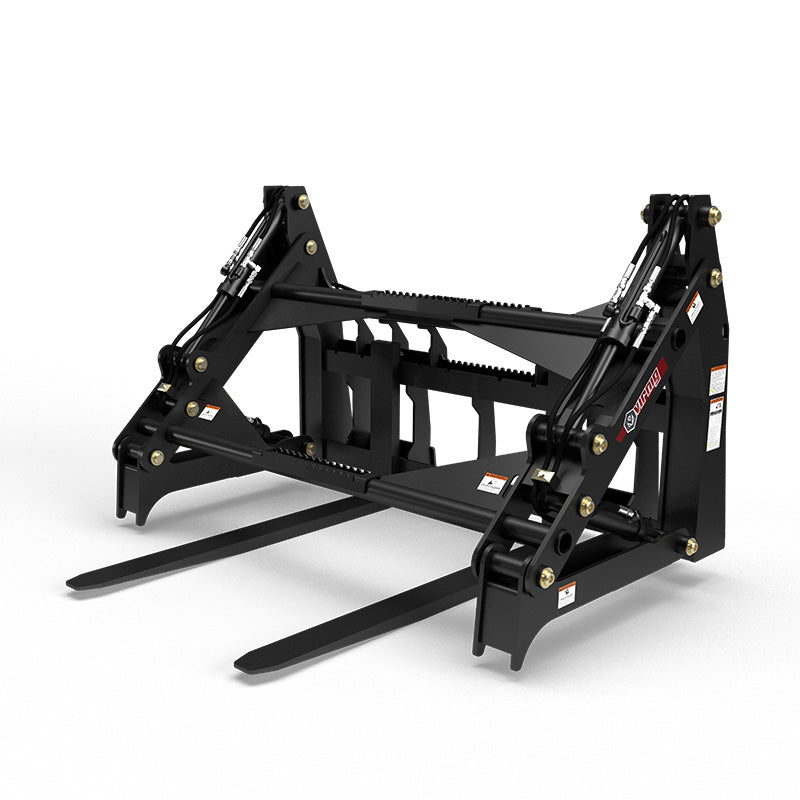

Four-cylinder design applies consistent pressure to secure long pipe over uneven terrain.

  • 48” OR 60″ ITA CLASS II FORGED TINES
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
MODEL PPFG448 PPFG460
Overall Width (Inches) 69.0
Overall Height: Open / Closed (Inches) 62.0 / 42.5
Overall Depth (Inches) 58.0 70.0
Grapple Arm Width (Inches) 11.4
Grapple Arm Depth (Inches) 30.4
Tine Space: Min / Max (Inches) 8.9 / 49.0
Tine: Length / Width / Thickness (Inches) 48.0 / 4.0 / 1.75 60.0 / 4.0 / 1.5
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.25
Lift Capacity (Pounds) 6200 5500
Approximate Weight (Pounds) 1060 1065
Recommended Loader Capacity Greater than 1500 pounds
Download Spec Sheet (PDF)
Download Manual >>
