Description

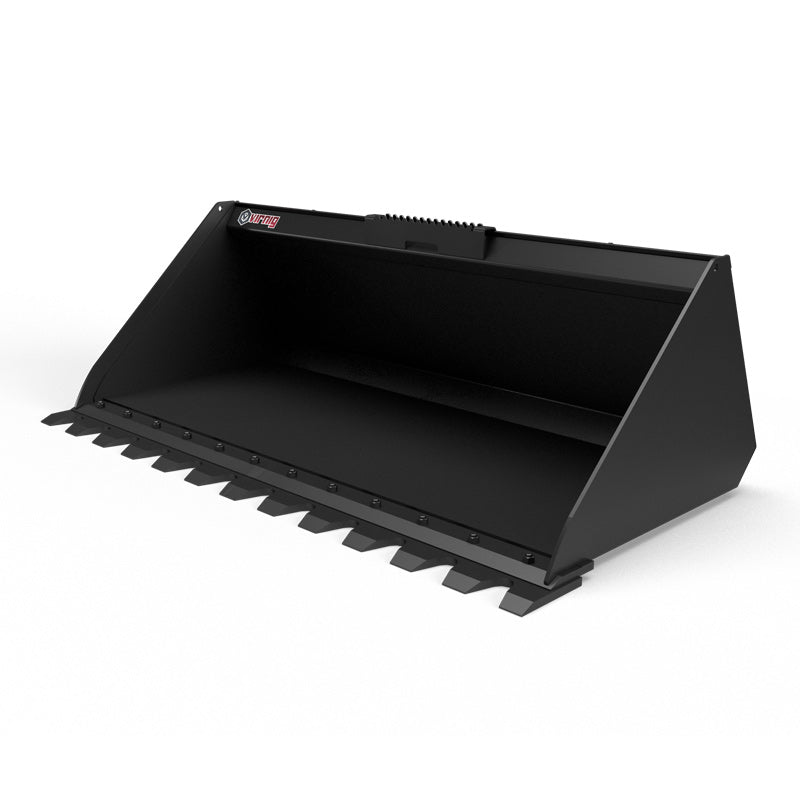

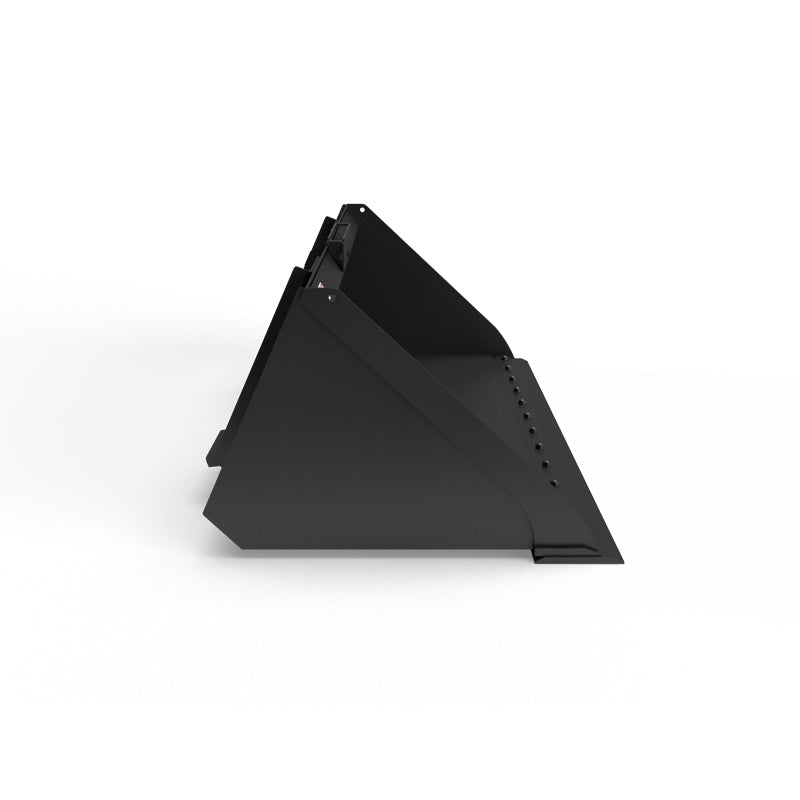

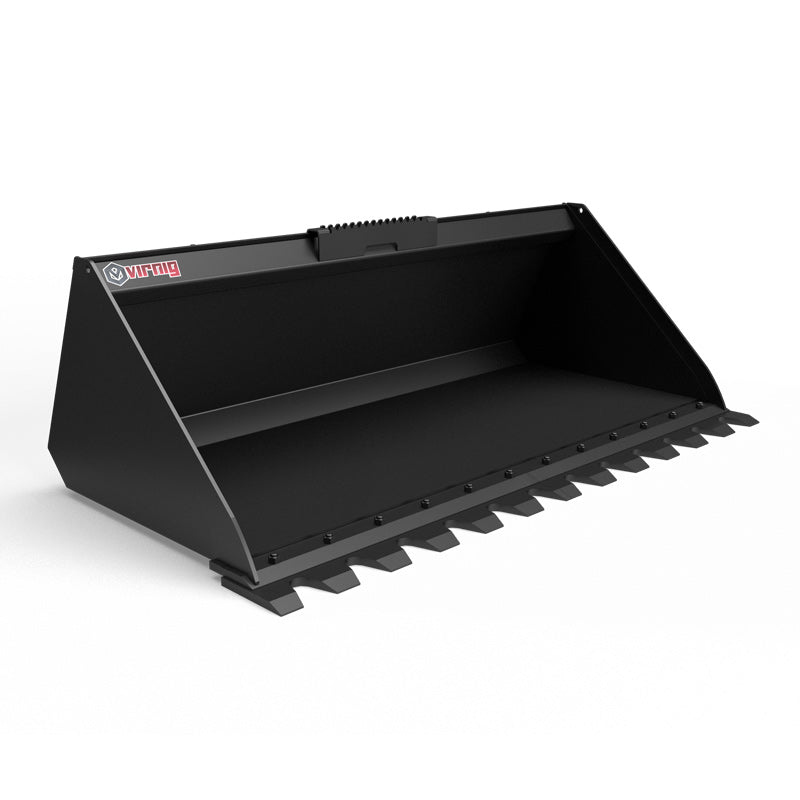

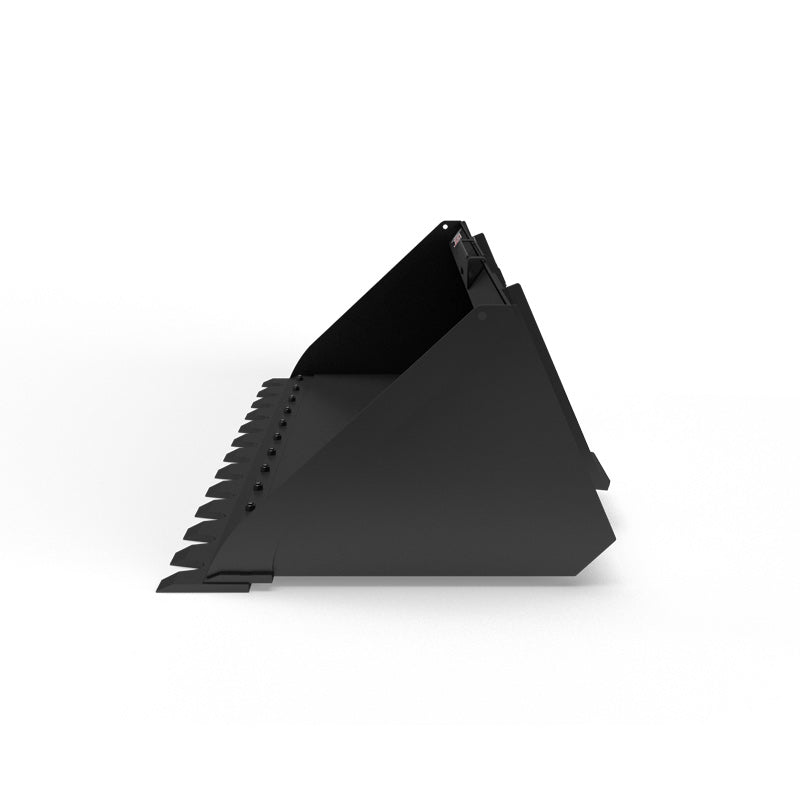

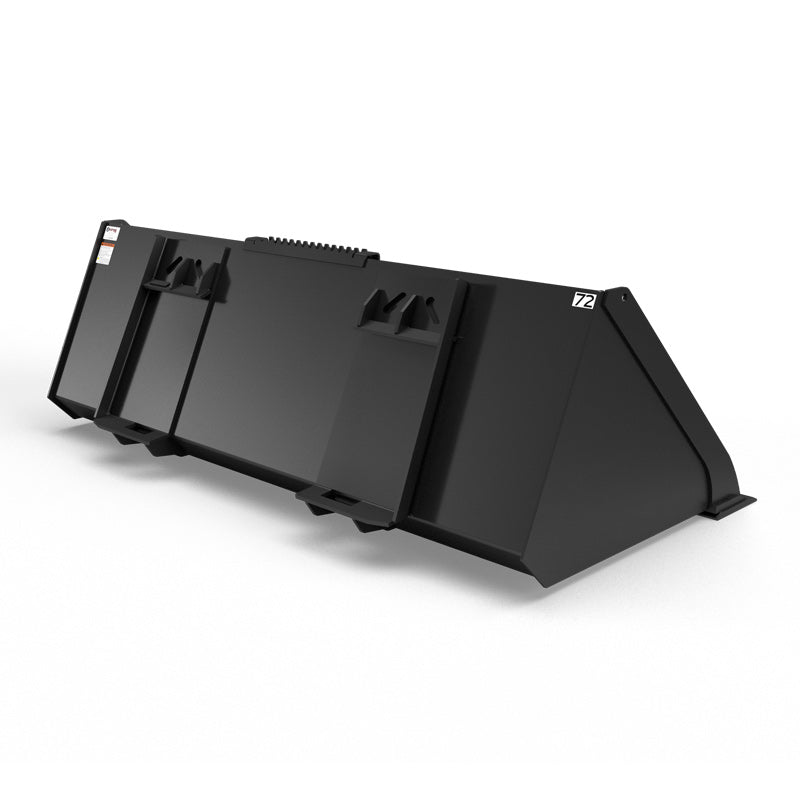

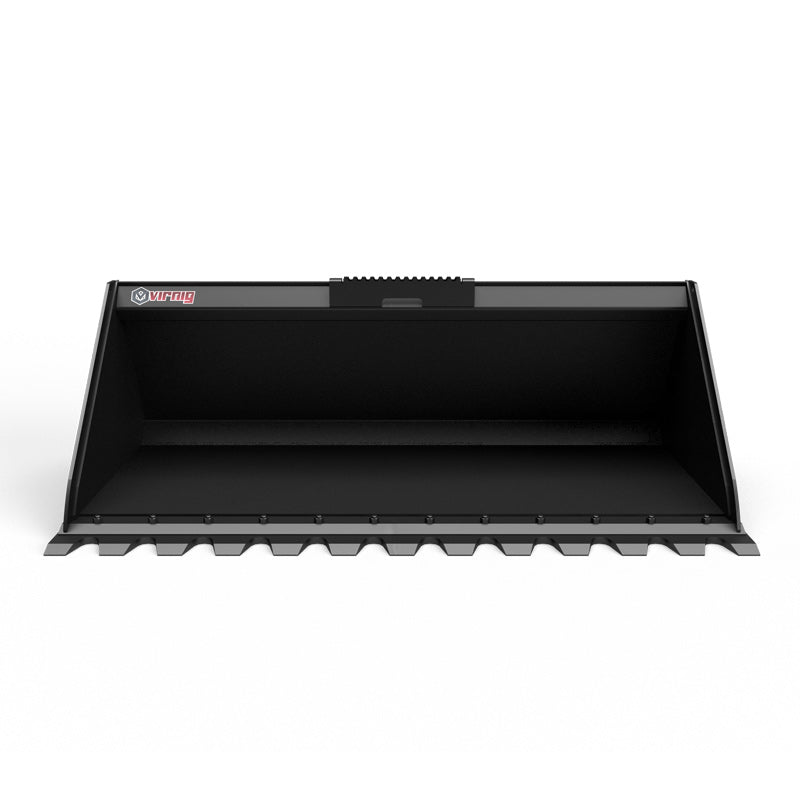

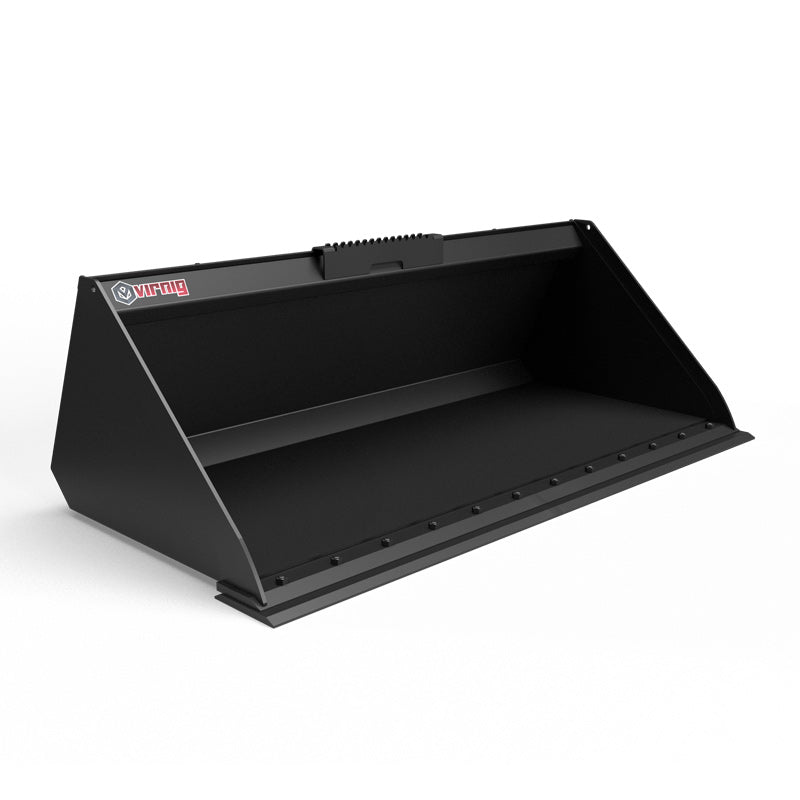

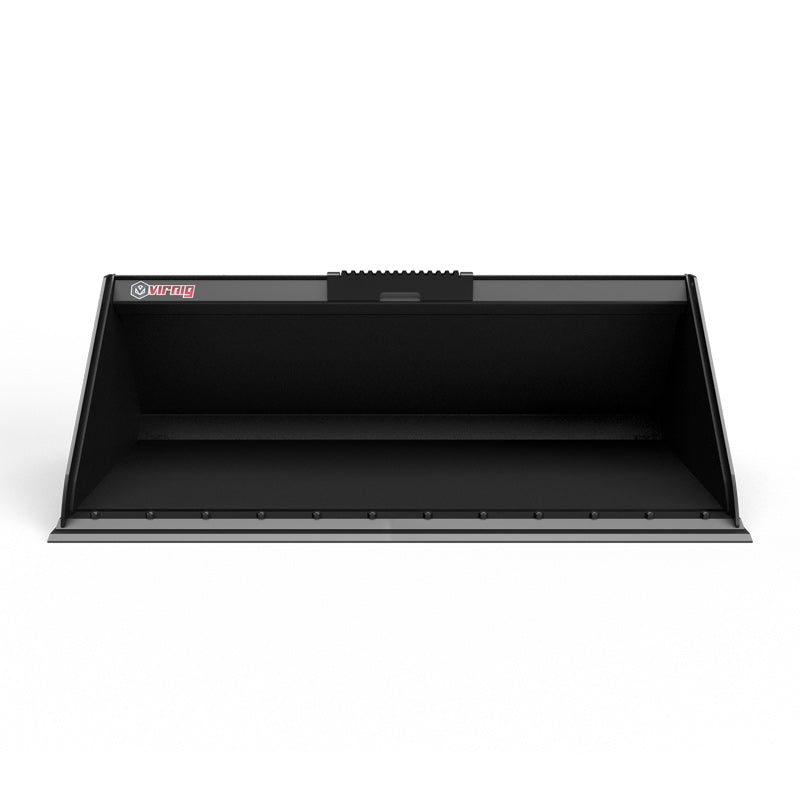

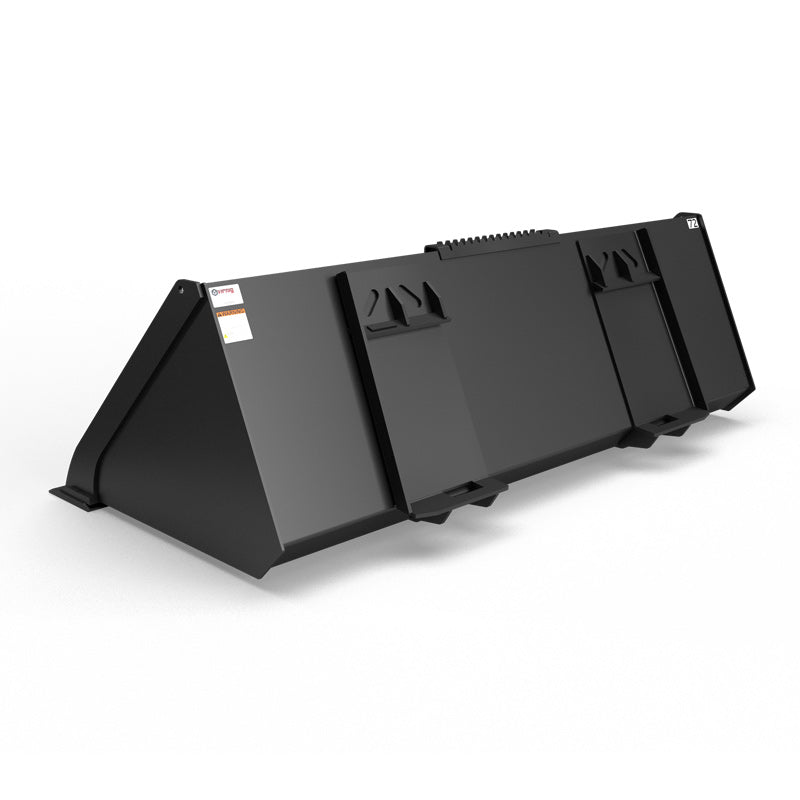

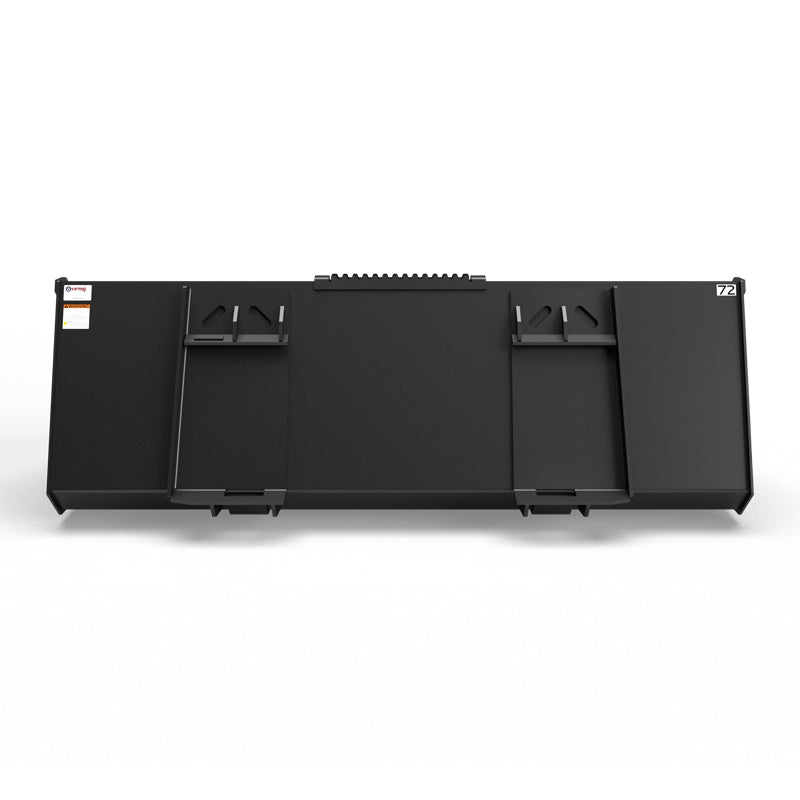

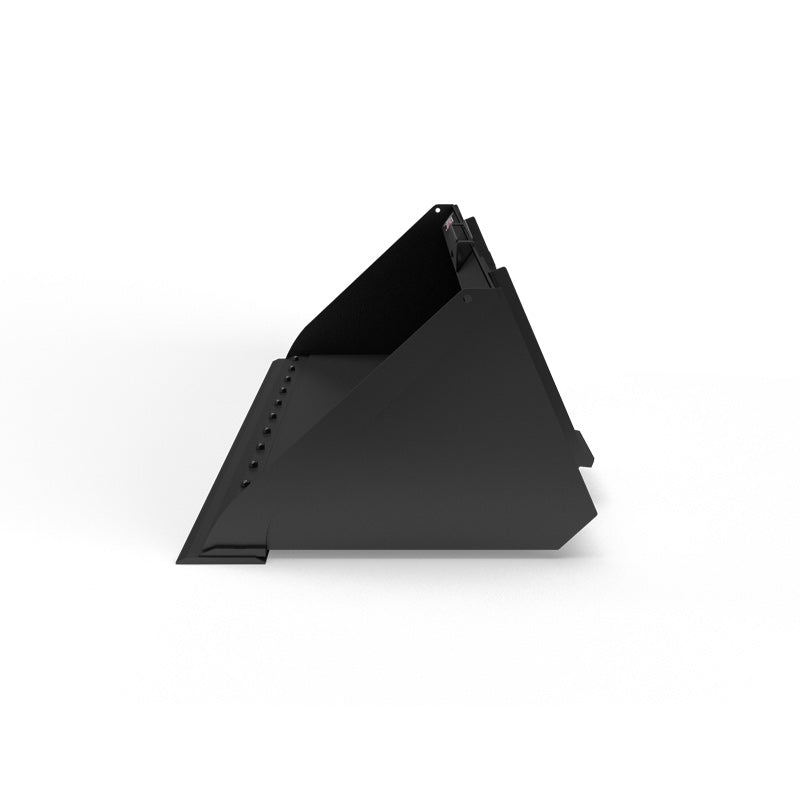

General purpose bucket suited for dense and bulk materials.

  • 3/4″ x 6″ WELD-ON EDGE

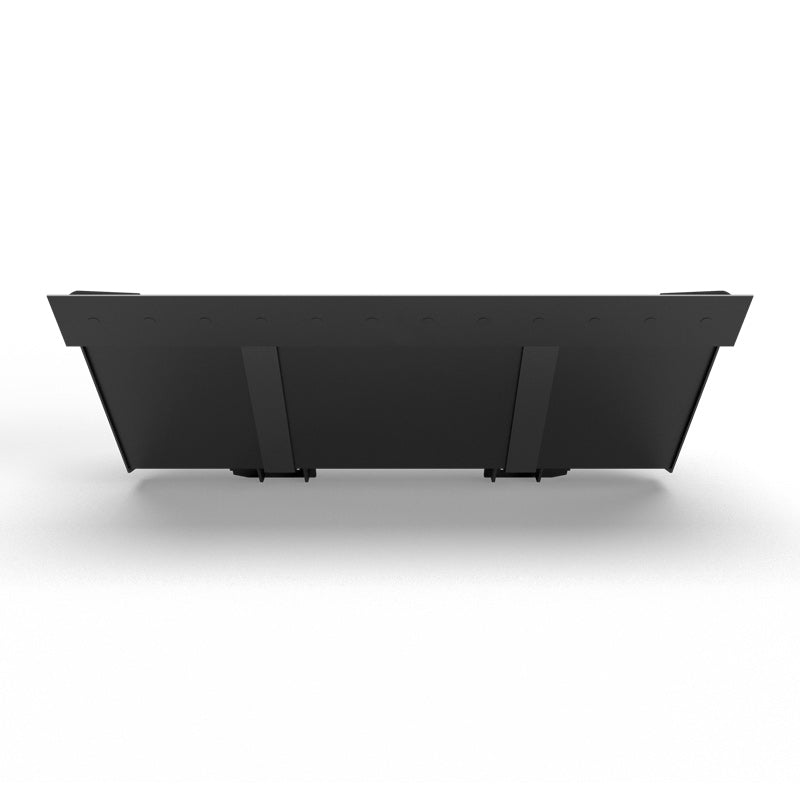

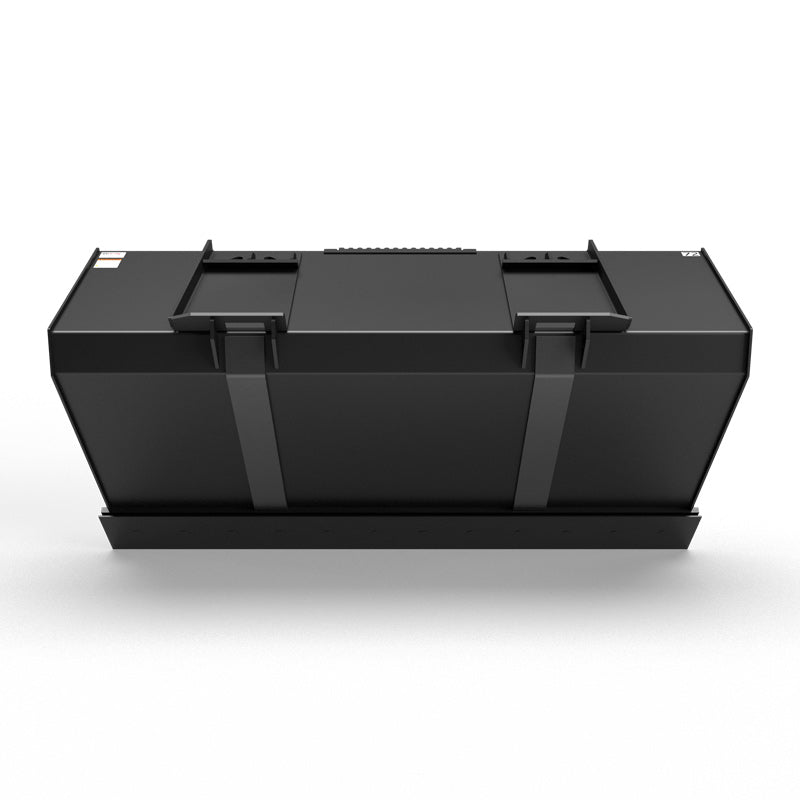

  • 1/2″ x 4″ WEAR BARS PROTECT THE BUCKET BOTTOM
MODELS UHV60 UHV66 UHV72 UHV78 UHV84
Width: Overall / Inside (Inches) 61.5 / 59.3 67.5 / 65.3 73.5 / 71.3 79.5 / 77.3 85.8 / 83.3
Overall Height (Inches) 24.0
Depth: Overall / Inside (Inches) 38.1 / 34.9
Capacity: Struck / Heaped (Cubic Feet) 14.4 / 17.3 16.0 / 19.2 17.6 / 21.1 19.2 / 23.0 20.8 / 24.9
Bucket Back Angle (Degrees) 66
Shell Thickness (Inches) 0.19 0.19 0.25 0.25 0.25
Side Plate Thickness (Inches) 0.25
Structural Wear Bars Under Bucket (1/2″ x 4″) 2 2 2 3 3
Approximate Weight (Pounds) 470 500 595 650 680
Recommended Loader Capacity Less than 2400 pounds



Download Spec Sheet (PDF)
Download Manual >>
