Description

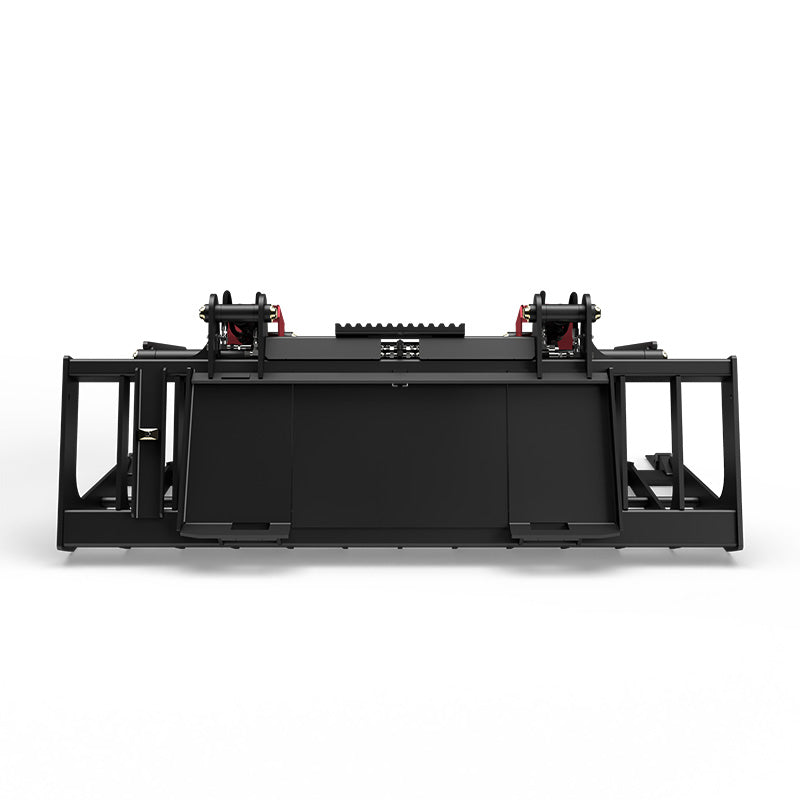

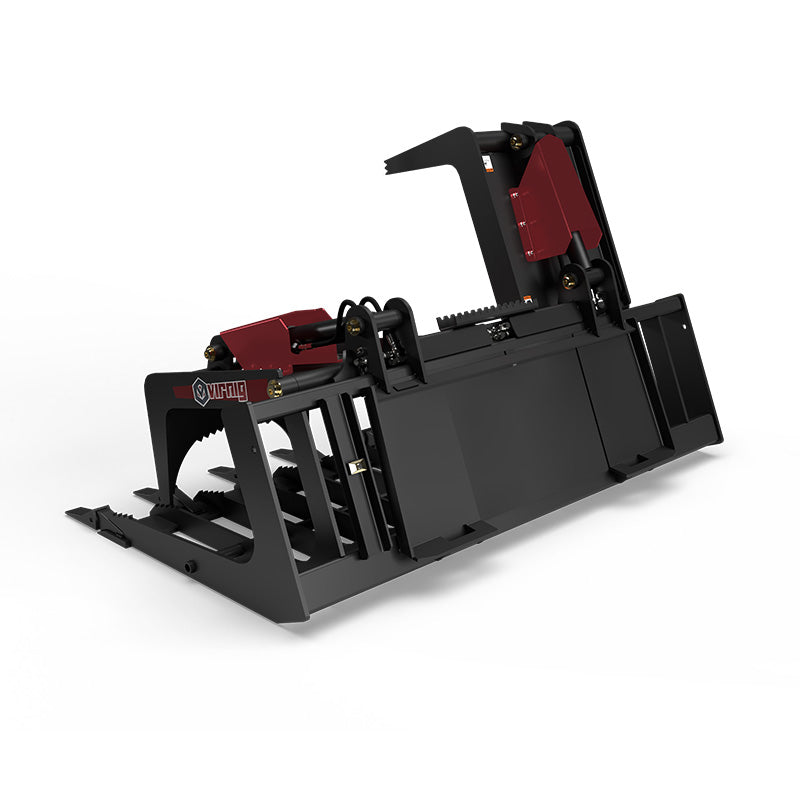

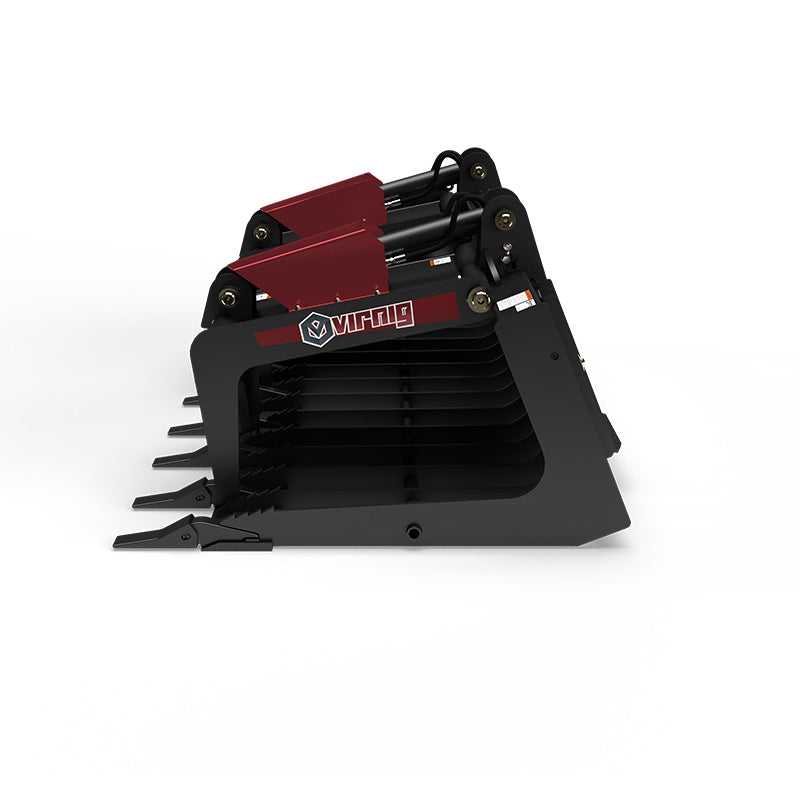

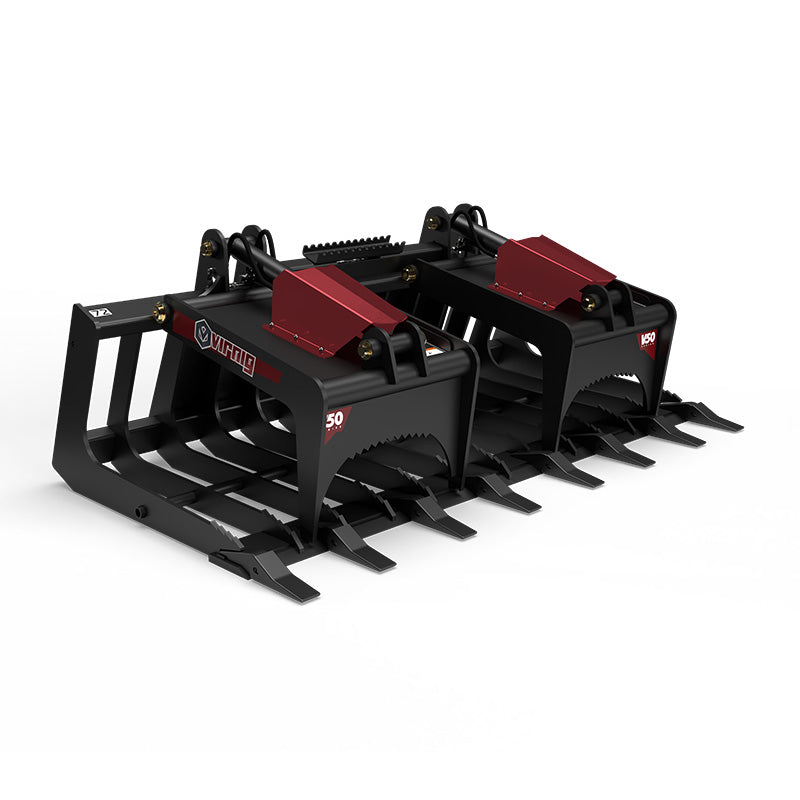

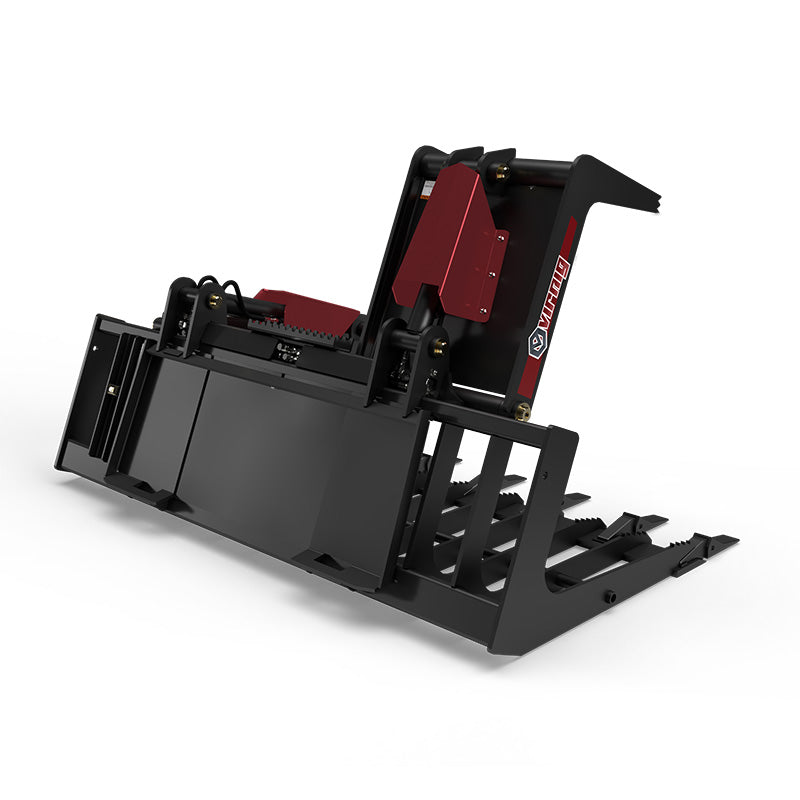

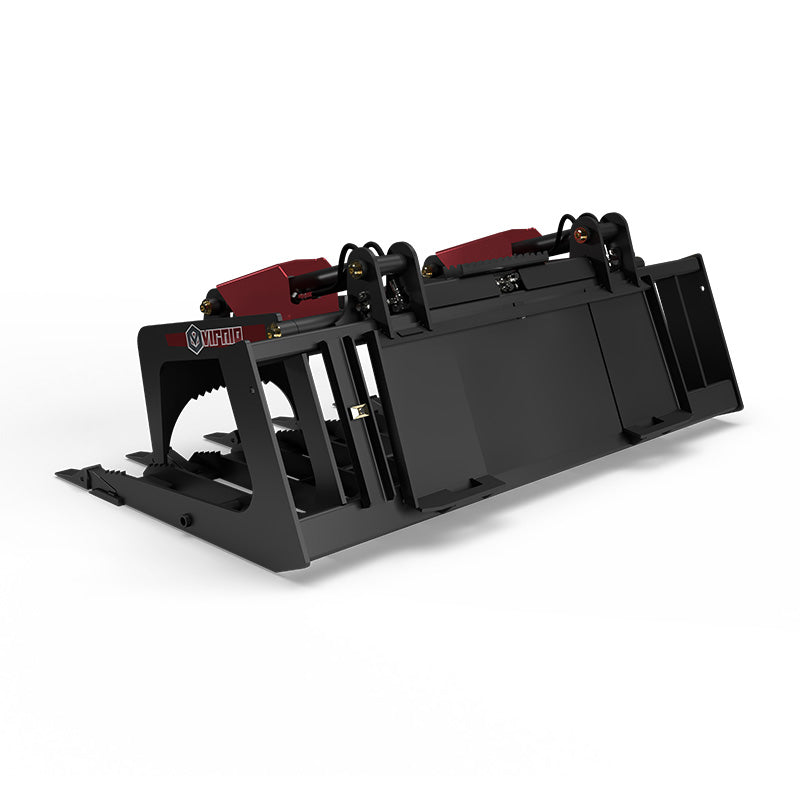

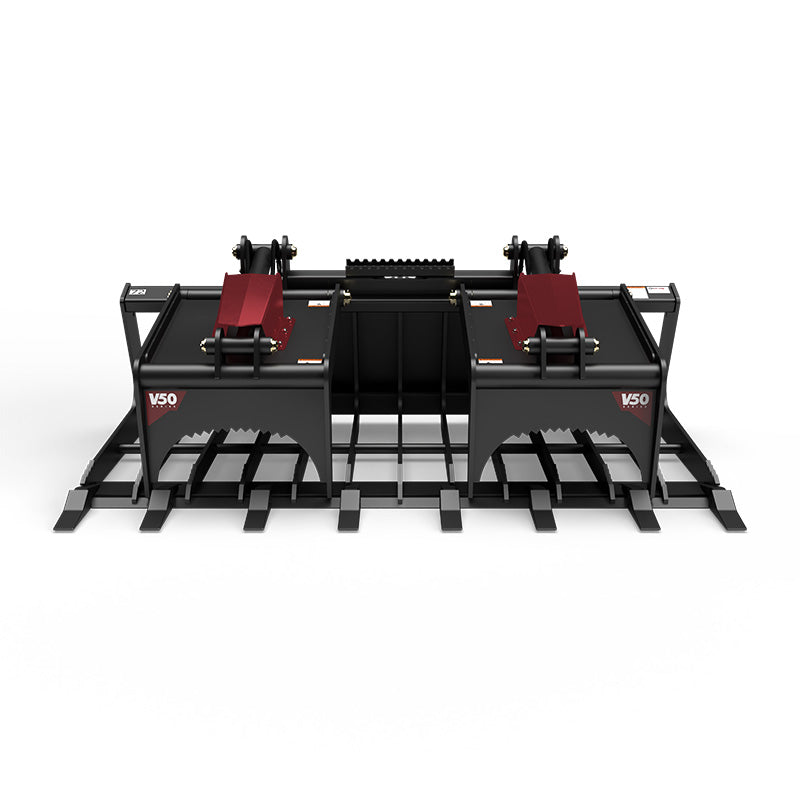

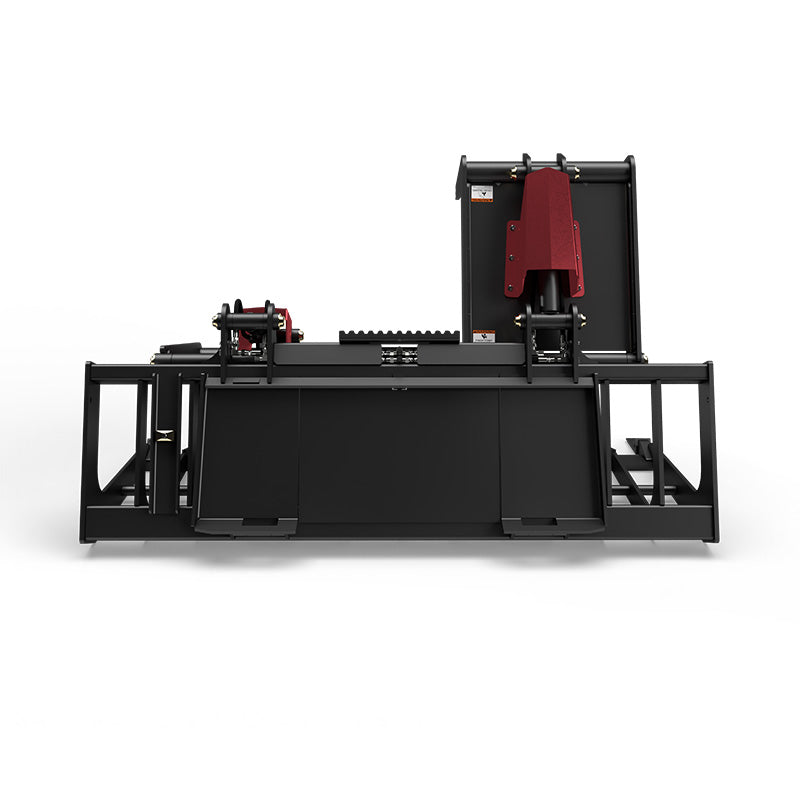

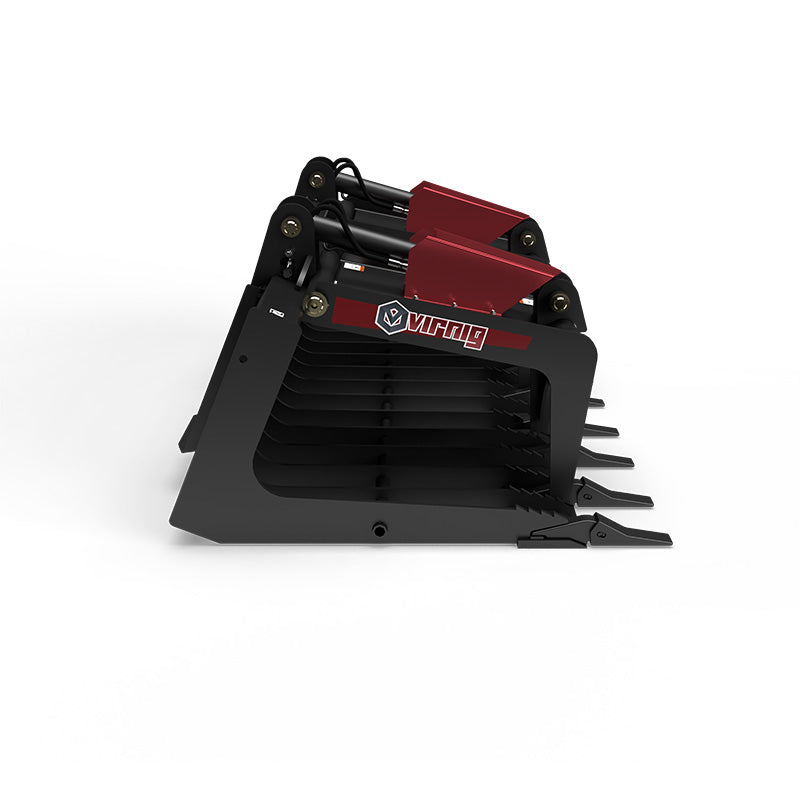

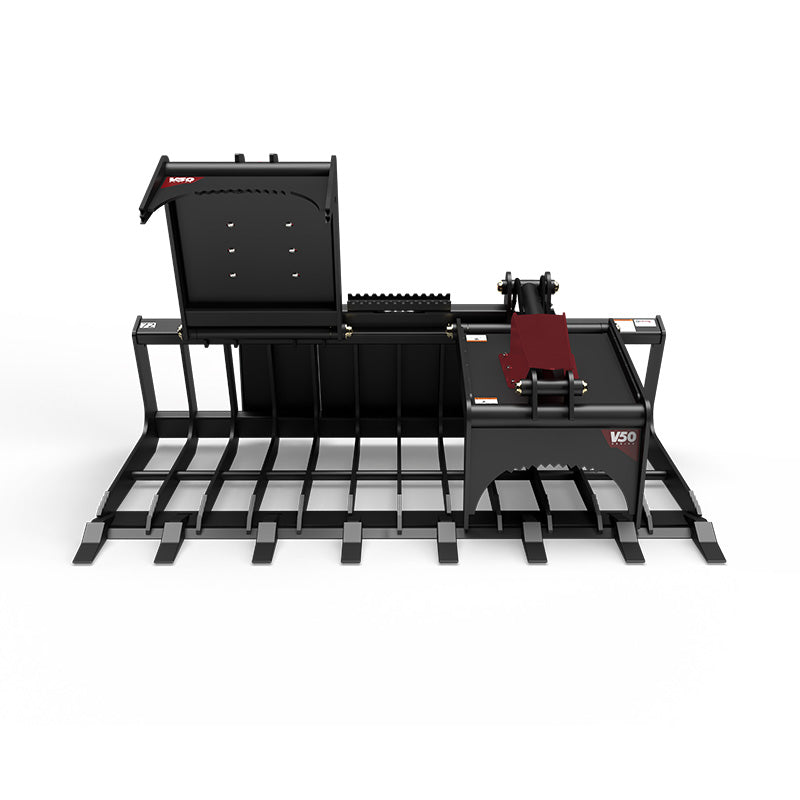

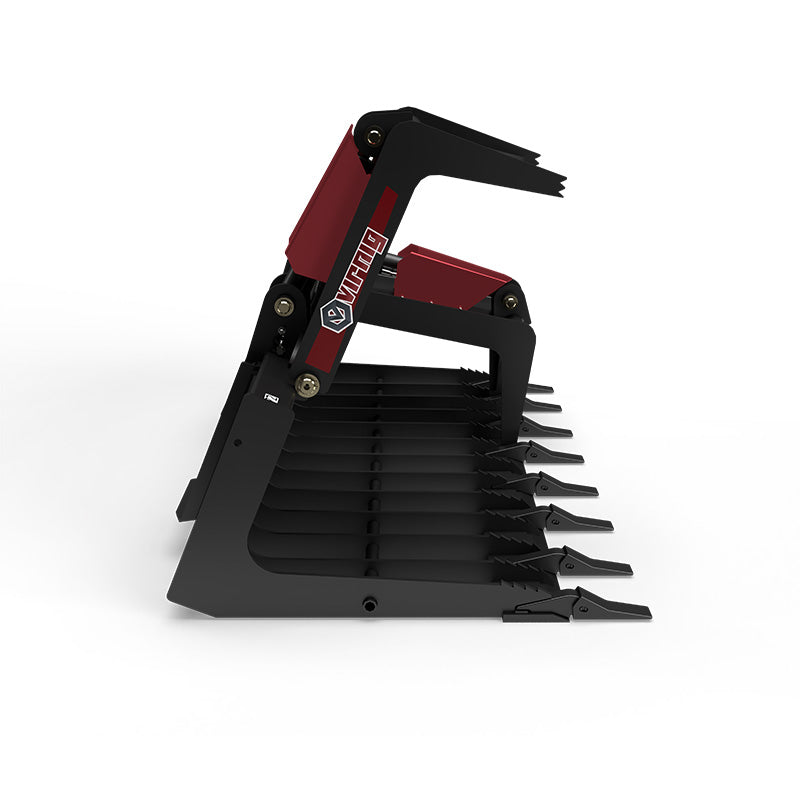

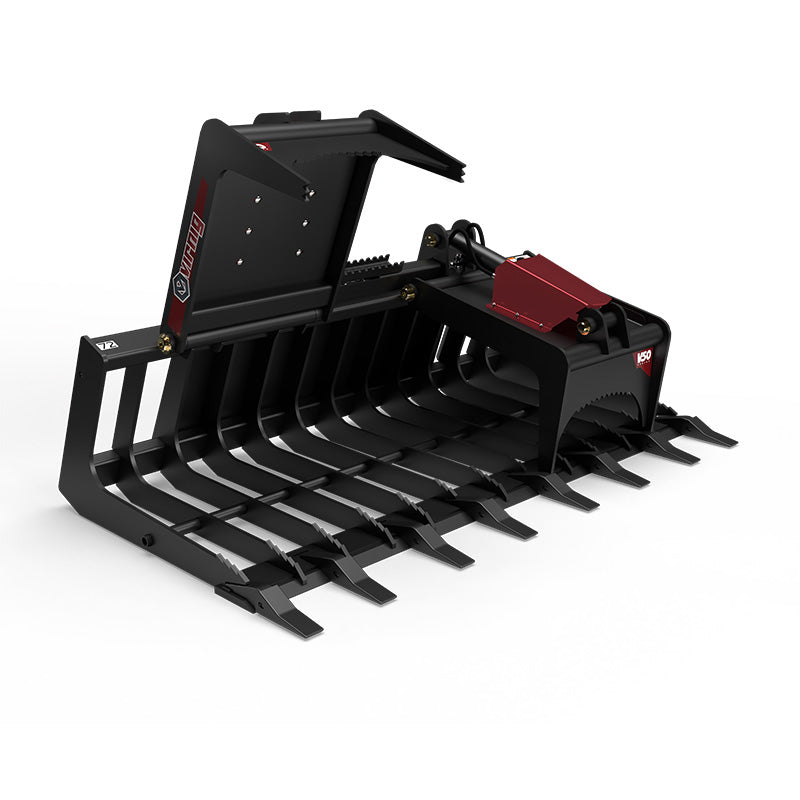

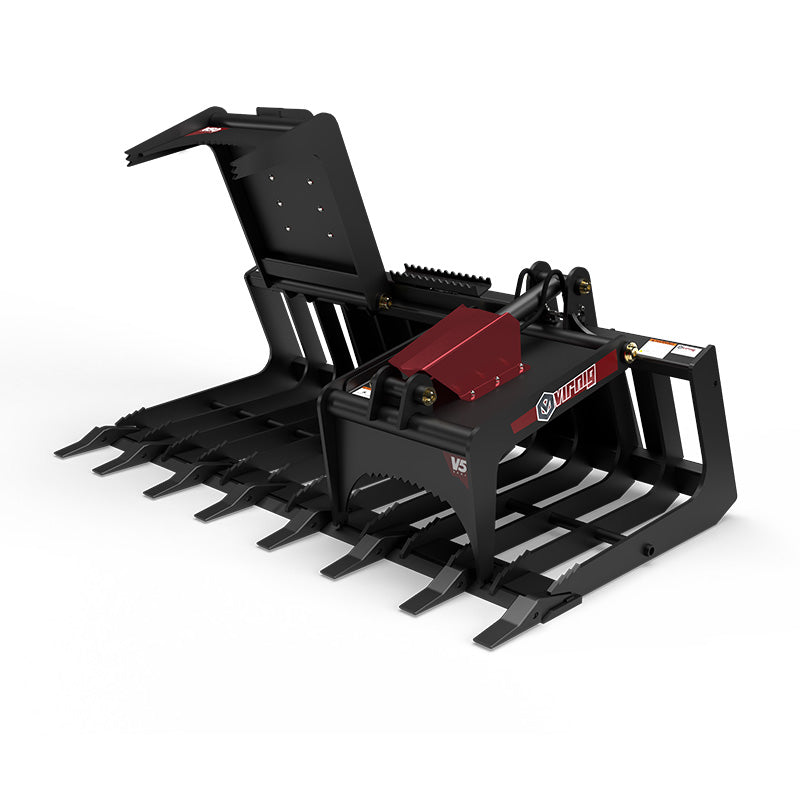

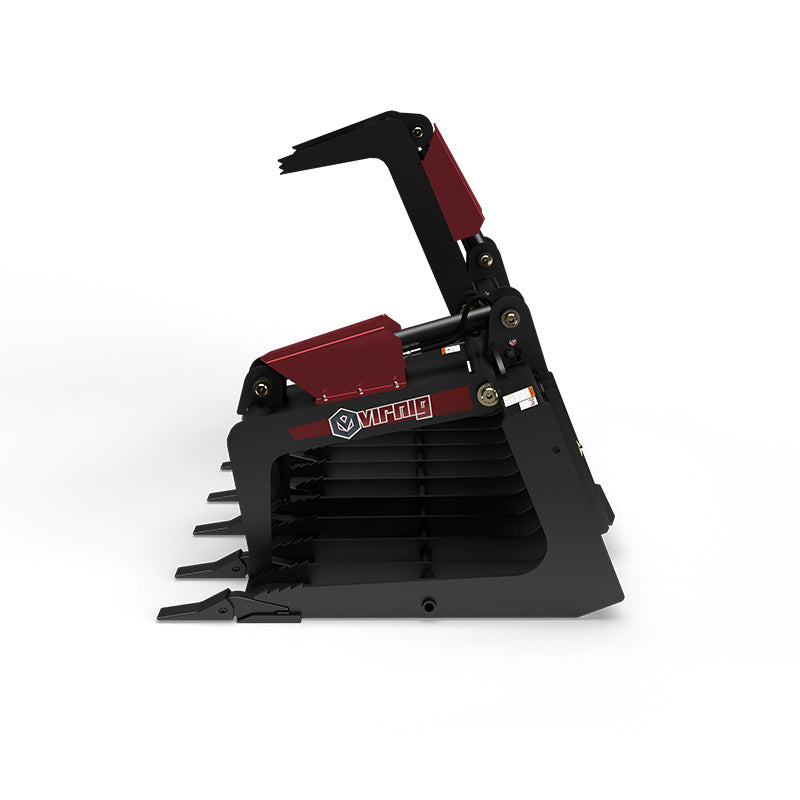

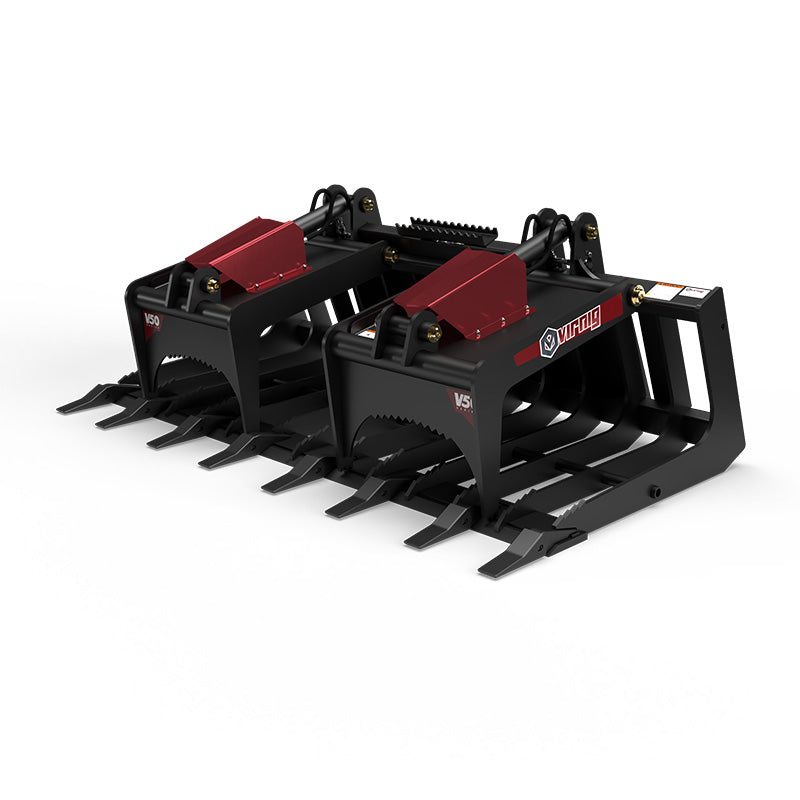

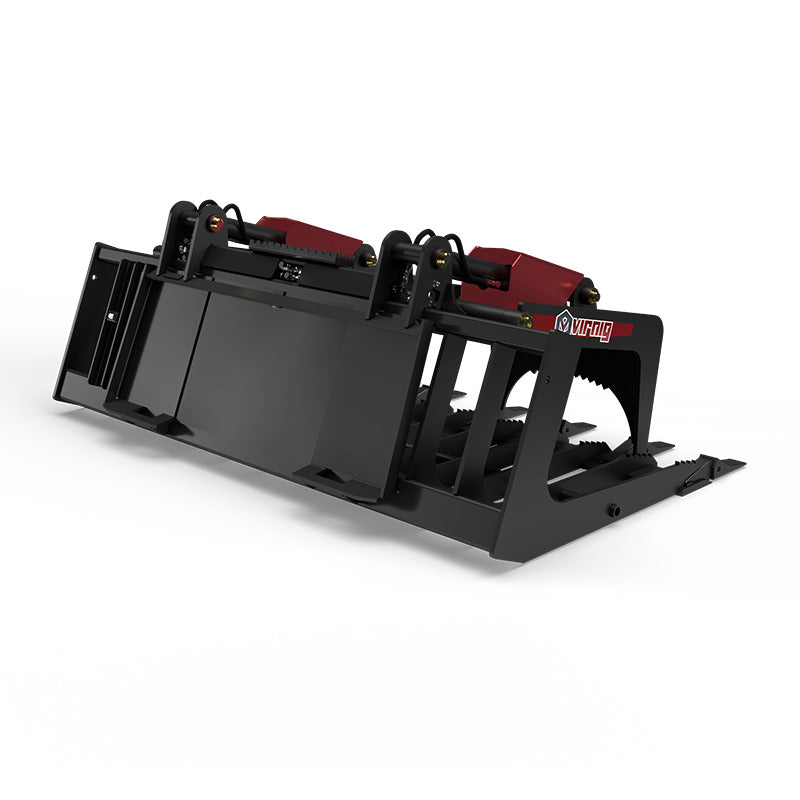

Same design as the V50 Skeleton Grapple but teeth added for aggressive digging and max wear life.

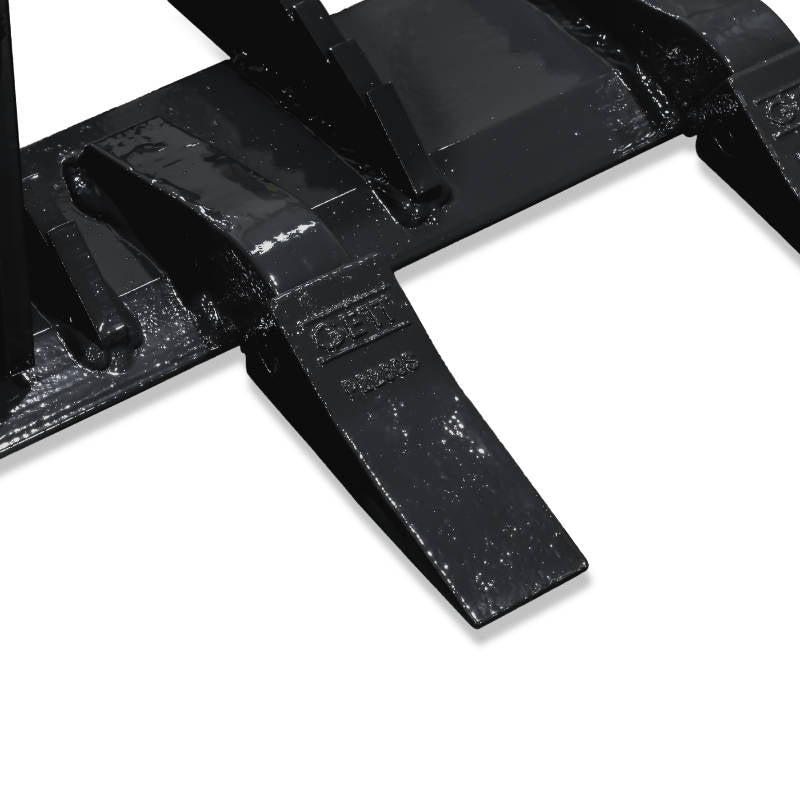

  • SERIES 23 PIN-ON TEETH CUT INTO SOIL, DIG OUT ROCKS & ROOTS
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • STANDARD WITH CYLINDER GUARDS
MODEL TSGV72 TSGV78 TSGV84 TSGV90
Overall Width (Inches) 73.5 79.5 85.5 91.5
Height: Overall / Bucket (Inches) 27.5 / 21.3
Overall Depth (Inches) 43.3
Number of Teeth 8 9 9 10
Space Between Teeth (Inches) 6.8-8.8  6.3-8.8 6.8-9.3 6.8-8.8
Space Between Tines (Inches) 5.5
Tine Thickness (Inches) 0.5*
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
Grapple Jaw Opening (Inches) 40.9
Approximate Weight (Pounds) 1005 1055 1095 1145
Recommended Loader Capacity Greater than 1500 pounds

*Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

Download Spec Sheet (PDF)
Download Manual >>
