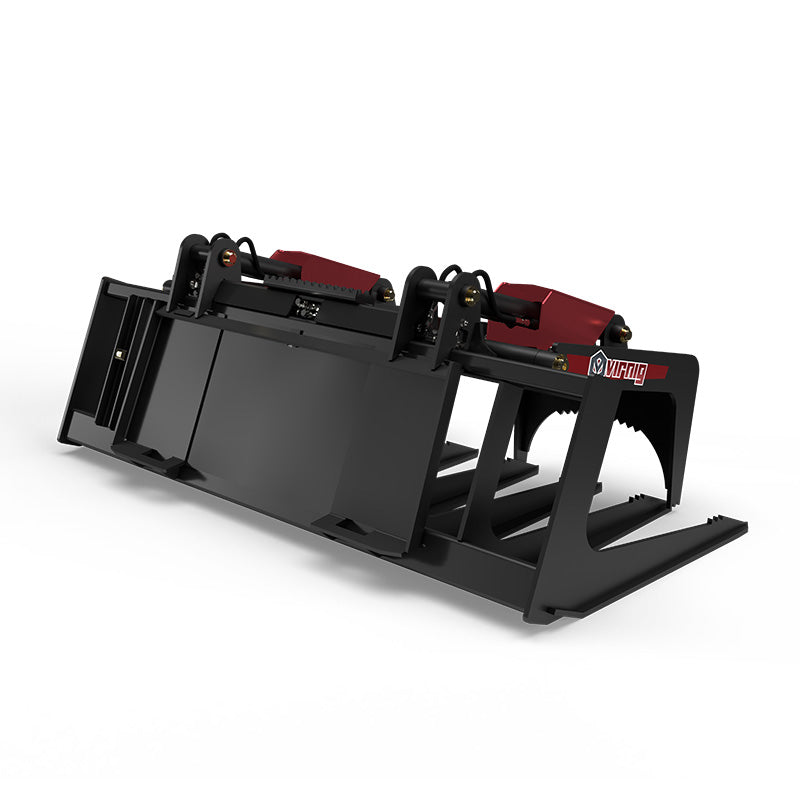

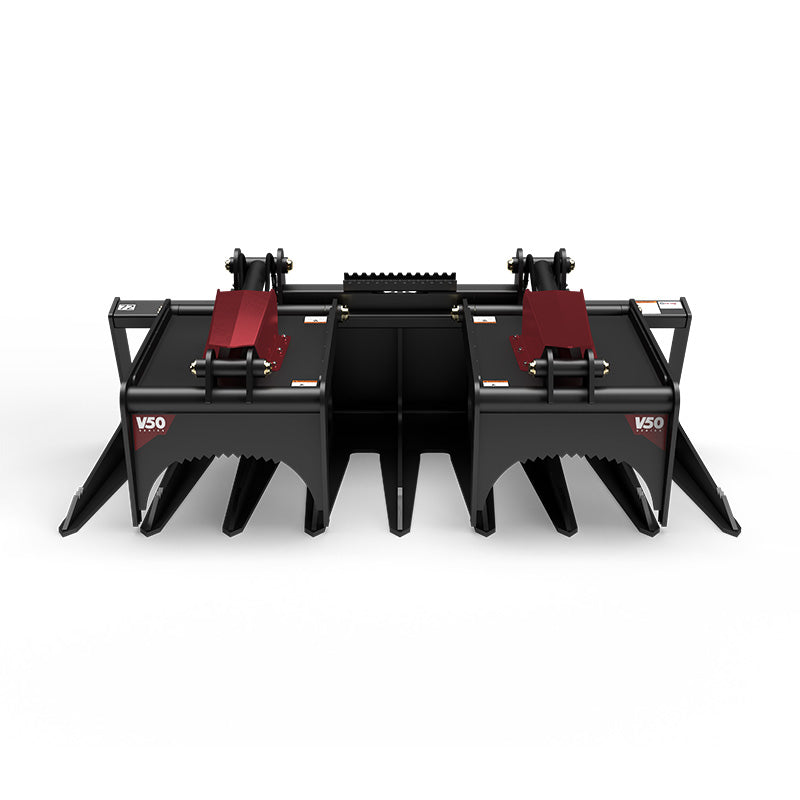

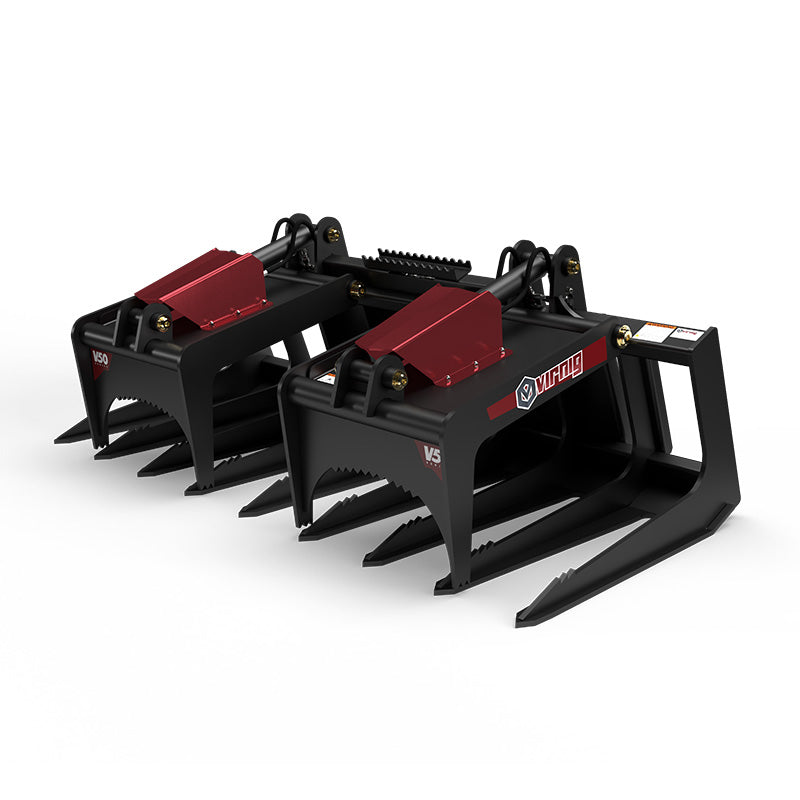

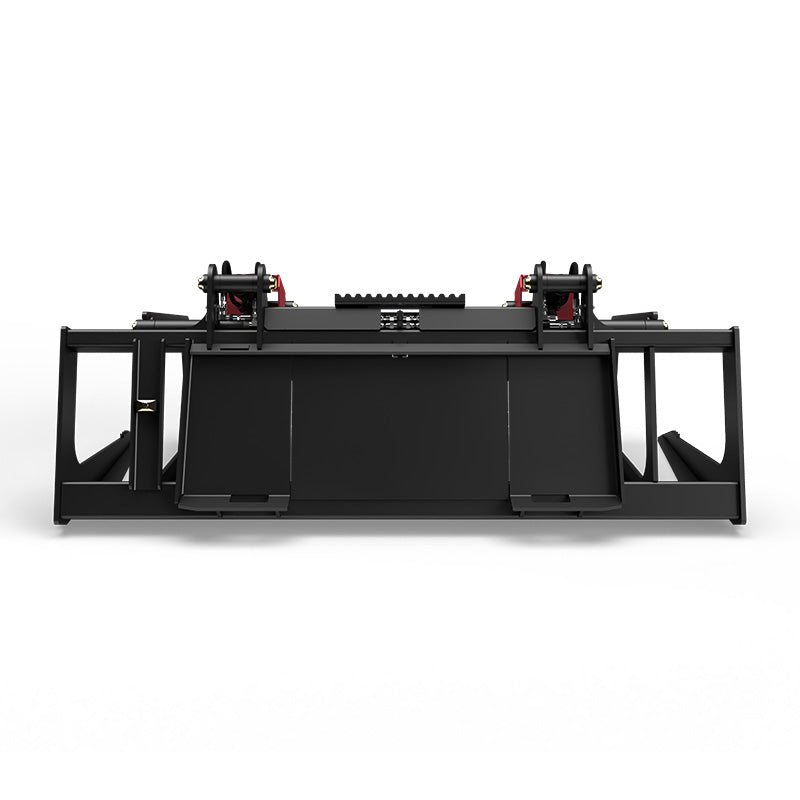

Description

No front cross member for better material penetration and open sides for hauling logs and brush.

  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • TINES FULLY GUSSETED FOR ADDED STRENGTH
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • STANDARD WITH CYLINDER GUARDS
MODEL STG66 STG72 STG78 STG84 STG90
Overall Width (Inches) 68.0 74.0 80.0 86.0 92.0
Height: Overall / Bucket (Inches) 27.5 / 21.1
Overall Depth (Inches) 36.5
Number of Tines (With Sides) 8 9 10 10 11
Space Between Tines (Inches) 9.5 8.4 8.7 9.3 8.5
Tine Thickness (Inches) 0.5*
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
Grapple Jaw Opening (Inches) 36.4
Approximate Weight (Pounds) 910 950 990 1010 1050
Recommended Loader Capacity Greater than 1500 pounds

*Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).
