Description

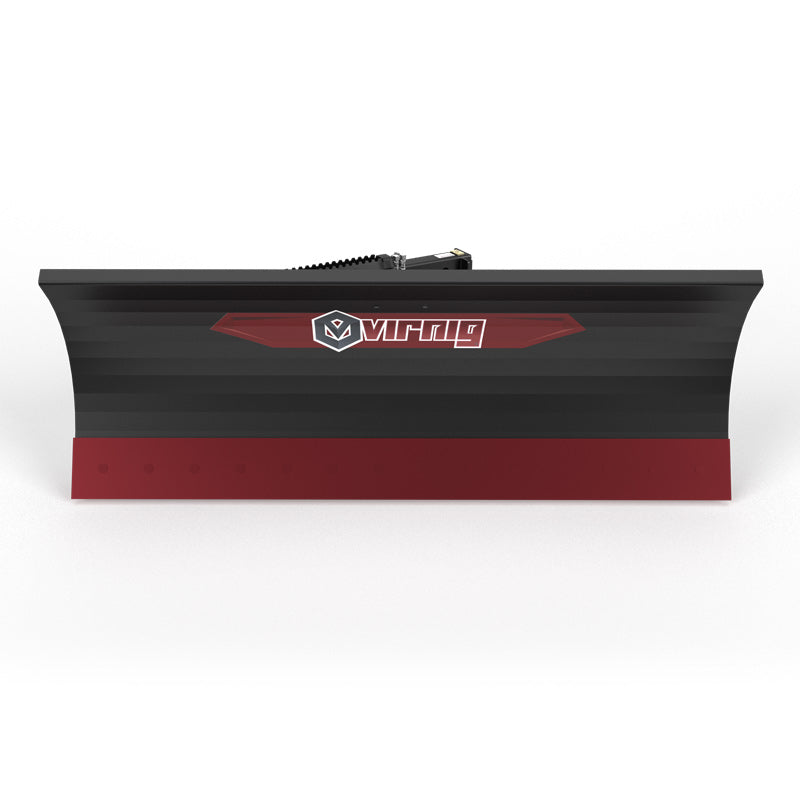

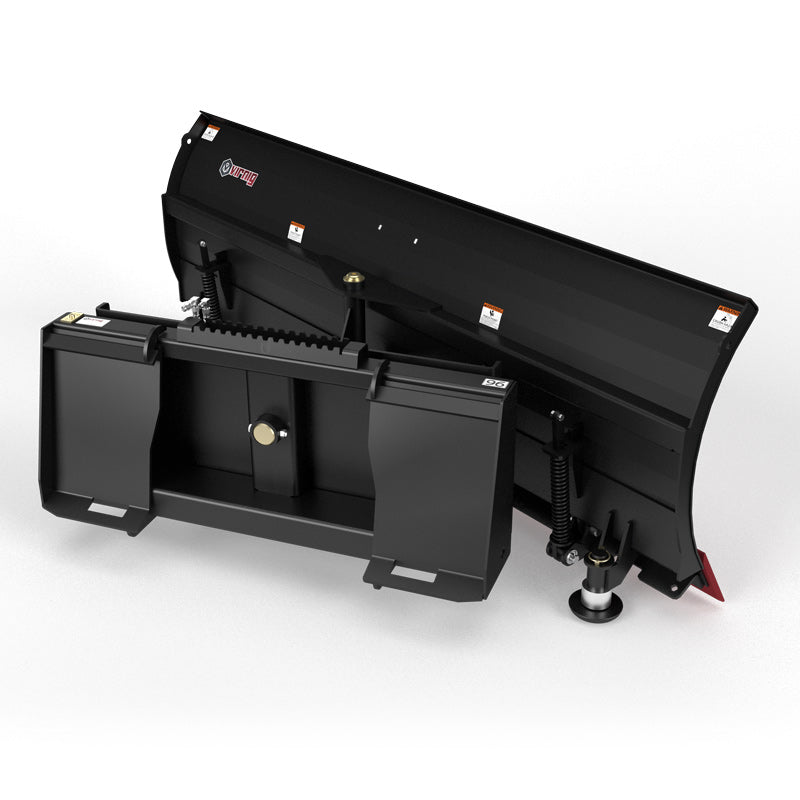

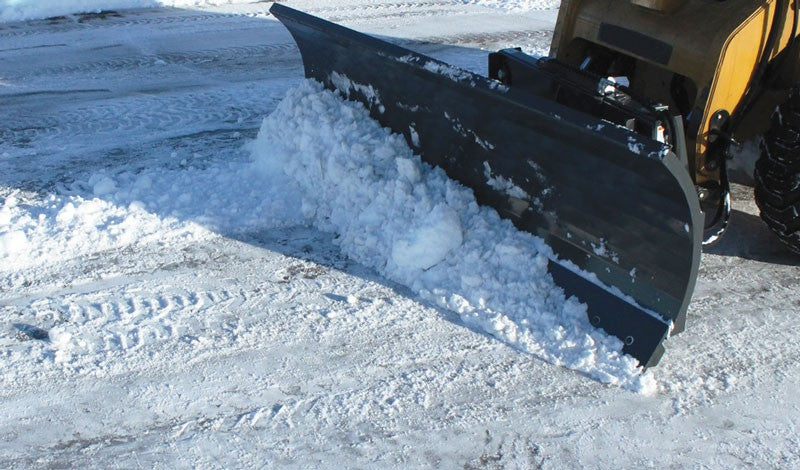

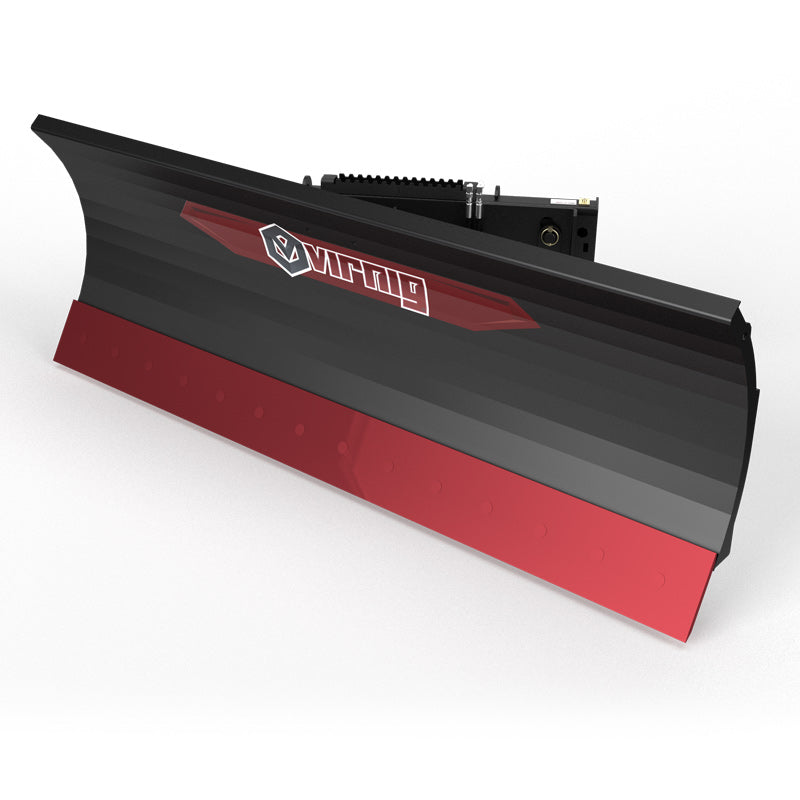

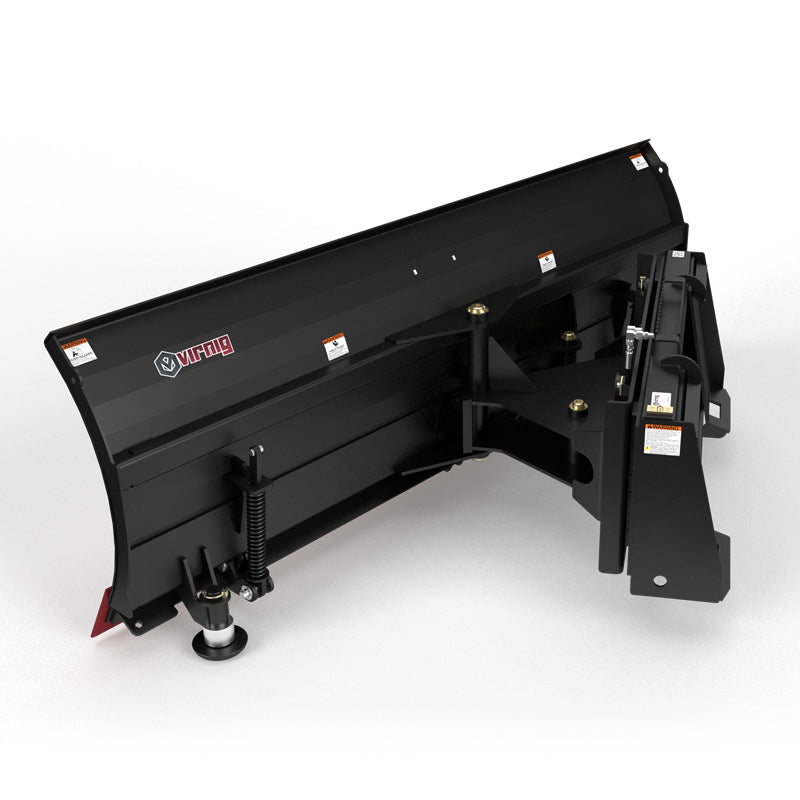

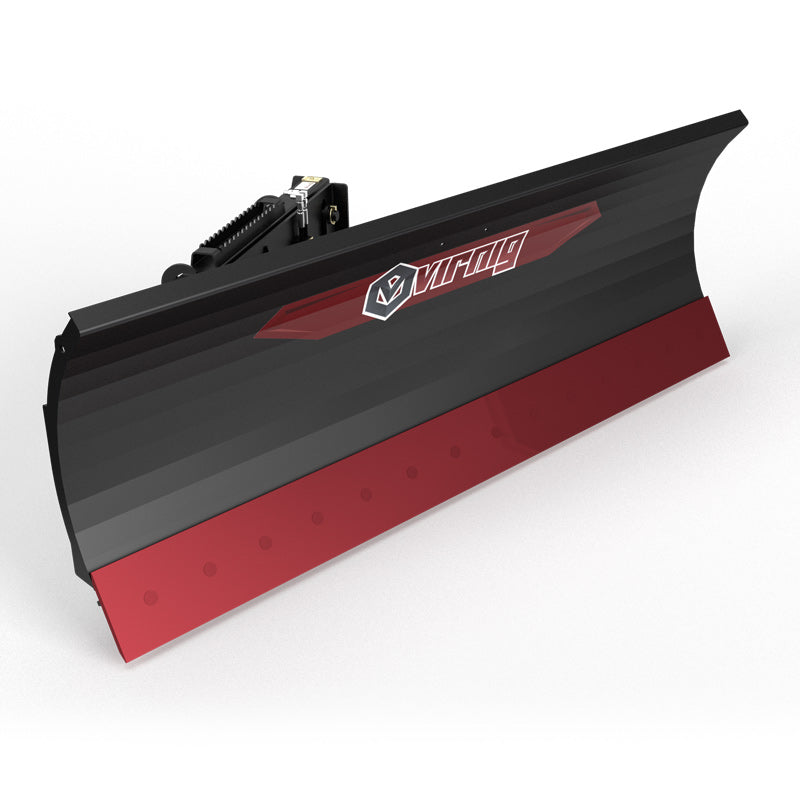

A lighter version of the V60 Angle Snow Blade for less intensive snow removal jobs.

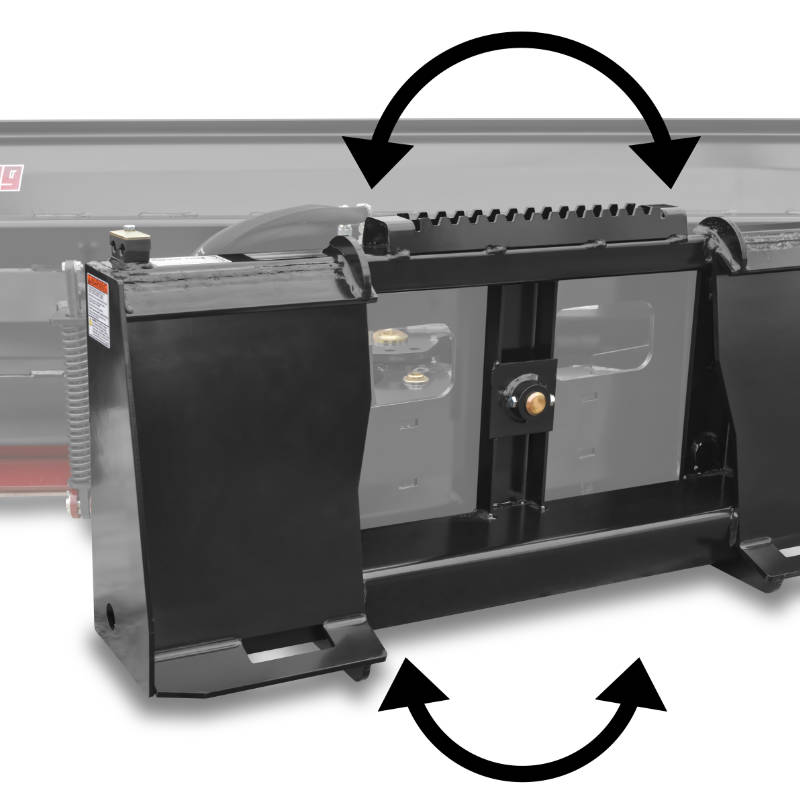

  • 4° SIDE-TO-SIDE OSCILLATION FOLLOWS UNEVEN SURFACES

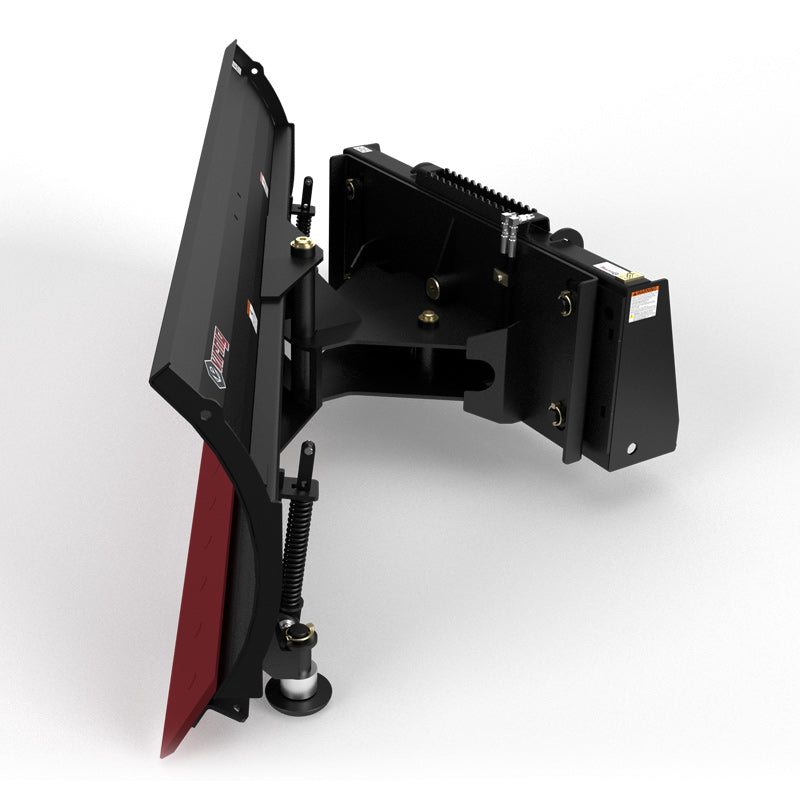

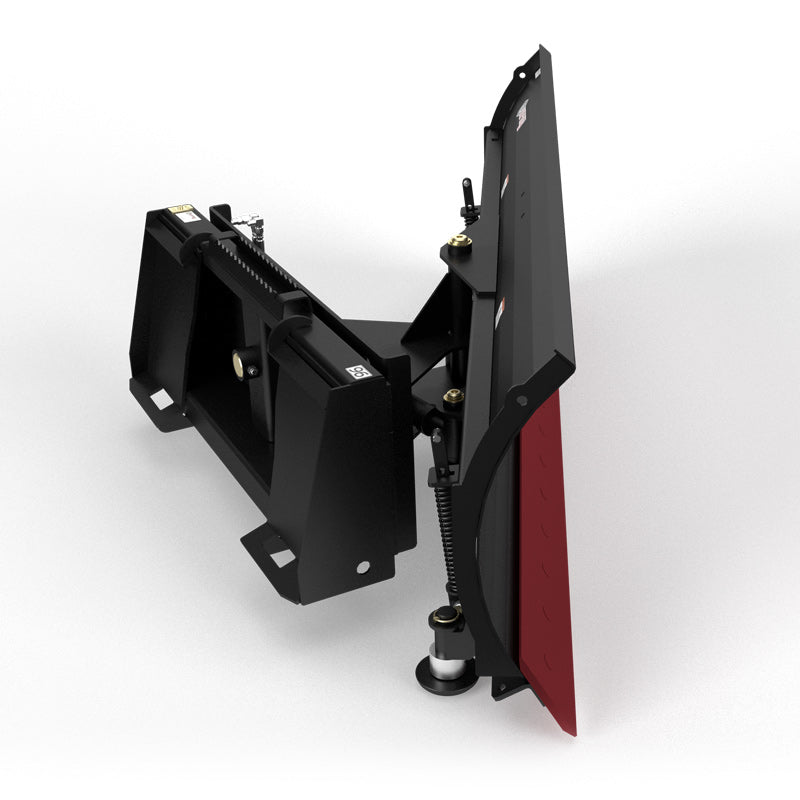

  • ANGLE THE BLADE 30° LEFT OR RIGHT FROM INSIDE THE CAB

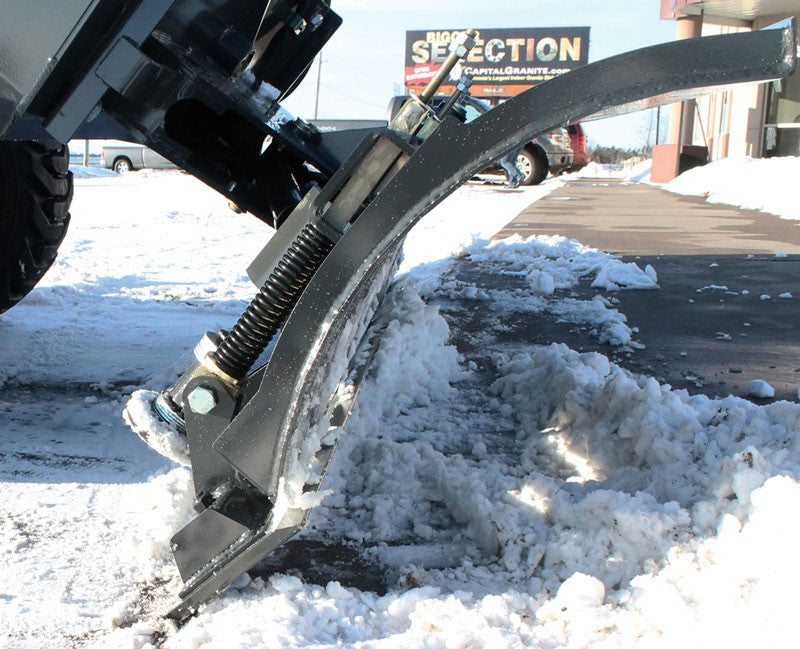

  • TRIP EDGE PROTECTS OPERATOR & EQUIPMENT
  • 5/8″ x 8″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 5 1/2″ OF WEAR

One-cylinder hydraulic angle.

MODEL SBS60-LD SBS72-LD SBS84-LD SBS96-LD
Width: Overall, Straight / Full Angle (Inches) 62.0 / 54.0 74.0 / 64.0 86.0 / 74.0 98.0 / 84.0
Overall Height (Inches) 31.0
Overall Depth, Straight (Inches) 37.1
Blade Angle (Degrees) +/- 30
Moldboard Thickness (Inches) 0.19
Cutting Edge (Inches) 5/8 x 8 Bolt-on
Blade Oscillation (Degrees) +/- 4
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
Approximate Weight (Pounds) 815* 870* 920* 975*
Recommended Loader Capacity Less than 1800 pounds

*Weight with Steel Edge installed.
