Product Description

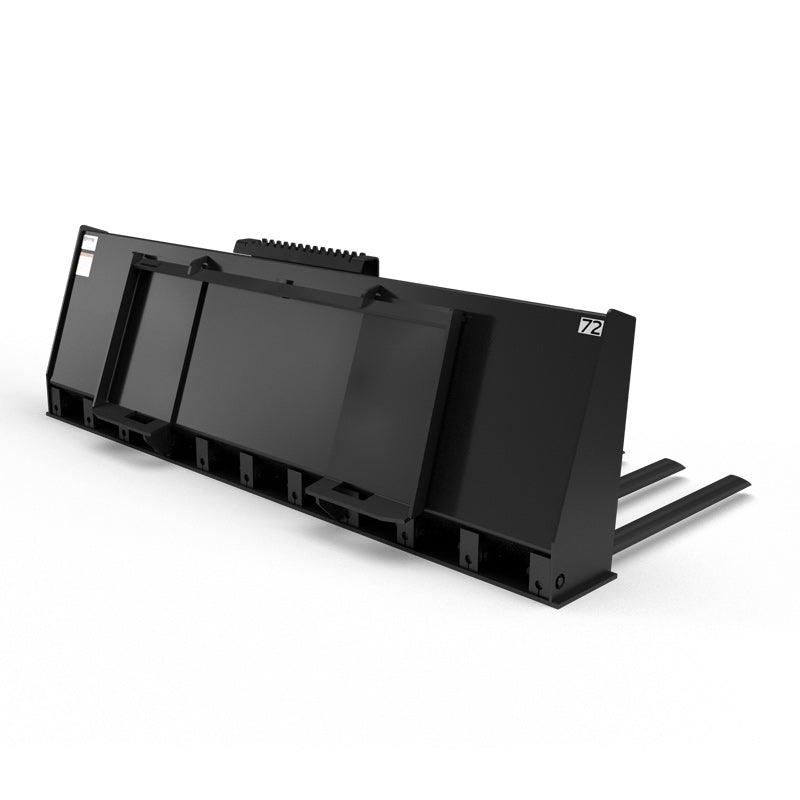

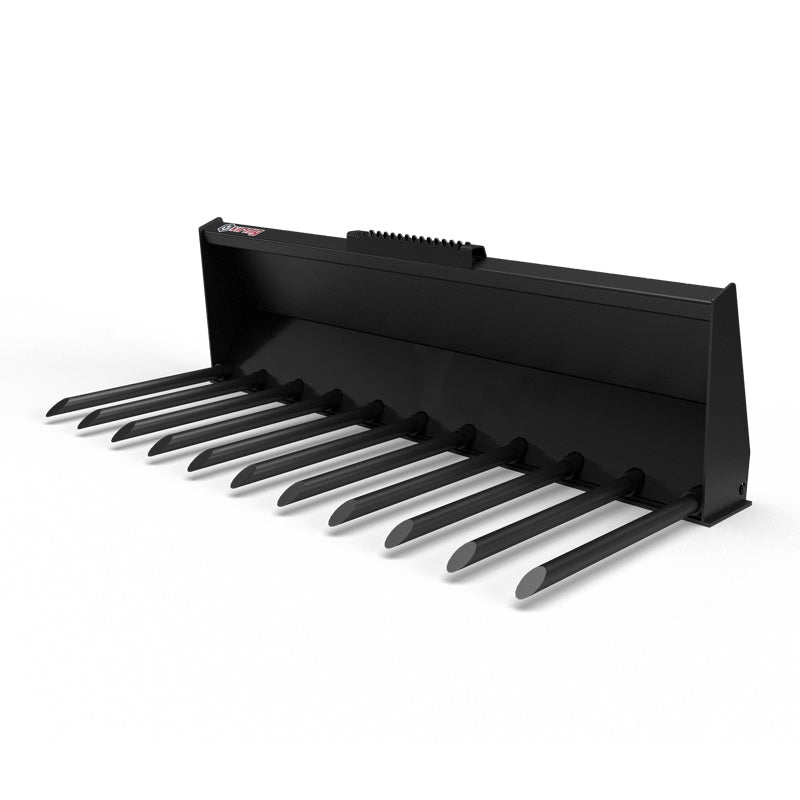

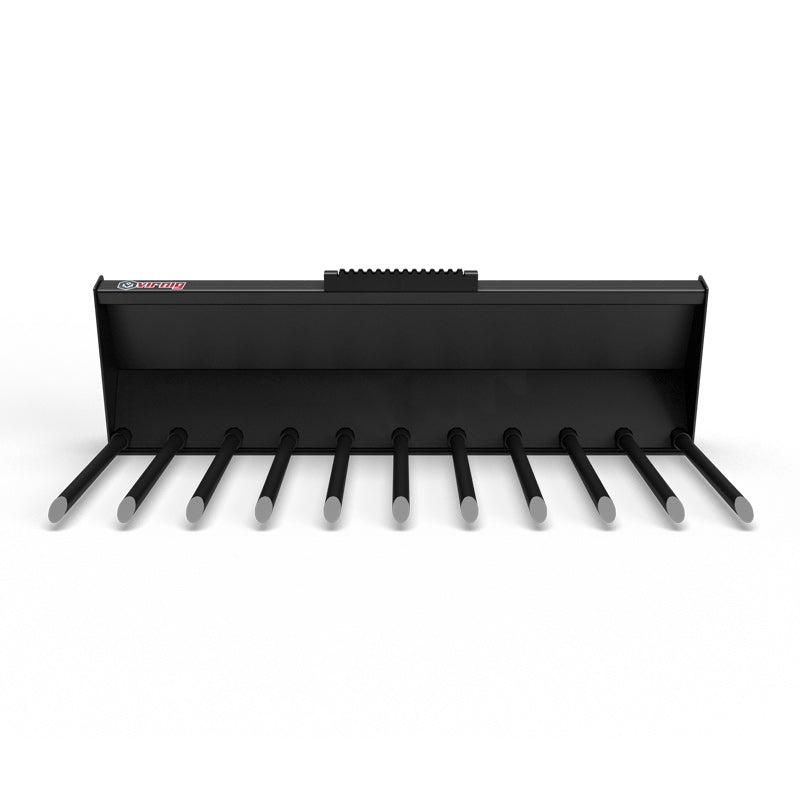

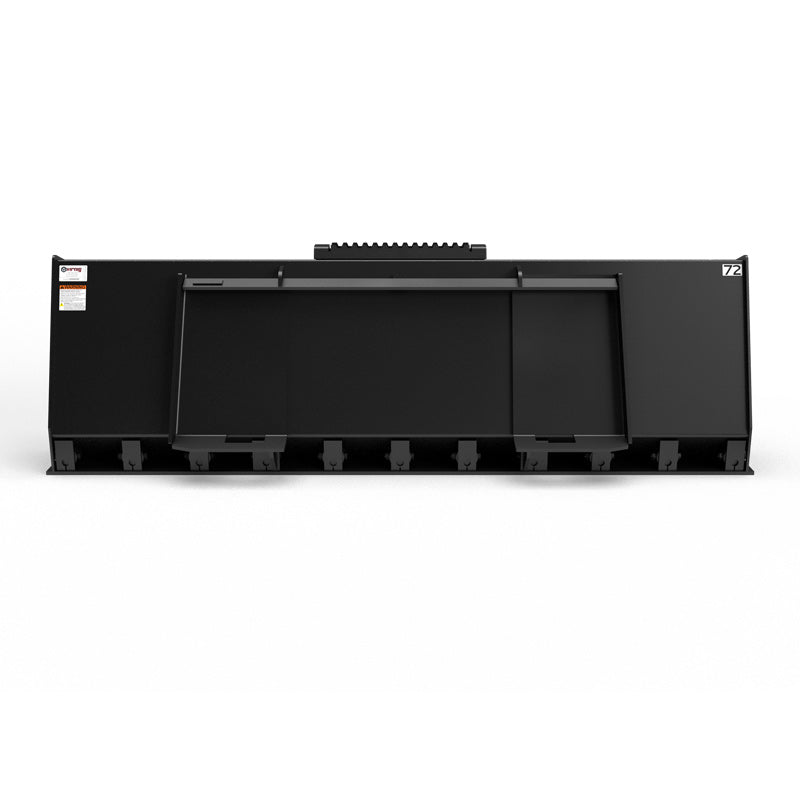

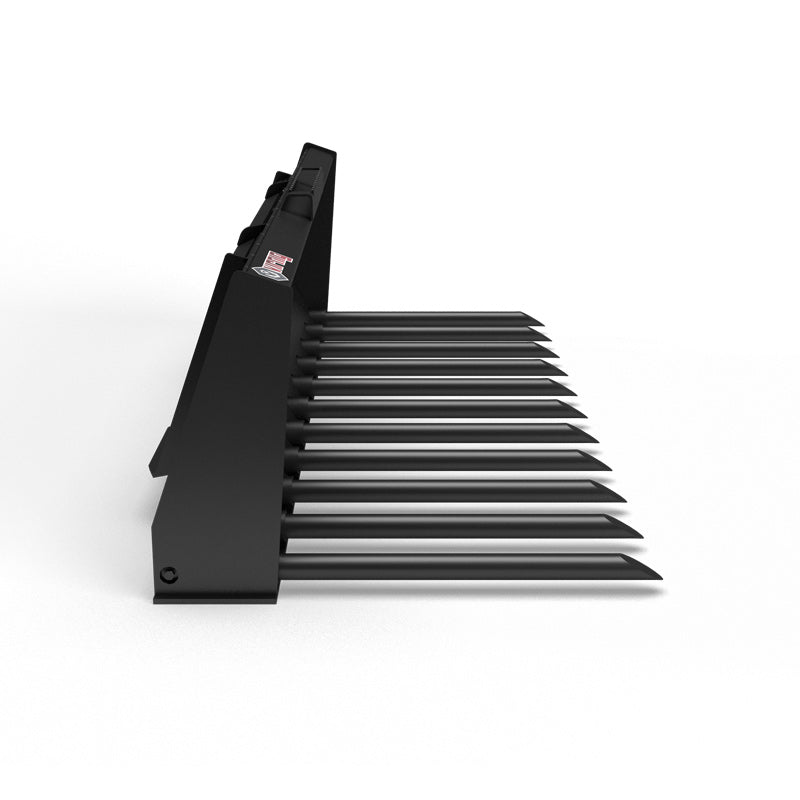

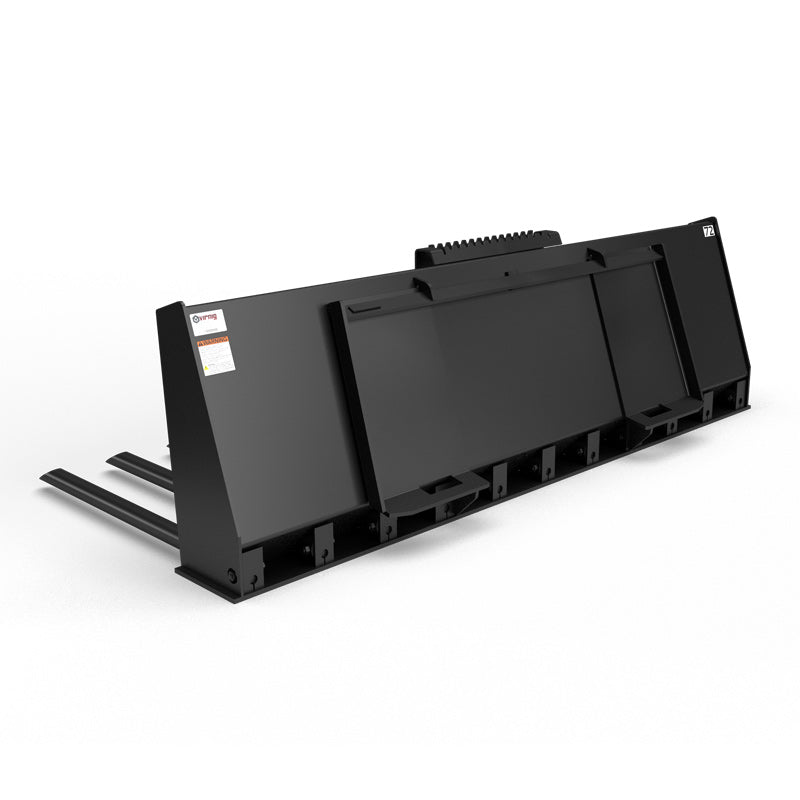

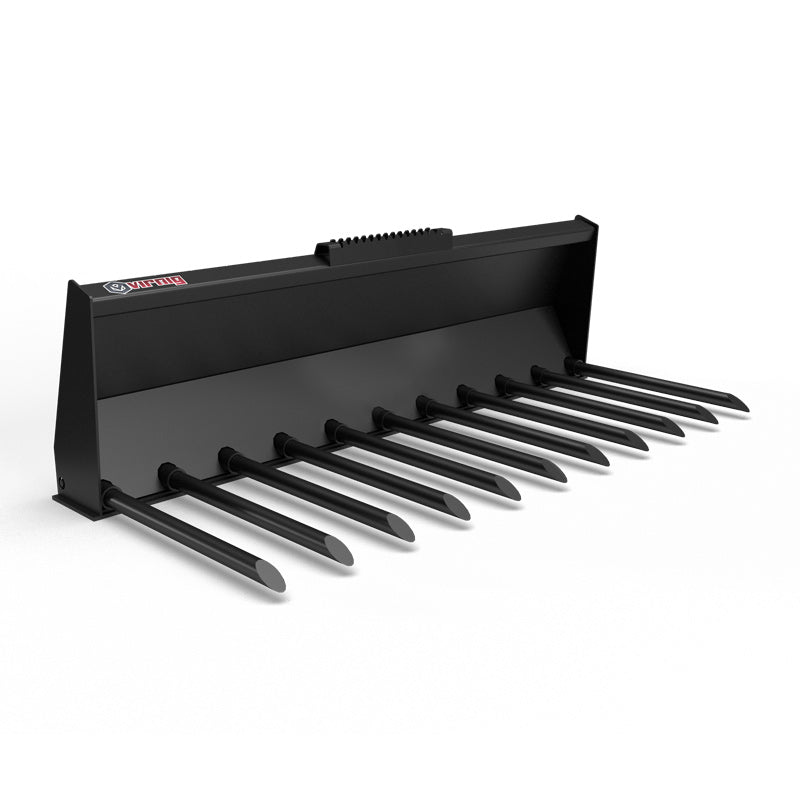

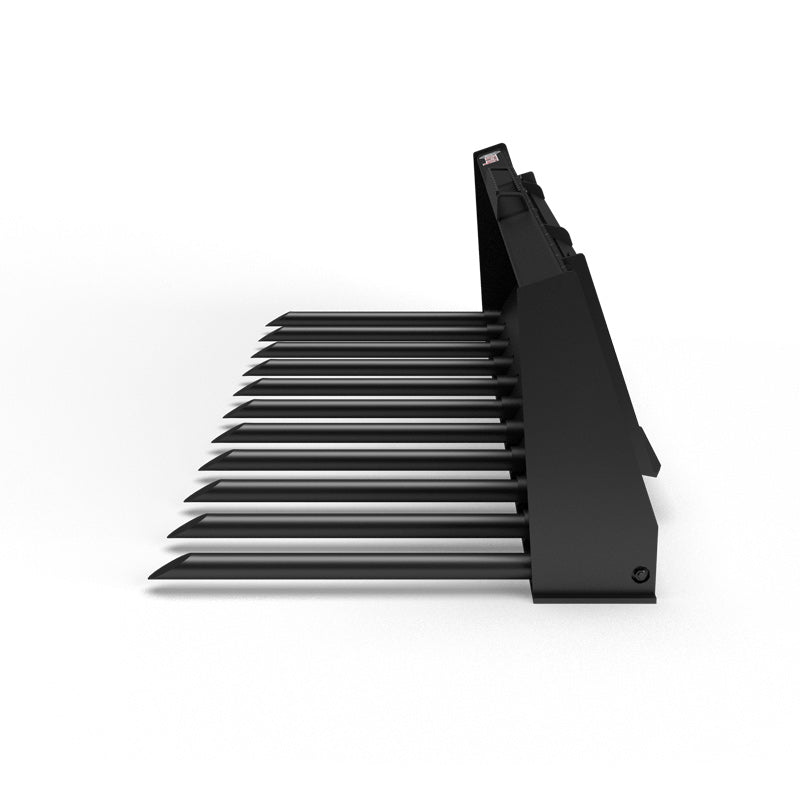

A cost effective solution for transporting semi-loose material.
- NO CROSS MEMBER FOR BETTER PENETRATION
- HIGH STRENGTH REPLACEABLE TINES
| MODEL | MV60 | MV66 | MV72 | MV78 |
| Overall Width (Inches) | 61.3 | 67.3 | 73.3 | 79.3 |
| Overall Height (Inches) | 21.5 | |||
| Overall Depth (Inches) | 33.5 | |||
| Number of Teeth | 9 | 10 | 11 | 12 |
| Space Between Teeth (Inches) | 5.4 | 5.3 | 5.2 | 5.1 |
| Tine Diameter (Inches) | 1.75* | |||
| Approximate Weight (Pounds) | 545 | 570 | 655 | 695 |
| Recommended Loader Capacity | Less than 2400 pounds | |||
*Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength).
Download Spec Sheet (PDF)
Download Manual >>
