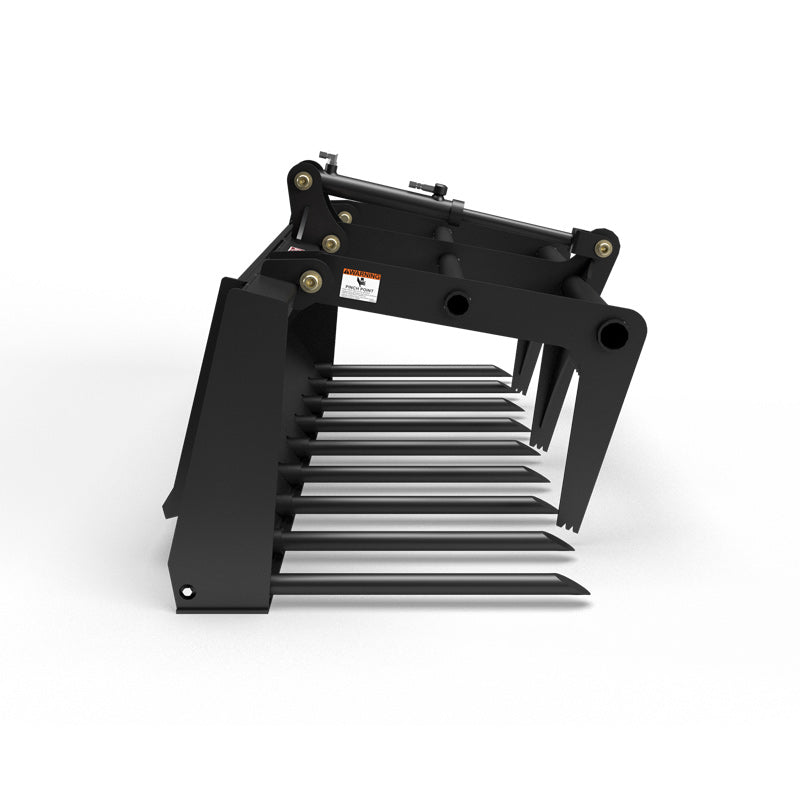

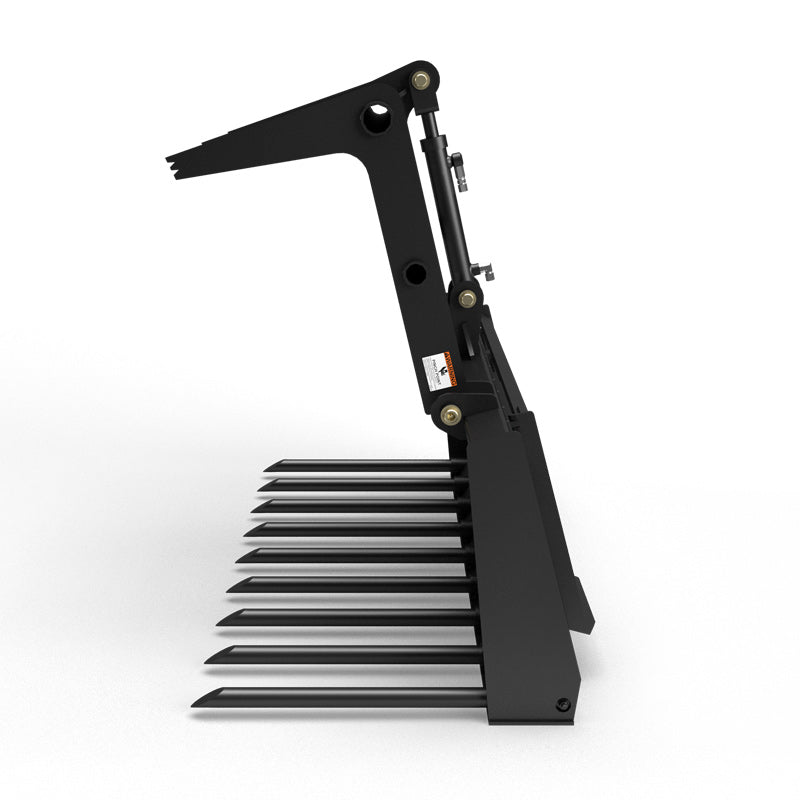

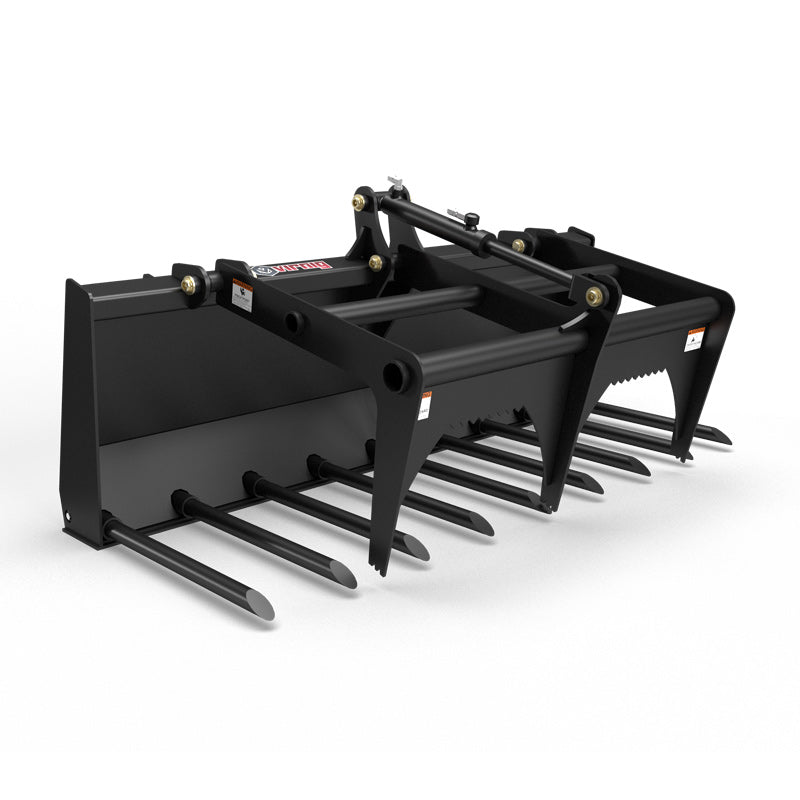

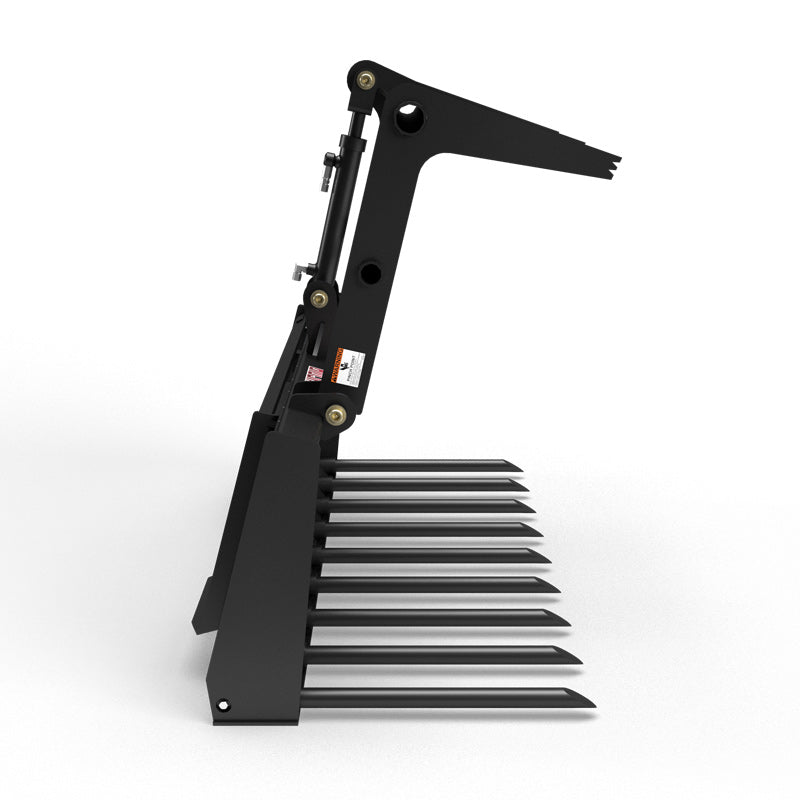

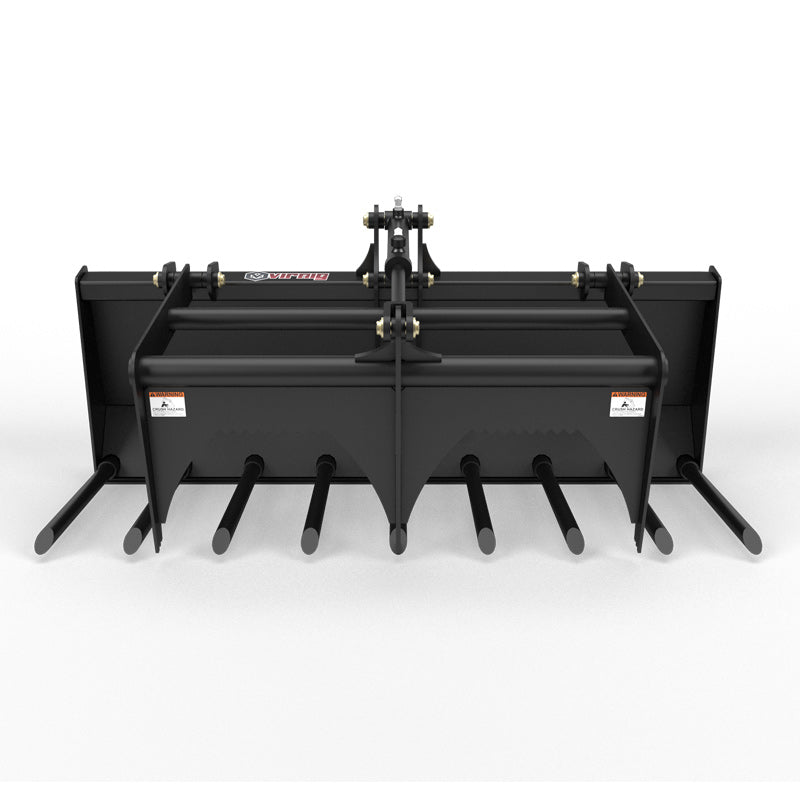

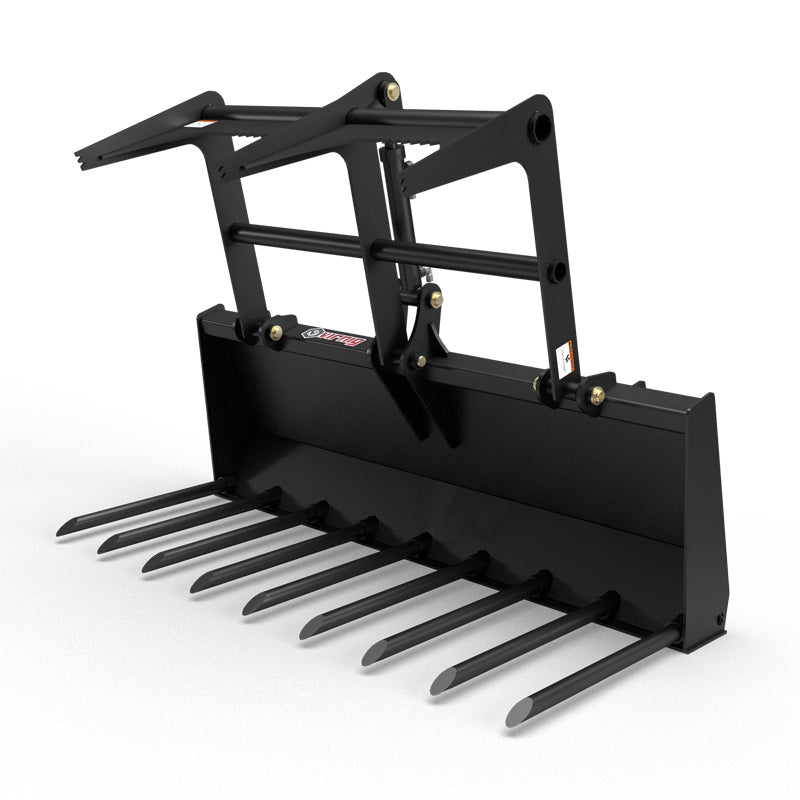

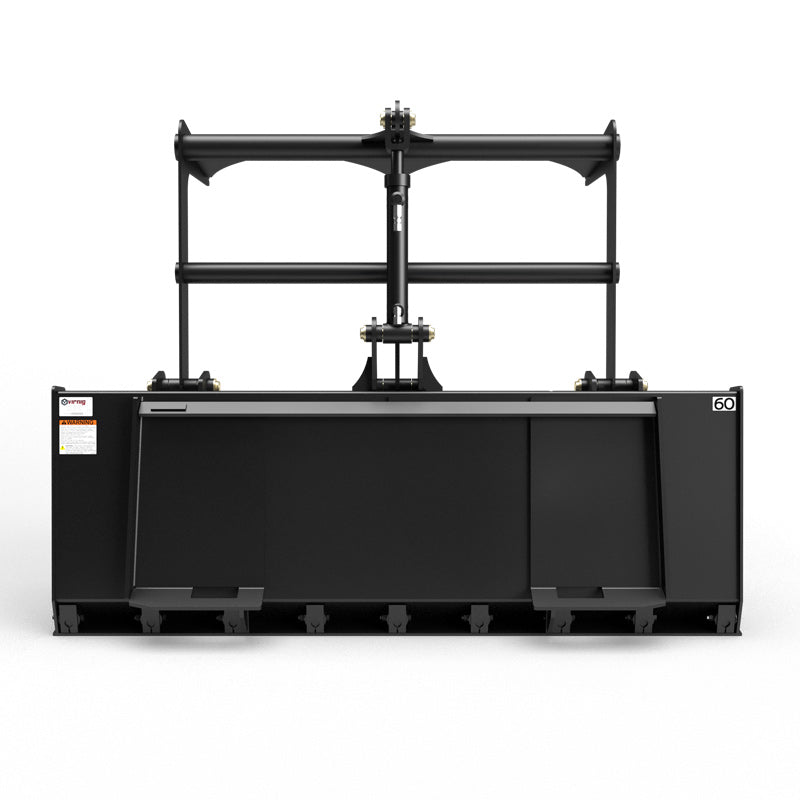

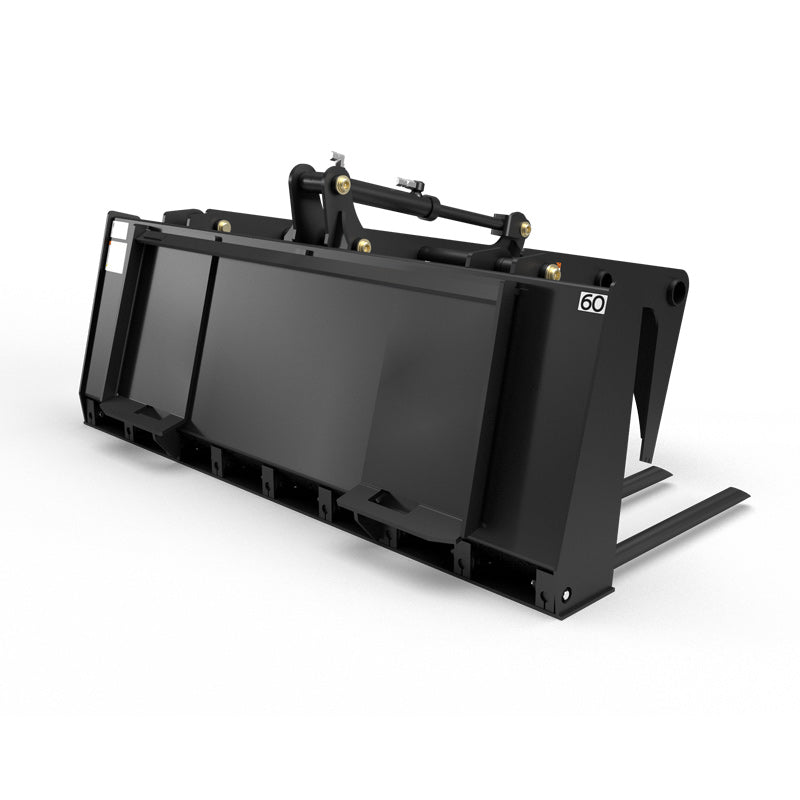

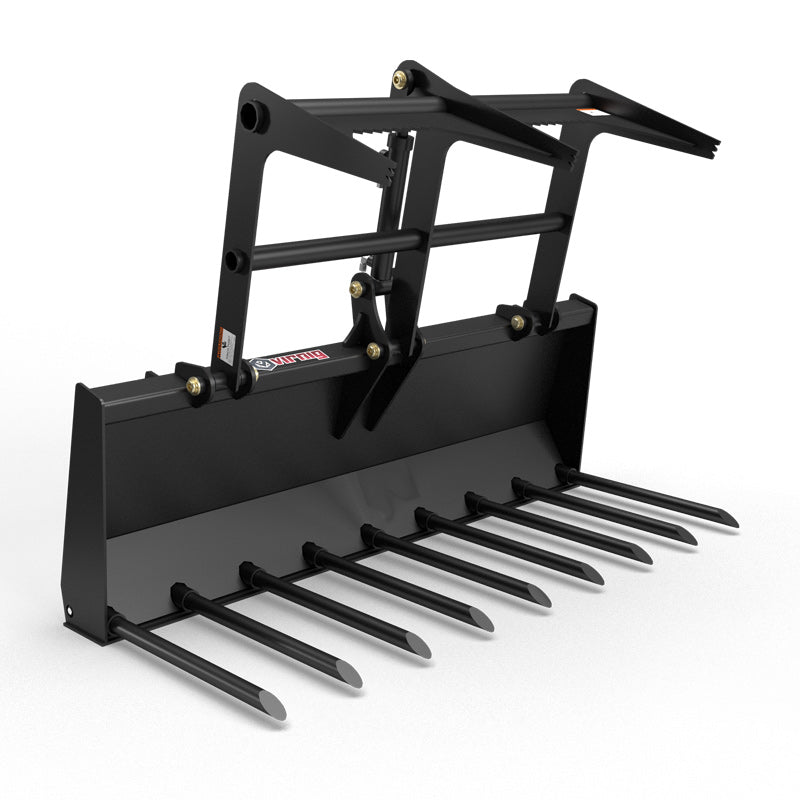

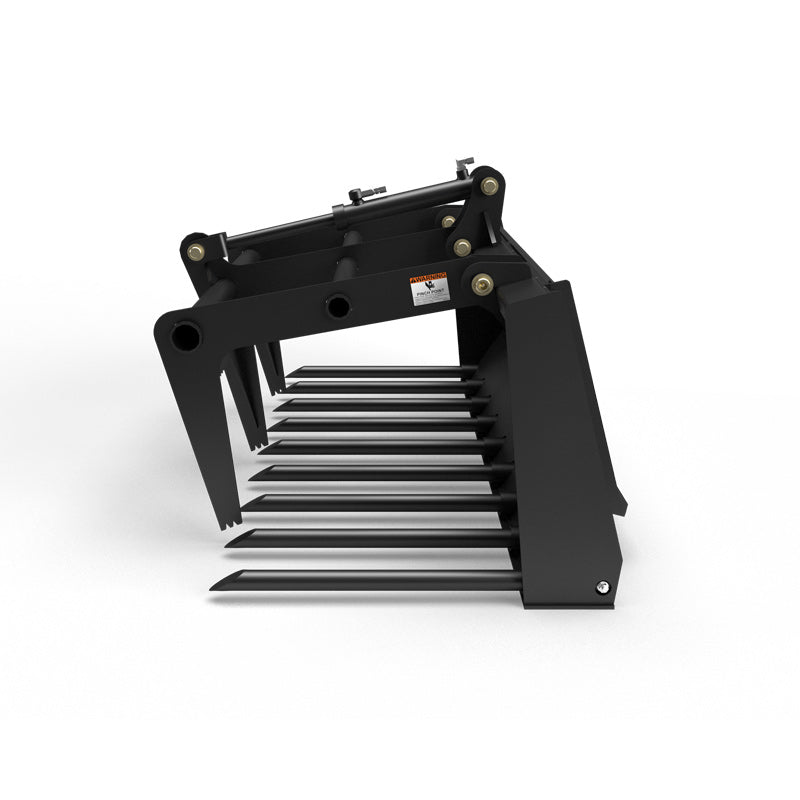

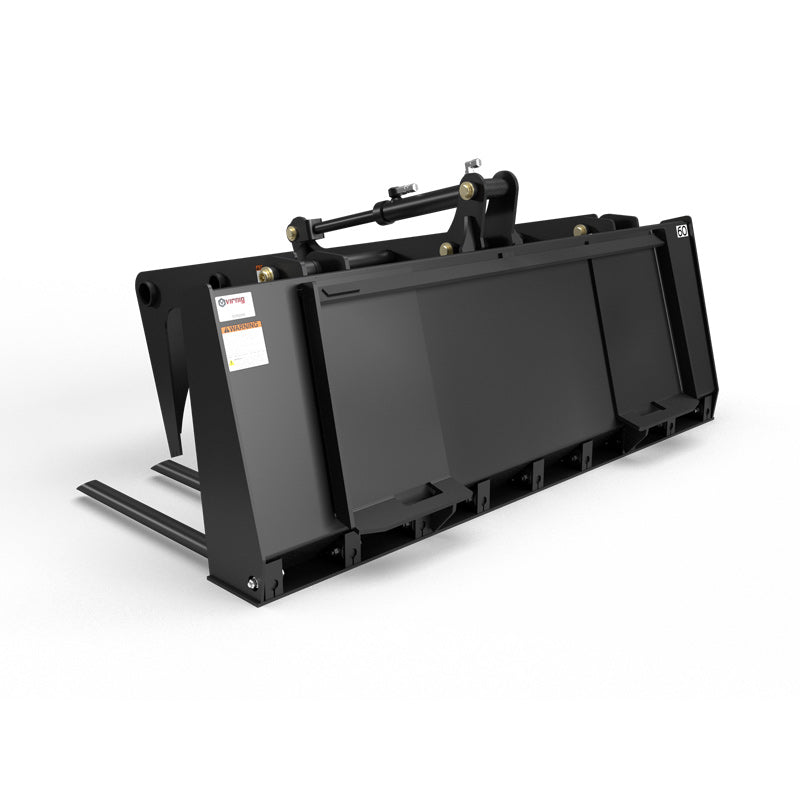

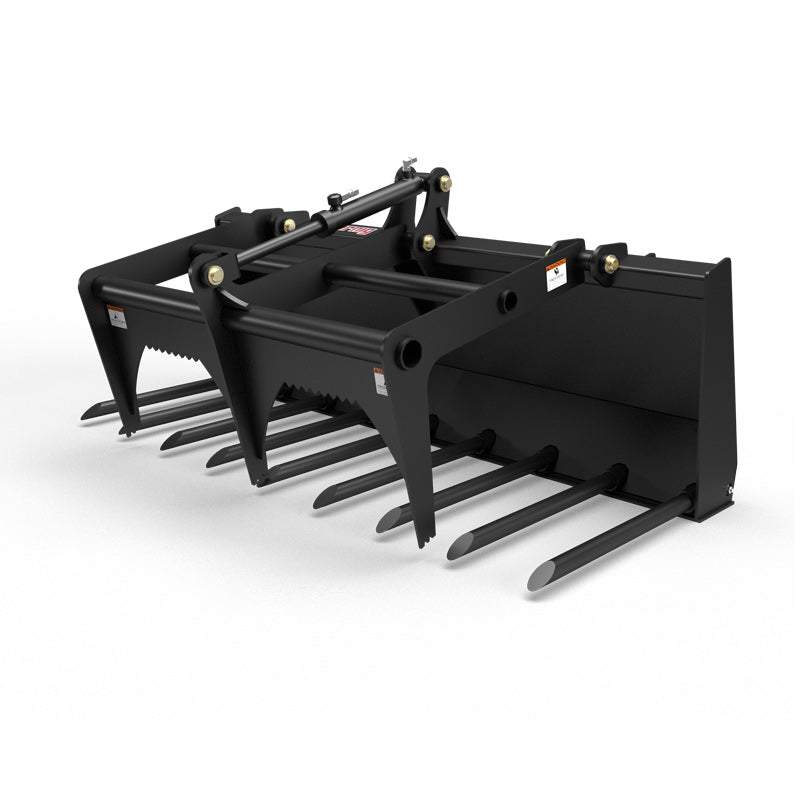

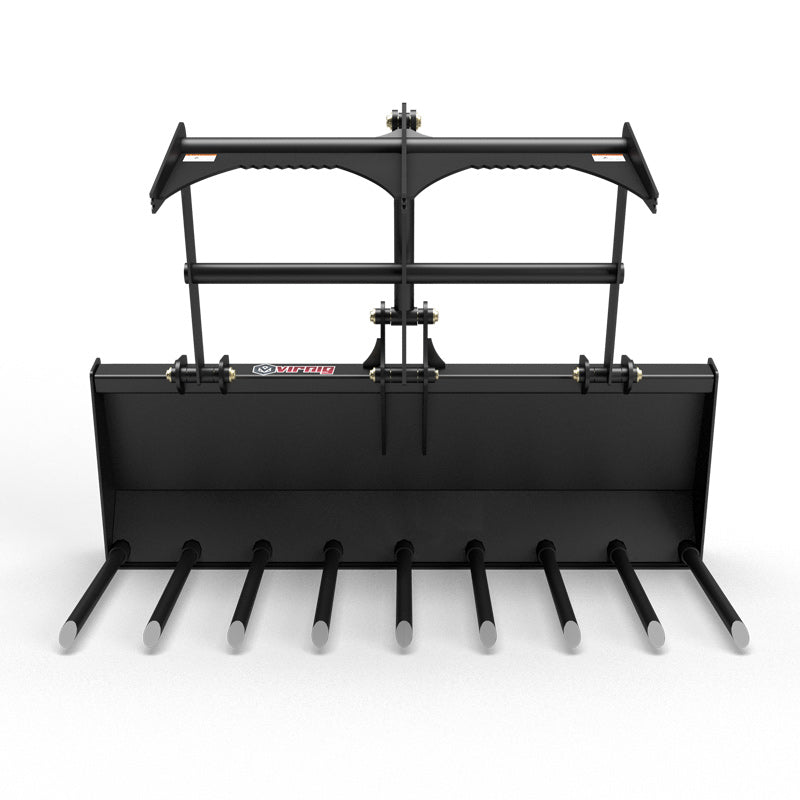

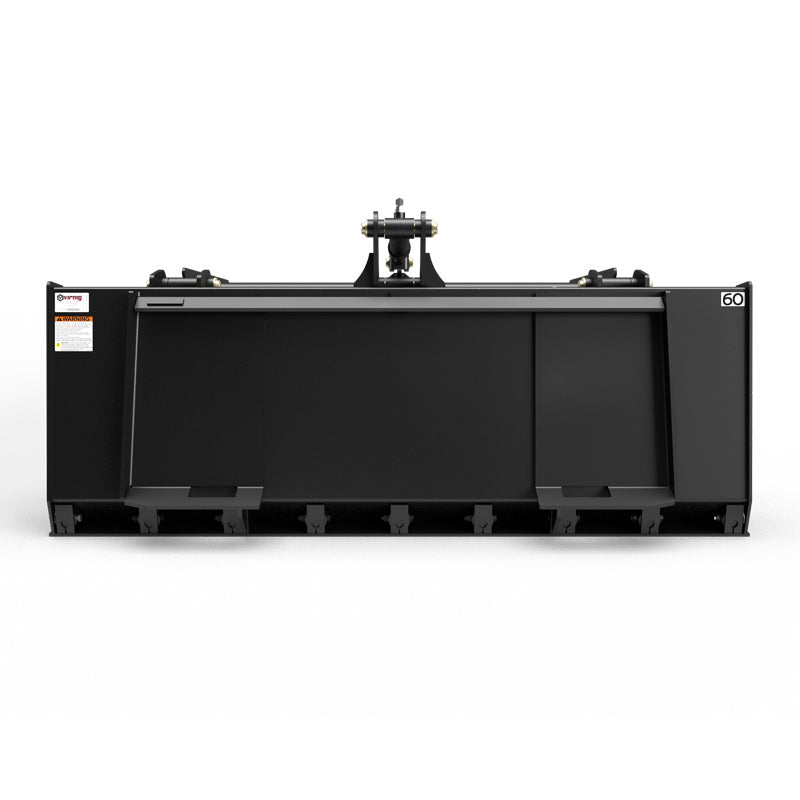

Description

  • LOW PROFILE FOR EXCELLENT VISIBILITY
  • HIGH STRENGTH REPLACEABLE TINES
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE

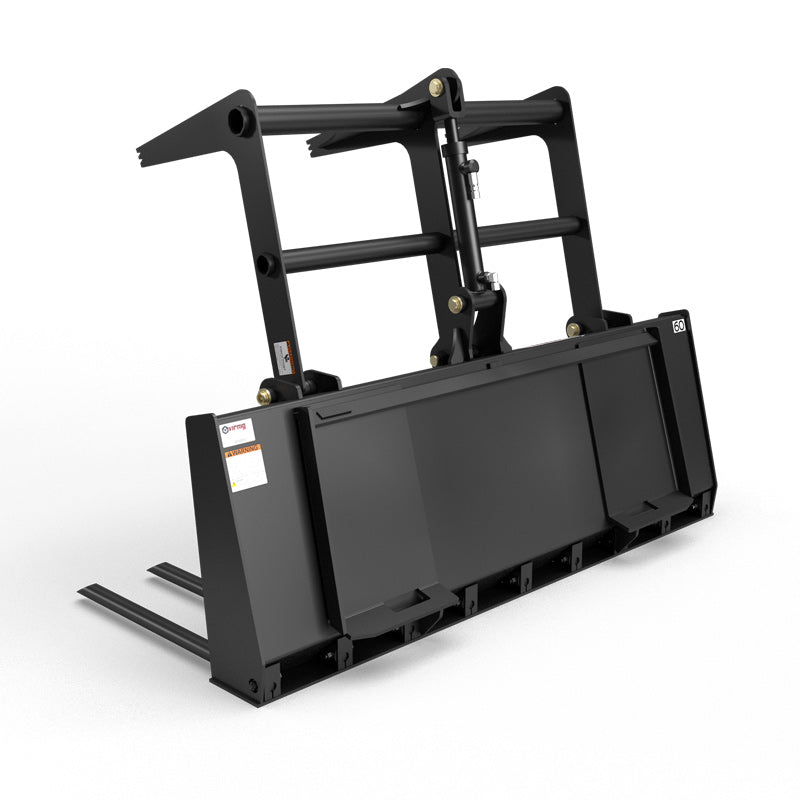

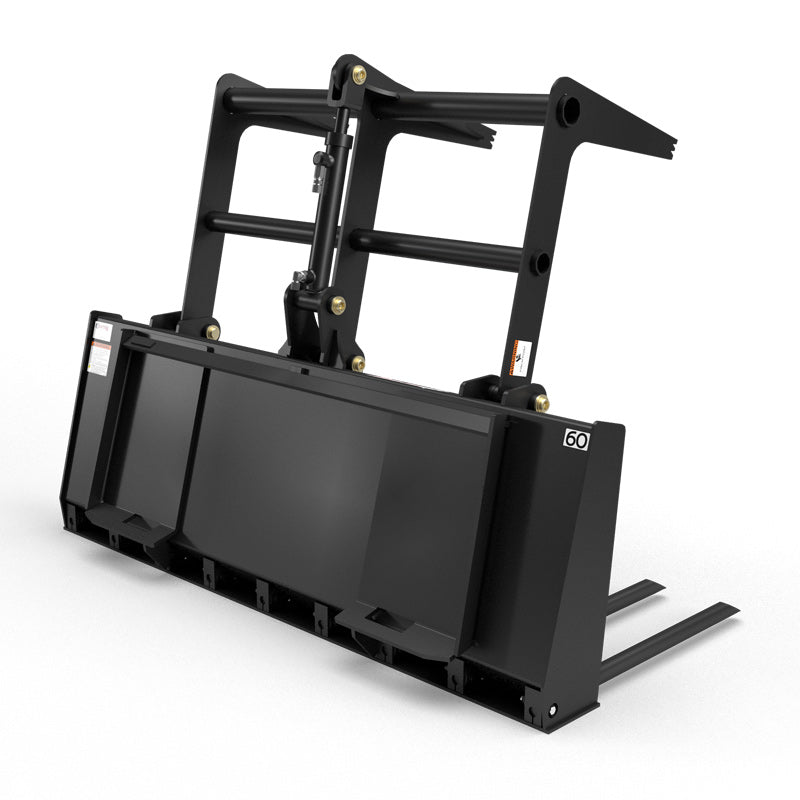

Universal skid steer mount only.

MODEL UGV48-CT UGV54-CT UGV60-CT UGV66-CT UGV72-CT
Overall Width (Inches) 49.0 54.5 60.5 66.5 72.5
Height: Overall / Bucket (Inches) 28.2 / 20.5
Overall Depth (Inches) 36.3
Number of Tines 7 8 9 10 11
Space Between Tines (Inches) 6.0 5.9 5.7 5.6 5.4
Tine Diameter (Inches) 1.5*
Grapple Jaw Opening (Inches) 37.5
Cylinder Bore / Stroke (Inches) 1.25 / 8.0
Cylinder Pins / Hinge Pins Diameter (Inches) 1.0/1.0
Approximate Weight (Pounds) 480 510 540 570 600
Recommended Loader Capacity Less than 1500 pounds

*Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength).

Download Spec Sheet (PDF)
Download Manual >>

WARNING
