Description

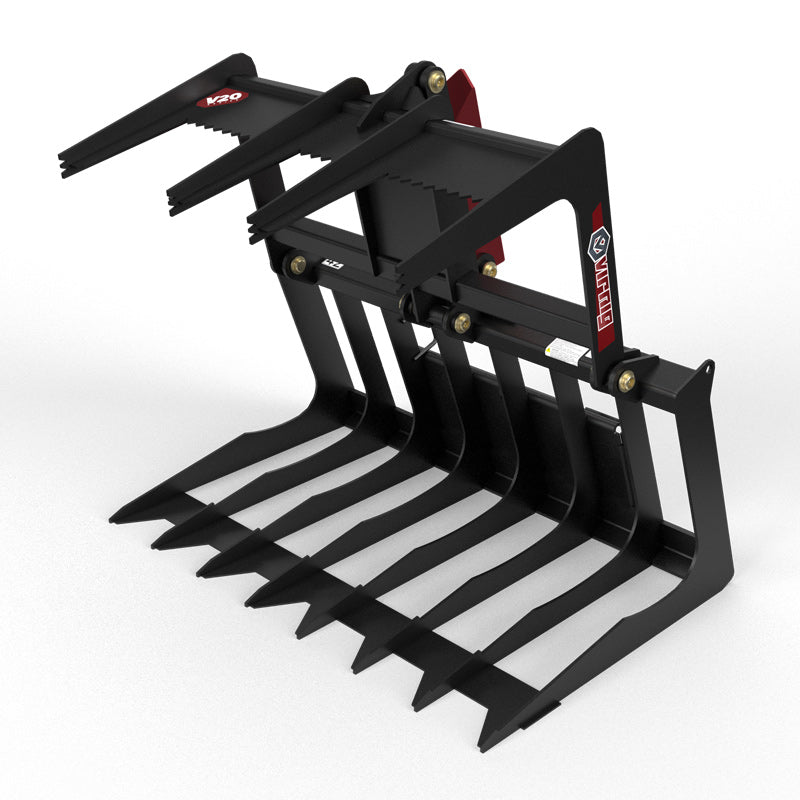

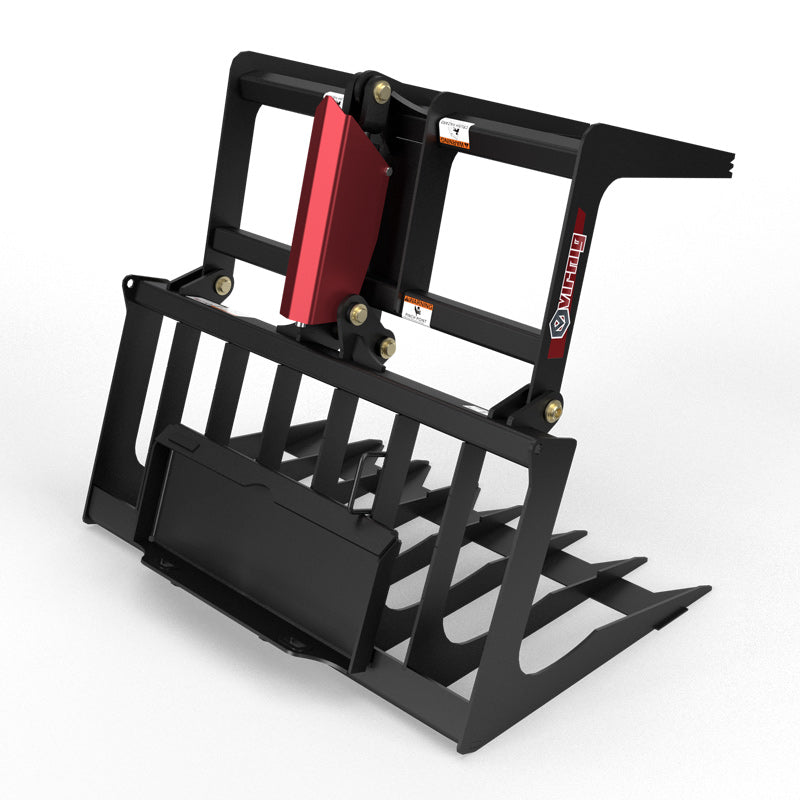

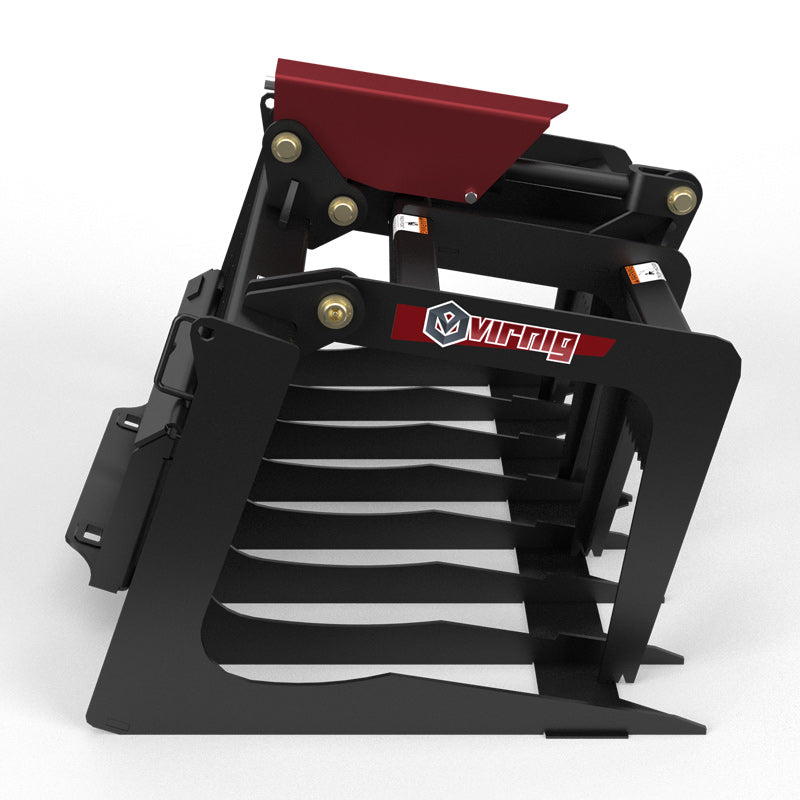

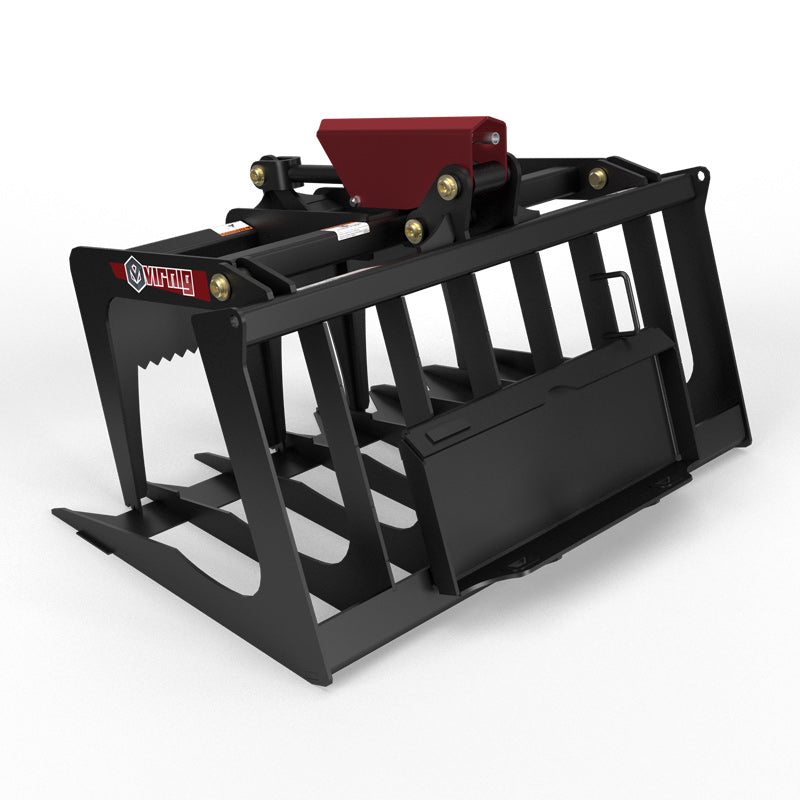

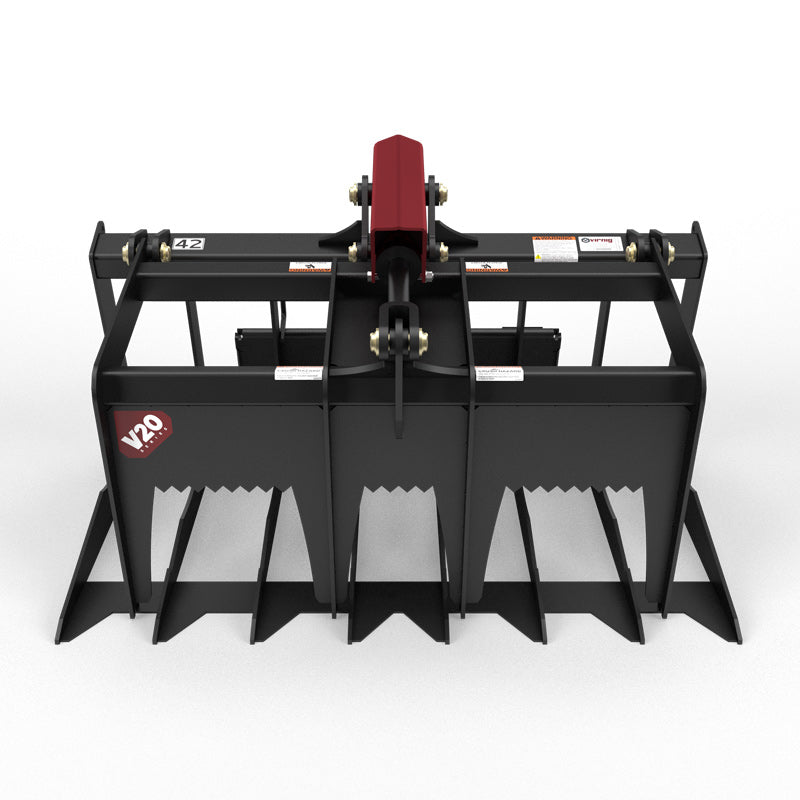

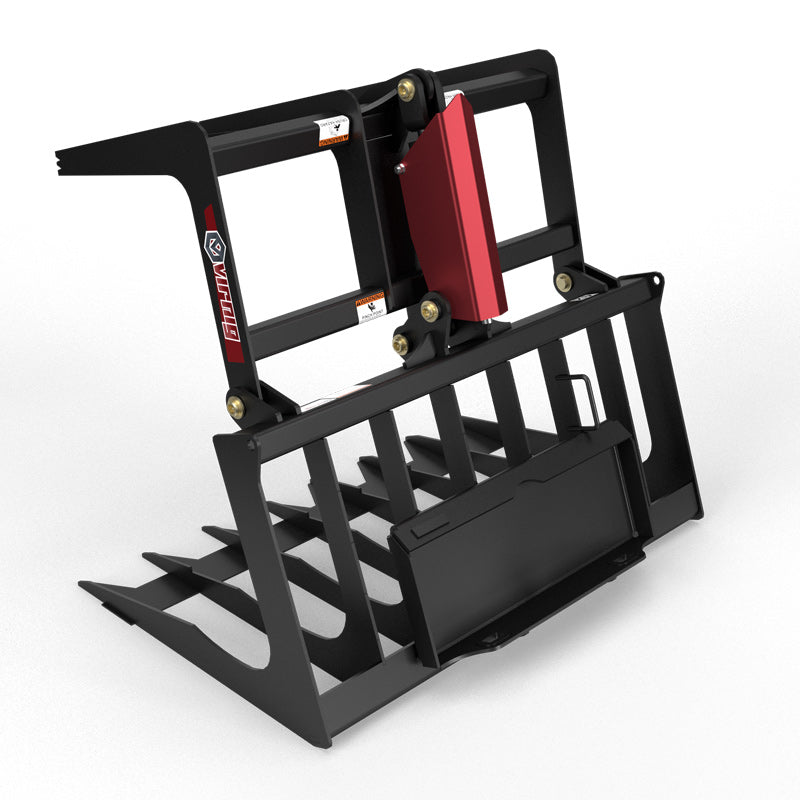

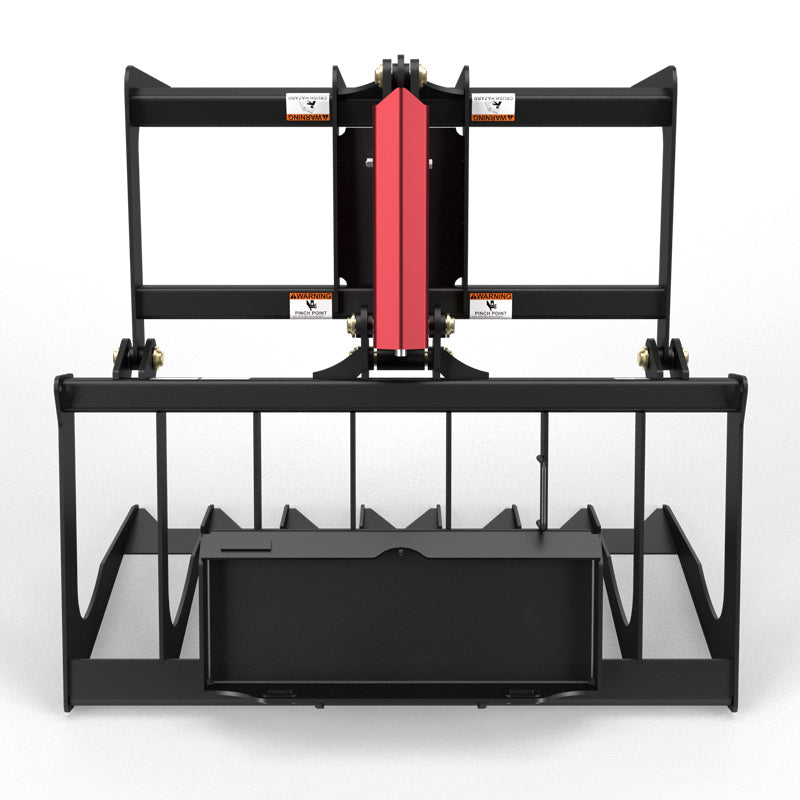

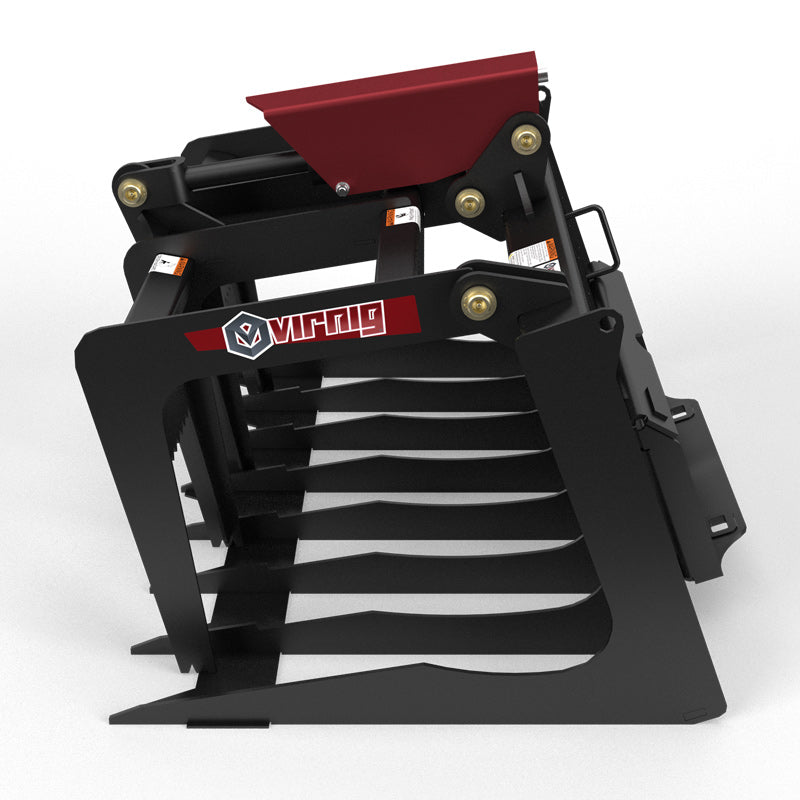

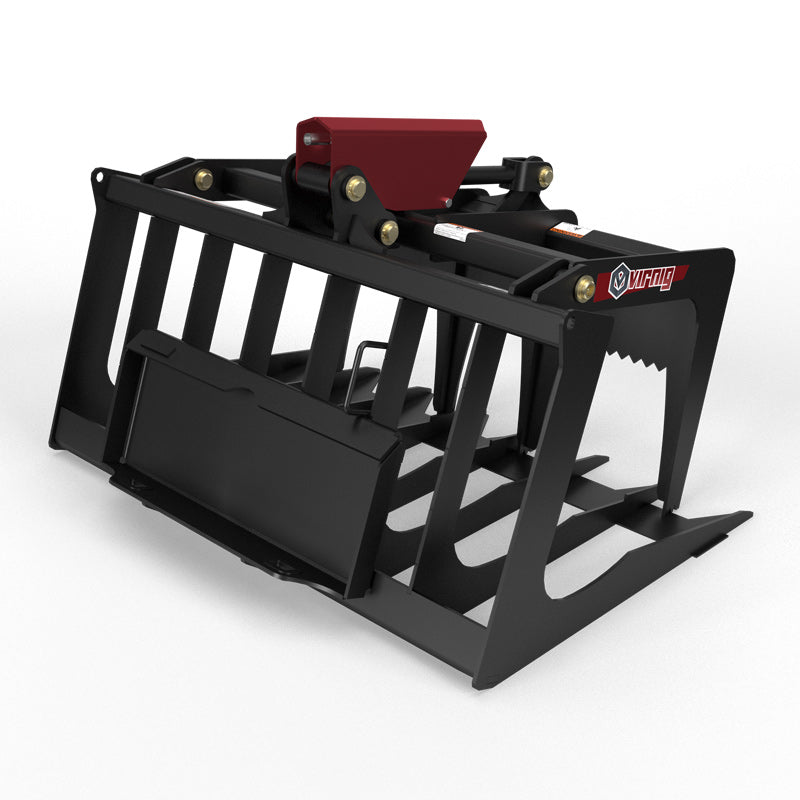

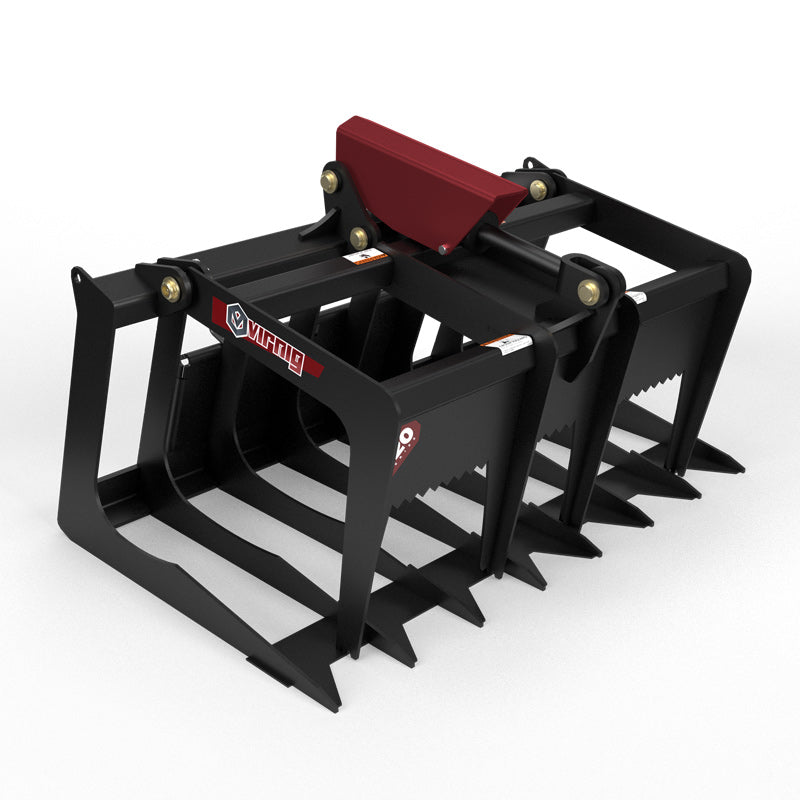

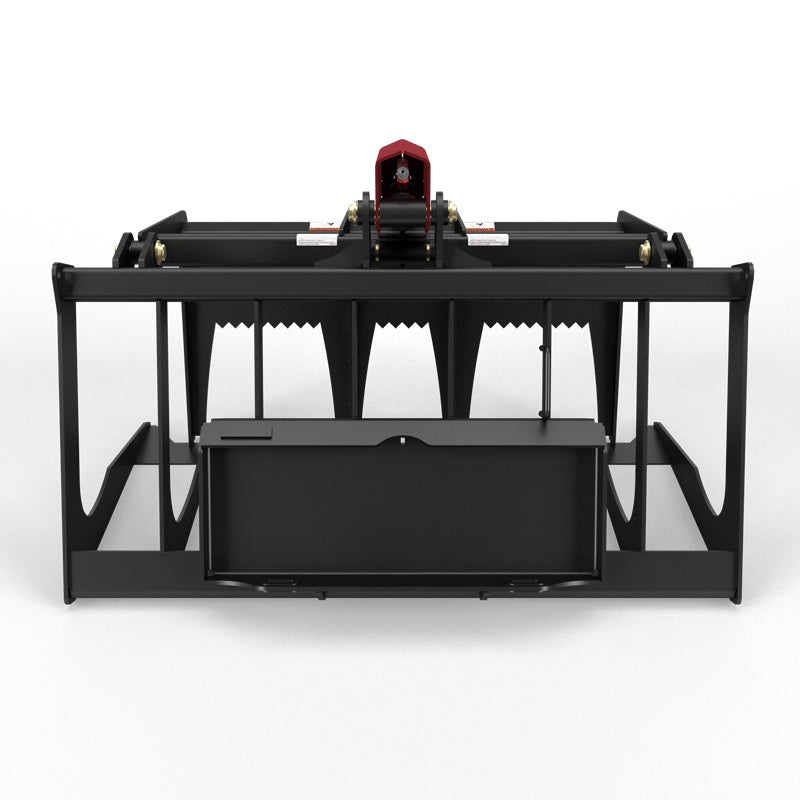

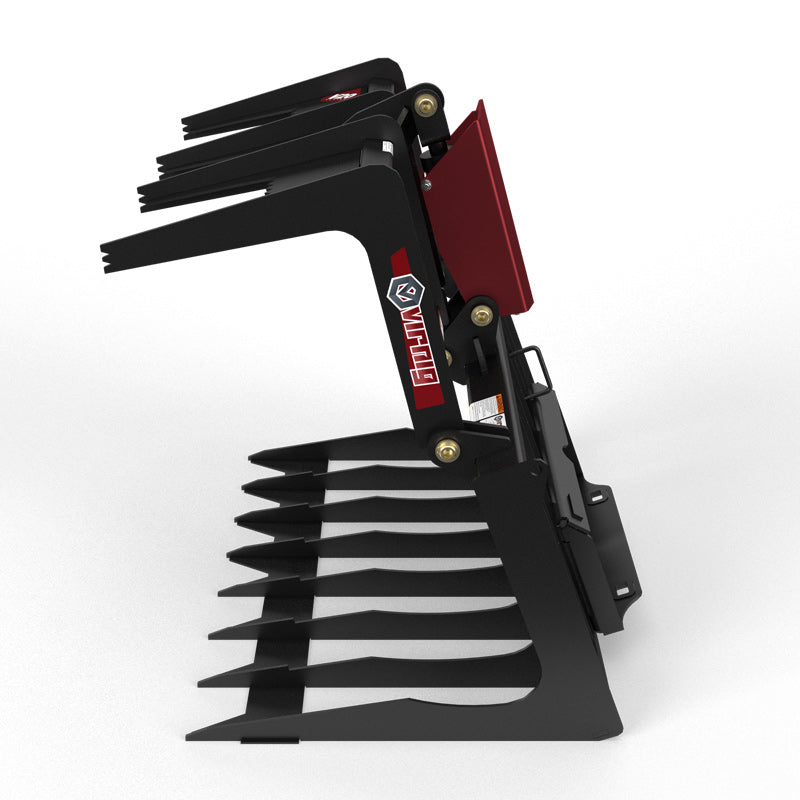

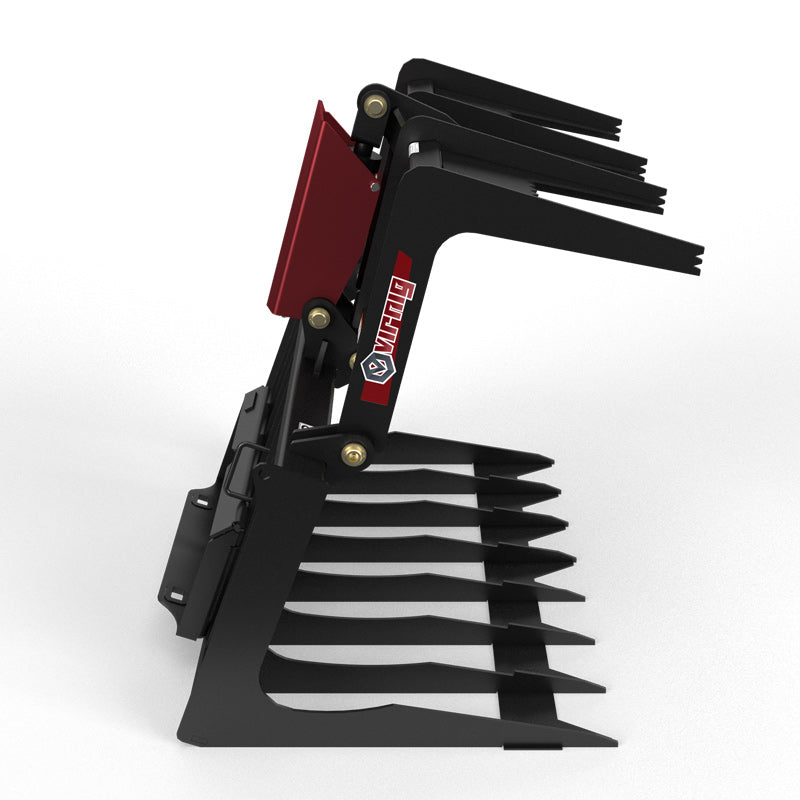

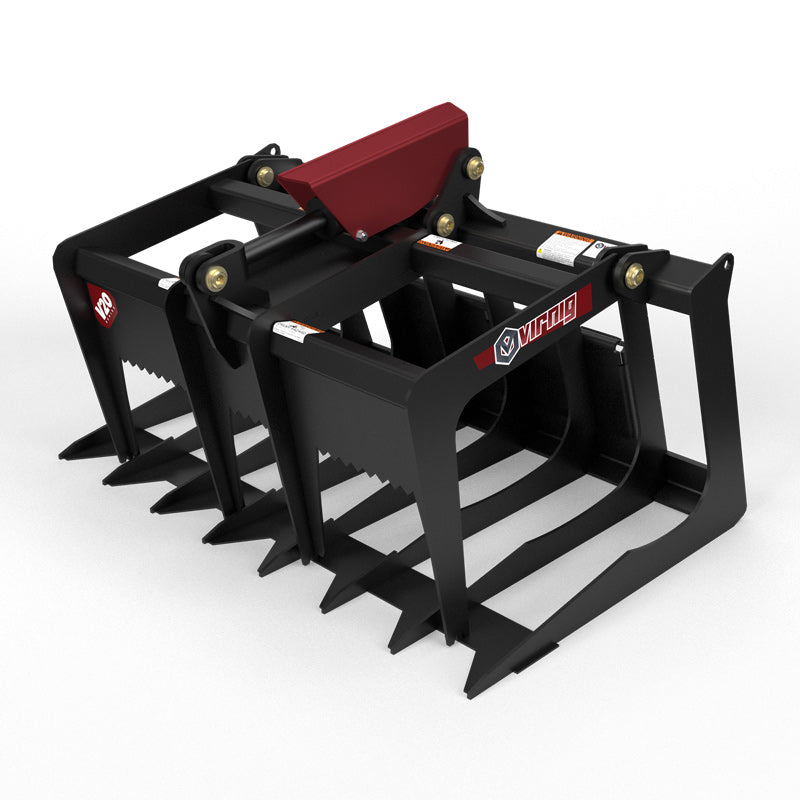

Open-sided design for hauling brush and logs. Open bottom allows dirt to fall through. Available Widths 36″, 42″, 48″

  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE
  • STANDARD WITH CYLINDER GUARD

Choose from three mini skid mounts:

  • Mini Universal (all brands except Bobcat® and ASV®)
  • Bobcat® Mini
  • ASV® Mini
  • Note: None of the above are compatible with universal skid steer mount.
MODEL CSGV36 CSGV42 CSGV48
Overall Width (Inches) 36.0 42.0 48.0
Height: Overall / Bucket (Inches) 26.6 / 24.1
Overall Depth (Inches) 31.9
Number of Tines (With Sides) 7 8 9
Space Between Tines (Inches) 5.9
Tine Thickness (Inches) 0.25¹
Cylinder Bore / Stroke (Inches) 2.0 / 6.0
Cylinder Pins / Hinge Pins Diameter (Inches) 1.0 / 1.0
Grapple Jaw Opening (Inches) 30.3
Approximate Weight (Pounds) 2402 2652 2802
Recommended Loader Capacity Greater than 500 pounds

¹Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength). 2ASV® mount adds approximately 30 pounds and Bobcat® mount adds 15 pounds to model weight.

Download Spec Sheet (PDF)
Download Manual >>
