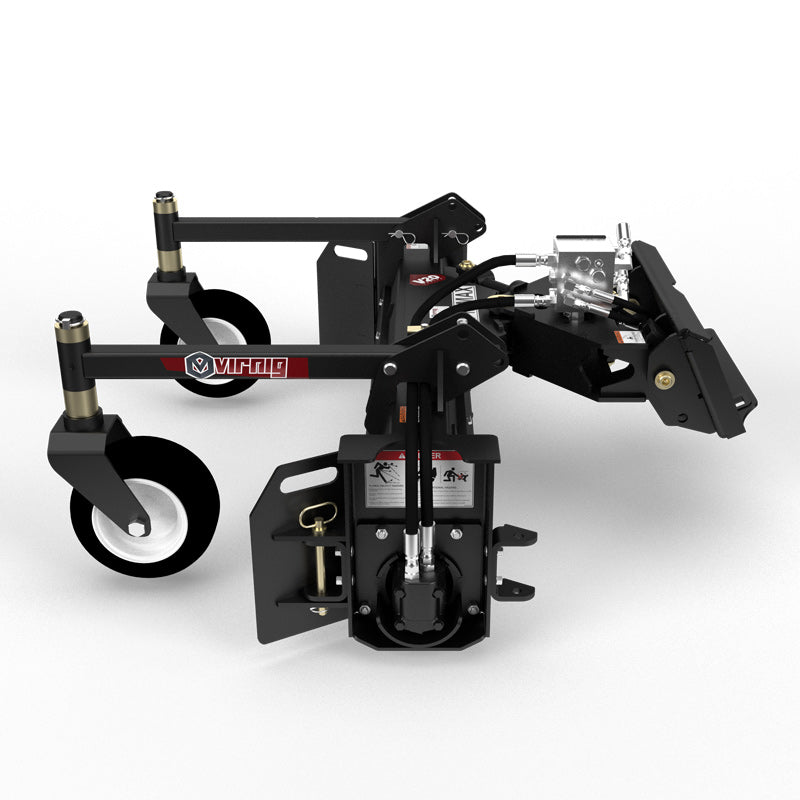

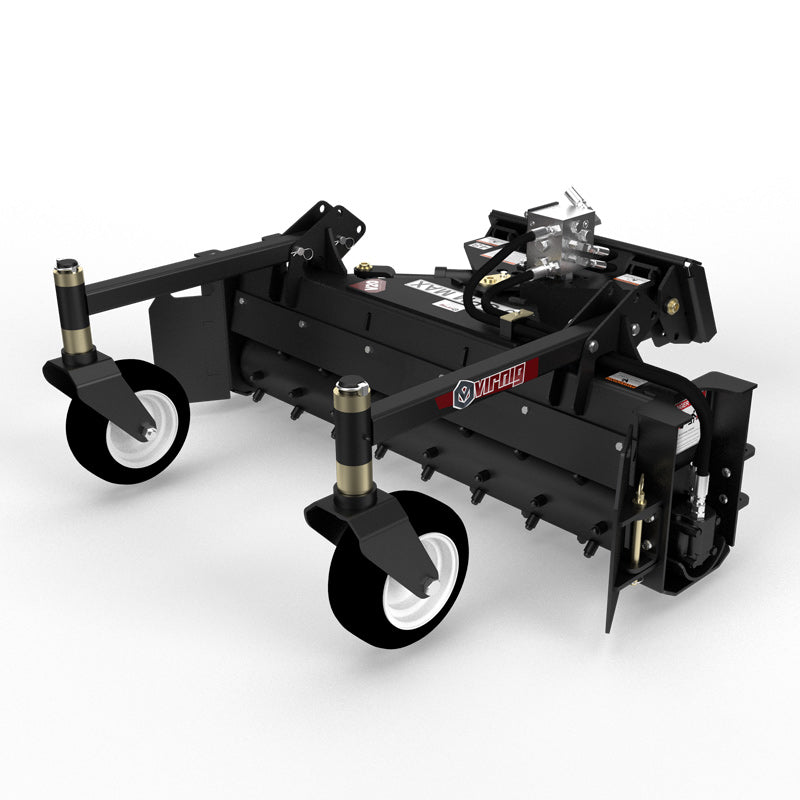

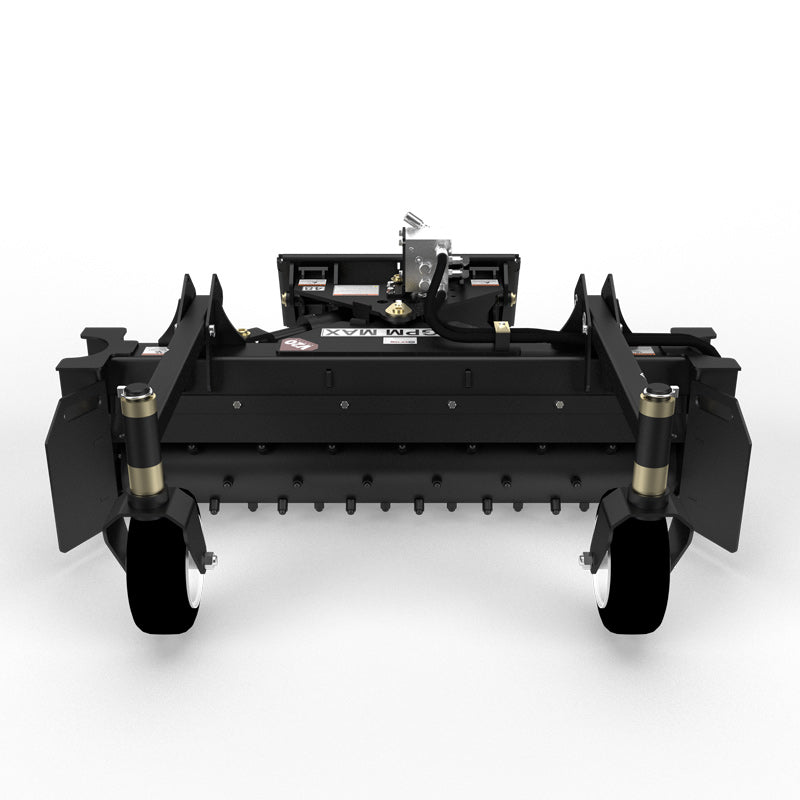

Description

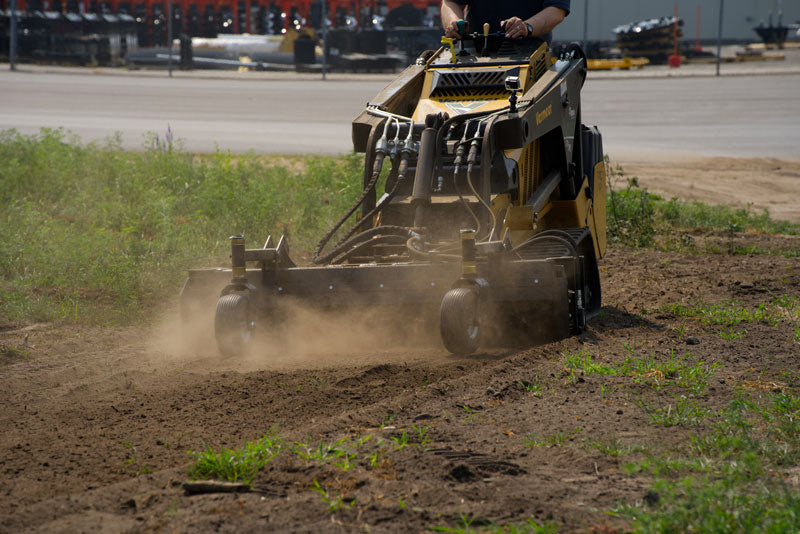

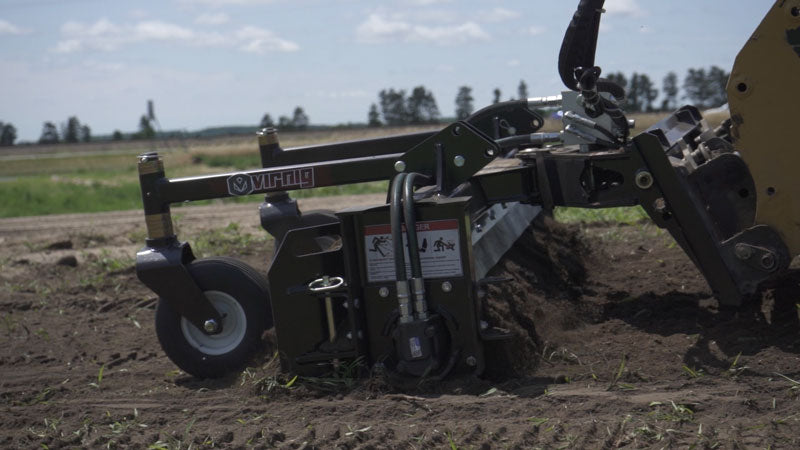

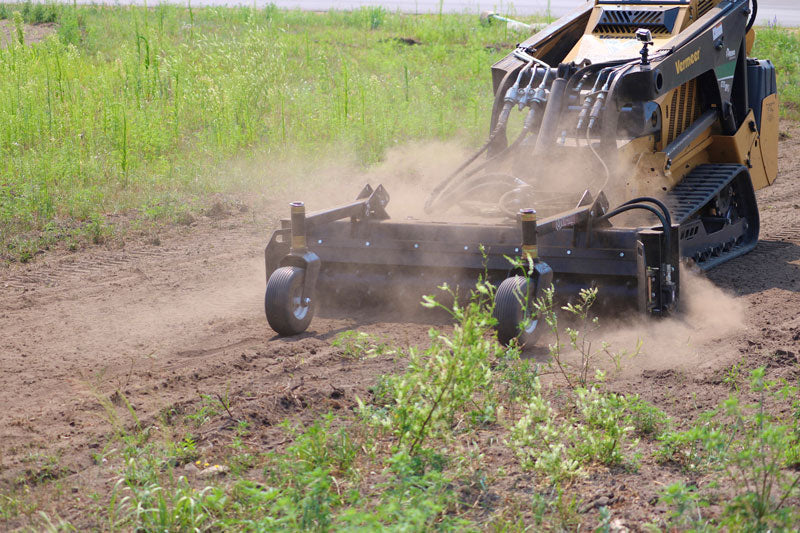

Grade soil and gravel, prepare seedbeds and remove debris.
Available Widths 48″ & 60″

  • BI-DIRECTIONAL OPERATION IN FORWARD OR REVERSE
  • REVERSIBLE & REMOVEABLE END PLATES

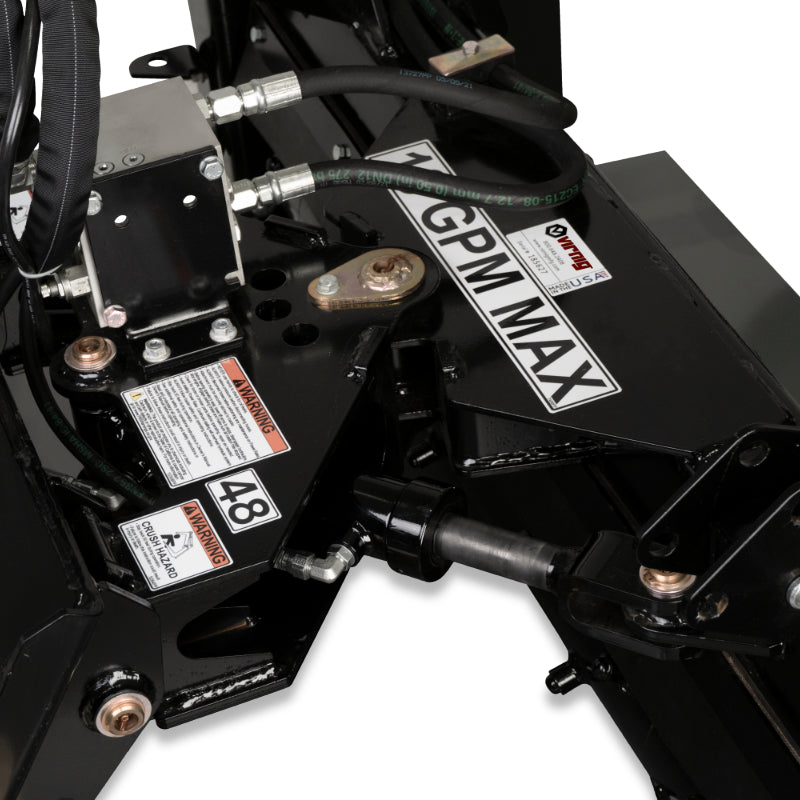

  • ANGLE THE RAKE 25° LEFT OR RIGHT

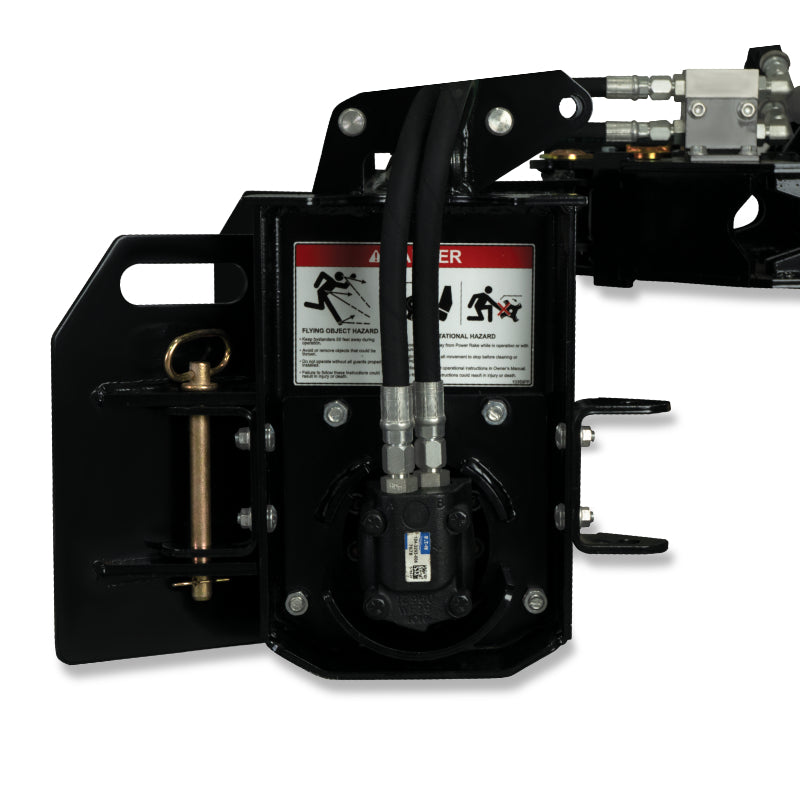

  • GUARDED MOTOR
  • FLOATING DESIGN FOR A SMOOTH FINISH & PROVIDES FULL DOWN PRESSURE CAPABILITY
  • CARBIDE TIP TEETH

Choose from three mini skid mounts:

  • Mini Universal (all brands except Bobcat® and ASV®)
  • Bobcat® Mini
  • ASV® Mini
  • Note: None of the above are compatible with universal skid steer mount.
MODEL CPR48 CPR60
Raking Width (Inches) 48.0 60.0
Raking Width at Full Angle (Inches) 44.0 54.2
Overall Width (Inches) 56.0 68.0
Overall Height (Inches) 22.2
Overall Depth (Inches) 52.6
Drum Diameter (Inches) 7.0
Number of Teeth 62 78
Float Link Angle (Degrees) 22
Max Rake Angle (Degrees) 25
Recommended Flow Rate (GPM) 10-18 Standard Flow Only
Approximate Weight (Pounds) 5201 5651
Recommended Loader Capacity Greater than 515 pounds

¹ASV® mount adds approximately 30 pounds and Bobcat® mount adds 25 pounds to model weight.

Download Spec Sheet (PDF)
Download Manual >>
