Description

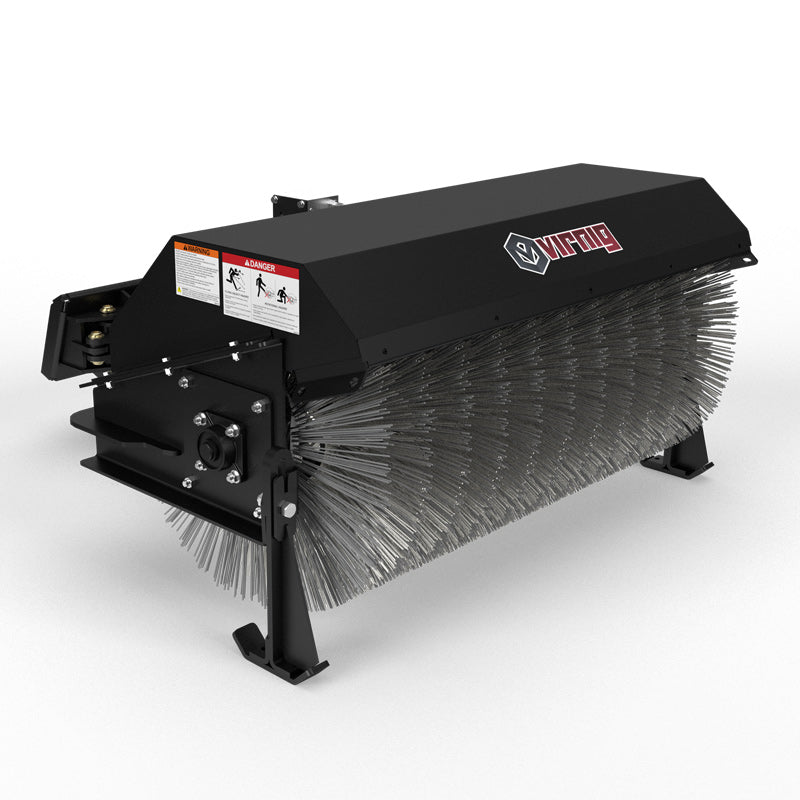

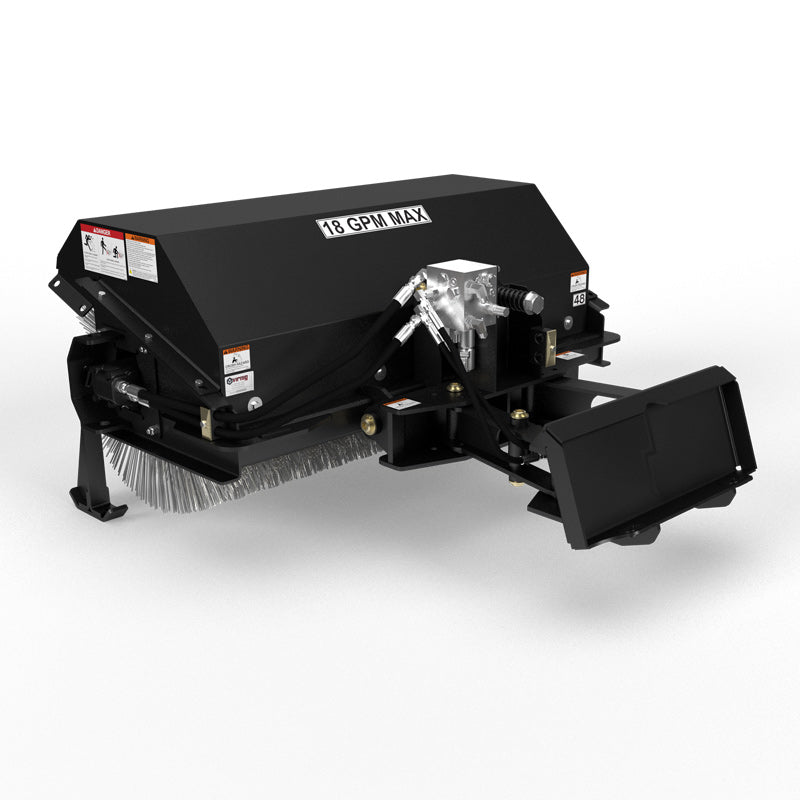

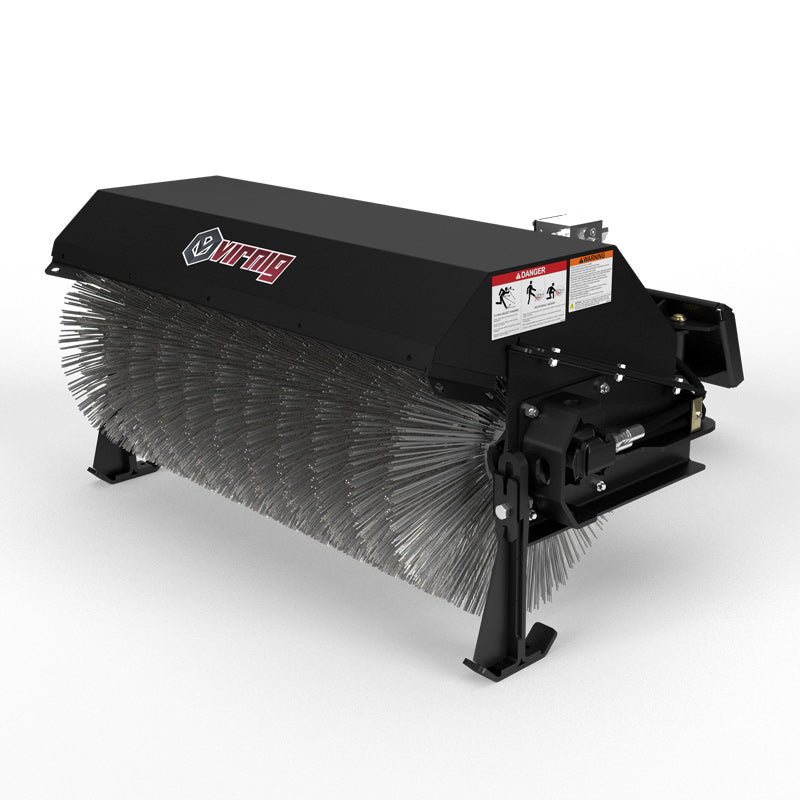

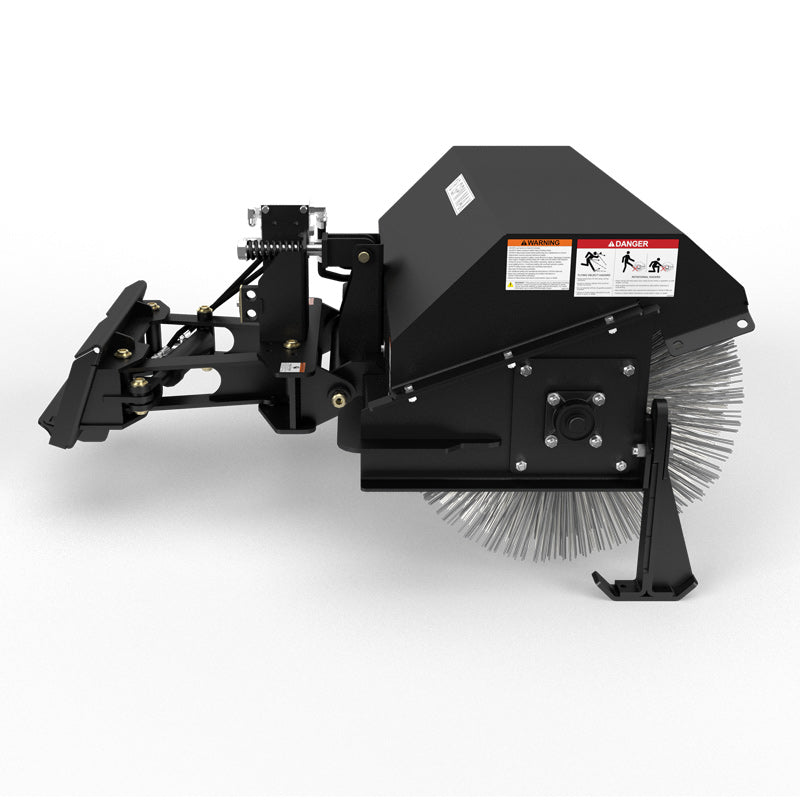

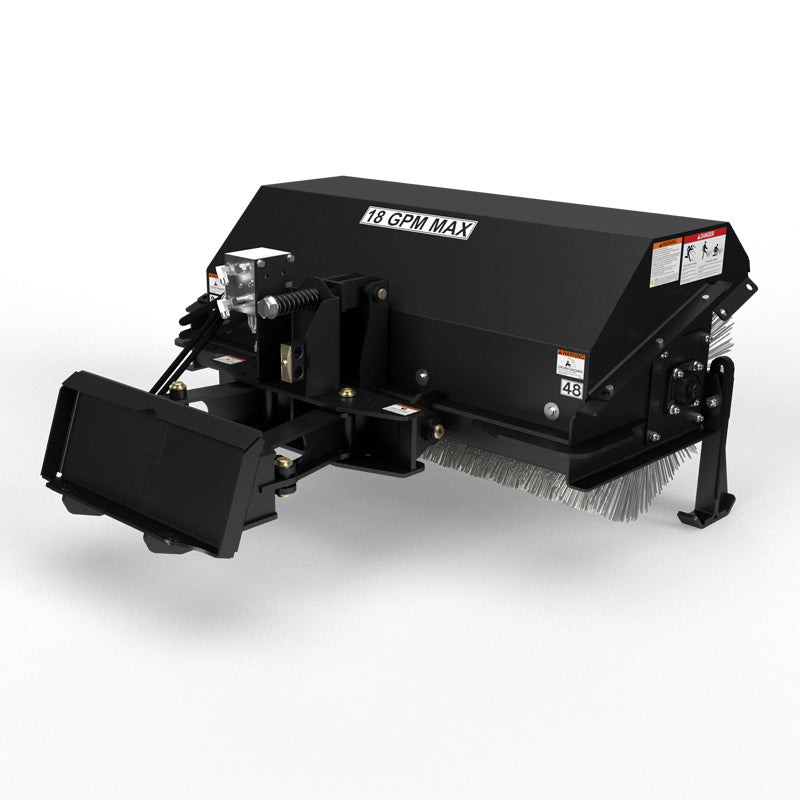

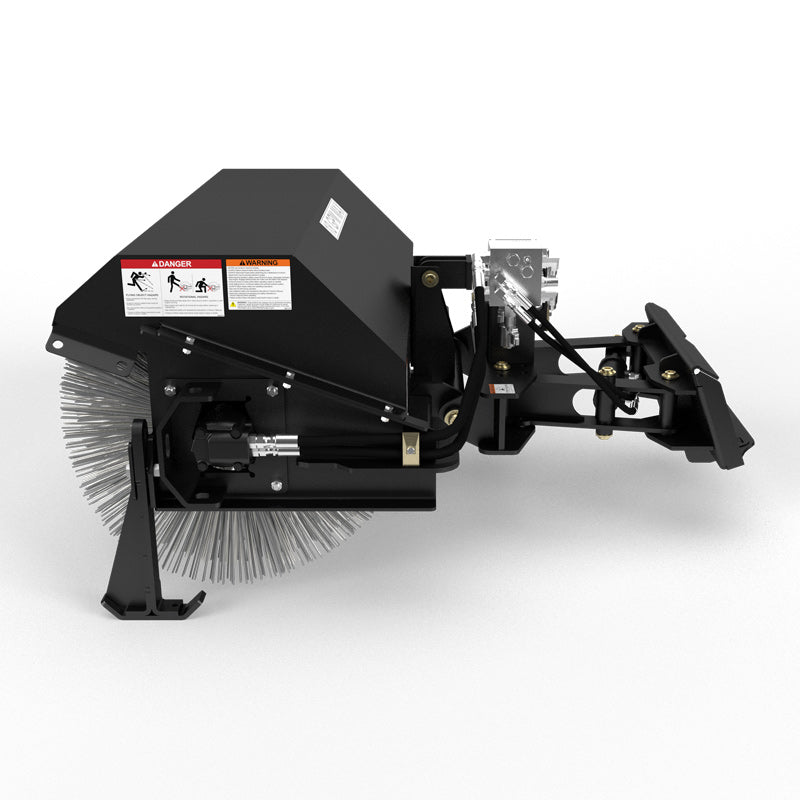

Direct drive Eaton® motor and exclusive self-centering swing linkage system for optimal sweeping. Available Widths 48″ & 60″

  • SWING LINKAGE SYSTEM SELF-CENTERS BROOM WHEN ANGLED
  • RECESSED & GUARDED MOTOR
  • HD 1.25″ GREASABLE BEARING
  • REPLACE WAFERS EASILY WITHOUT DISCONNECTING HOSES. STANDARD WITH POLY/WIRE WAFERS
  • STANDS FLIP DOWN TO PROTECT BRISTLES DURING STORAGE

Choose from three mini skid mounts:

  • Mini Universal (all brands except Bobcat® and ASV®)
  • Bobcat® Mini
  • ASV® Mini
  • Note: None of the above are compatible with universal skid steer mount.
MODEL CAB48 CAB60
Sweeping Width, Straight (Inches) 48.0 60.0
Sweeping Width, Full Angle (Inches) 42.8 53.5
Loader Track Width Coverage, Full Angle (Inches) 38.0 48.0
Overall Width (Inches) 54.3 66.3
Overall Width, Full Angle (Inches) 58.5 68.5
Overall Height / Depth, Straight (Inches) 27.7 / 56.9
Max Broom Angle (Degrees) 28
Number of 26 Inch Diameter Wafers 23 29
Recommended Flow Rate (GPM) 10-18 Standard Flow Only
Approximate Weight (Pounds) 4951 5301
Recommended Loader Capacity Greater than 500 pounds

¹ASV® mount adds approximately 30 pounds and Bobcat® mount adds 25 pounds to model weight.

Download Spec Sheet (PDF)
Download Manual >>
