Product Description

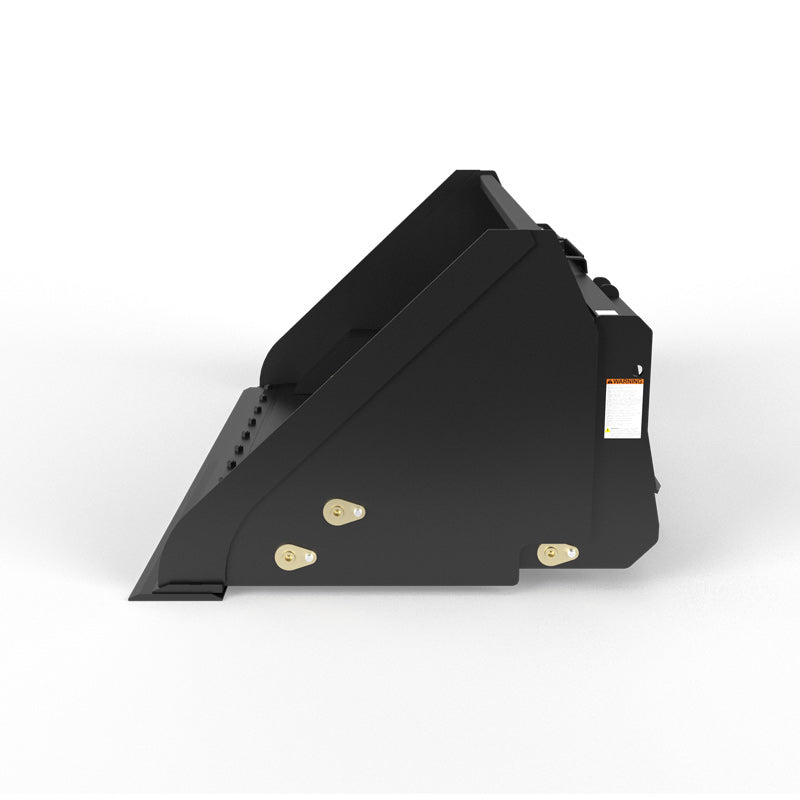

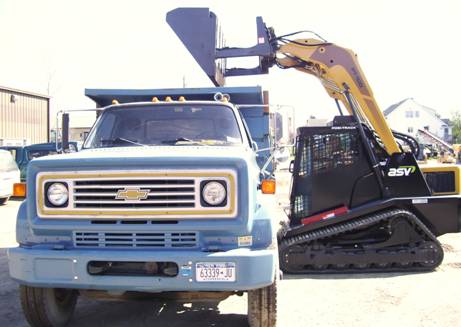

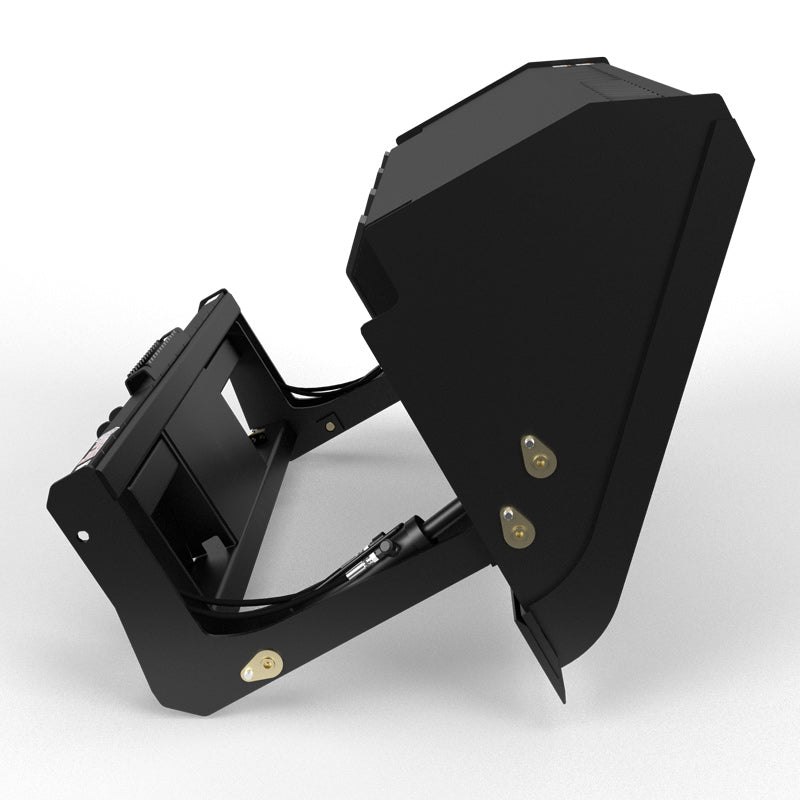

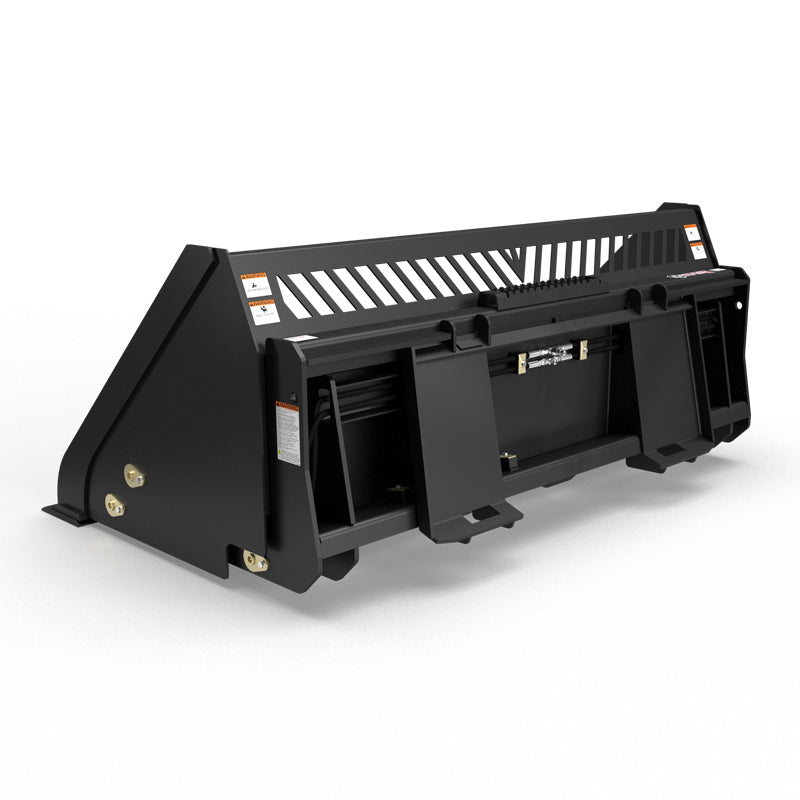

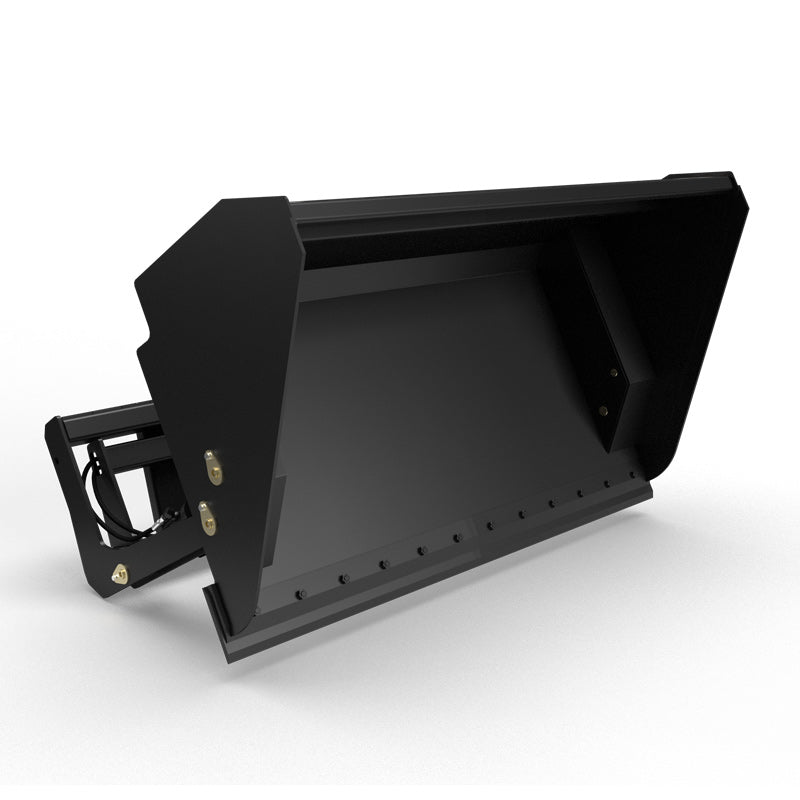

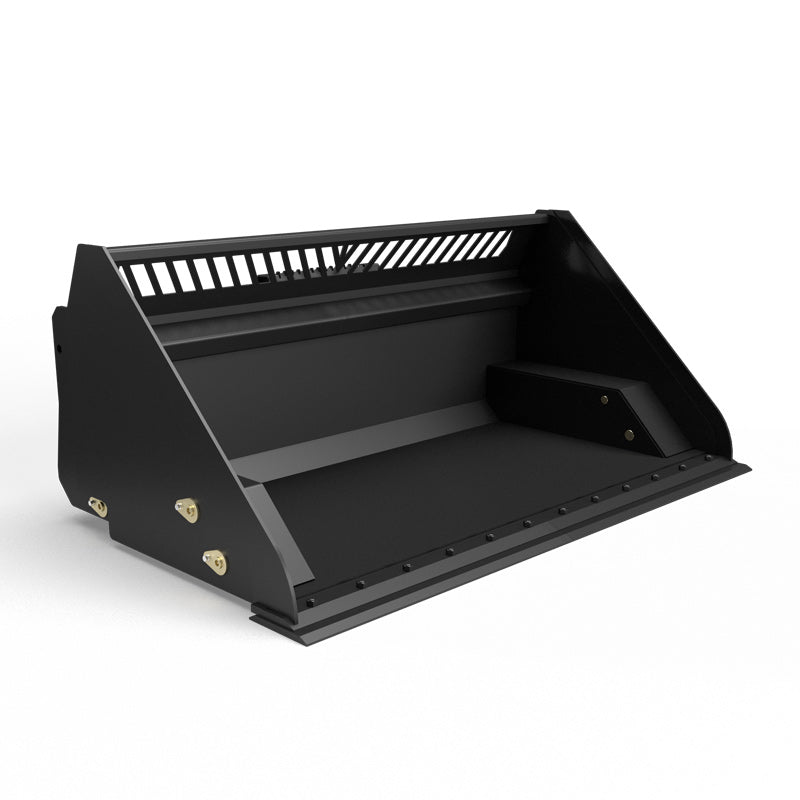

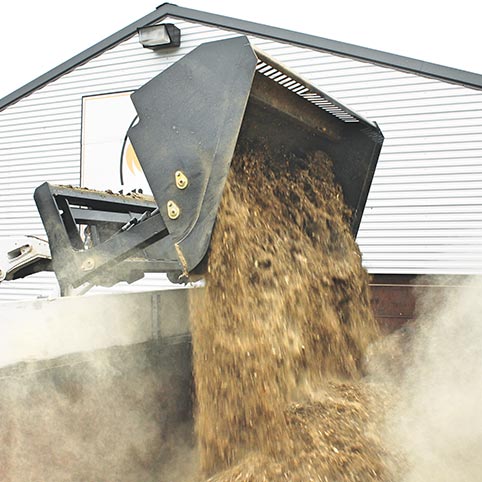

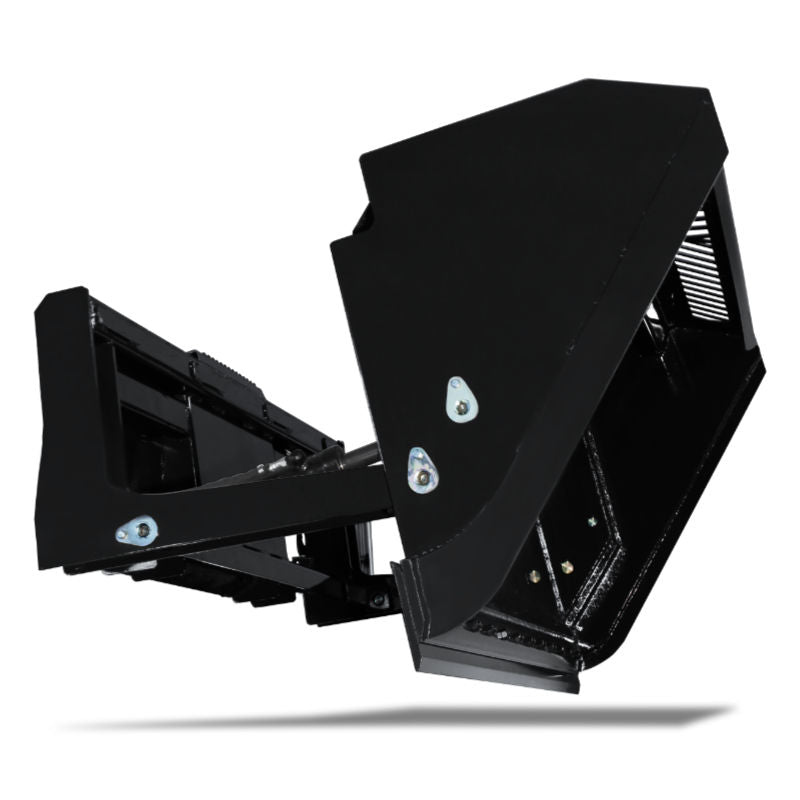

Increases vertical lift up to 44”, horizontal reach up to 13″ and rotates into a full 90-degree dump; ideal for loading feed mixers and dump trucks.
- NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS

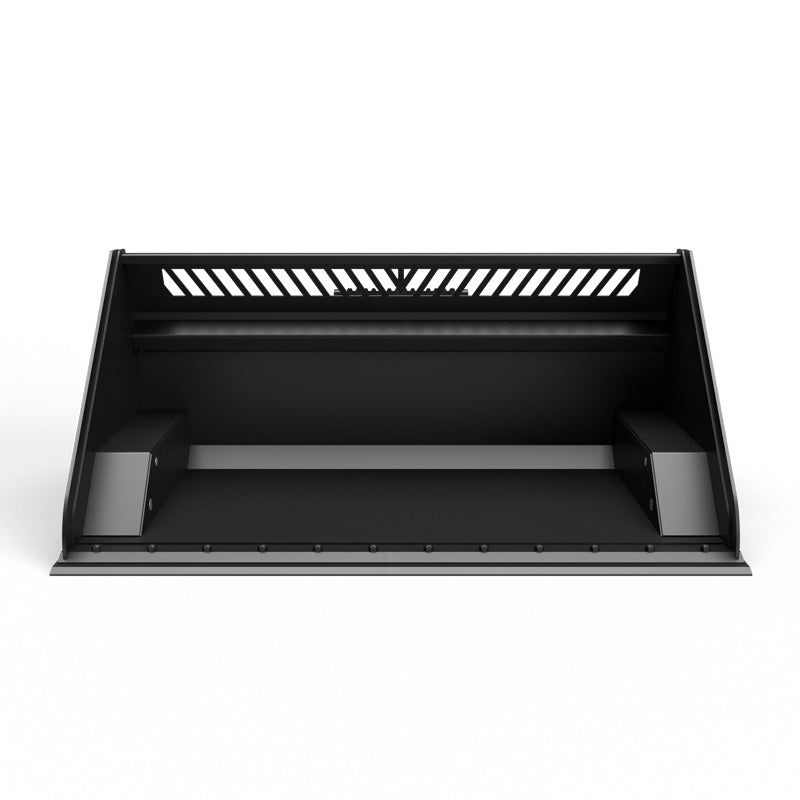

- WINDOWS FOR BETTER OPERATOR VISIBILITY
- 3/4″ x 6″ WELD-ON EDGE
| MODEL | DMP60 | DMP72 | DMP84 | DMP96 |
| Width: Overall / Inside (Inches) | 61.5 / 59.3 | 73.5 / 71.3 | 85.5 / 83.3 | 97.5 / 85.3 |
| Overall Height (Inches) | 29.8 | |||
| Depth: Overall / Inside (Inches) | 46.2 / 36.6 | |||
| Window Height (Inches) | 4.0 | |||
| Dump Angle (Degrees) | 86.0 | |||
| Capacity: Struck / Heaped (Cubic Feet) | 22.8 / 27.4 | 27.4 / 32.9 | 32.0 / 38.4 | 36.6 / 43.9 |
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 3 | 4 | 4 | 4 |
| Cylinder Bore / Stroke (Inches) | 2.0 / 8.375 | |||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.25 / 1.563 | |||
| Approximate Weight (Pounds) | 1015 | 1115 | 1215 | 1310 |
| Recommended Loader Capacity | Greater than 1800 pounds | |||

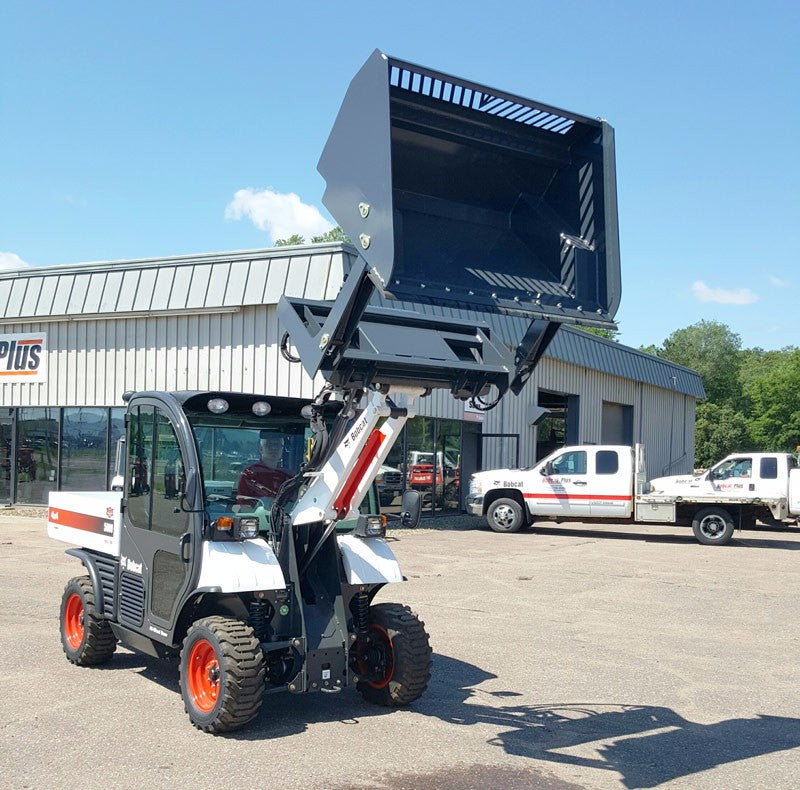

Virnig Mfg. Inc. High Dump Bucket will increase vertical lift by approximately 44” and reach by approximately 13”. Vertical lift and reach will vary by loader.
