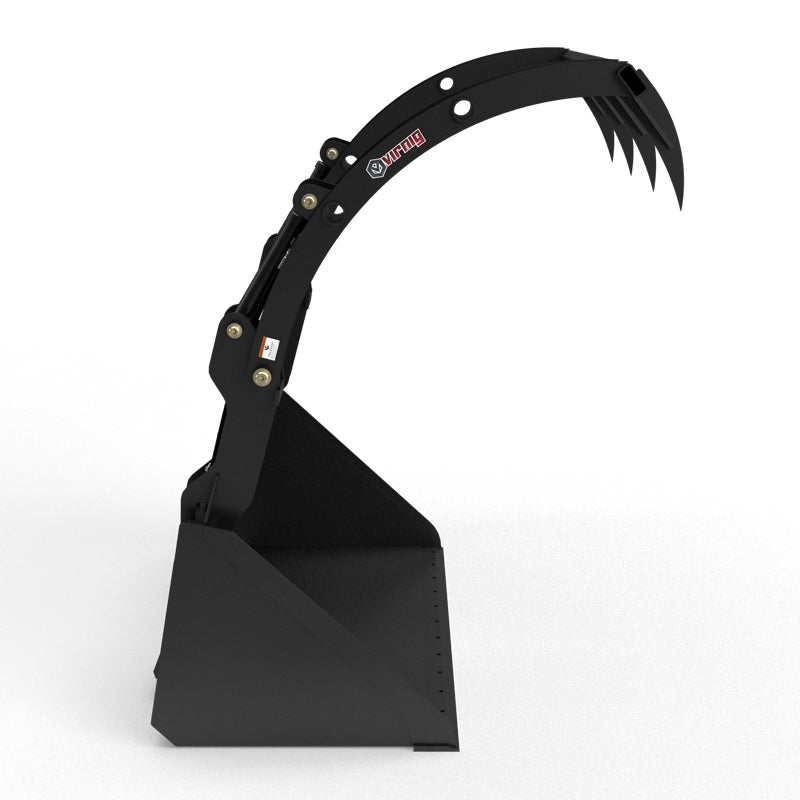

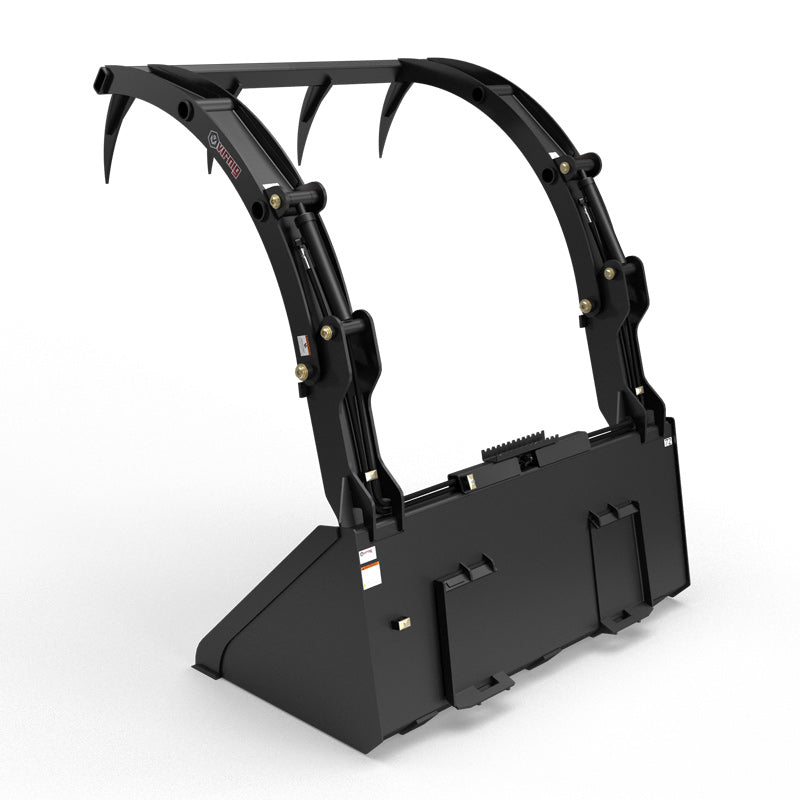

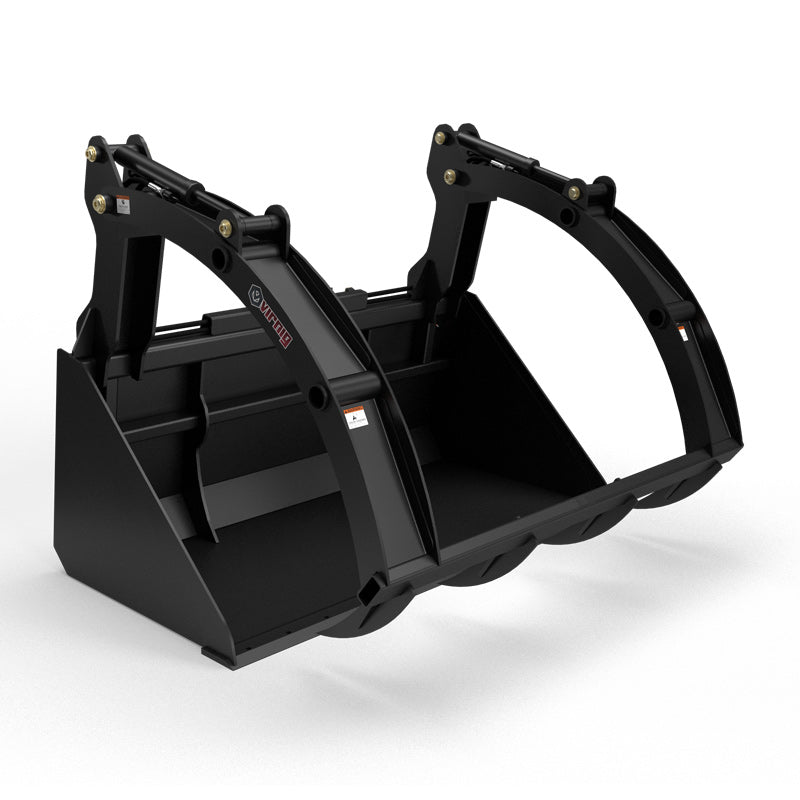

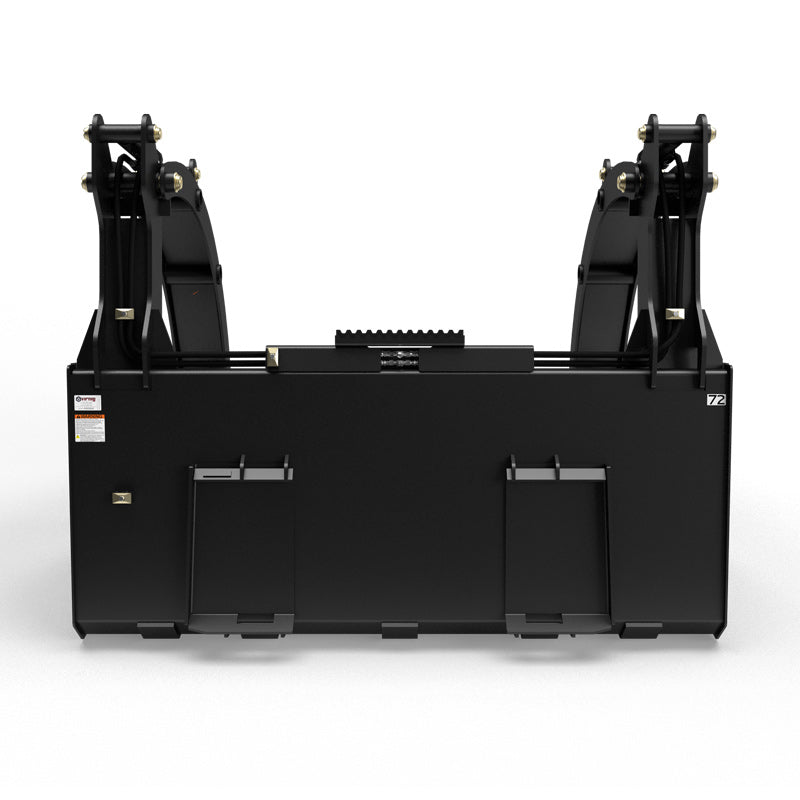

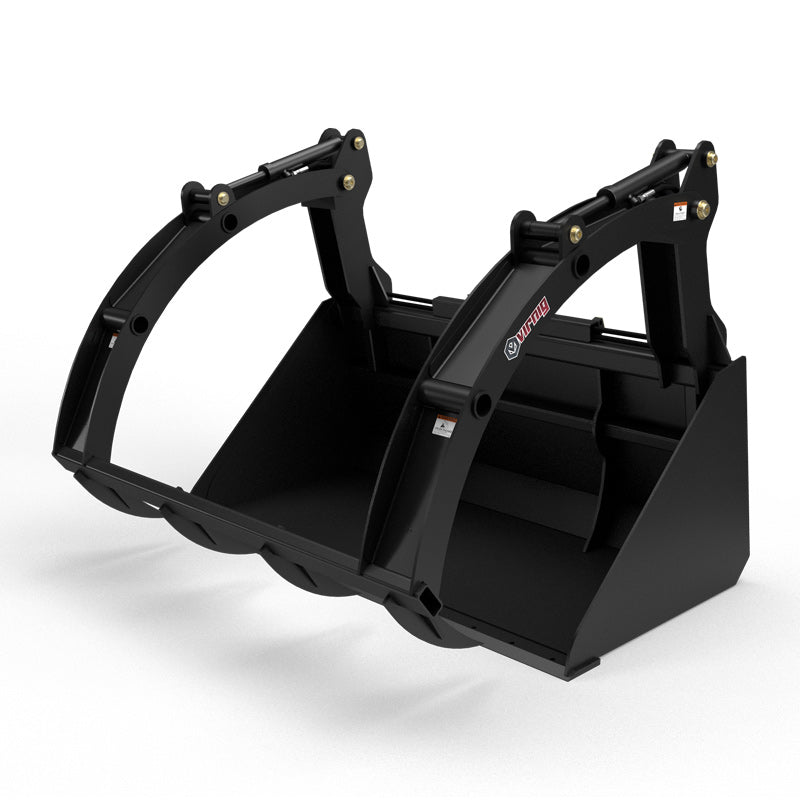

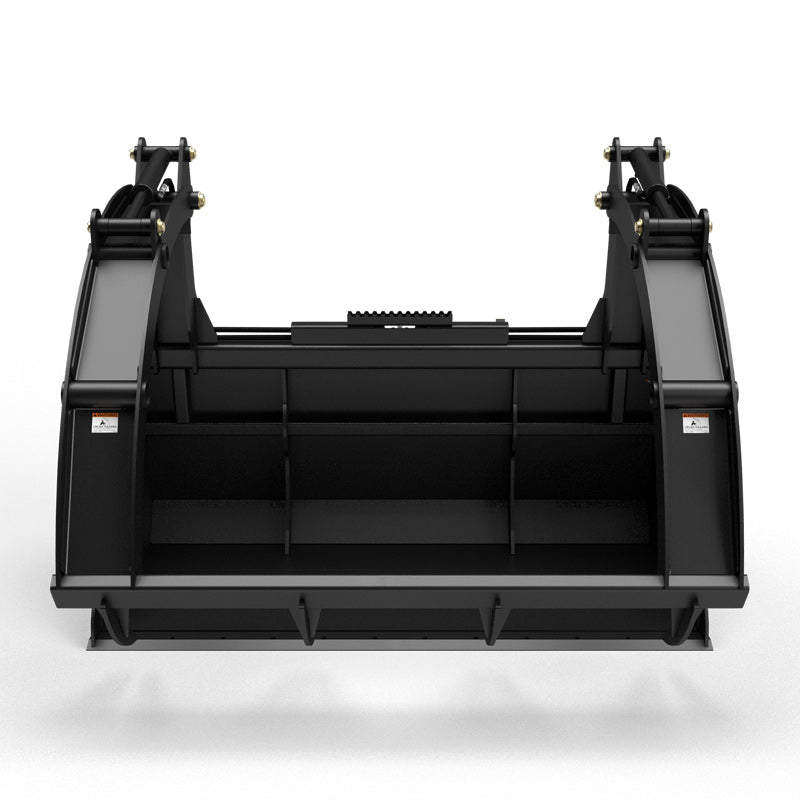

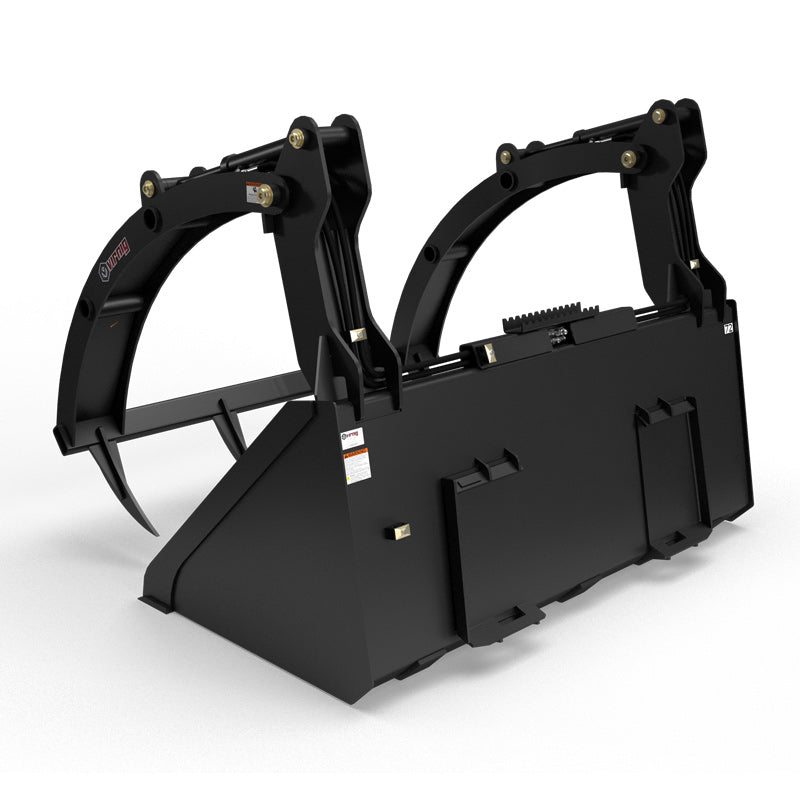

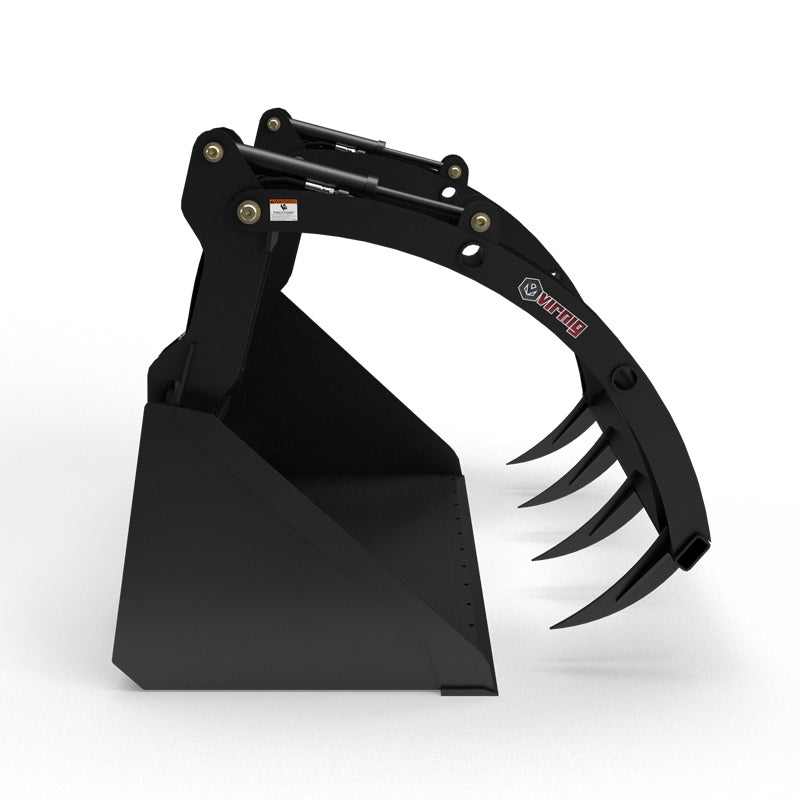

Description

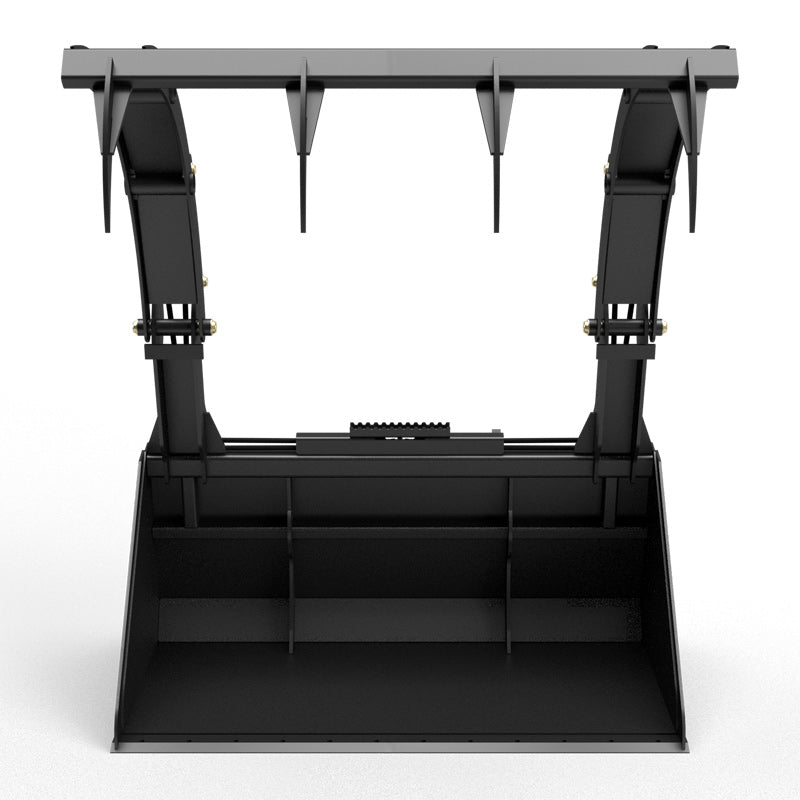

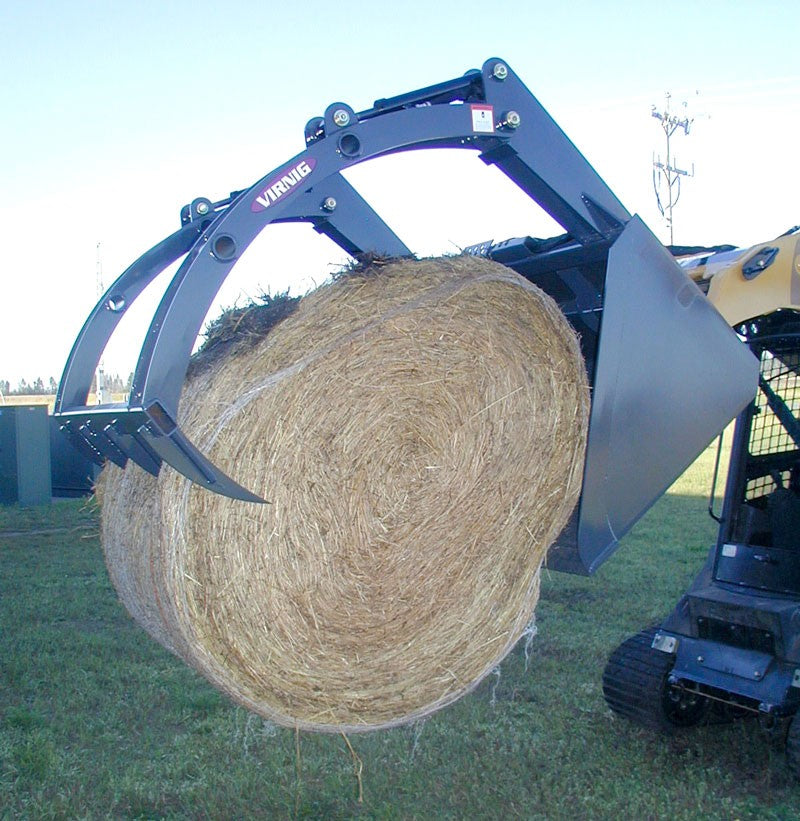

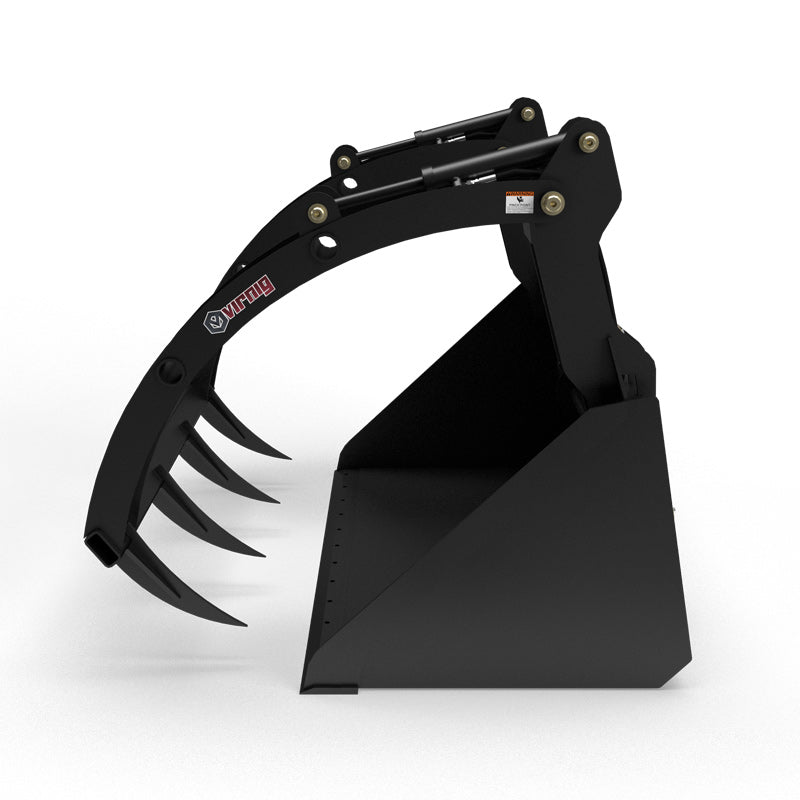

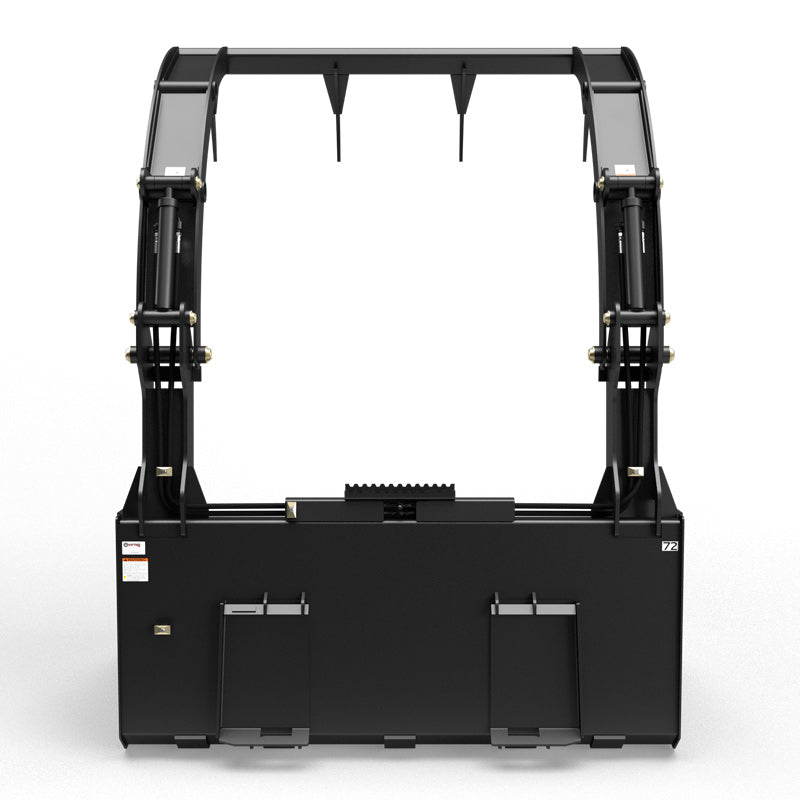

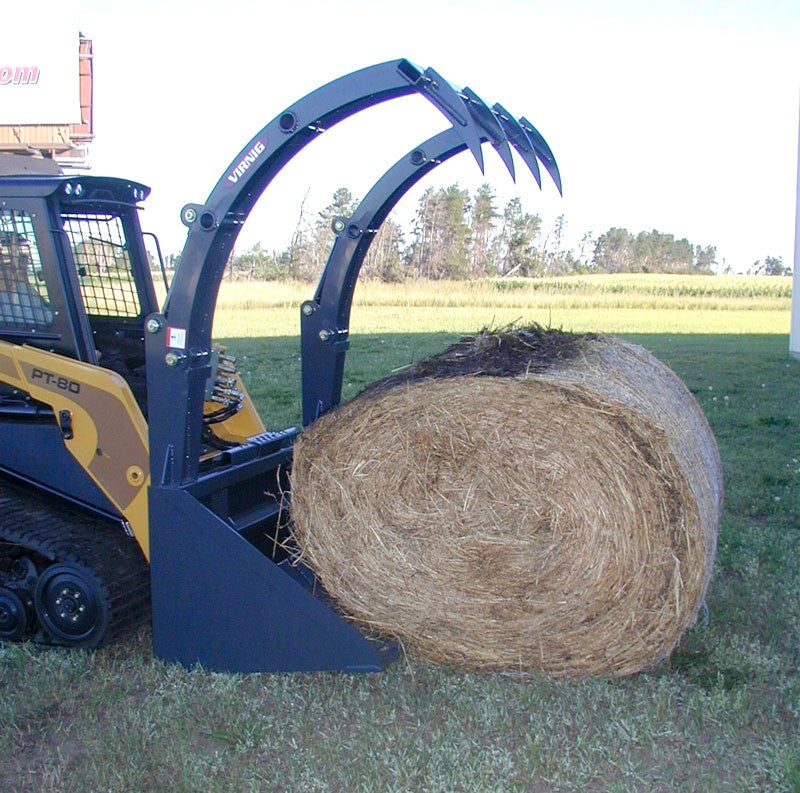

Haul hay bales, silage and other light materials.

  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • 3/4″ x 6″ WELD-ON EDGE
MODEL HBG72 HBG84
Width: Overall / Inside (Inches) 73.5 / 71.25 85.5 / 83.25
Height: Overall / Bucket (Inches) 58.3 / 31.4
Overall Depth (Inches) 40.0
Grapple Tine Thickness (Inches) 0.5*
Number of Grapple Teeth 4
Space Between Grapple Teeth (Inches) 19.3
Grapple Jaw Opening (Inches) 74.3
Bucket Capacity: Struck / Heaped (Cubic Feet) 27.7 / 33.2 32.2 / 38.8
Structural Wear Bars Under Bucket (1/2″ x 4″) 5 5
Cylinder Bore / Stroke (Inches) 2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches) 1.25 / 1.563
Approximate Weight (Pounds) 1350 1450
Recommended Loader Capacity Greater than 2400 pounds

*Tine Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

Download Spec Sheet (PDF)
Download Manual >>
