Torcup

Torcup VT-Series Battery Torque Machine VT-1000

SKU VT-1000
$5,200.00
$5,200.00
VT-BATT-18V-8.0Ah Battery:

Estimated Shipping Time


At Summit Forge Supply, we offer free standard shipping on all U.S. orders, with most orders processing within 1–2 business days and delivering in approximately 3–5 business days. We ship via trusted carriers including USPS, UPS, FedEx, and LTL freight providers, and all orders include tracking and shipment insurance. If your order is delayed, damaged, lost, or missing items, please contact us within 7 days so we can promptly assist with a replacement or refund. Returns are accepted within 30 days on unused items in original packaging, with return shipping covered by Summit Forge Supply. See full policy here: Shipping Policy

What Is Your Return Policy?


Summit Forge Supply accepts returns on eligible U.S. orders within 14 days of delivery, provided items are unused, undamaged, and in their original packaging with proof of purchase. Returns must be initiated within 7 days of receipt, and approved returns include prepaid return shipping; refunds are issued to the original payment method within up to 14 days after inspection, with a 25% restocking fee for change-of-mind returns. Defective, damaged, incorrect, or lost items qualify for a full refund or replacement at no cost to the customer when reported promptly. Custom or personalized items, perishable goods, gift cards, and downloadable products are non-returnable. See full policy here: Return Policy

Torcup

Torcup VT-Series Battery Torque Machine VT-1000

SKU VT-1000
$5,200.00

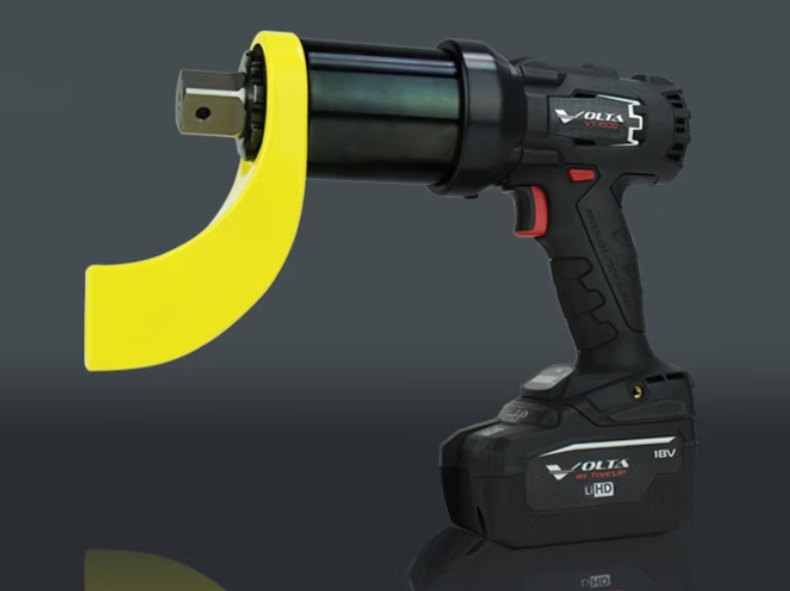

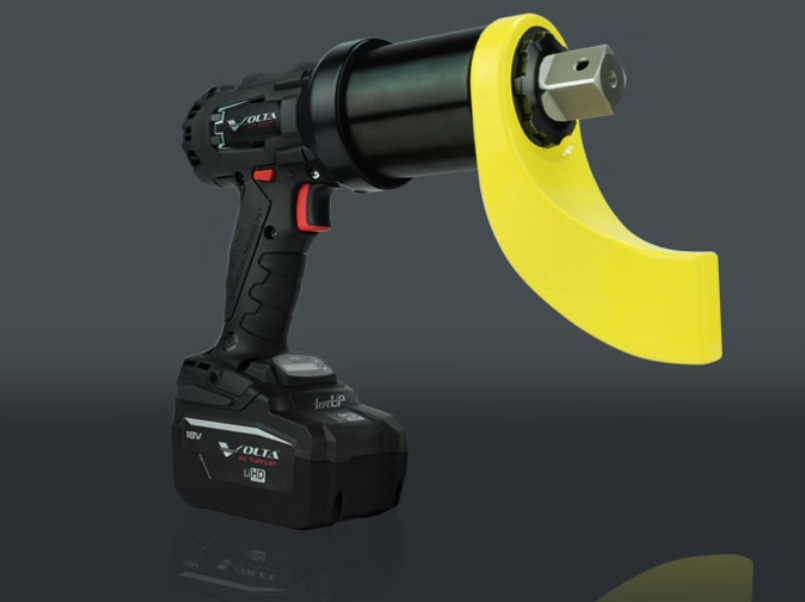

Torcup VT-Series Battery Torque Machine VT-1000

Description

BATTERY TORQUE WRENCH

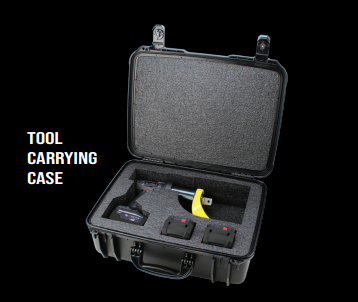

**Includes VT-Series Wrench, Carrying Case, & Reaction Arm (battery not included) All Prices are US Funds


 Engineered To Master Any Application Effortlessly, Your
Ability To Torque Industrial Fasteners Is A Simple And
Quick Charge Away. Fully Charged In Under 60 Minutes,
The VOLTA's Lithium Power will provide you with the
capability to torque Hundreds Of Fastenings With No
Hoses Or Cords To Limit Your Reach. Within The Volta Is A
Digital Motor Vectoring System That Provides Accurate
And Repeatable Torque Throughout Each Model's Full
Range. The VOLTA EXEMPLIFIES The Durability, Reliability and
Safety That Has Embodied Every Industrial Wrench
Crafted By TorcUP Since The Company's Founding In 1996.

The Power Inside

1. Hardened alloy steel for durability and long cycle life
2. Bearings support the loads experienced at the square
drive
3. Multi-stage planetary gear systems with optimized tooth
design
4. Smooth ball bearing rotation of the gearbox housing
independent from the motor handle
5. High-Efficiency Brushless Motor
6. Ergonomic glass-filled Nylon handle with a durable slip resistant overmold

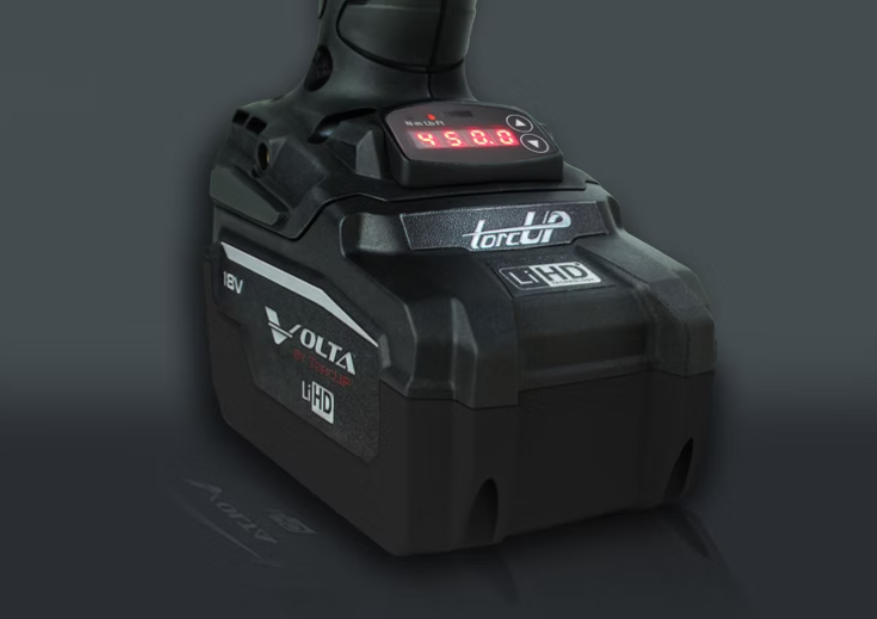

7. 18V 7.0 Ah LiHD Battery that provides extended run-time
8. LCD display for setting and viewing Torque and Units
9. Soft-Start Trigger
10. Thrust bearing between stages isolate the motor when
used in all orientations
11. O-Rings Seal grease in while keeping dirt and water out
12. Gears run on low friction, high strength bearing sleeves
13. Tool steel pins in each stage carrier

VT-1000 single speed
Torque range 240-1000 lbf-ft
Free Speed 4.75-6.75 RPM

Square Drive 1”

Min. Torque (lbf-ft) 240

Max Torque (lbf-ft) 1000

MIN. TORQUE (Nm) 330

MAX TORQUE (Nm) 1360

HEIGHT A (w/ battery) (in) 10.54

HEIGHT A (w/ battery) (mm) 267.7

LENGTH B (in) 9.54

LENGTH B (mm) 241.8

DIAMETER C (in) 2.85

DIAMETER C (mm) 72.4

WEIGHT (w/o reaction arm & battery) (lbs) 9.5

WEIGHT (w/o reaction arm & battery) (kg) 4.3

WEIGHT (w/ reaction arm & battery) (lbs) 14.7

WEIGHT (w/ arm & battery) (kg) 6.7

RPM at Min. Torque 4.75

RPM at Max Torque 6.75
