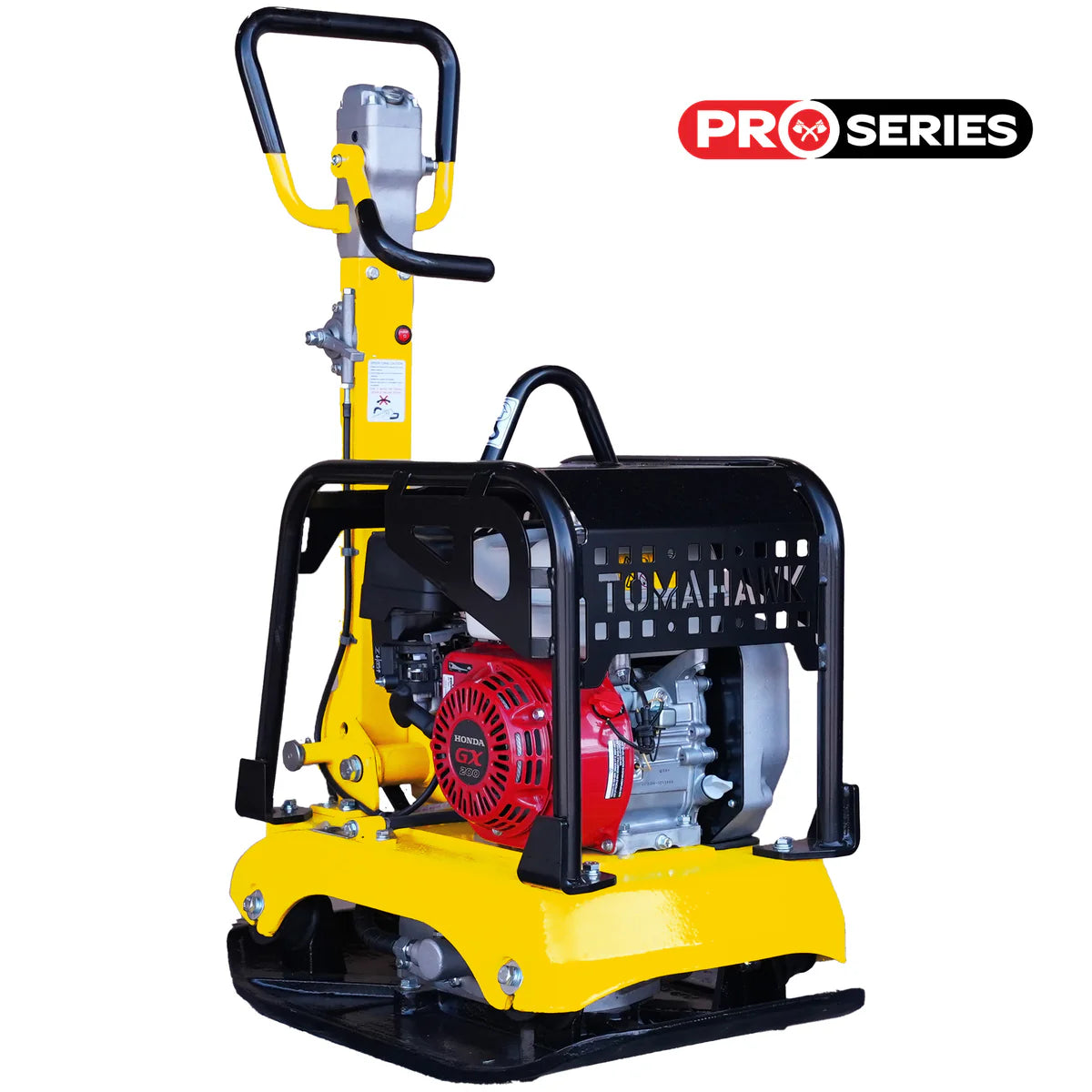

Tomahawk 6.5 HP Honda Reverse Hydraulic Plate Compactor for Soil, Aggregate, Cohesive Compaction TPC175H
By Tomahawk Power
- Regular price
- $3,999.99
- Regular price
- $3,999.99
Estimated Shipping Time
Estimated Shipping Time
At Summit Forge Supply, we offer free standard shipping on all U.S. orders, with most orders processing within 1–2 business days and delivering in approximately 3–5 business days. We ship via trusted carriers including USPS, UPS, FedEx, and LTL freight providers, and all orders include tracking and shipment insurance. If your order is delayed, damaged, lost, or missing items, please contact us within 7 days so we can promptly assist with a replacement or refund. Returns are accepted within 30 days on unused items in original packaging, with return shipping covered by Summit Forge Supply. See full policy here: Shipping Policy
What Is Your Return Policy?
What Is Your Return Policy?
Summit Forge Supply accepts returns on eligible U.S. orders within 14 days of delivery, provided items are unused, undamaged, and in their original packaging with proof of purchase. Returns must be initiated within 7 days of receipt, and approved returns include prepaid return shipping; refunds are issued to the original payment method within up to 14 days after inspection, with a 25% restocking fee for change-of-mind returns. Defective, damaged, incorrect, or lost items qualify for a full refund or replacement at no cost to the customer when reported promptly. Custom or personalized items, perishable goods, gift cards, and downloadable products are non-returnable. See full policy here: Return Policy

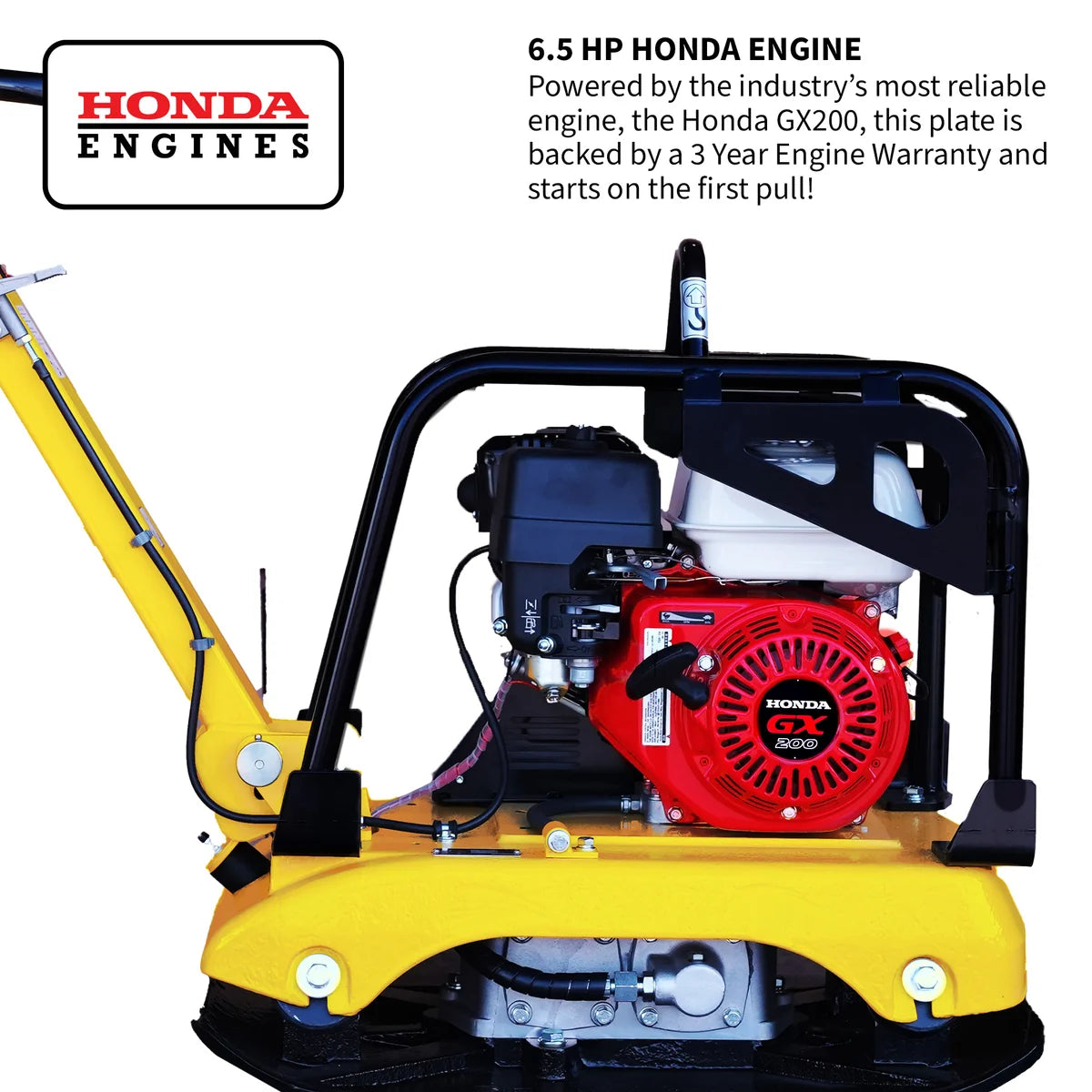

6.5HP HONDA GX200 ENGINE

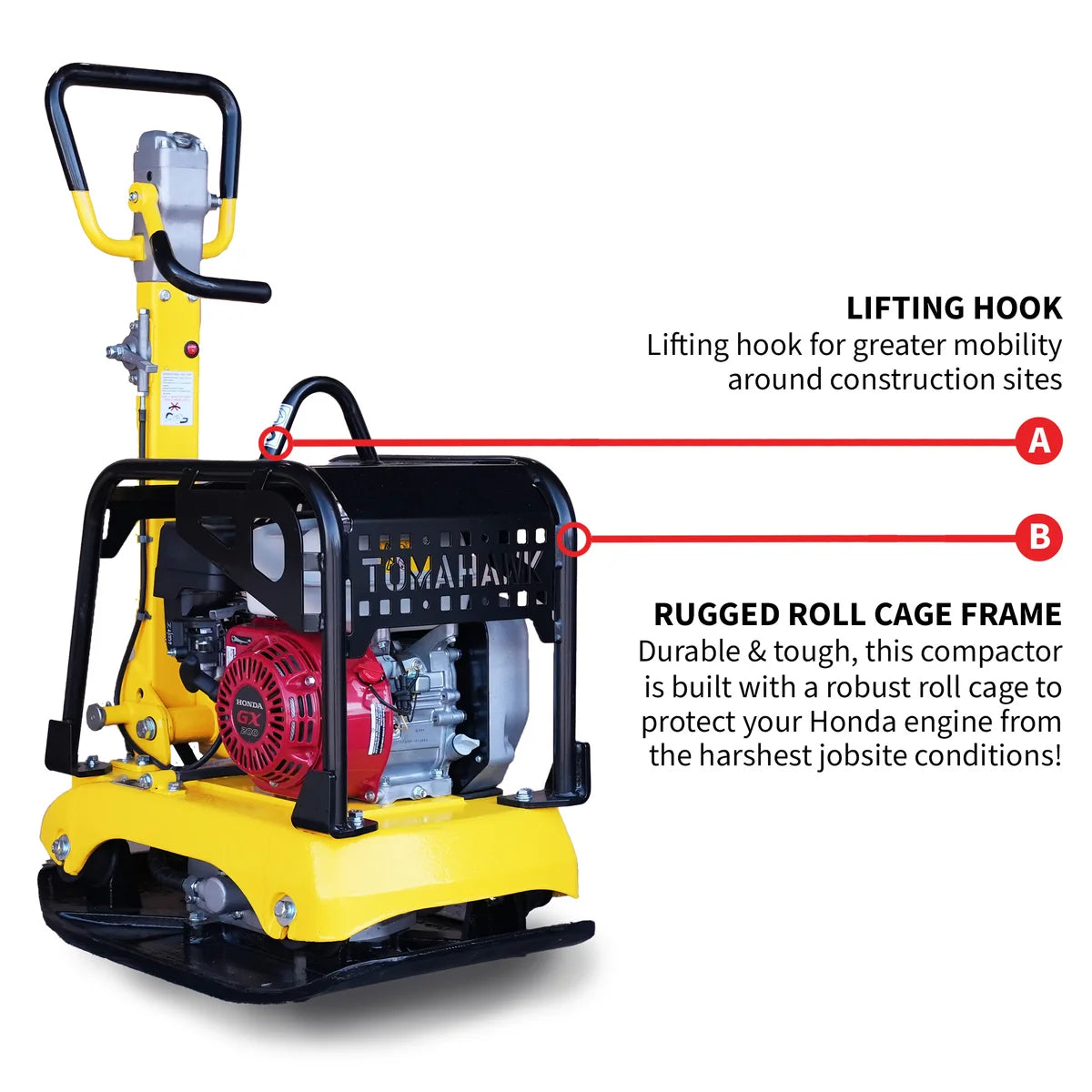

Durable and tough, this compactor is built with a robust roll cage and larger vibration isolation mounts to protect your Honda engine from the harshest jobsite conditions - making it perfect for professionals, contractors and do-it-yourselfers alike.
ACHIEVE 100% COMPACTION
Use on for cohesive soils such as subbase, clay silt, clay, or mixed soils - for projects involving landscapes, hardscapes, road repair, and more.

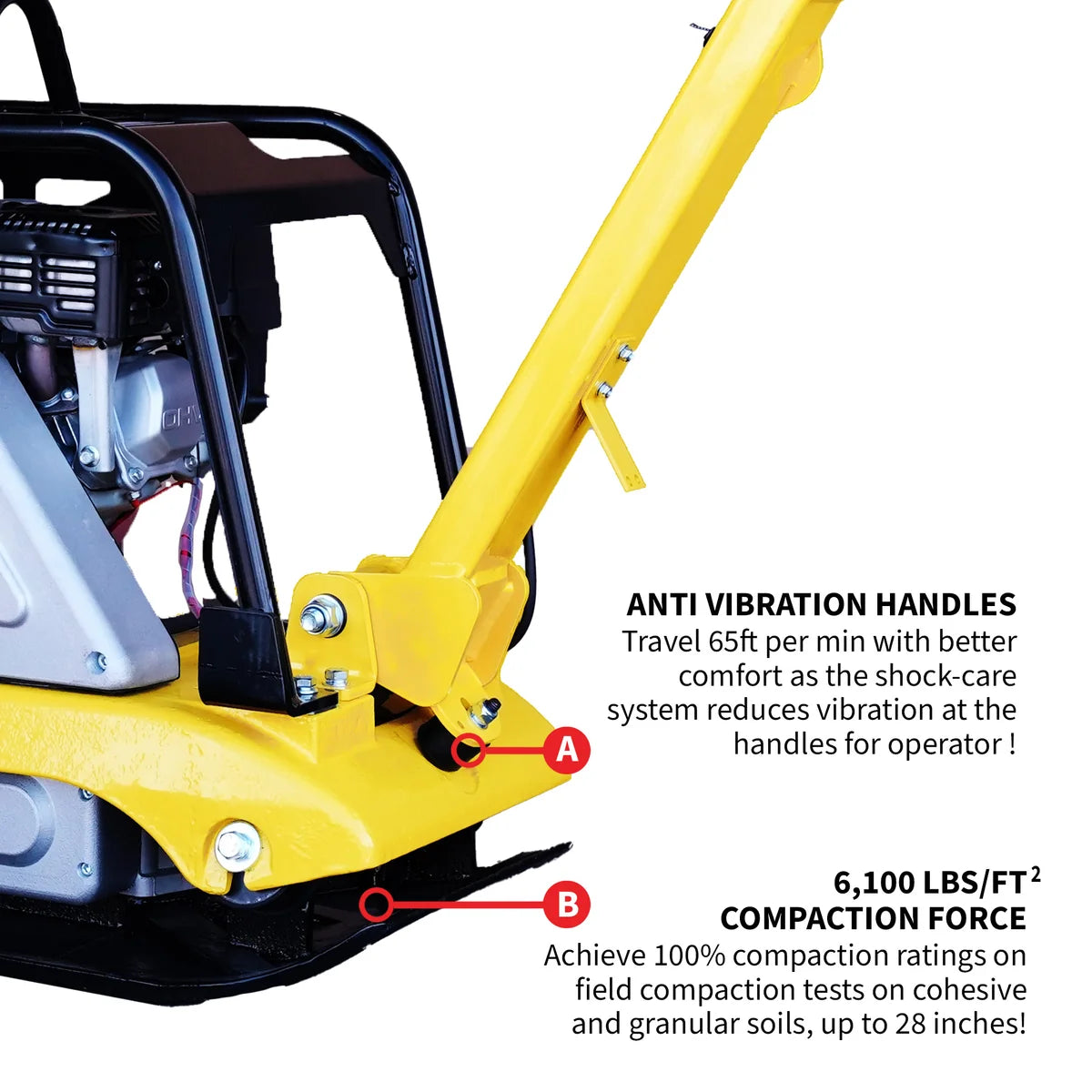

COMPACTION OF 6,100 LBS/FT
Achieving a 100% Compaction Rating on cohesive and granular soils, up to 20 inches, this plate compactor is perfect for professional applications requiring nuclear density testing and field compaction tests.

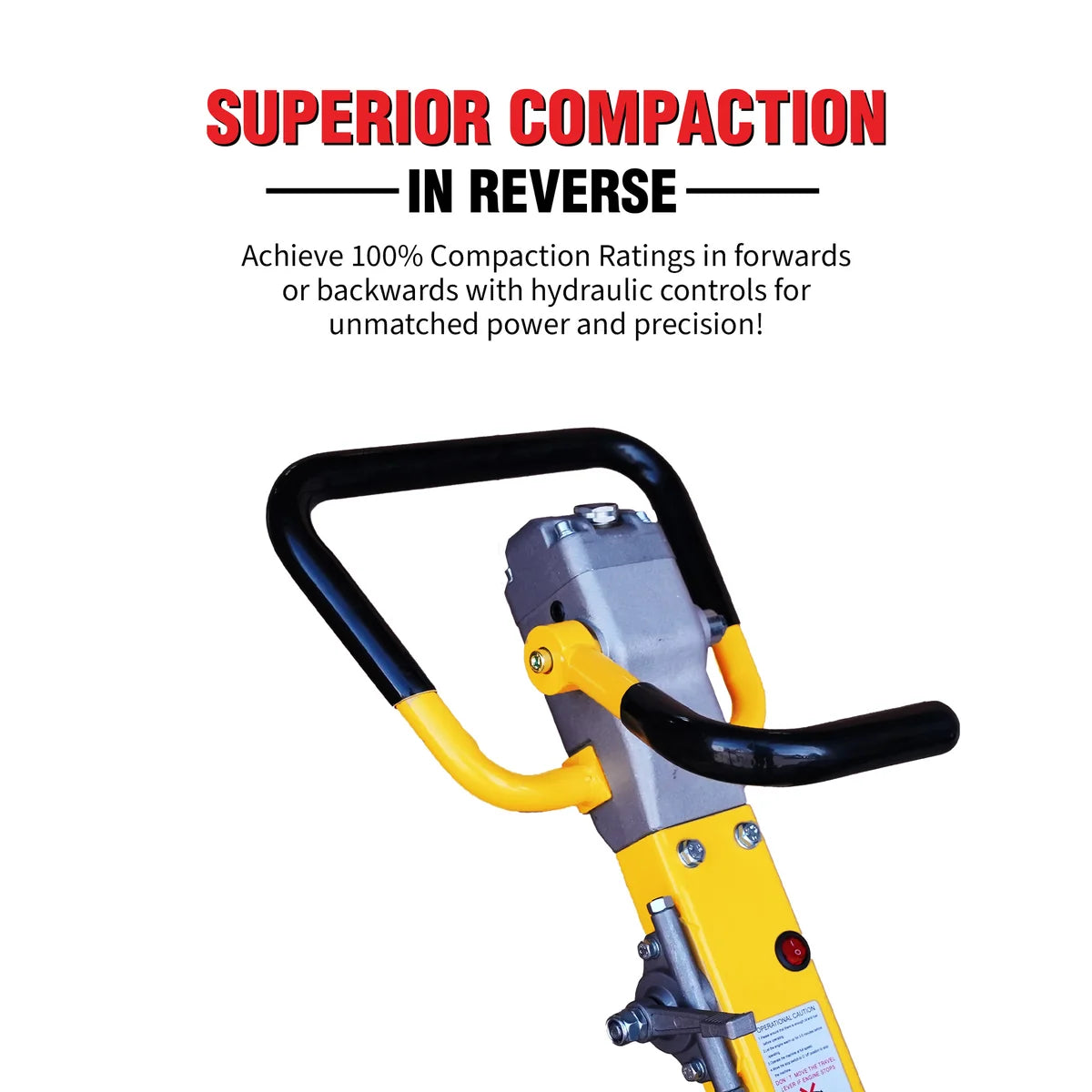

HYDRAULIC STEERLING

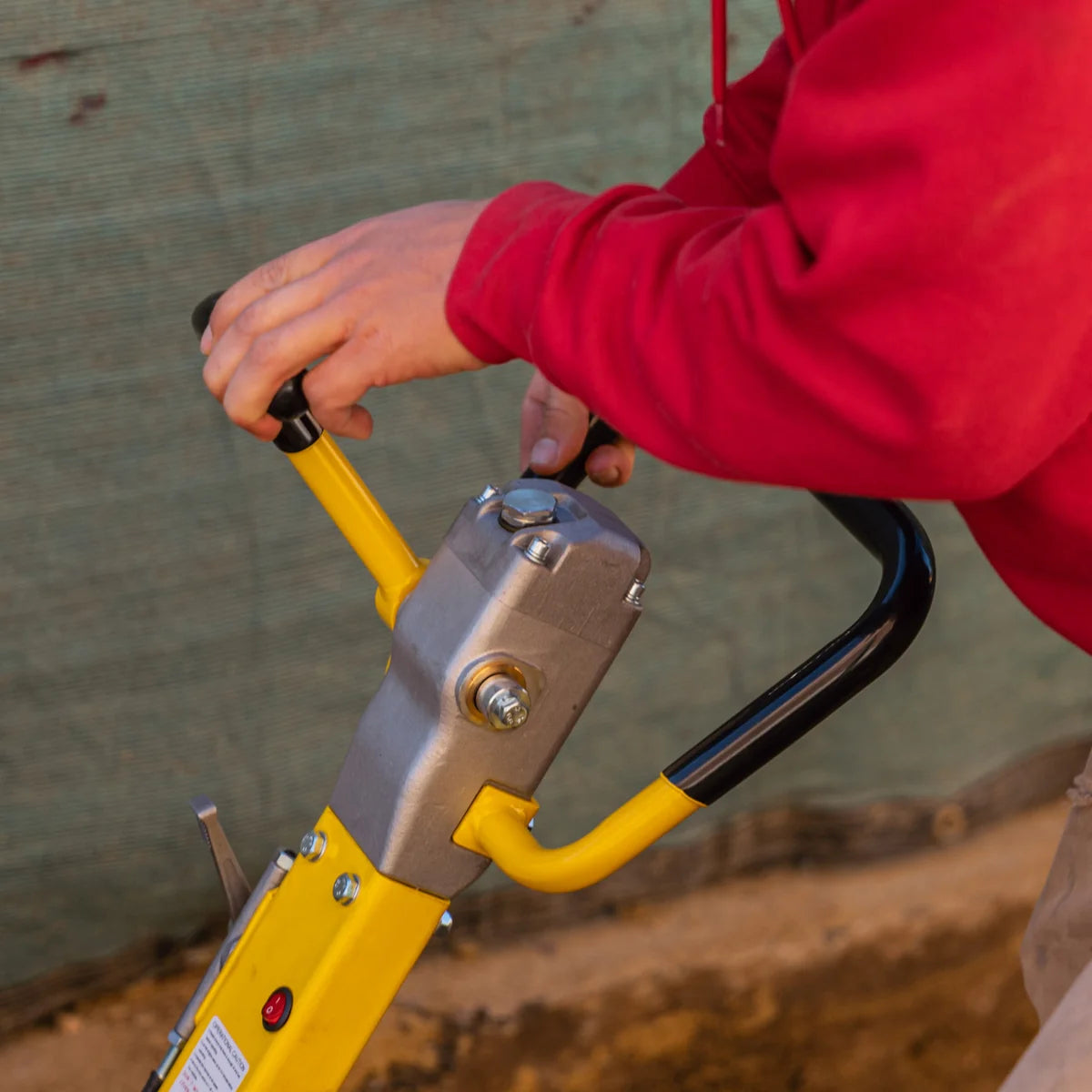

With hydraulic handles, maneuver cramped areas in forward or reverse - delivering power and precision!
28" x 17" STEEL BASE PLATE
Designed to maneuver narrow, cramped spaces at 65 ft/min - this plate compactor's steel plate with beveled, seamed edge is great for markless compaction - a contractor's first choice for sidewalks, driveways, and repair work.
STURDY CRATE
This is an oversized item which requires shipment on a freight truck. Once the the item reaches the carrier's destination terminal, the trucking company will call you to schedule a delivery.
Take control of your compaction tasks with Tomahawk Reverse Plate Compactors. Engineered for power and reliability, this compactor is perfect for demanding construction projects, including foundations, roadwork, and landscaping. Its hydraulic drive allows for smooth forward and reverse operation, ensuring effortless maneuverability even in confined spaces. Built to endure the harshest conditions, the TPC175H features a cast aluminum belt guard to protect engine components, a durable lifting hook for easy transport, and a rugged frame designed to withstand heavy use. The Honda GX200 engine provides consistent, reliable power, while the optional wheel kit adds convenience for transportation across job sites.
Features
- Hydraulic Reverse Drive: Full-speed forward and reverse operation for exceptional control and maneuverability.
- Honda GX200 Engine: Reliable 6.5 HP engine delivers consistent performance for professional-grade compaction.
- High Compaction Force: Generates 6,100 lbs/ft² (27 kN) of compaction force for optimal soil and material density.
- Durable Construction: Rugged frame and cast aluminum housing ensure longevity, even in the harshest job site conditions.
- Protective Features: Cast aluminum belt guard keeps debris out of engine components, extending machine life.

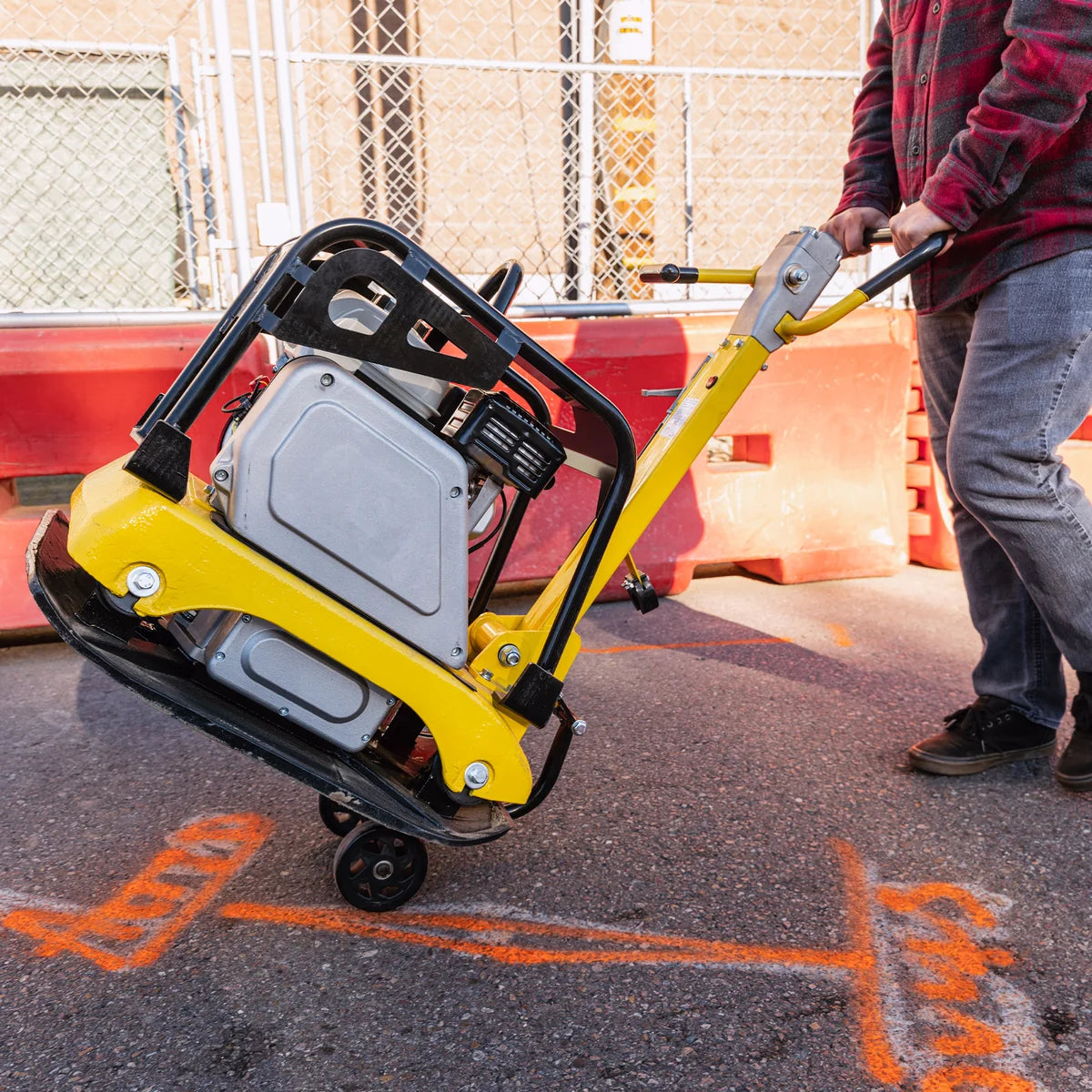

- Optional Wheel Kit: Simplifies transportation for enhanced convenience.
- Travel Speed: Moves at up to 65 feet per minute, making quick work of large areas.
- Ergonomic Design: Easy to operate, reducing fatigue during extended use.
Specifications
- Model: TPC175H
- Engine: Honda GX200 (6.5 HP)
- Compaction Force: 6,100 lbs/ft² (27 kN / 2750 kgf)
- Plate Size: 17” x 28” (43.2 cm x 71.1 cm)
- Travel Speed: 65 ft/min (19.8 m/min)
- Vibration Frequency: 90 Hz
- Engine Oil: 10W-30
- Oil Capacity: 0.63 quarts (0.6 liters)
- Weight: 326 lbs (148 kg)
- Package Weight: 366 lbs (166 kg)
- Product Dimensions: 40" x 17" x 40" inches (1011 x 430 x 1015mm)
- Package Dimensions: 30" x 19" x 46" inches (760 x 490 x 1180mm)
- Optional Features: Wheel kit for transportation
Package Includes
- TPC175H Plate Compactor
Compatible Belts
Gates Model XPA900
Applications
- Retaining Walls
- Footings and Foundation Projects
- Landscapes and Hardscapes
- Patchwork on Asphalt
- Pipeline Applications
- Road Repair and Trenchwork
- Backfill Pools, Parks, Cemeteries, and Golf Courses
- Cohesive Soils and Granular Soils
- Sticky Soils - such as clay or silt
- Gravel, sand, or mixed soils
- Base, Subbase, Subgrade, Subsoil
What Compactor Do I Need?
A compactor is an essential tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are used to increase the density of soil by reducing air voids, which help to improve soil stability, support structures, and prevent settling. With so many options on the market, choosing the right plate compactor can be a daunting task.
Small Jobs
If you are installing artificial turf, building dirt pathways, or need to improve soil stability - but do not need to adhere to a minimum compaction rating you can use a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.
Medium Jobs
If your project involves building a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the 130-200 lbs (60-90 kilo) range that can achieve a compaction force above 3,000 lbs²/ft are best. You will achieve 98-100% compaction ratings needed for proper compaction to prevent soil settling and foundation damage.
Large Jobs
Equipment needed for large compaction projects should also be able to achieve a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it's efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Compactors that help jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.
