Key Features
Product Description

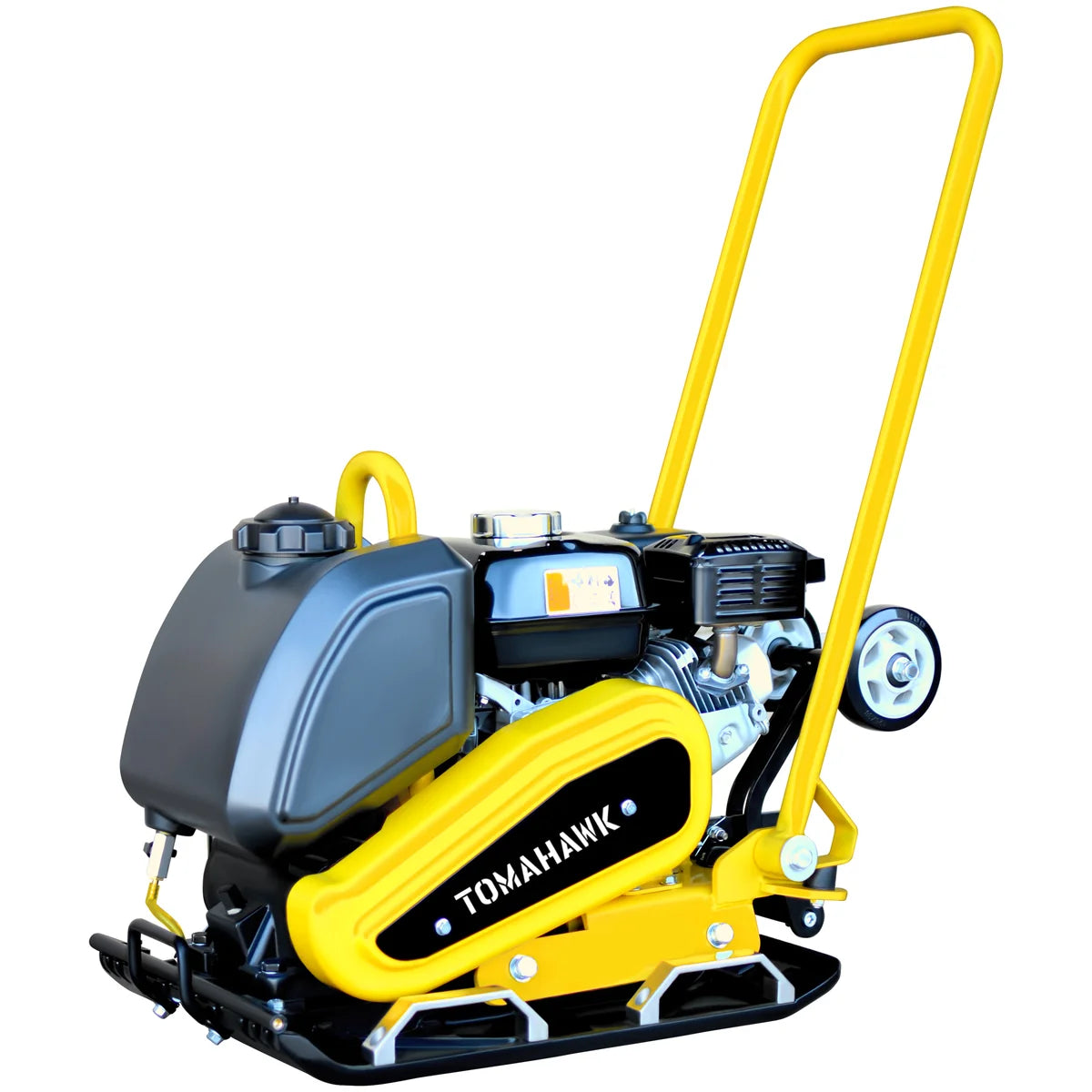

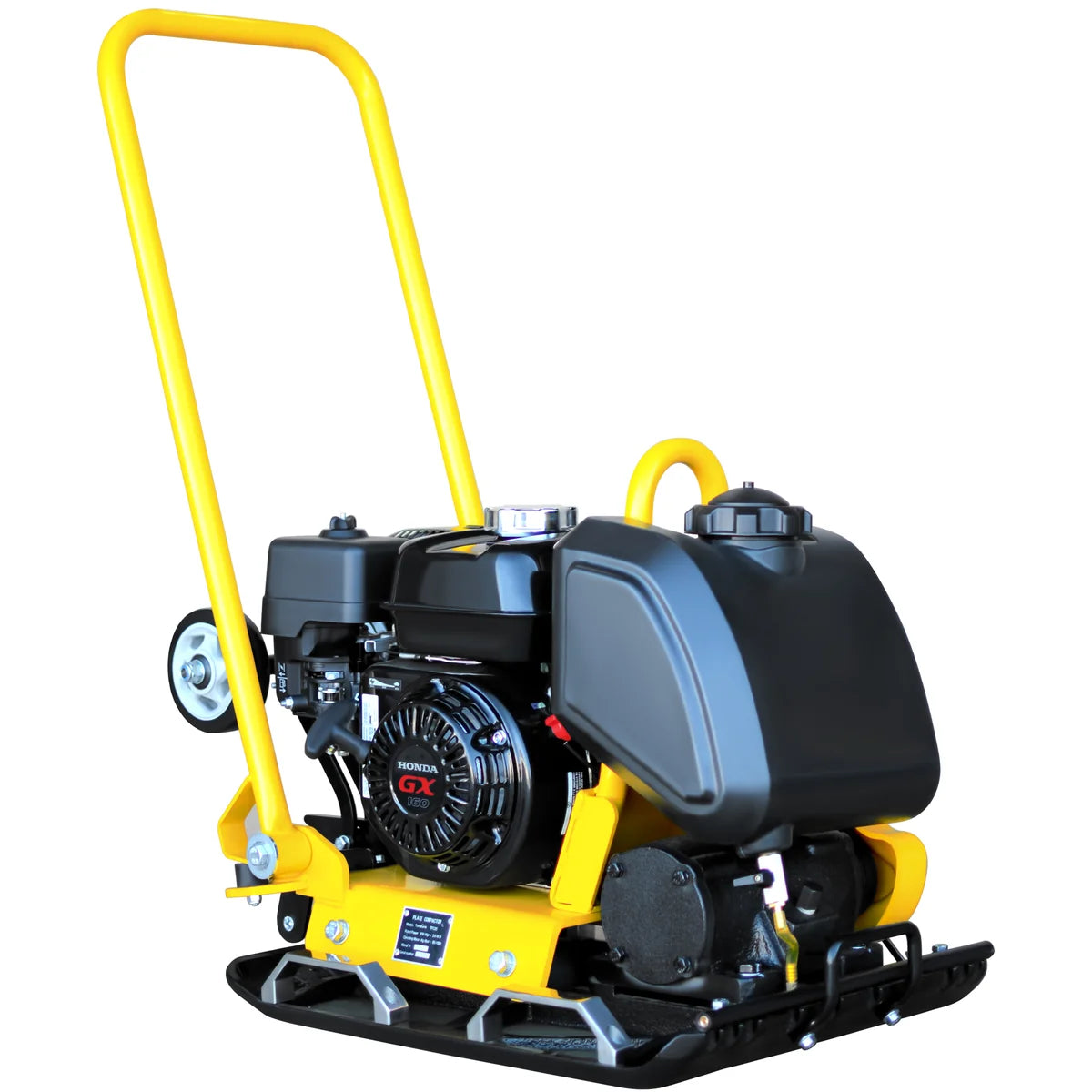

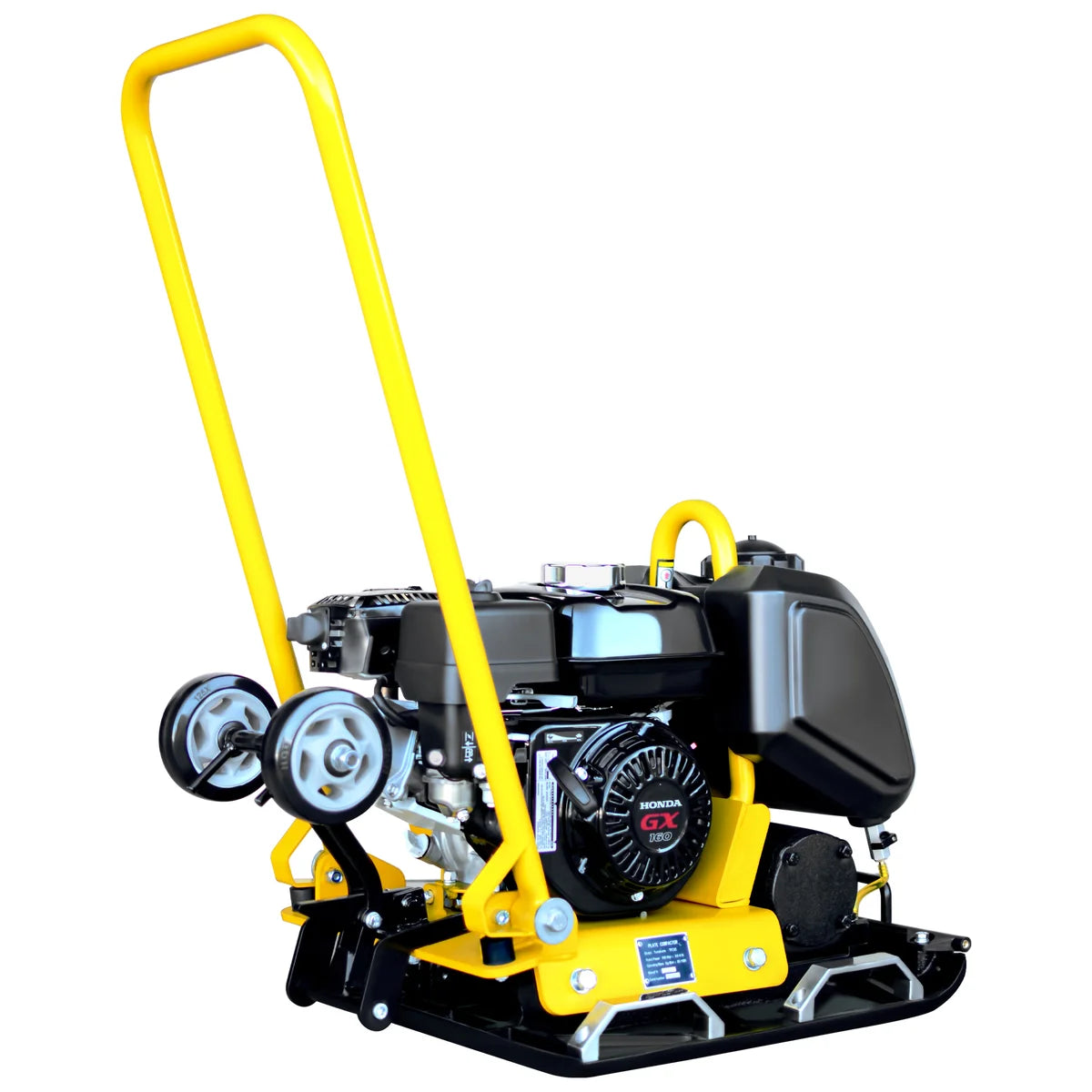

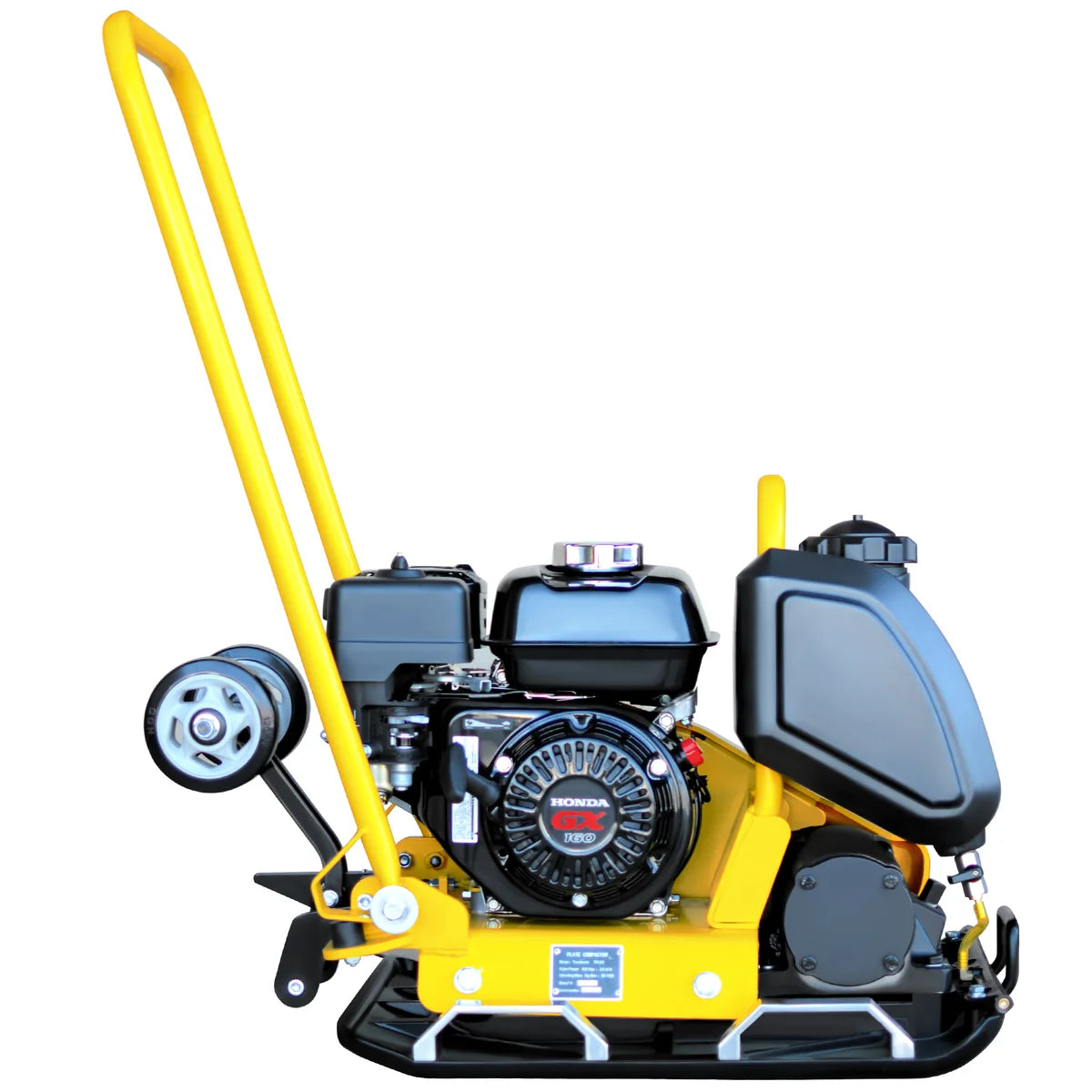

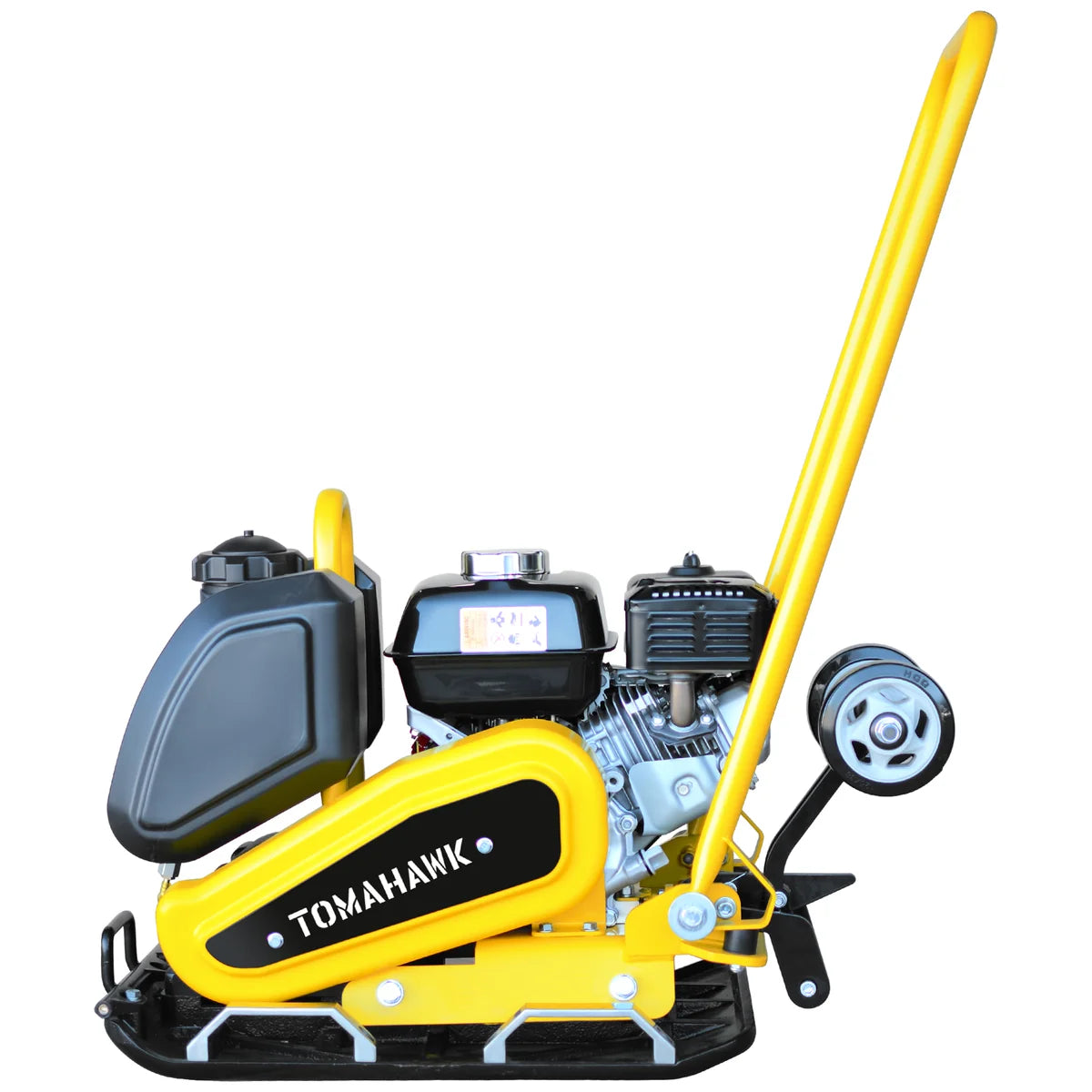

The TOMAHAWK® TPC85H plate compactor is a robust and versatile tool designed for compacting various types of soil, gravel, and asphalt surfaces. Its primary intended use is to achieve maximum compaction efficiency and stability in a wide range of construction and landscaping projects. Building a solid foundation enhances the durability and longevity of roads, driveways, sidewalks, and other paved areas. Its ergonomic design and maneuverability enable it to navigate tight spaces and uneven terrain, making it suitable for both residential and commercial applications.

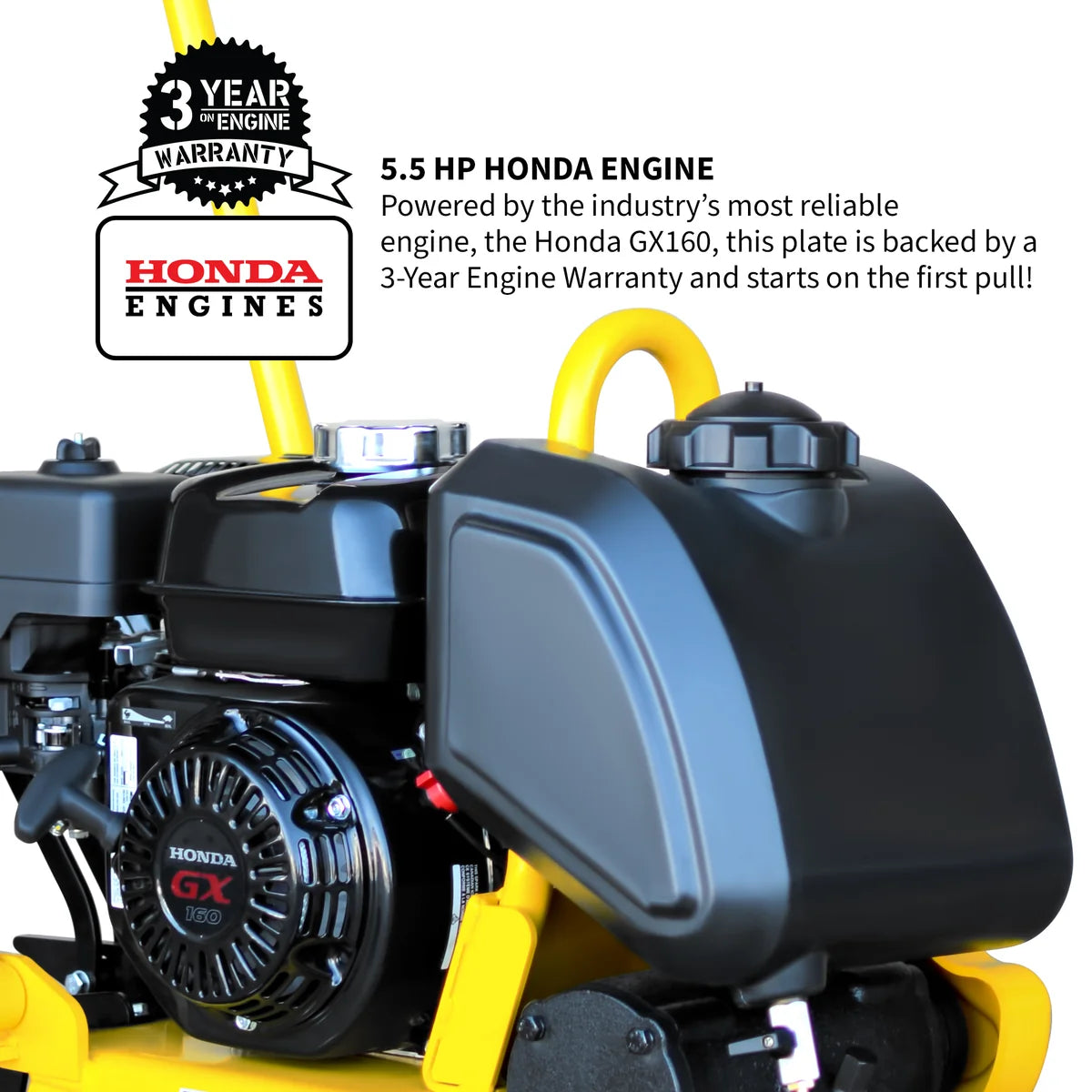

Powerful Honda Engine
5.5 HP for robust operation.
High Compaction Force
3,000 lbs/ft at 6,400 VPM for effective to achieve 100% compaction ratings
Long Lasting Components

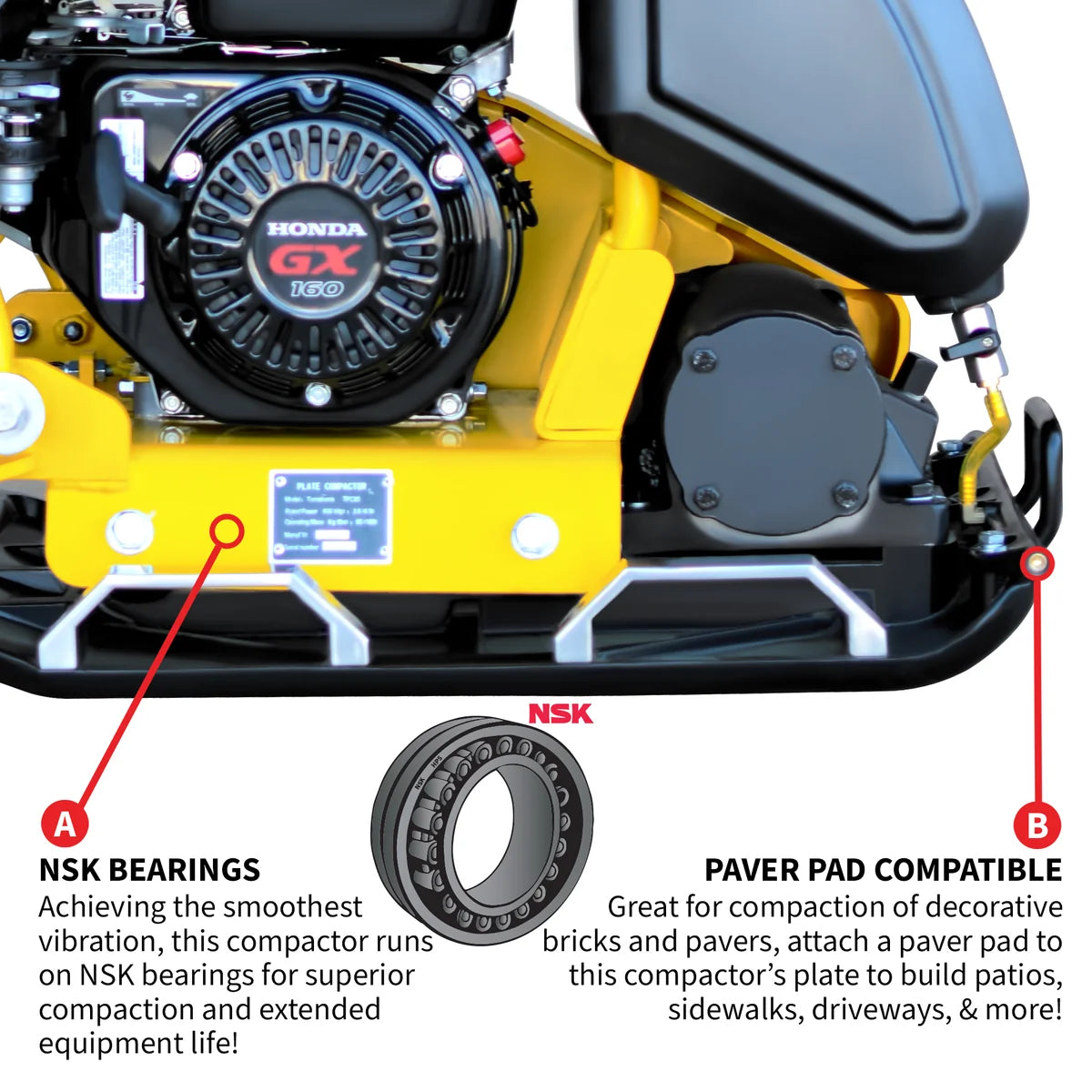

Built tough with long lasting materials, parts, & more including a robust steel plate and NSK bearings.

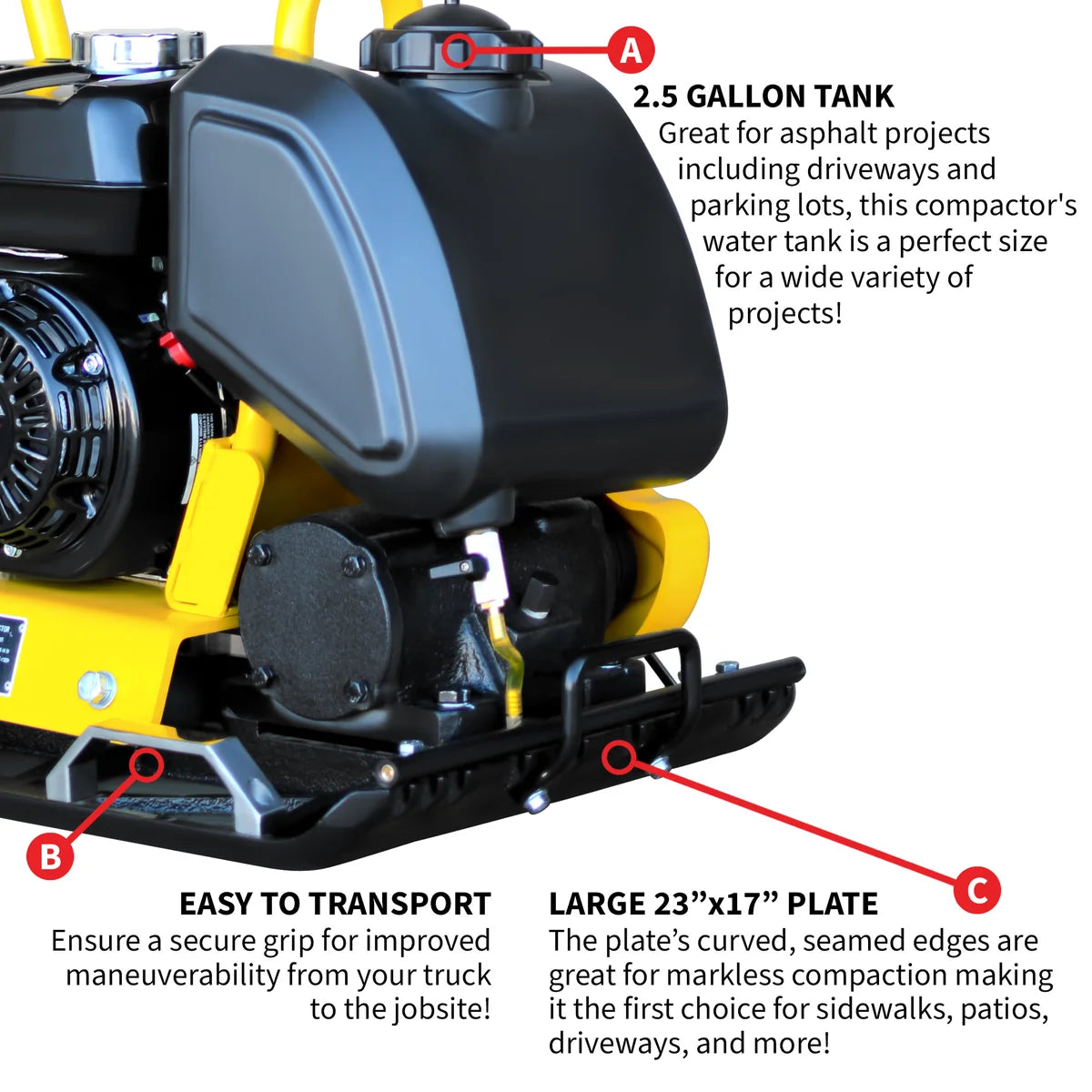

2.5 Gal Tank
Perfect for asphalt projects large and small!
- Deep Compaction: Effective on cohesive and granular soils up to 17 inches deep.
- Efficient Coverage: A large 23x17" plate covers more ground with every pass.
- Long Lasting Components: Built tough with long lasting materials, parts, & more including a robust steel plate and NSK bearings.
- 2-Year Warranty: Backed by Tomahawk’s nationwide service network and next-day spare parts availability.
Specifications
- Engine: Honda GX160
- Power: 5.5 HP
- Oil Capacity: .6 quarts
- Weight: 170 lbs. (77.1 kg)
- Package Weight: 236 lbs. (107 kg)
- Plate Size: 23 in. × 17 in. (58.4 x 43.1 cm)
- Package Dimensions: 20 in. x 27 in. x 34 in. (50.8 x 68.58 x 86.36 cm)
- Gallon Size: 2.5 Gallons (9.4 liters)
- Centrifugal Force: 13 KN
- Vibration Frequency: 100 Hz
- Travel Speed: 79 ft./min
- Compaction Depth Per Lift at 100% compaction : 3-4 inches
Package Includes
- TPC85H Plate Compactor
Applications
- Retaining Walls
- Footings and Foundation Projects
- Landscapes and hardscapes
- Patchwork on Asphalt
- Pipeline Applications
- Road Repair and Trenchwork
- Backfill Pools, Parks, Cemeteries, and Golf Courses
- Cohesive Soils and Granular Soils
- Sticky soils - such as clay or clayey silt
- Gravel, sand, silt, clay, or mixed soils
- Base, Subbase, Subgrade, Subsoil
What Compactor Do I Need?
A compactor is an essential tool for preparing a solid base for structures such as patios, retaining walls, concrete slabs, and more. Tamping rammers and compactors are used to increase the density of soil by reducing air voids, which help to improve soil stability, support structures, and prevent settling. With so many options on the market, choosing the right plate compactor can be a daunting task.
Small Jobs
If you are installing artificial turf, building dirt pathways, or need to improve soil stability - but do not need to adhere to a minimum compaction rating you can use a compactor in the 110 lbs (50 kilo) range. These are great for anyone looking to get a job done by themselves with little headache.
Medium Jobs
If your project involves building a retaining wall, patio, driveway, sidewalk, or concrete slab you will need a bit more muscle. Rammers and compactors in the 130-200 lbs (60-90 kilo) range that can achieve a compaction force above 3,000 lbs²/ft are best. You will achieve 98-100% compaction ratings needed for proper compaction to prevent soil settling and foundation damage.
Large Jobs
Equipment needed for large compaction projects should also be able to achieve a minimum compaction force of 3,000 lbs²/ft to reach 98-100% compaction ratings needed for proper compaction. Where this equipment differs from medium range equipment is it's efficiency. Large jobs are typically performed by professional contractors where speed and jobsite efficiency are critical to their success. Compactors that help jobsite efficiency may feature reverse control, hydraulic drive, and the ability to compact asphalt. If you are not too worried about the time it takes to complete a project, you can save a few bucks and invest in equipment in the medium range.
Info & Guides
Full Spec Sheet
| Model | TPC85H |
| Engine | Honda GX160, 5.5 HP |
| Compaction Force | 3,000 lbs/ft² at 6,400 VPM |
| Compaction Depth | Up to 17 in |
| Plate Size | 23 x 17 in |
| Weight | 170 lbs, 236 lbs packaged |
| Fuel Tank | 2.5 gal |
| Travel Speed | 79 ft/min |
