Product Description
Off-grid & On-grid Solution &
Hybrid System

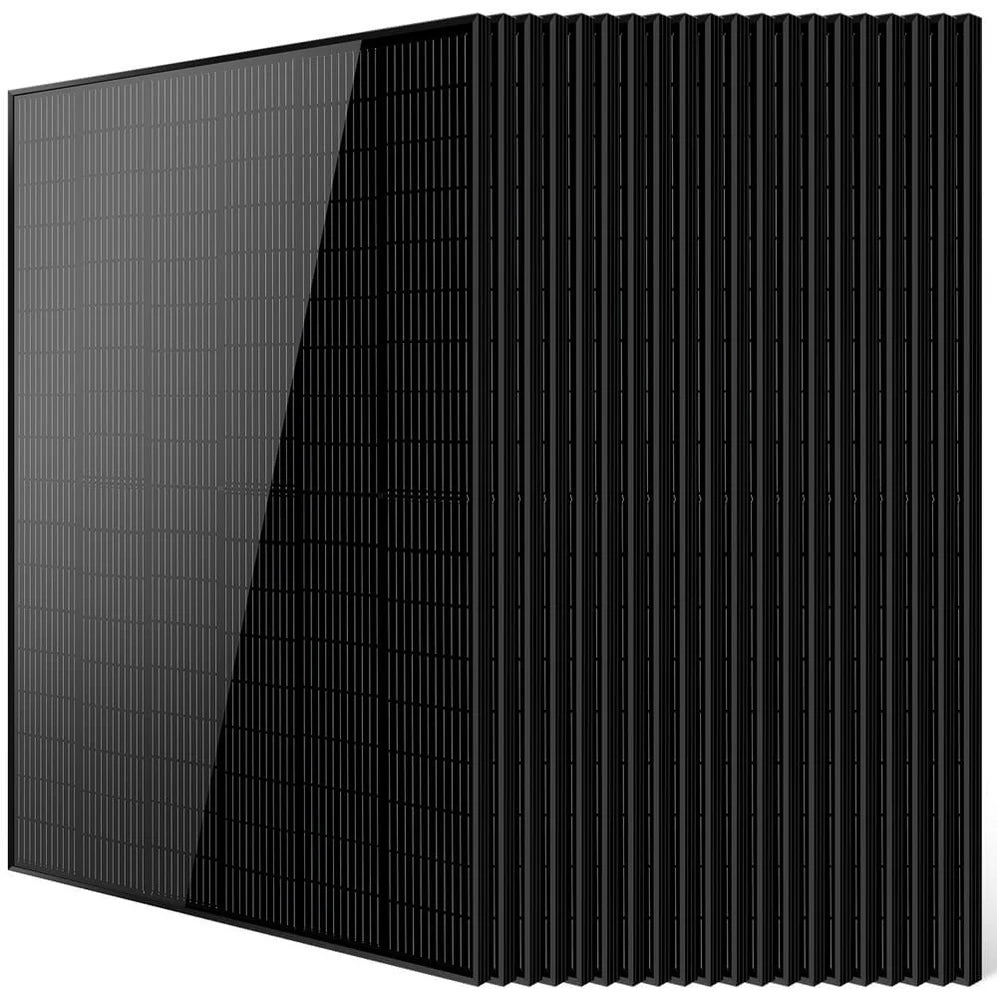

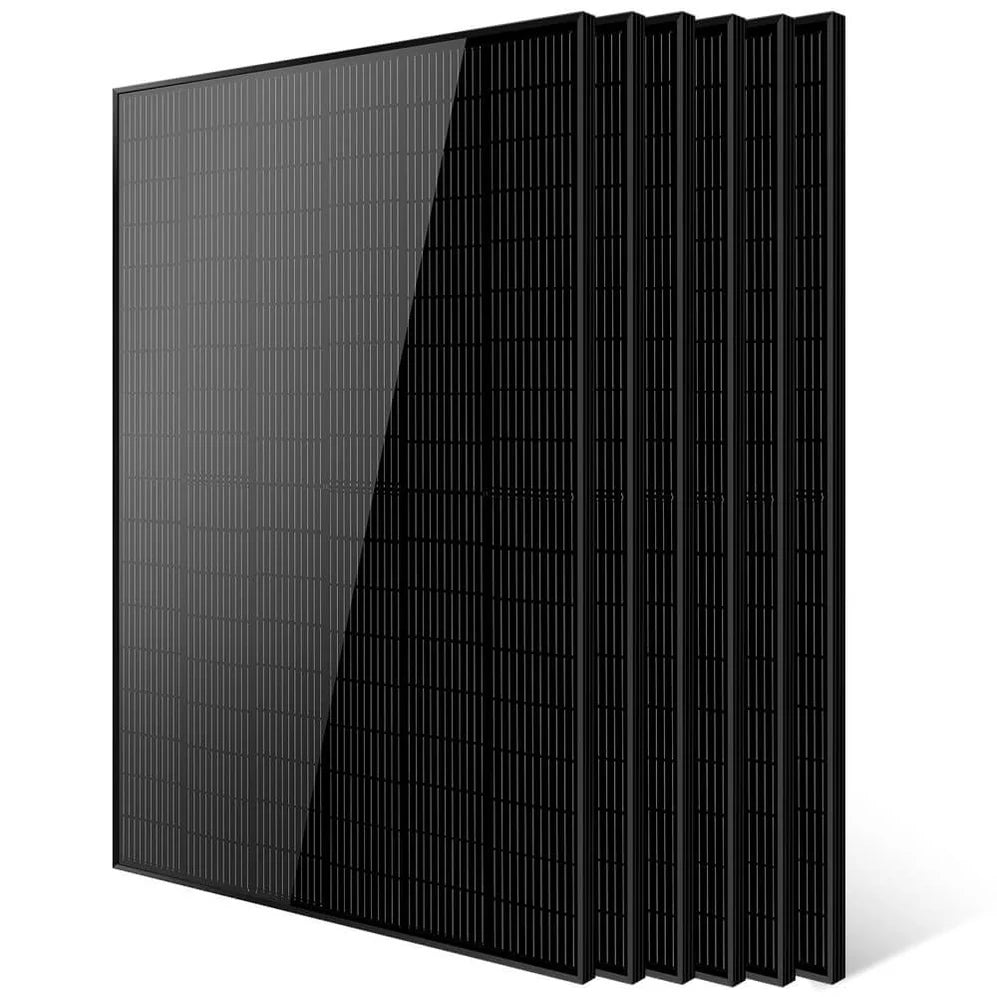

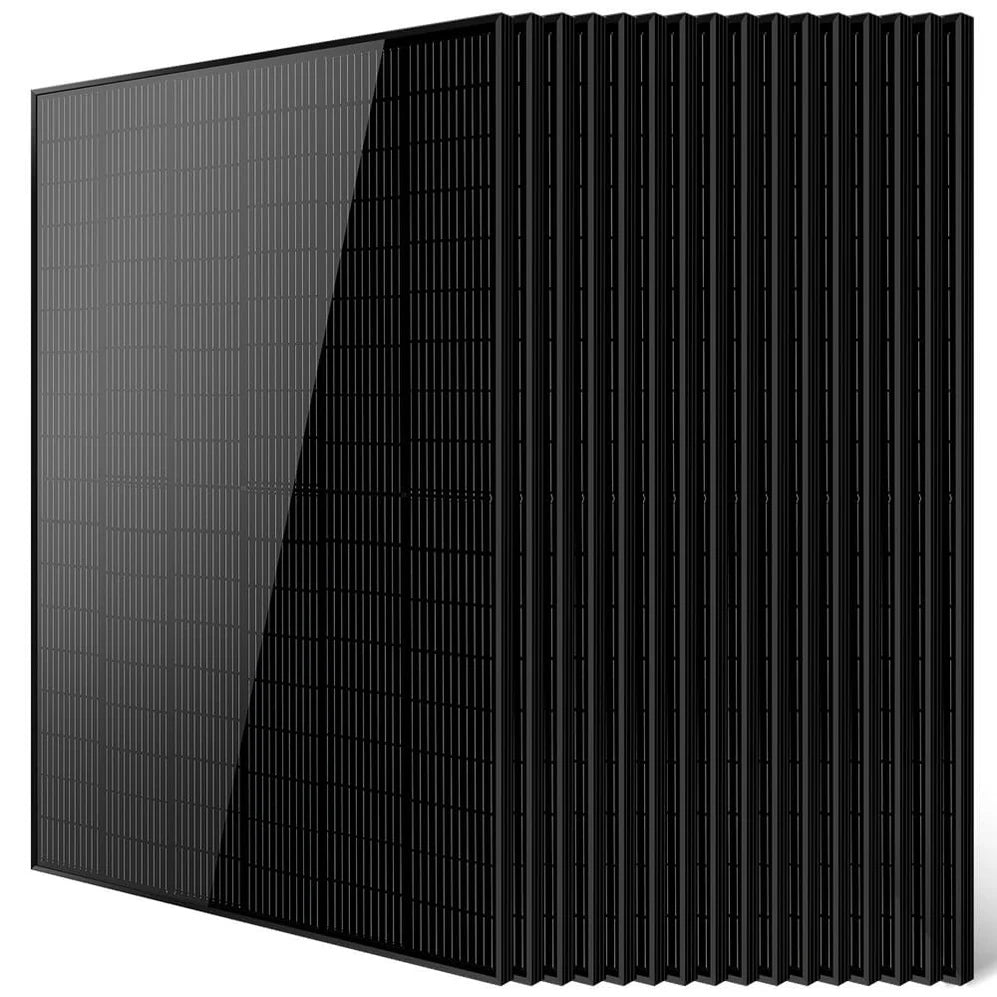

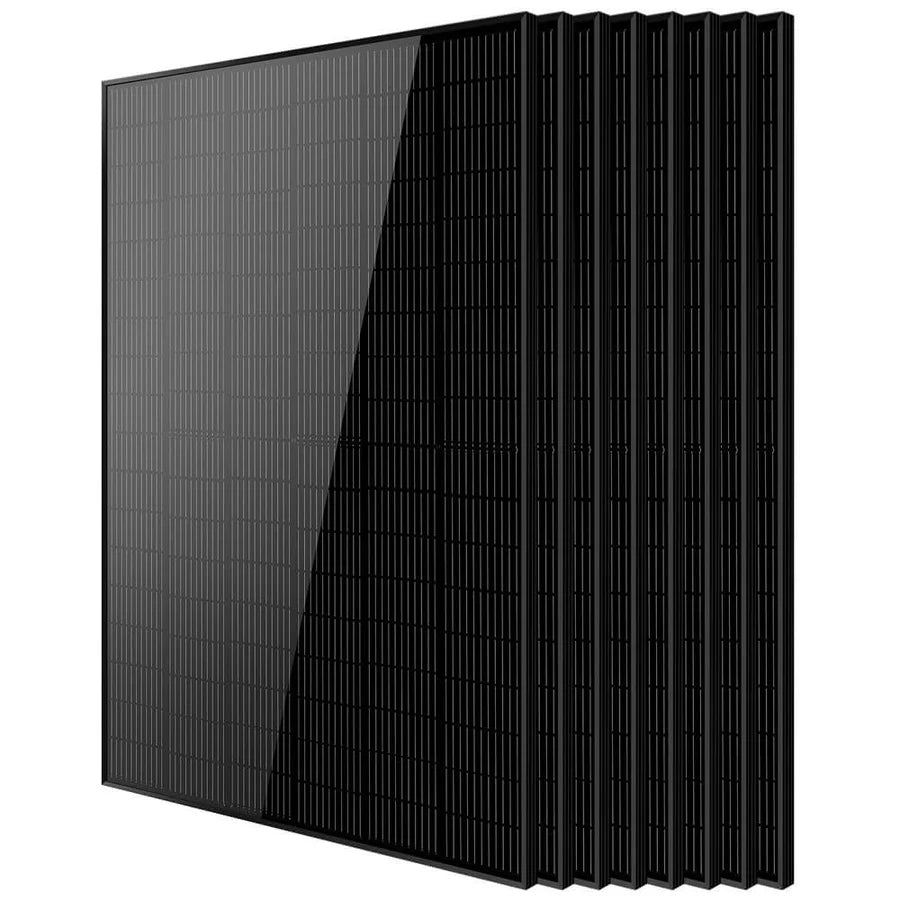

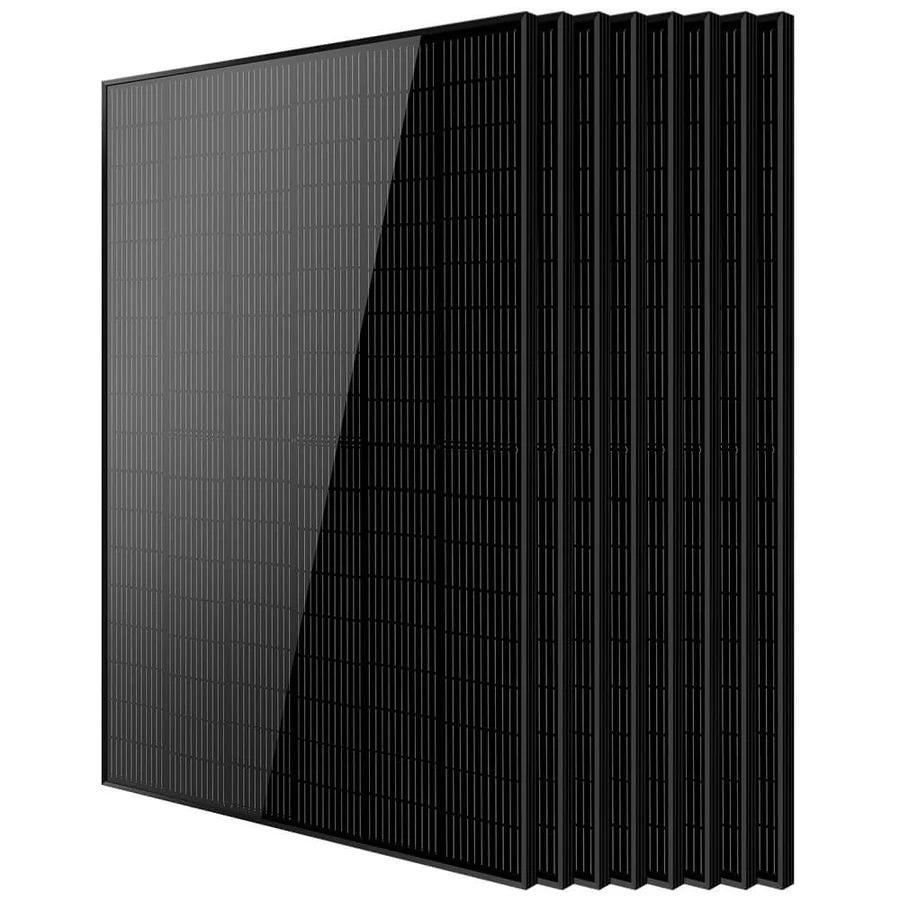

This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storingenergy with battery, reducing power bills, or powering complete off-grid house.

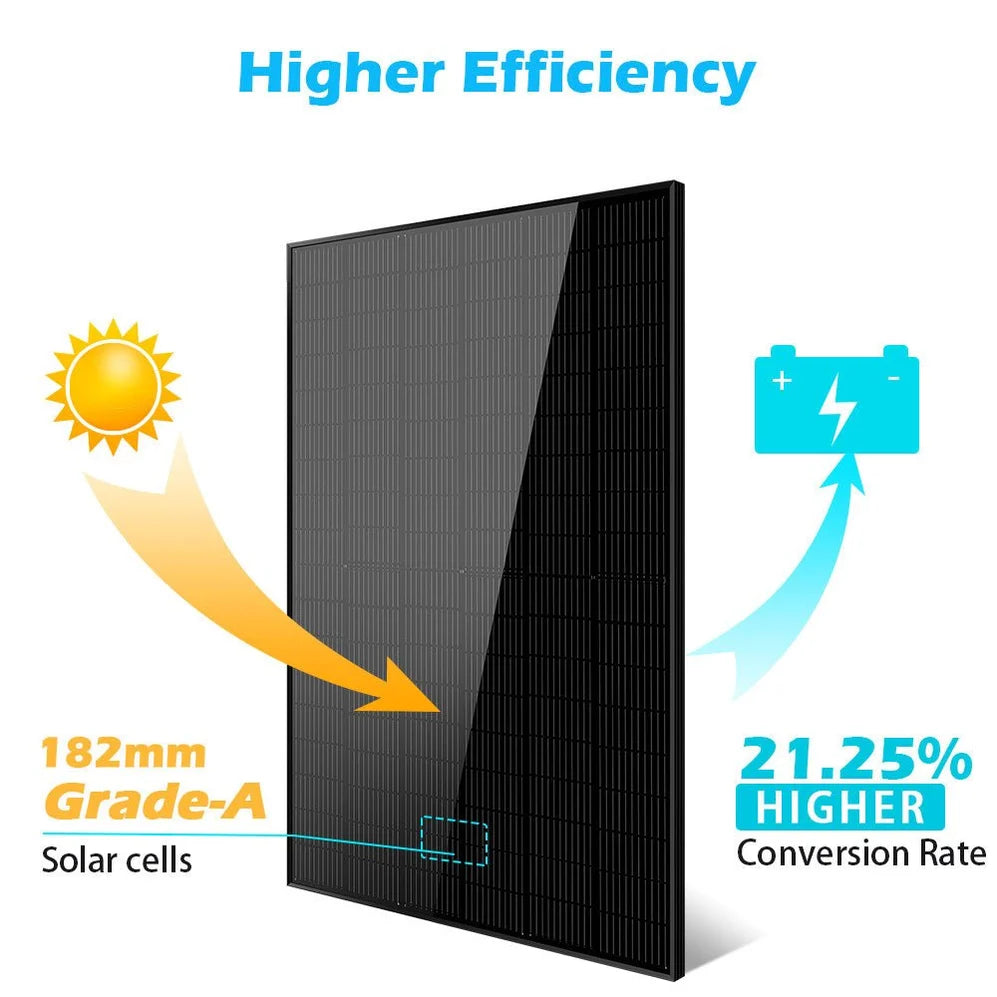

High efficiency
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

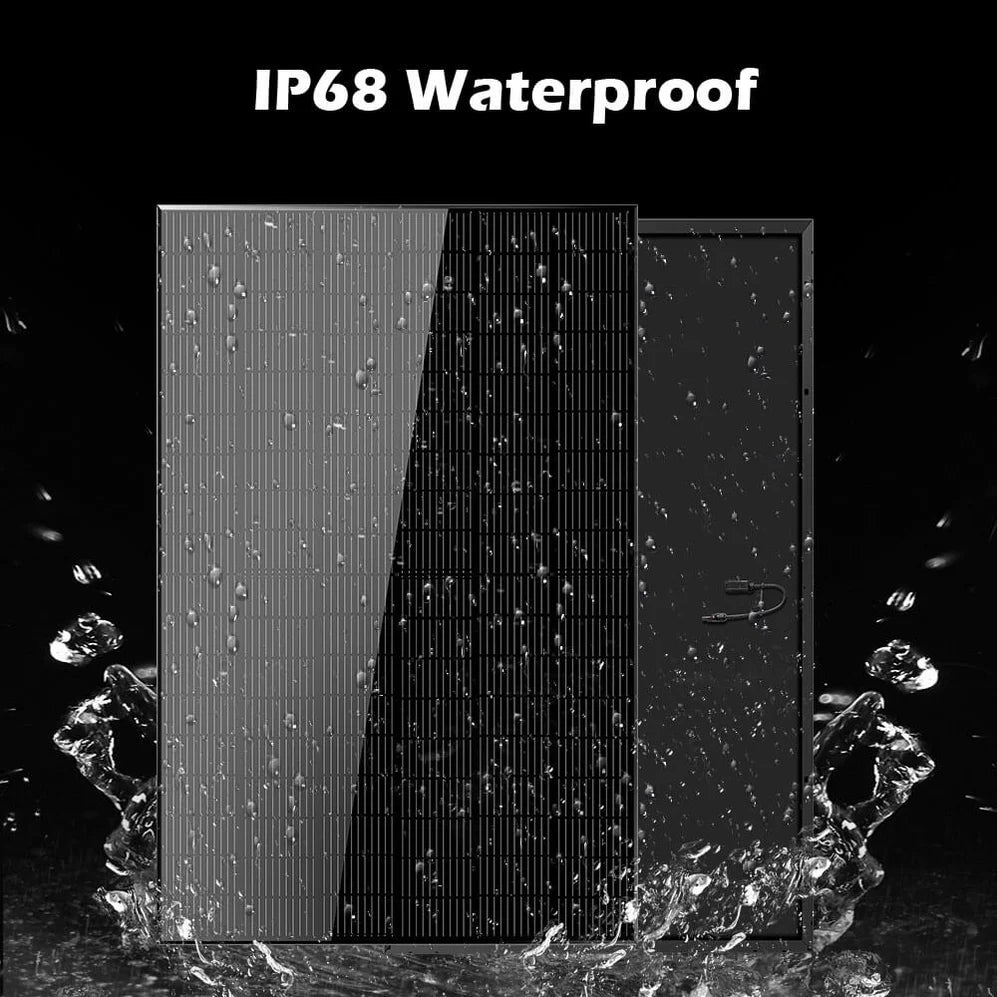

Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

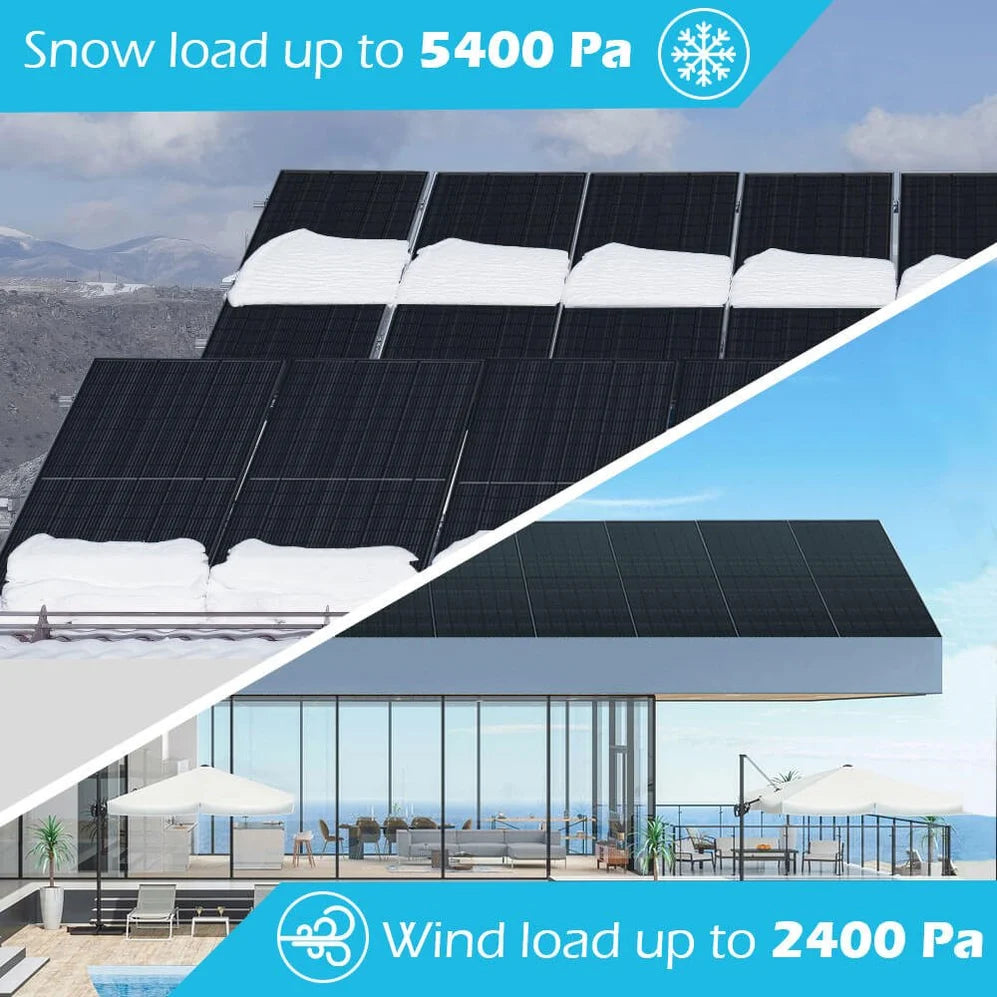

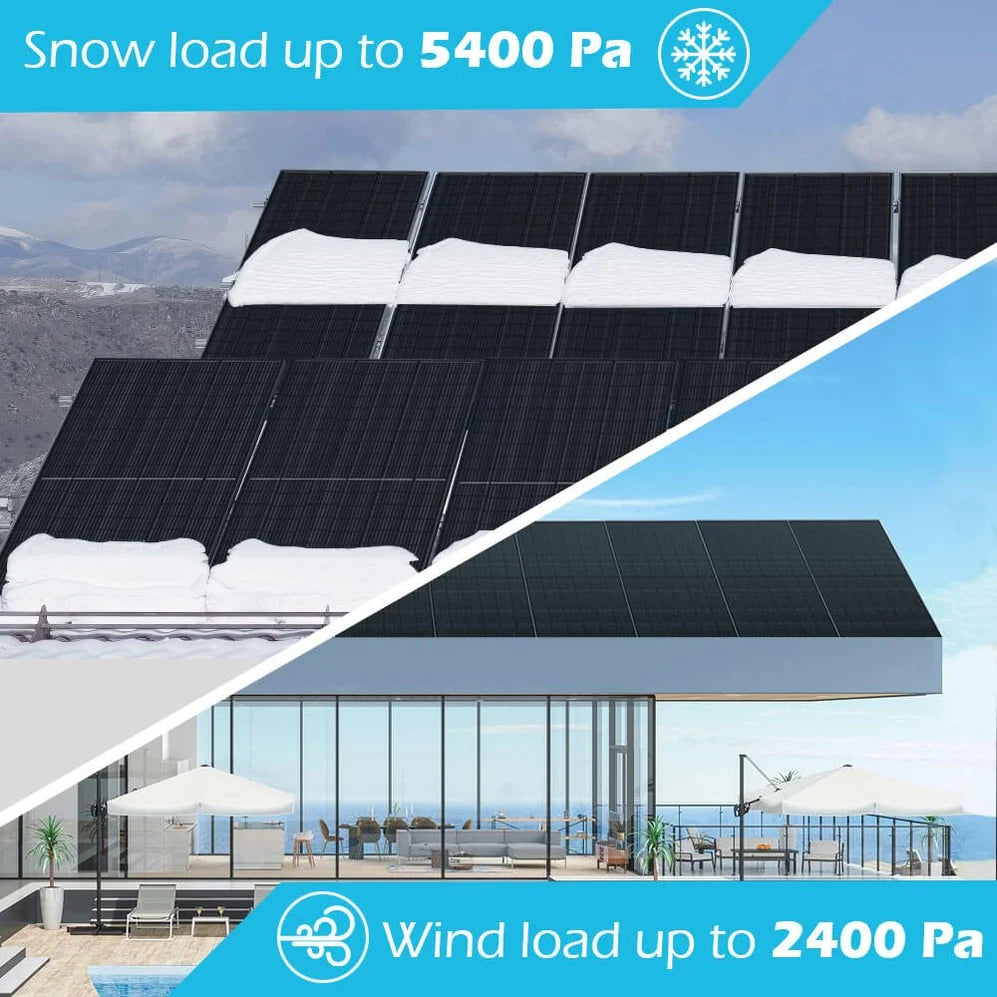

Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.

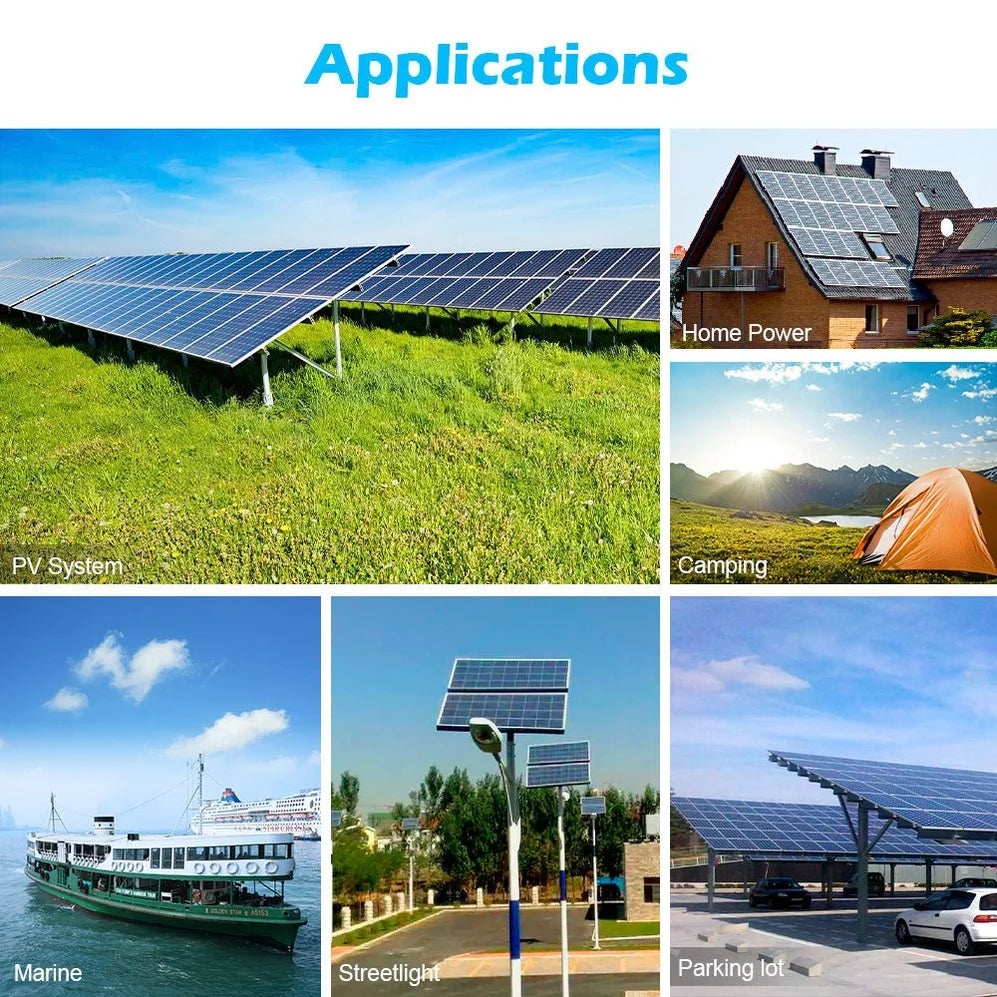

Wide Application
With balanced power, improved stability, and economical electricity costs.
| Model Type | SG415WM | ||
|---|---|---|---|
| Peak Power (Pmax) | 415W | ||
| Production tolerance | ±3% | ||
| Maximum Power Current (Imp) | 13.34 A | ||
| Maximum Power Voltage (Vmp) | 31.11V | ||
| Short Circuit Current (Isc) | 14.09A | ||
| Open Circuit Voltage (Voc) | 38.32V | ||
| Maximum System Voltage | 1500V | ||
| Wind Resistance | 2400Pa | ||
| Output Cables | 12 AWG (1ft per cable) | ||
| Number of Cells | 108(6*18) | ||
| Cell Type | Mono 182*91mm | ||
| Certifications | UL 61730 CE TUV CEC Listed | ||
| Product Weight | 45.8lbs | ||

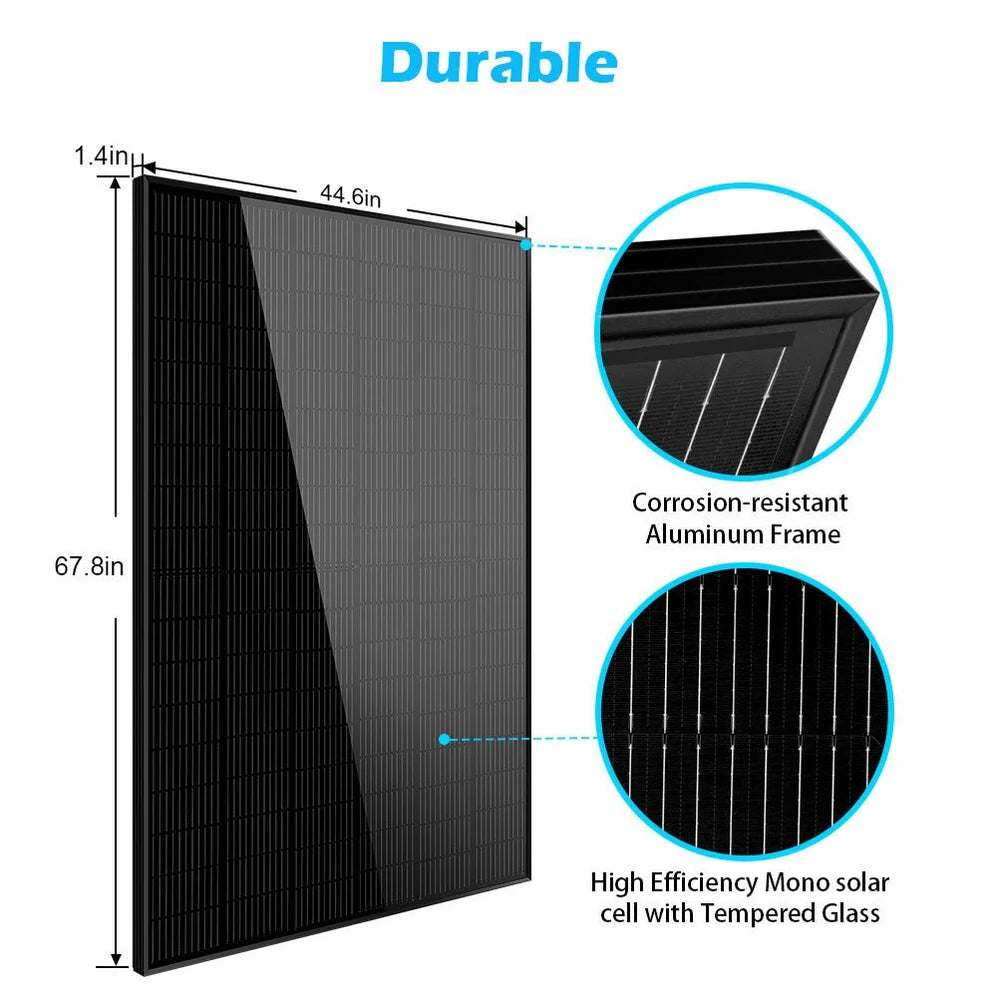

| Product Dimension | 67.8*44.6*1.4inch | ||
| Package Weight | 100.5lbs（2PCS） | ||
| Warranty | 12 years Material and workmanship warranty and 25 years 80% output Performance warranty | ||
| Operating Temperature Range | -40℉ to 185℉(-40℃~+85℃) | ||
| Maximum Permissible Module Temperature (T28 max): | 185℉(85°C) | ||
| Module Fire Performance | Type 4 according to ANSI/UL 61730 | ||
| Safety Class | Class II |
