Product Description

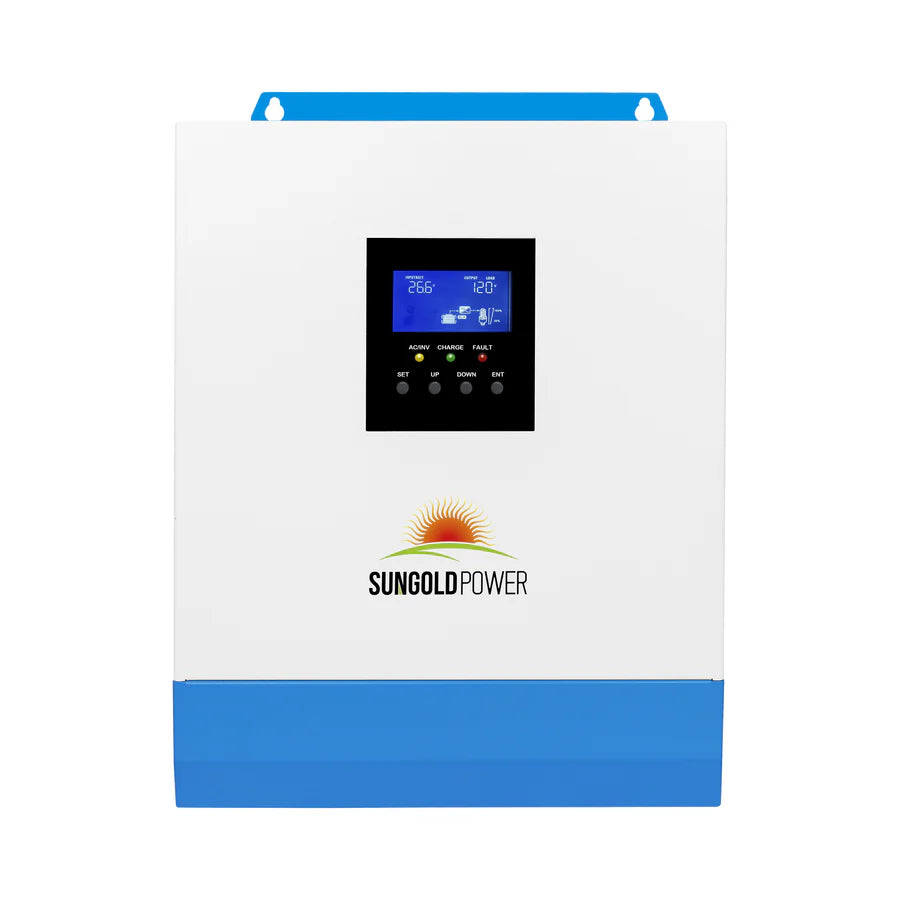

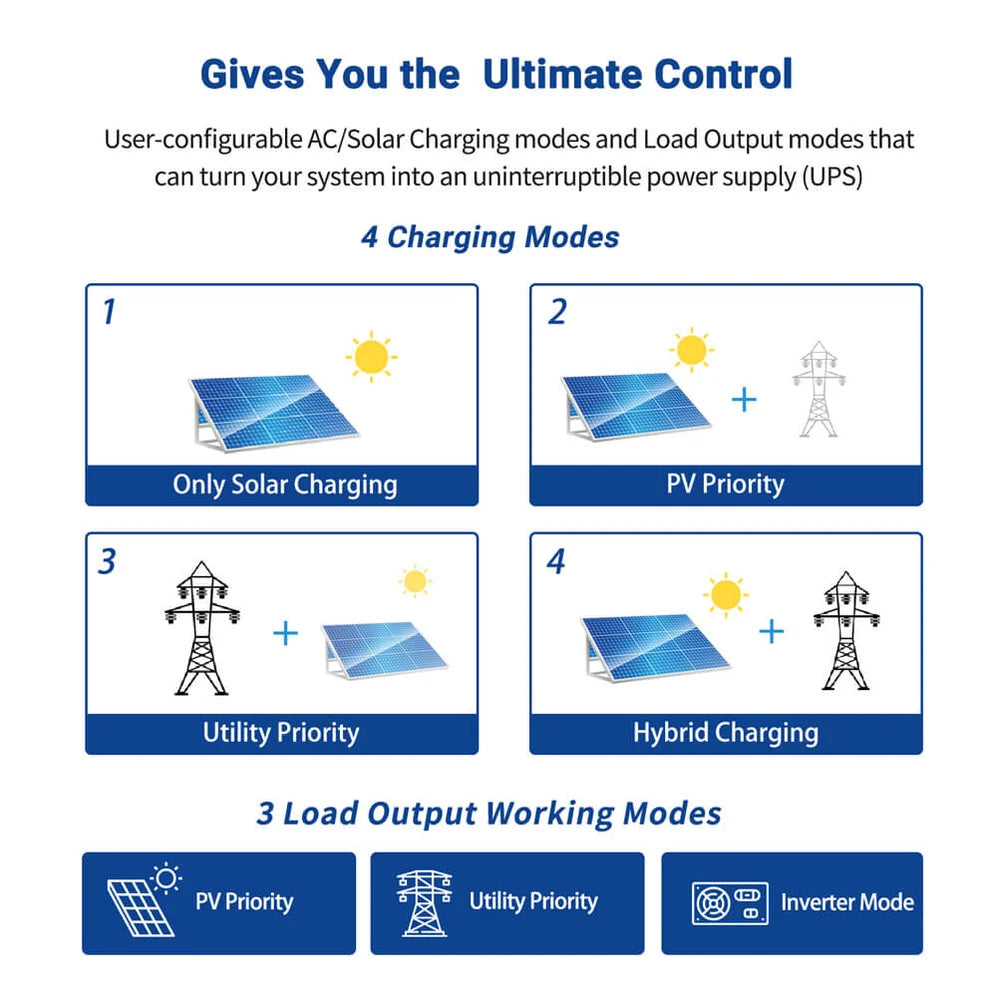

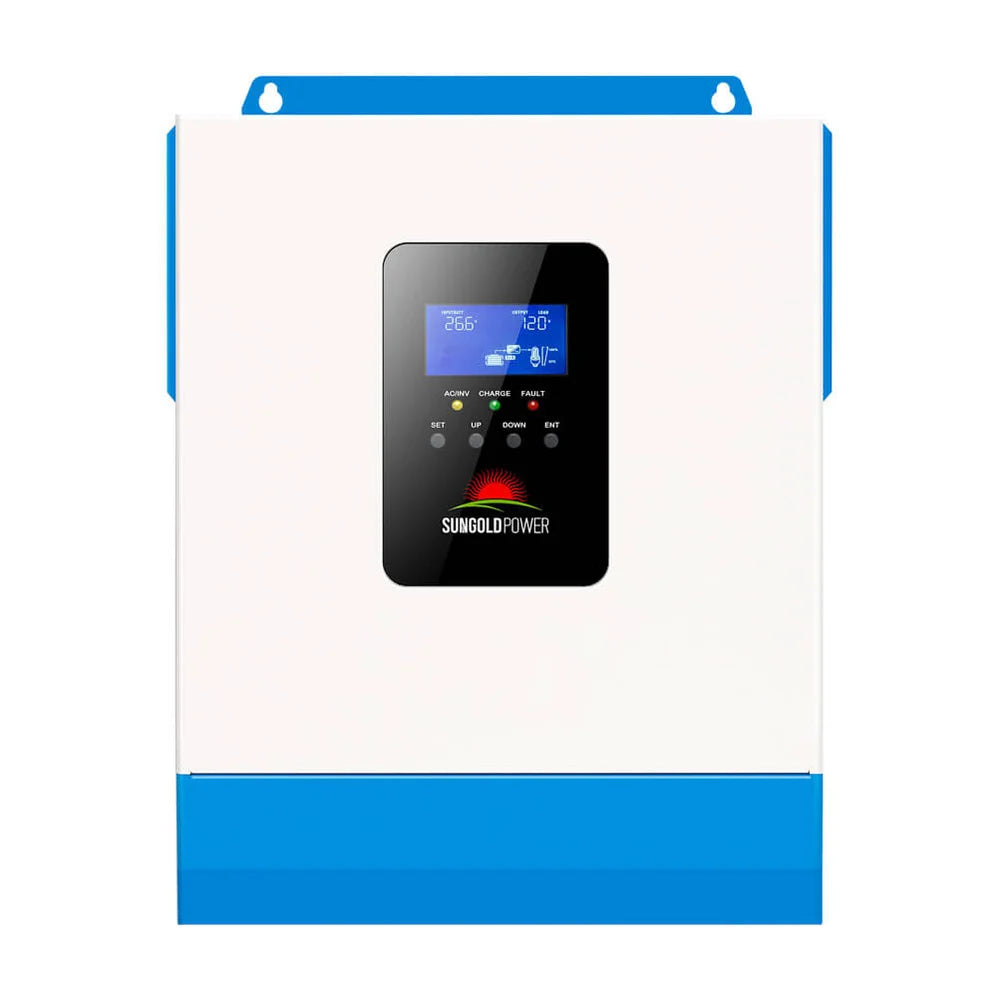

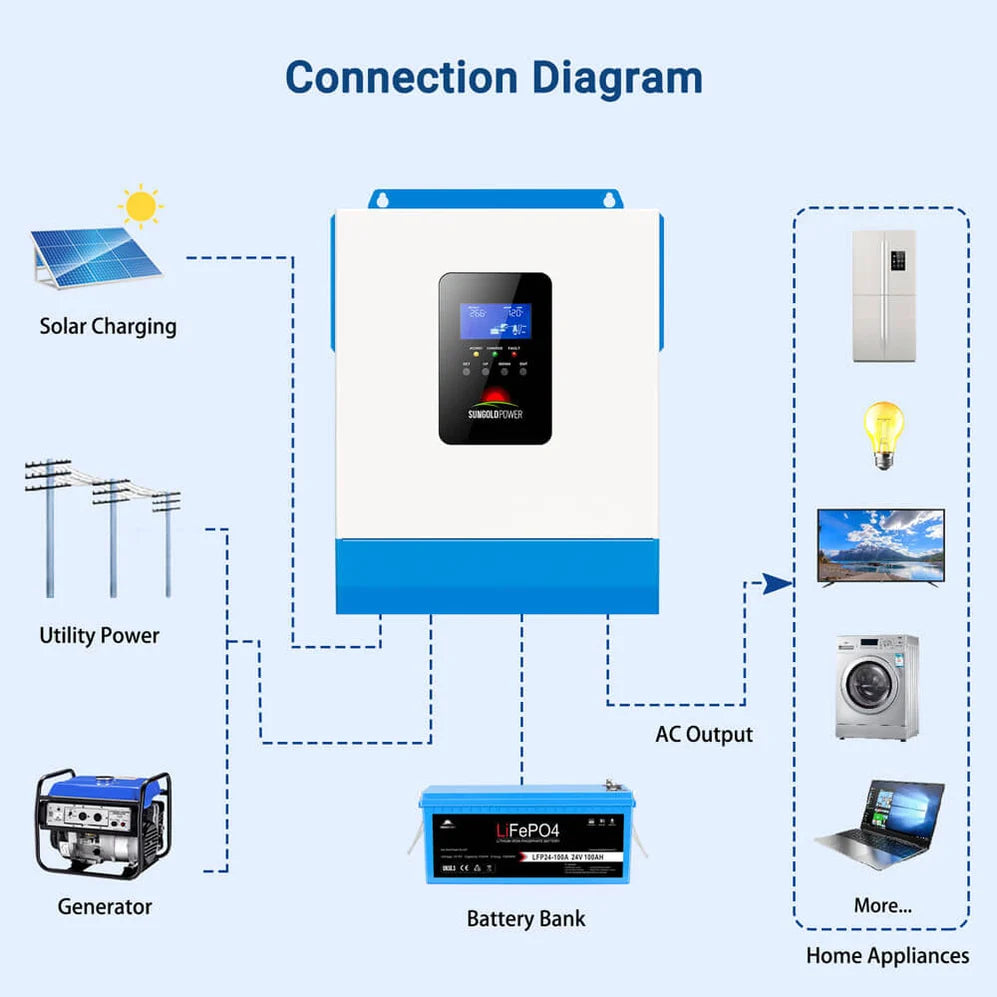

SUNGOLDPOWER 3000W 24V solar inverter combines solar charging, AC/generator battery charging and battery inverter into one complete unit to make your off-grid system working. This solar inverter charger is compatible with 24V battery packs. It provides four user-configurable AC/solar charging modes and three load output modes. It can turn your system into an uninterruptible power supply (UPS )with only 10 milliseconds automatically switching to off-grid to ensure the load powered.
Main Features:
● SPH302480A Built-in 80A MPPT solar charge controller, max PV input 4000W

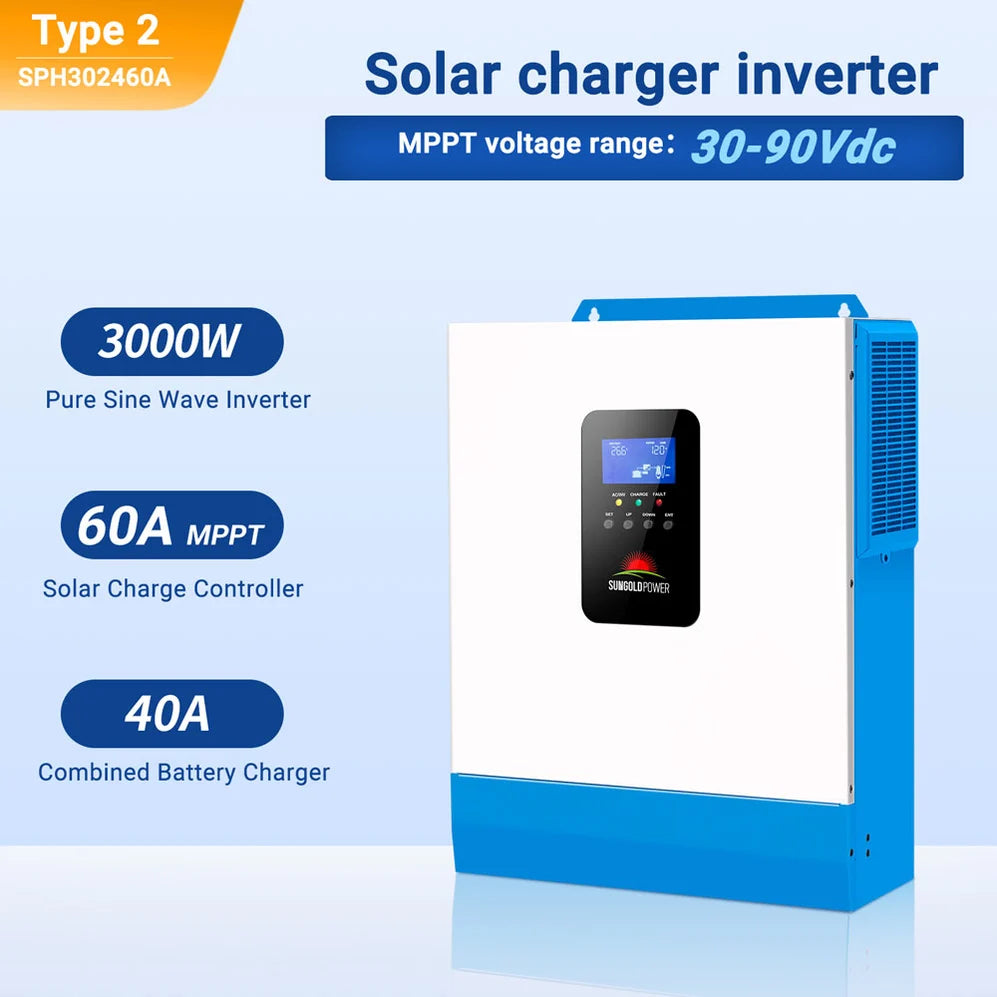

● SPH302460A Built-in 60A MPPT solar charge controller, max PV input 1600W
● 40A Smart AC charger
● High frequency transformer-less compact design
● Pure sine wave AC 120V output with 50hz/60hz switch
● Optional WiFi/ GPRS remote monitoring (extral cost)
● Overload, short circuit, over discharge protection
● Auto-start the generator ( Dry Contacts for delivering signal)
Inverter Mode:
● Output: Pure Sine Wave
● Peak Power : 6000VA
● AC Output : 120VAC ,50HZ/60HZ
● Input Voltage / Rated Battery : 24VDC (minimum start-up voltage:22V)
● Bypass Breaker Current: 40A
● Idle Power: 50W
● Power Saver Mode Idle Consumption: 25W
SPH302480A MPPT Solar Charging Mode:
● Maximum Input Power: 4000W
● PV Charging Current : 0-80A
● Max.PV Open Circuit Voltage: 450V
● PV operation voltage range: 120-450VDC
● Mppt Voltage Range: 120-400VDC
● Recommended wire: 12 AWG

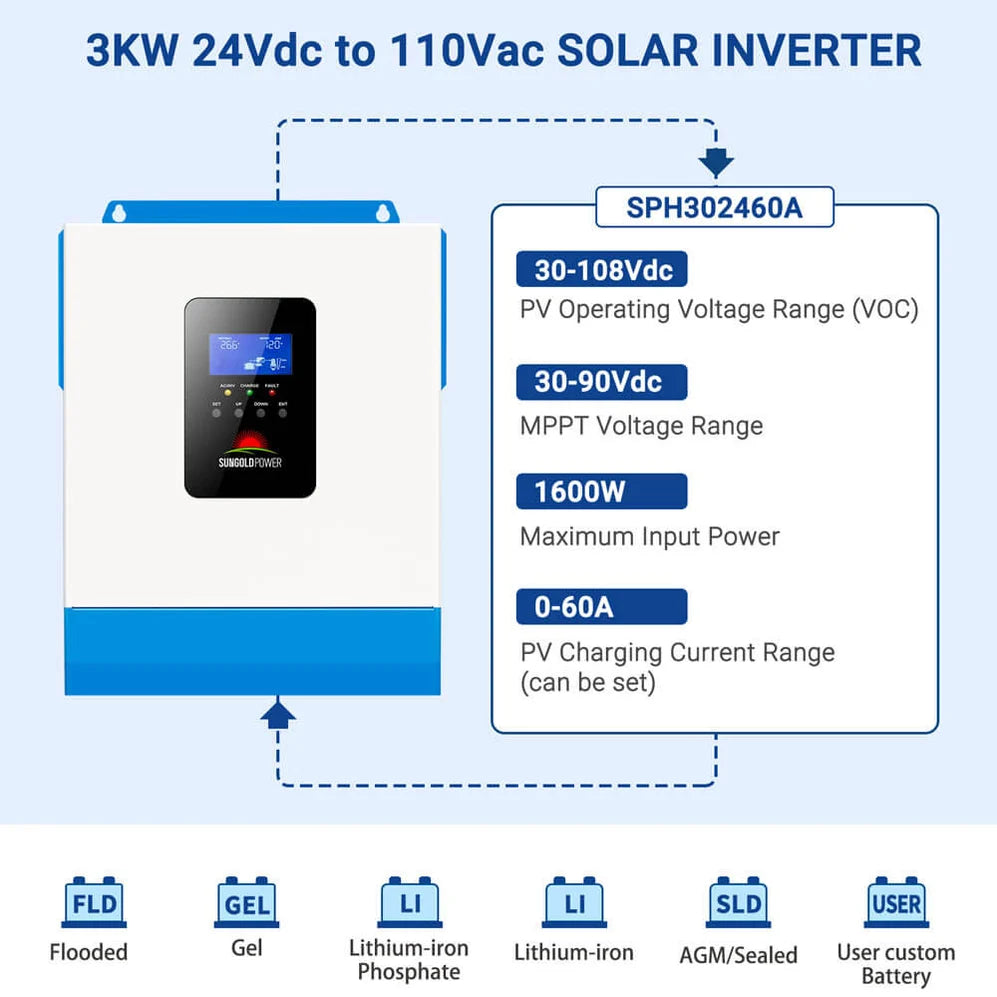

SPH302460A MPPT Solar Charging Mode:
● Maximum Input Power: 1600W
● PV Charging Current : 0-60A
● Max.PV Open Circuit Voltage: 108V
● PV operation voltage range: 30-108Vdc
● Mppt Voltage Range: 30-90Vdc
● Recommended wire: 12 AWG
AC Charging Mode:
● Rated AC input: 110V, 50HZ/60HZ
● Input Voltage Range: 90VAC-140VAC
● Conversion Time: 10ms
● Battery Type: Lead Acid and Lithium Battery
● Maximum Charging Current: 40A
● Charging Voltage Range:20-33VDC
● Short-Circuit Protection: Breakers and fuses
● Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min
Mechanical Specification:

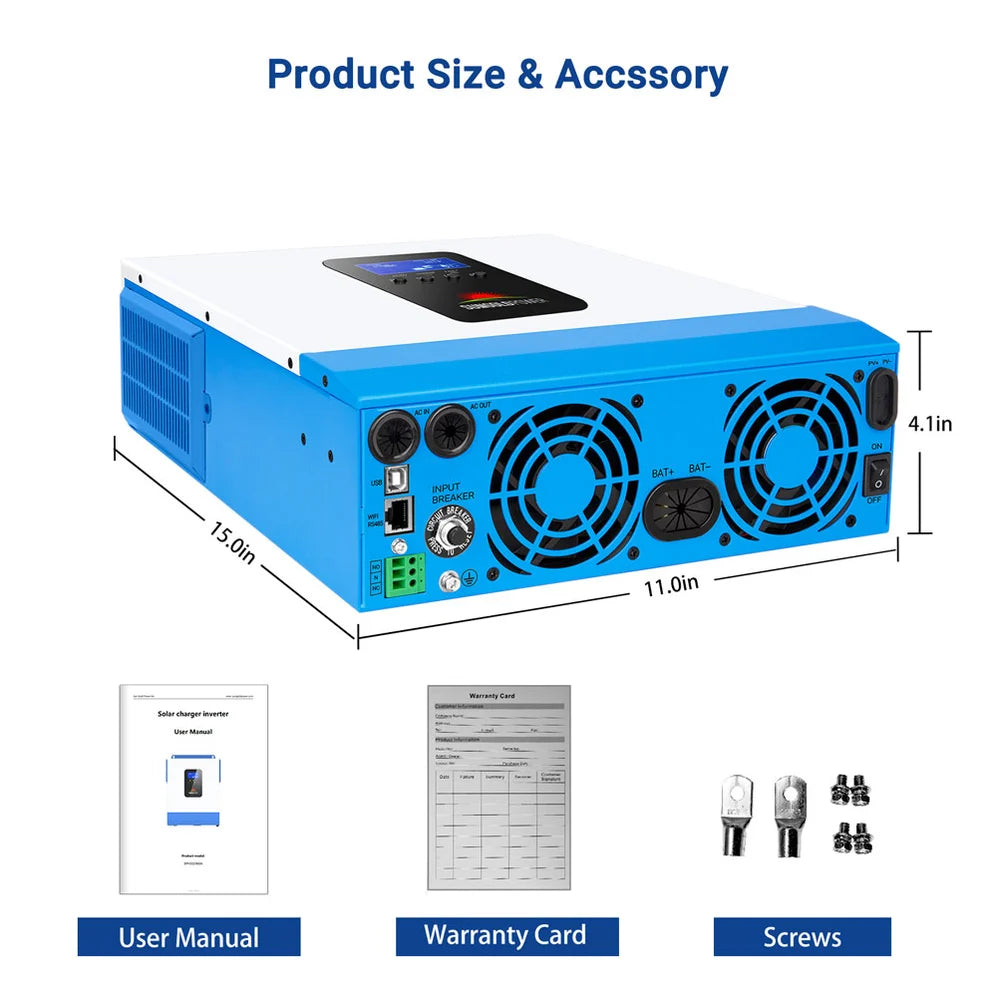

● Size: 15.0 x 11.0 x 4.1 inch
● Net Weight: 16.8lbs
● Noise: ≤60dB
● Operating Temperature Range:5°F ~ 131°F/ -10°C ~ 55°C
● Cooling Fan: Yes
