Product Description
| Main Specification | |
|---|---|
| Model | LFPV18K48V240VSP |
| Continuous Output Power | 18.0KW |
| Surge Rating(20s) | 54.0KW |
| Output Waveform | Pure Sine Wave |
| AC Output Voltage | 120V and 240V |
| AC Input Voltage | 240V( not suitable for AC 120V input ) |
| DC Battery Voltage | 48Vdc |
| AC Battery charger | 95±5Amp |
| Output Frequency | 50Hz /60Hz |
| Typical transfer Time | 10ms(Max) |
| DC Input | |
|---|---|
| Nominal Input Voltage | 48.0Vdc |
| Minimum Start Voltage | 40.0Vdc / 42.0Vdc |
| Low Battery Alarm | 42.0Vdc / 44.0Vdc |
| Low Battery Trip | 40.0Vdc / 42.0Vdc |
| High Voltage Alarm | 64.0Vdc |
| Low Battery voltage recover | 62.0Vdc |
| Power Saver on Idle Consumption | 50W |
| Power Saver off Idle Power | 270W |
| Charger | |
|---|---|
| Output Voltage | Depends on battery type |
| Battery Initial Voltage for Start Up | 40-62.8V |
| Over Charge Protection Shutdown | 62.8V |
| Charger Breaker | 100A |
| Input Voltage Waveform | Sine wave (Grid or Generator) |
| AC input range | 184-253Vac/140-270Vac |
| Nominal Input Frequency | 50Hz or 60Hz (Auto detect) |

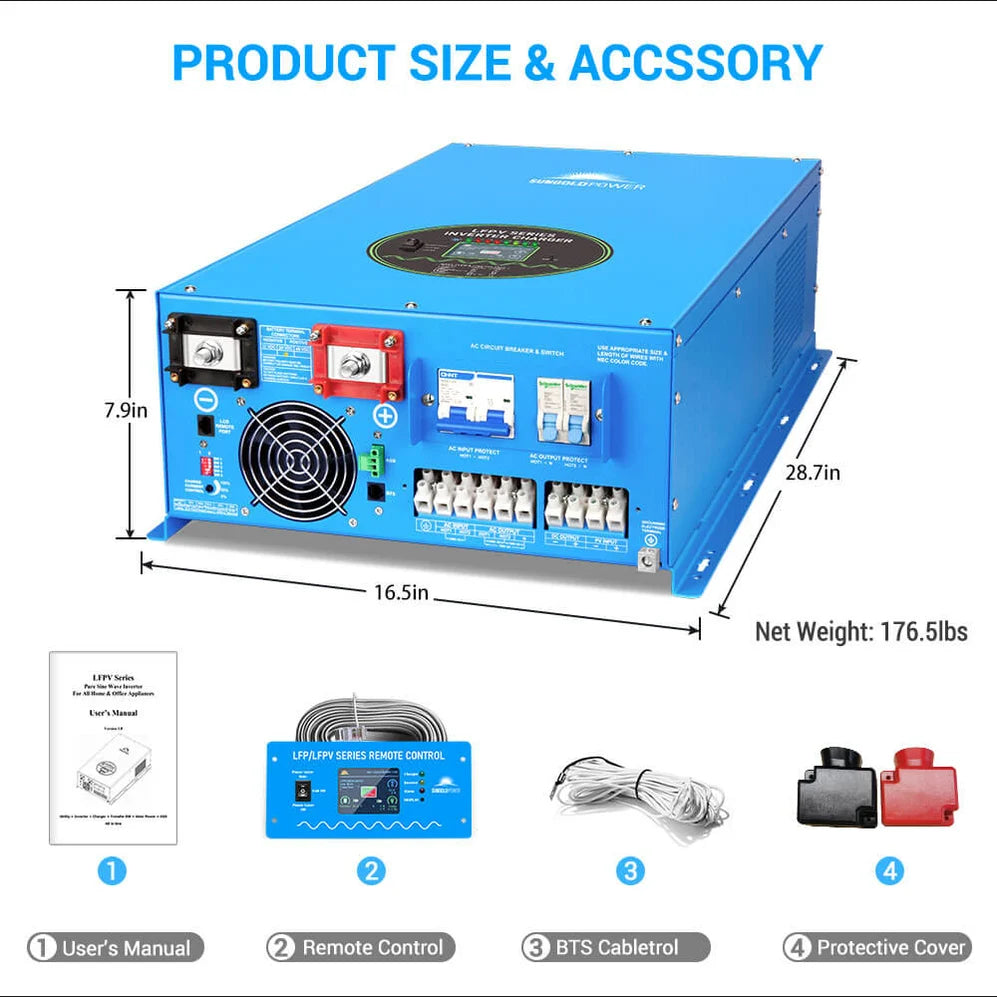

| Packaging | |
|---|---|

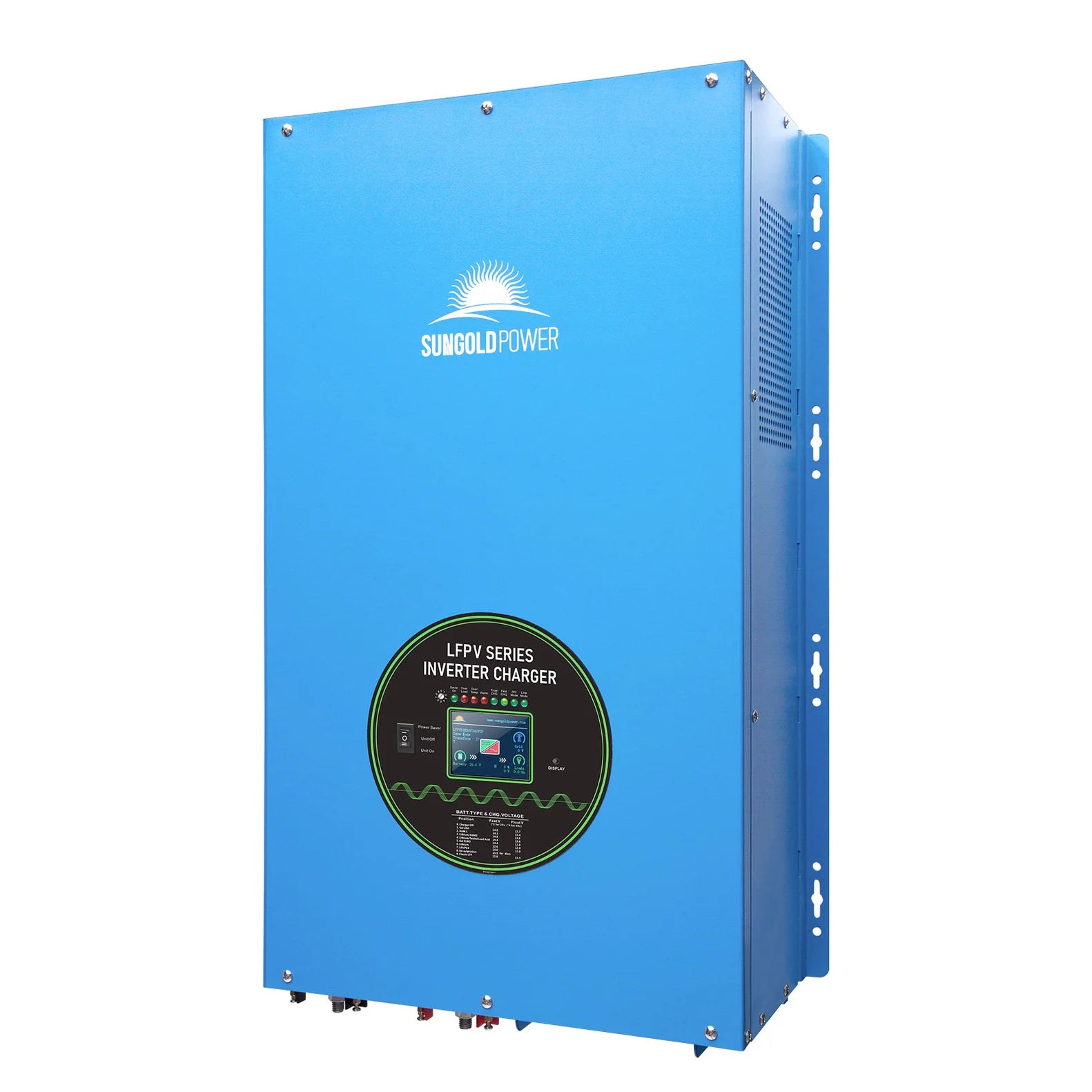

| 18000W 48V Split Phase Pure Sine Wave Power Inverter | |
| English Manual | |
| Remote Control | |
| BTS Cable | |
| Unit Weight | 197 LB |
| Unit Size | 28.7 x 16.5 x 8.7 inch |
| Shipping Weight | 232 LB |
| Shipping Size | 34.25 x 21.3 x 17.3 inch |
12KW/ 15KW/ 18KW 48V Split Phase Pure Sine Wave Inverter Charger User Manual
