Product Description

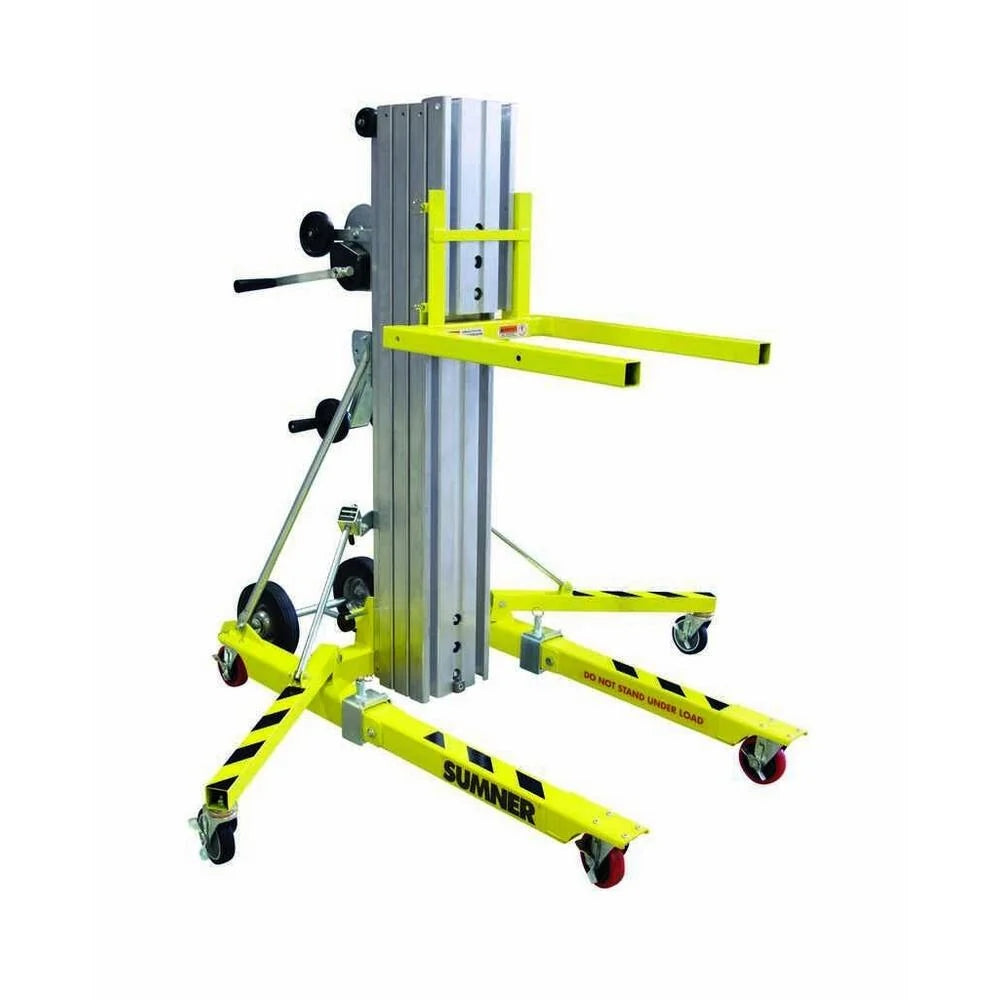

Sumner 786382 Features
- Stored height of 5' 3.5"
- Lifts up to 800 lb (360 kg)
- 16' 3" Height
- No tools required, no loose hardware
- Mast hold-down secures mast for safe transport
- Pulley Guards: Designed to prevent load lines from slipping off
- Roller Wheels: Helps to roll into trucks or vans
- Cable feeds inside mast, removing exposed cable from near the operator’s face
- Sumner-built Winch Highly reliable, singlespeed winch uses idler roller to feed cable evenly on the drum to avoid cable flats. Handles are removable when not in use.
- Reversible Forks: Using plunger pins, forks remove and reverse easily for added height or to ceiling.
- STABILIZERS NOT INCLUDED
Sumner 786382 Specifications
| Height Stowed | 63 in. |
| Length Stowed | 34 in. |
| Length operating | 73 in. |
| Base Width | 31.25 in. |
| With with stabilizer legs | 74 in. |
| Ground Clearance | 2.5 in. |
| Load Height minimum | 6 in. |
| Maximum Height Forks Down | 14'3 in. |
| Maximum Height Forks Reversed | 16' 3 in. |
| Weight | 365 lbs |
