Description

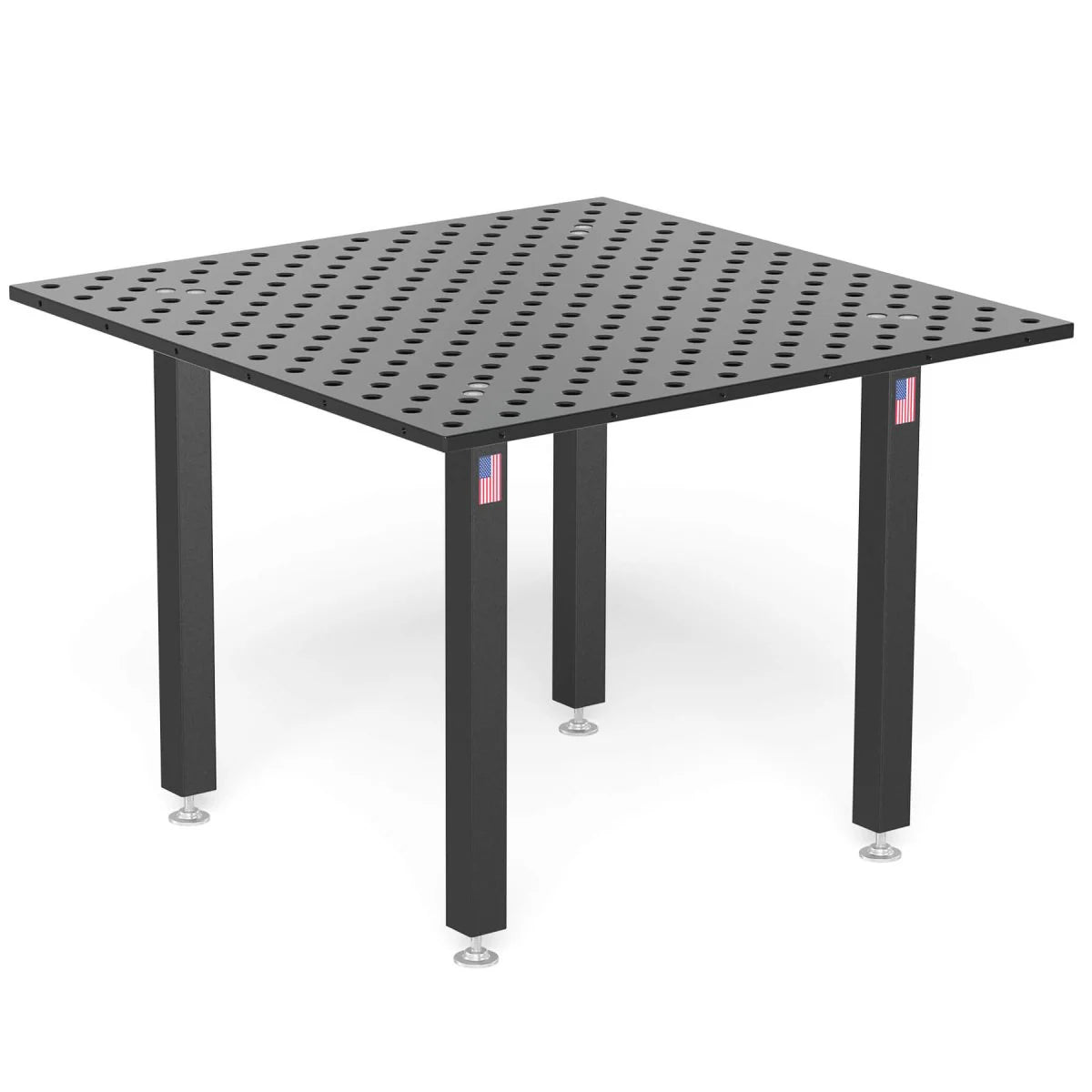

The System 28 Basic Welding Table Series was created with Heavy Duty Applications in Mind.

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
    Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
    The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
    • Overall Tabletop Size: 4' x 4' (48" x 48")
    • Borehole Diameter: Ø 28mm (1-1/10")
    • Welding Table Series: System 28 Basic Imperial Series
    • Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
    • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
    • Table Surface Hardness: 450-850 Vickers
    • Official Siegmund Welding Table Part No.: US281015.XD7
    • Maximum Weight Load: 5,052 lbs. (Based on Even Distribution)
    • Approximate Table Weight: 814 lbs.
    1. 5/16"x45" chamfer for table mounting.
    2. Boreholes 28mm (1-1/10"), Boreholes 7/64"x45.
    3. Radius 1/10" on table edges and 1/4" corners.
    4. Without side panel.
    5. Boreholes on the Surface are in a Diagonal Grid.
    6. M12 thread on 4 sides every 7-7/8".
