Description

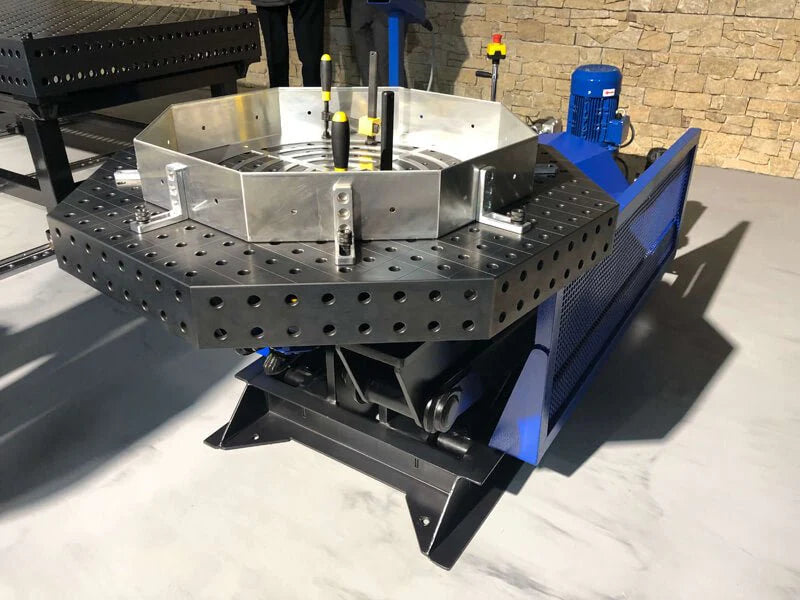

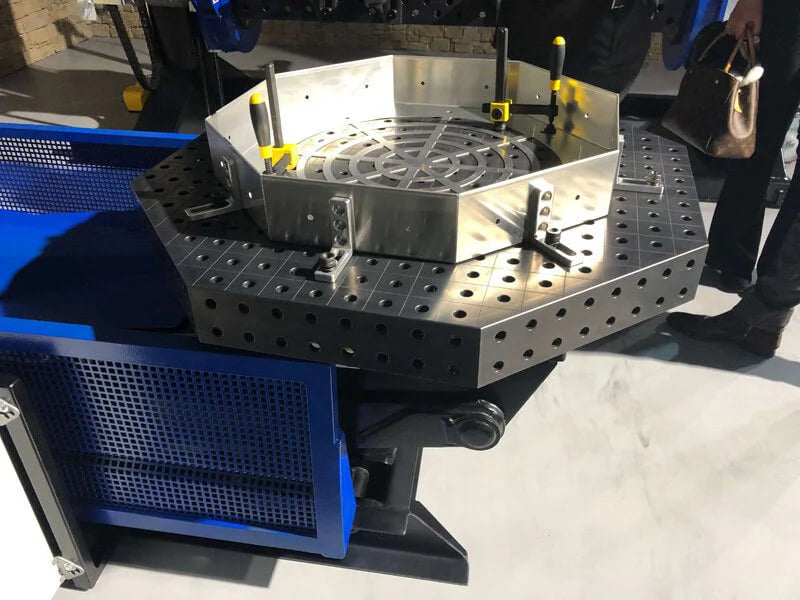

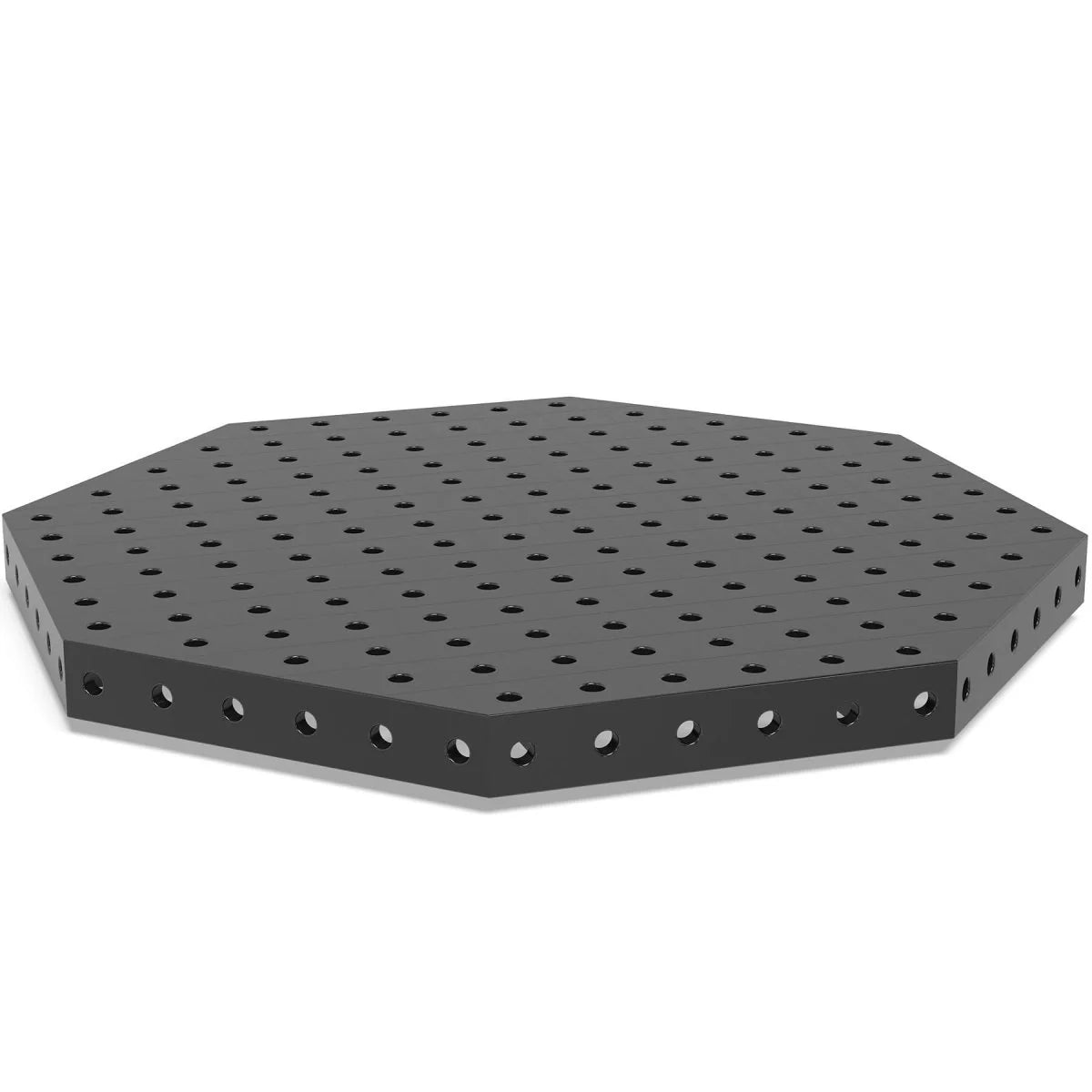

Octagonal Welding Tables for Welding Positioners / Manipulators
Suitable for all Siegmund Positioner Types: Roto and Synchrolift

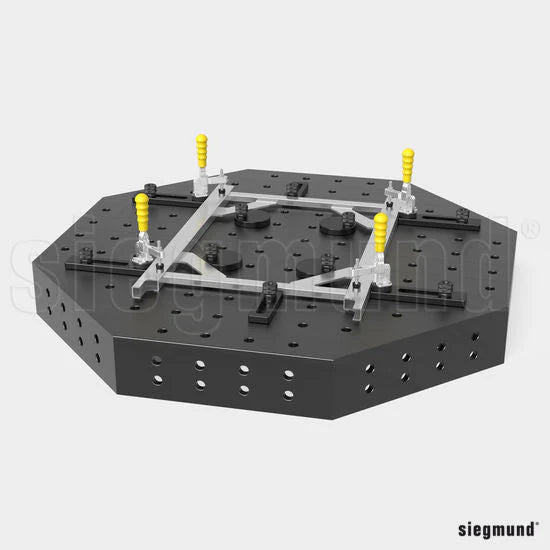

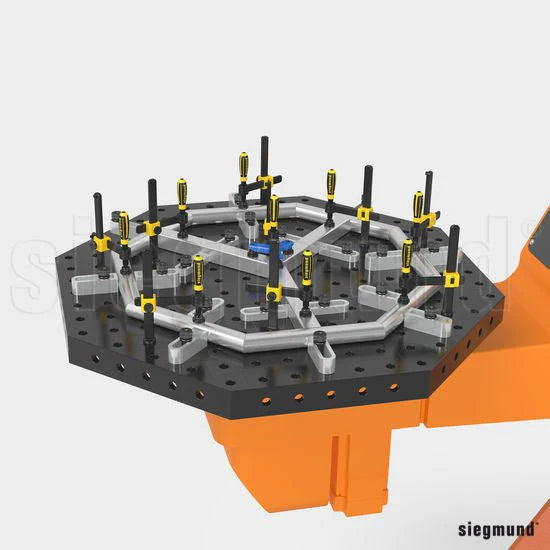

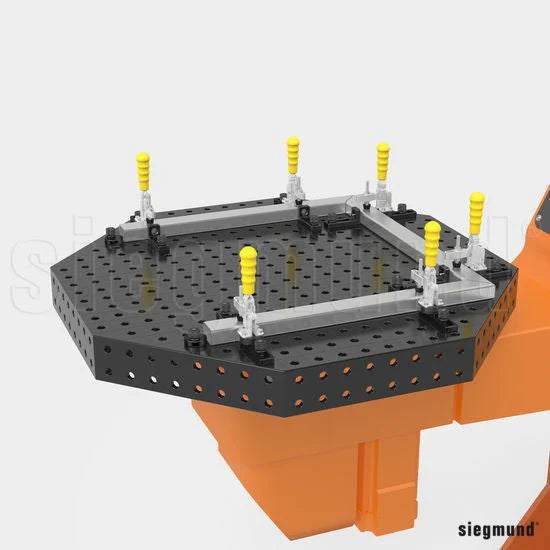

The octagonal table is particularly suitable with manipulators and robot cells. It offers similar clamping options as a Siegmund welding table system 28 due to the parallel hole pattern on the top. To meet individual requirements, the table can be adapted for specific applications on request.

Welding Table Specs and Features:
- Grid Style: 100x100mm Grid (3.9"x3.9")
- Borehole: Ø 28mm (1.10")
- Tabletop Width: 55.1" (1,400mm)
- Tabletop Diameter: 59.6" (1,515mm)
- Tabletop Side Panel Height: 3.9" (100mm)
- Tabletop Material Thickness: 0.98" (25mm)
- Approximate Table Weight: 1,105 lbs. (501 kg)
- Official Siegmund Welding Table Part No.: 2-921400.1.P
- Material Type: Premium Steel S355J2+N, Plasma Nitrided and BAR-Coated
