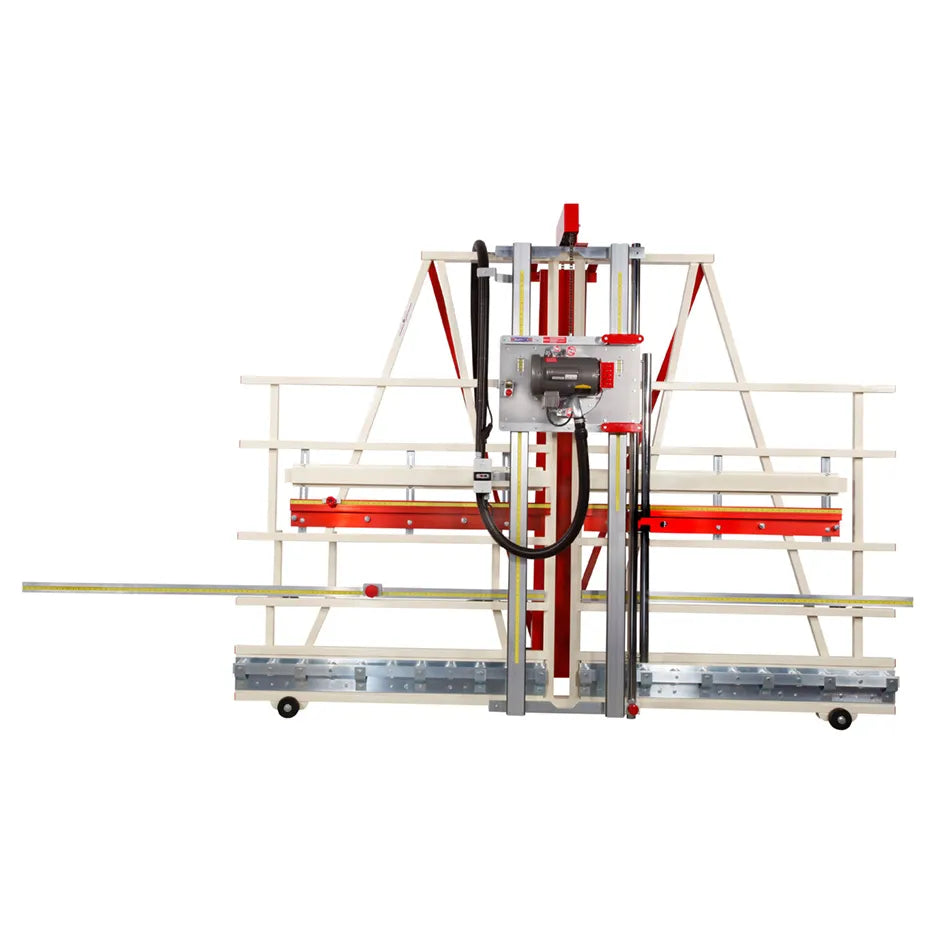

Description

The only major difference between this machine and the 7400 Panel Saw is that the 7400XL features a 13' frame

    Accessories built onto this machine and incorporated in the price include:

            Quick stop gauges (8' left, 5' right)
            Wheels
            MID-WAY FENCE® for processing panels at waist level
            Dust kit
            864NRATB saw blade
            Hold Down Bar
            and Stand integrated within the machine


High production panel processing is now a reality. Cut material 2 1/8" deep for 8+ hours per day and within .005" straight and square. Every component of this saw represents quality and performance. Featuring three different motor configurations, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these top of the line woodworking tools will boost your shops production. >The 13' frame is  only difference between this machine and the 7400M panel saw.

   Standard Equipment:

            Continuous usage induction saw motor.
            Welded steel frame and integrated stand system.
            Dual V-track precision guide system.
            Adjustable vertical and horizontal rulers.
            Floating pressure saw foot.
            Solid aluminum material rollers.
            Enclosed counterweight system.
            Dust collection ready.
            3 year warranty.
            TUV certified to UL/CSA standards

Weight 1050 lbs
Dimensions 160 x 98 x 48in
Max. Crosscut

64"/1625mm

Max. Rip Cut

Unlimited

Cut Depth

2 ⅛"/55mm

Cut Accuracy

.005"/.125mm

Frame Length

156"/3950mm

Daily Usage

Continuous (8+ Hours)

Rollers

28

Motor

2HP, 1~ 230V, 3HP, 3~ 230V, 3HP, 3~ 460V

Country of Origin

USA

Saw Blade Bore

5/8"

Saw Blade Diameter

8" or 8.25"



Documents

Download the manual

Download the product parts

Download the 7400XL Panel Saw Catalog Page
