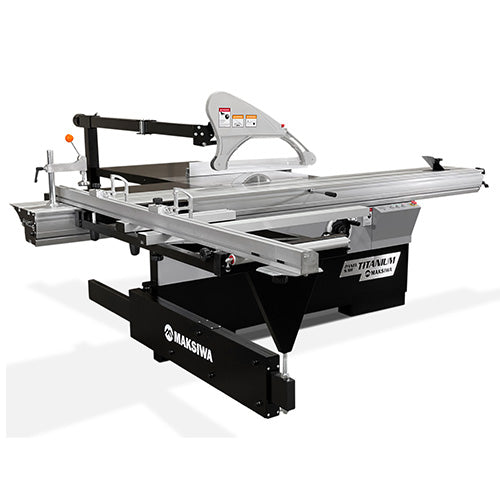

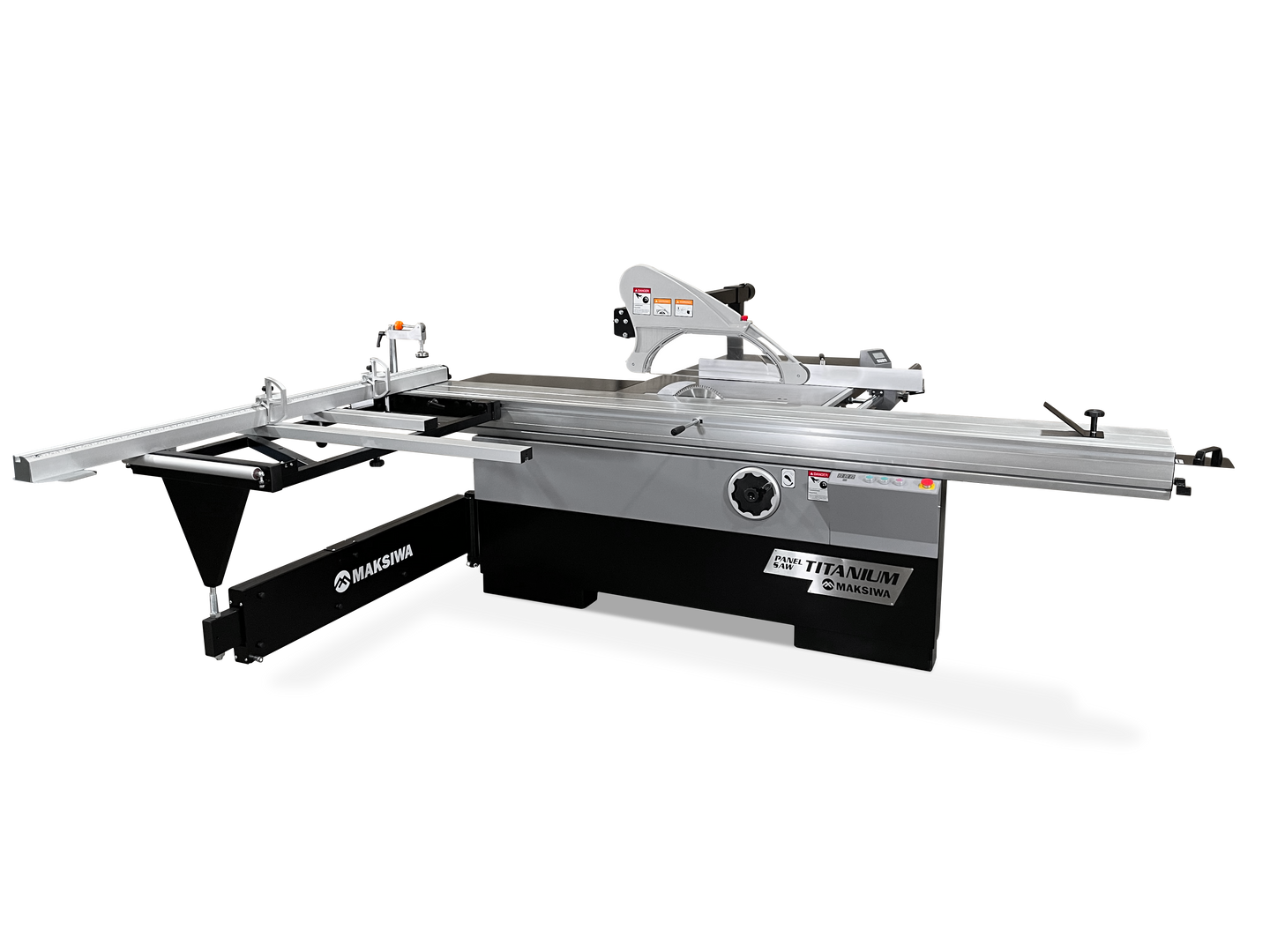

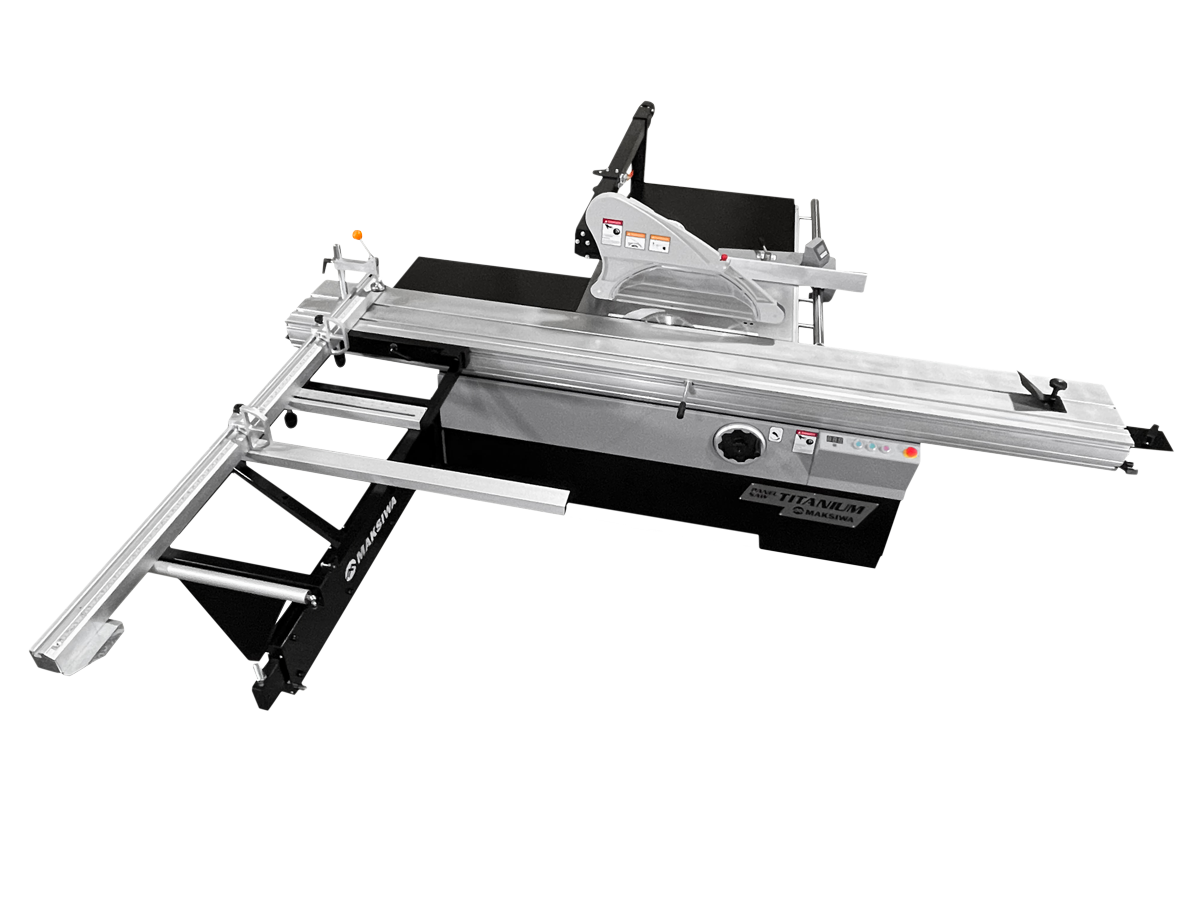

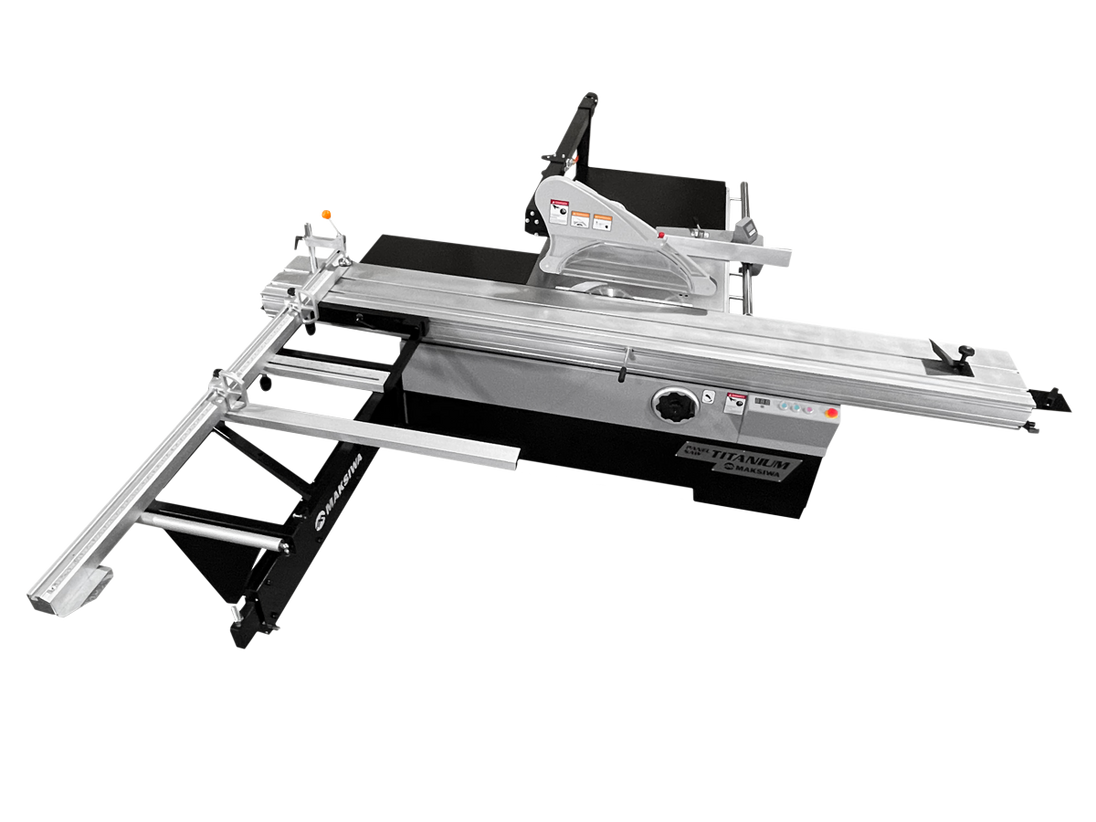

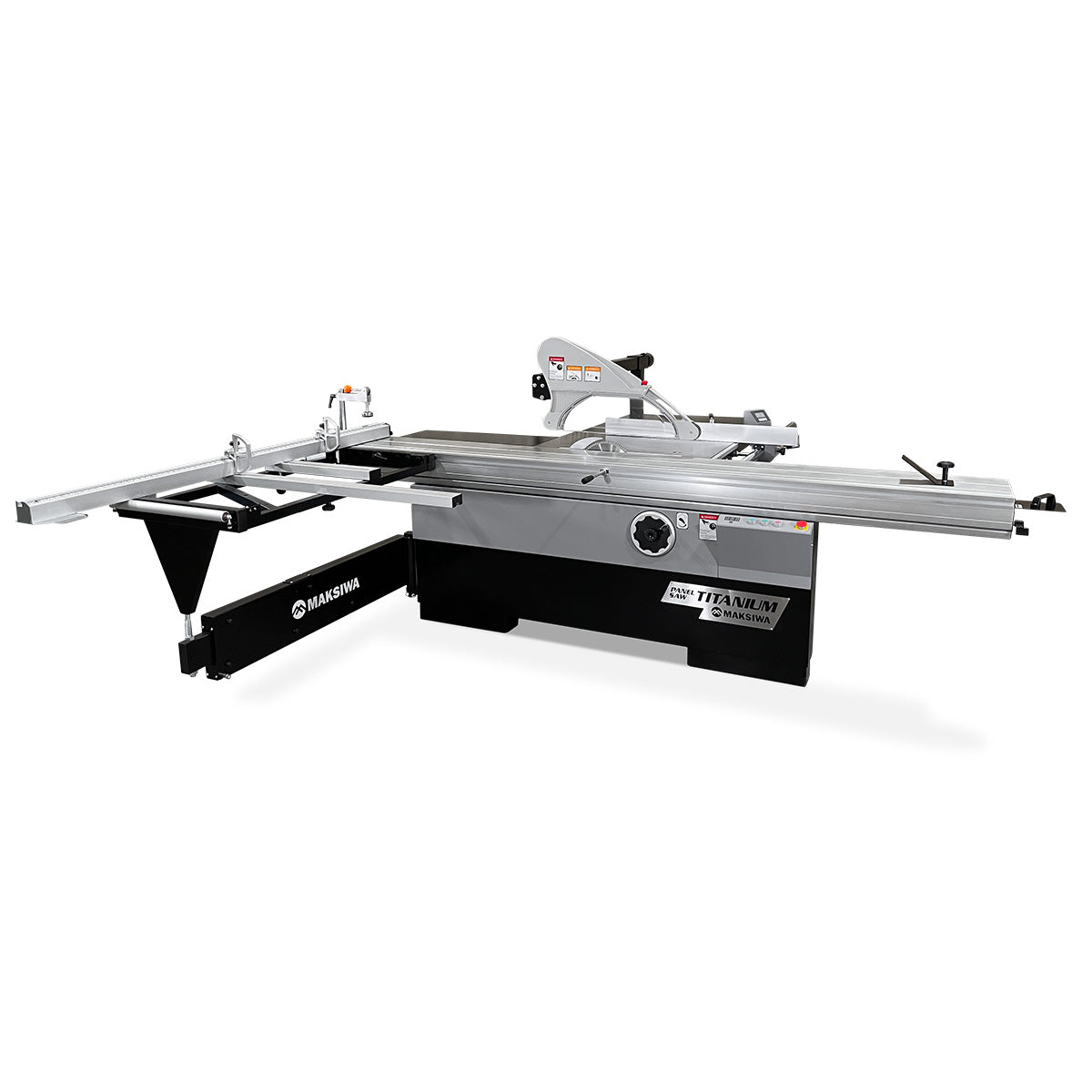

Maksiwa BMT.3200.IR Titanium Sliding Panel Saw BMT.3200.IR

Description

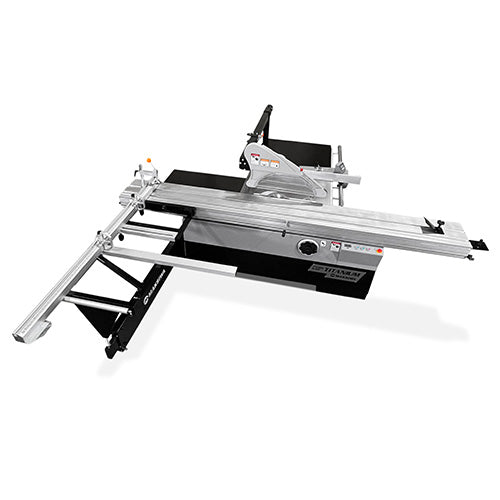

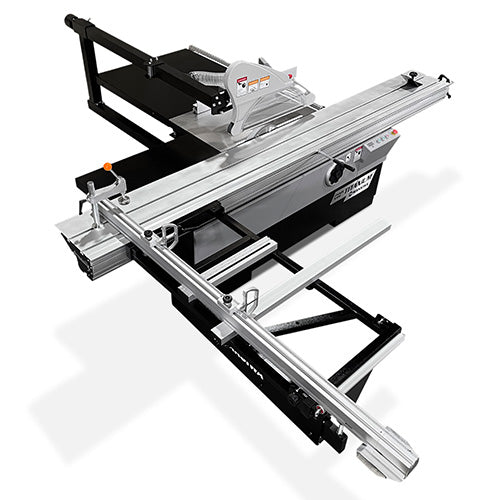

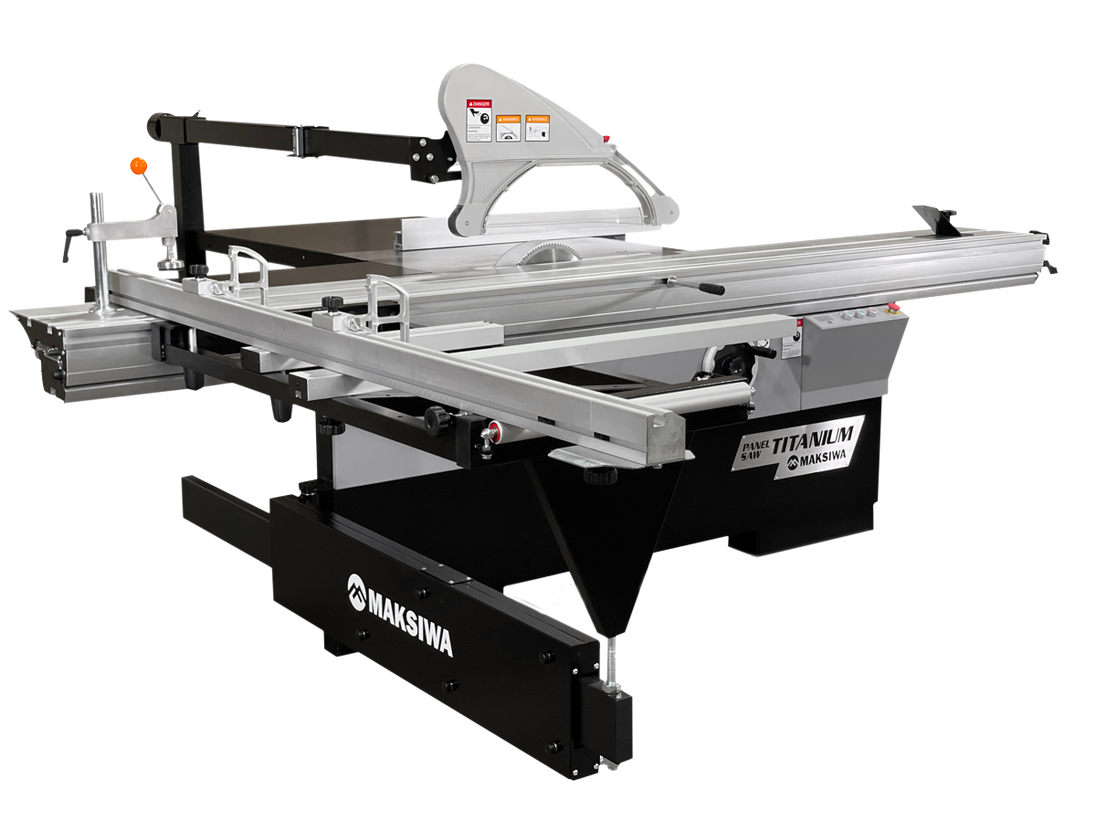

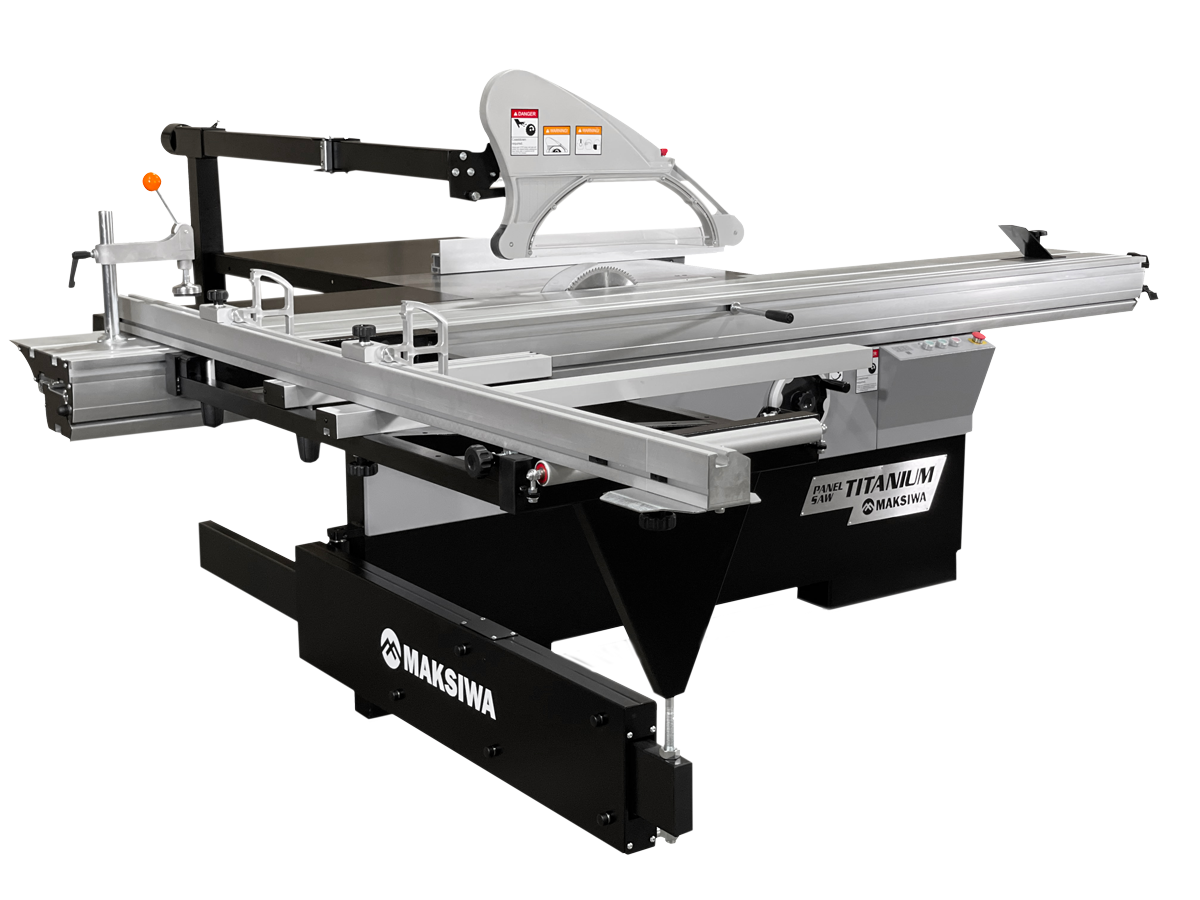

The Maksiwa BMT.3200.IR Titanium Sliding Panel Saw sets the standard for durability and smooth operation in woodworking. Engineered by our expert team, this advanced panel saw is crafted with superior components and materials, ensuring you receive the best in performance and reliability.

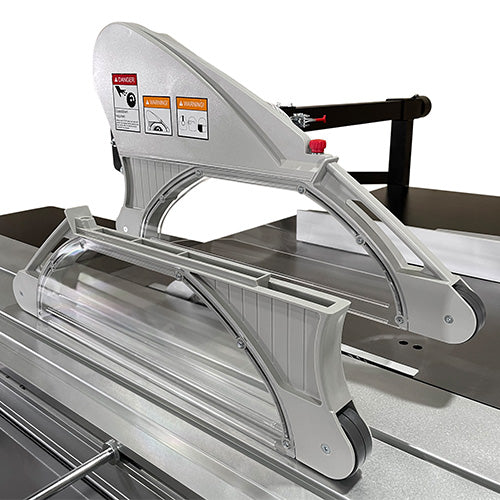

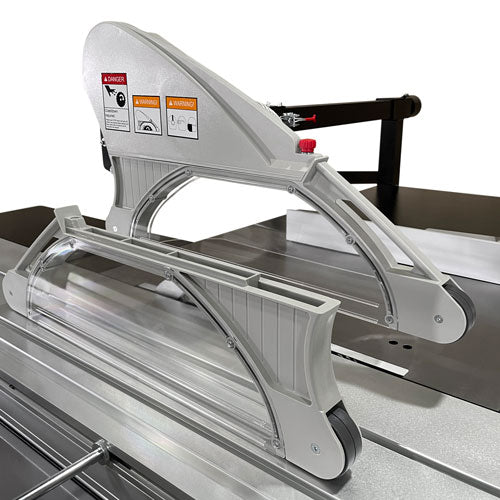

Featuring an innovative table system, the BMT.3200.IR delivers unmatched smoothness and precision, making it easy to handle even heavy loads with effortless movement. Additionally, it comes standard with a dual overhead saw guard and a 4” dust port, promoting a cleaner workspace while enhancing safety during operation. Elevate your woodworking projects with the precision and power of the BMT.3200.IR.

SPECIFICATIONS - BMT.3200.IR SAE METRIC
Main Motor 5 HP / 4000 RPM 3.7 kw 5 HP / 4000 RPM 3.7 kw
Max Blade Diameter 12" 305 MM
Main Blade Arbor 1 3/16 " 30 MM
Main Blade Max cutting Height at 90° 3 1/2" 90 MM
Main Blade Cutting Height at 45° 2 7/16" 63 MM
Scoring Motor 3/4 HP / 8000 RPM .55 kw 3/4 HP / 8000 RPM .55 kw
Scoring Blade 4 3/4" 120 MM

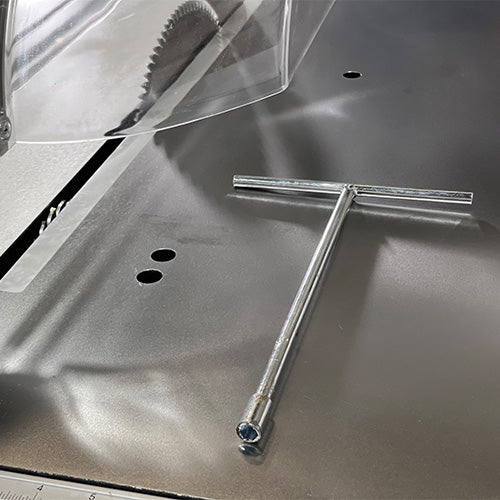

Scoring Blade Arbor 25/32" 20 MM
Scoring Blade Type Conical Conical
Max Ripping Capacity 51" 1300 MM
Crosscut Capacity 126 " 3200 MM

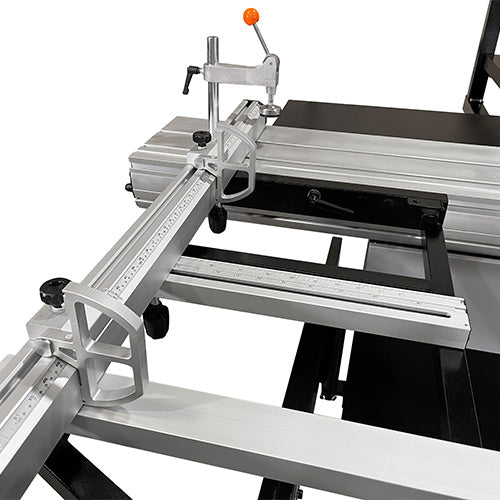

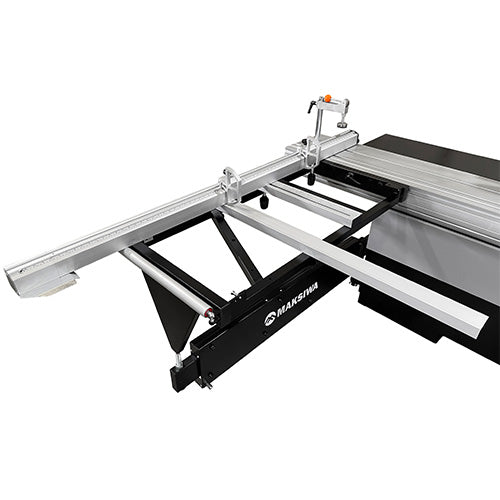

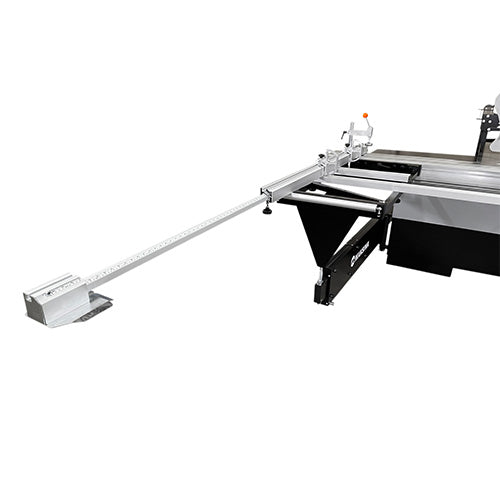

Crosscut Fence Capacity Closed/Open 78"/120" 1981/ 3048 MM
Machine Working Dimensions (LxWxH) 132" x 137" x 65" 3352 x 3479 x 1651 MM

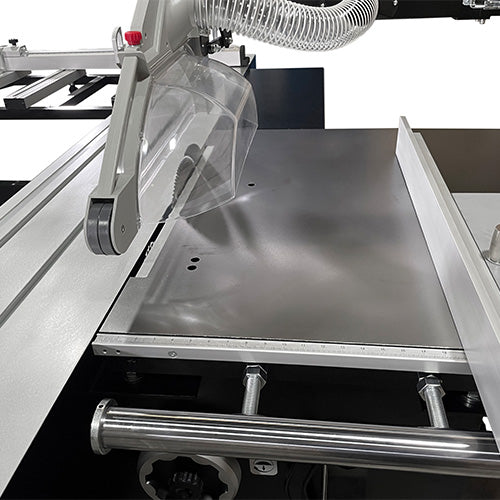

Cast Iron Table Dimension 35 " x 21 " 896 x 548
Sliding Table Dimension 126" x 14" 3200 x 358 MM

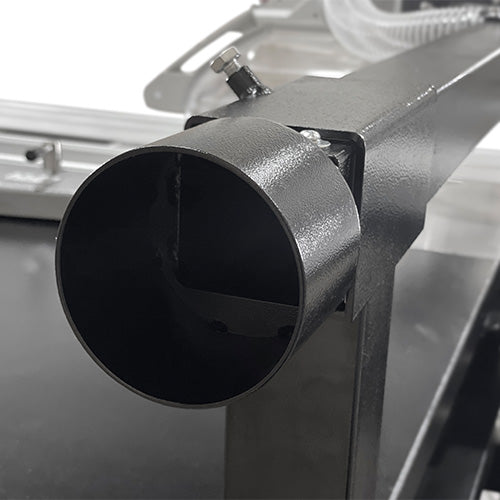

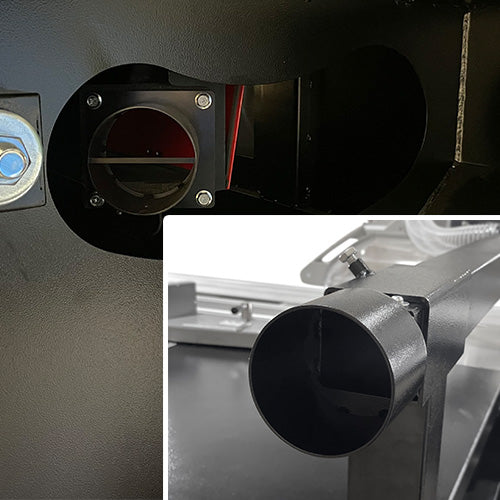

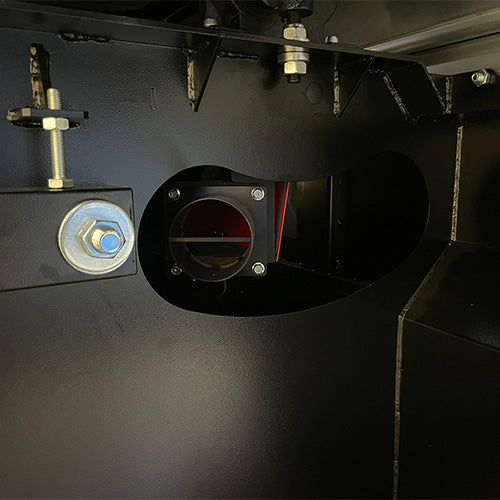

Dust Collection Port (2) 4" 100 MM
Minimum Dust Collection Requirements 1000 CFM 28M/MIN
Electrical Specs 1 Phase 220V 30 Amps 60 Hz 1 Phase 220V 30 Amps 60 Hz
Main Body Crate Dimensions (LxWxH) 83" x 45" x 45" 2108 x 1143 x 1143 MM
Main Body Crate Weight 1254 Lbs 569 Kgs
Sliding Table Crate Dimensions (LxWxH) 133" x 18" x 15" 3378 x 457 x 381 MM
Sliding Table Crate Weight 274 Lbs 124 Kgs
Technical Info BMS.1600.IR BMS.3200.IR BMT.3200.IR BMP.3200.IR BMD.3200.IR
Warranty 2 Years 2 Years 2 Years 2 Years 2 Years
Digital Angle Display Yes Yes Yes Yes Yes / CNC

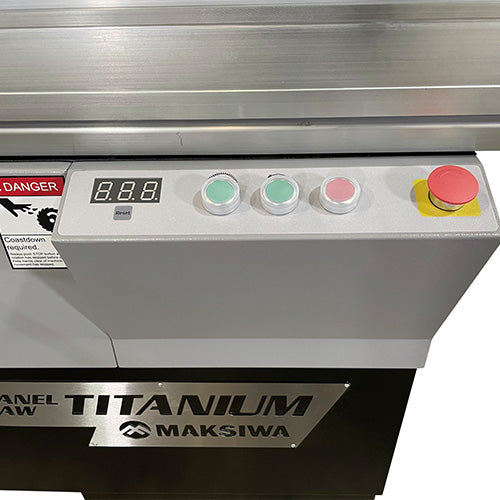

Eye Level Control Panel No No No Yes Yes / Touch Screen

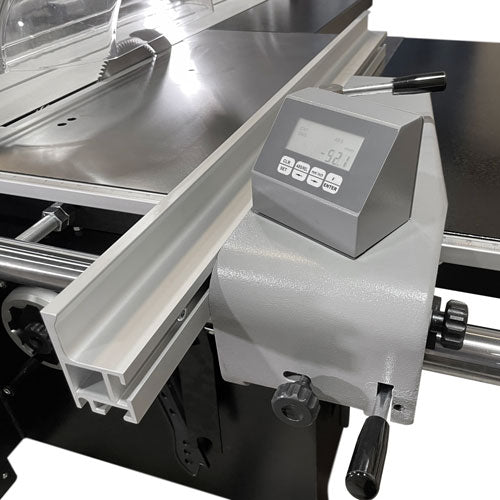

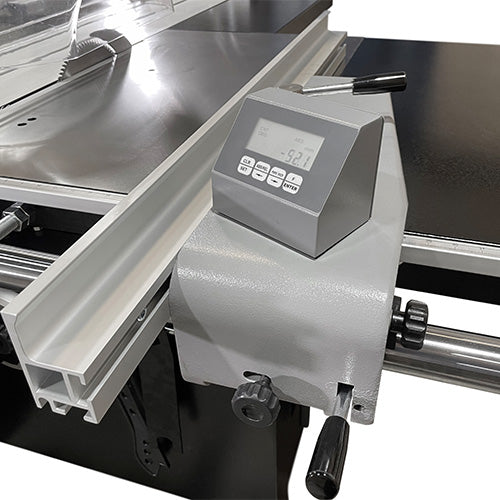

Digital Fence Readout Yes No Yes Yes Yes/ CNC
Rip Fence Micro Adjustment Yes Yes Yes Yes Yes/ CNC
Main Motor 5HP 4000 RPM 3.7 Kw 5HP 4000 RPM 3.7 Kw 5HP 4000 RPM 3.7 Kw 7.5 HP 4000 RPM 5.5 Kw 10 HP 7.5 Kw RPM 3,000/4,000/5,000
Max Blade Diameter 12" | 305 mm 12" | 305 mm 12" | 305 mm 14" | 355 mm 14" | 355 mm
Main Blade Arbor 30 mm 30 mm 30 mm 30 mm 30 mm
Main Blade Max Cutting Height at 90º 3 1/2" | 90mm 3 1/2" | 90mm 3 1/2" | 90mm 4" | 101 mm 4" | 101 mm
Main Blade Cutting Height at 45º 2 1/8" | 53 mm 2 1/8" | 53 mm 2 7/16" | 63 mm 2 3/4" | 70mm 2 3/4" | 70mm
Scoring Motor 1 HP 8000 RPM .74 Kw 1 HP 8000 RPM .74 Kw 3/4 HP 8000 RPM .55 Kw 3/4 HP 8000 RPM .55 Kw 1 HP 8000 RPM .55 Kw
Scoring Blade 4 3/4" - 120 mm 4 3/4" - 120 mm 4 3/4" - 120 mm 4 3/4" - 120 mm 4 3/4" - 120 mm
Scoring Blade Arbor 25/32" | 20mm 25/32" | 20mm 25/32" | 20mm 25/32" | 20mm 25/32" | 20mm
Scoring Blade Type Conical Conical Conical Conical Conical
Max Ripping Capacity 35 1/2" 51" | 1300 mm 51" | 1300 mm 51" | 1300 mm 51" | 1300 mm
Crosscut Capacity 63" | 1600mm 126" | 3200 mm 126" | 3200 mm 126" | 3200 mm 126" | 3200 mm
Crosscut Fence Capacity Closed / Open 48" | 80" 74 3/4" | 108" 78" | 120" 78" | 120" 78" | 120"
Machine Working Dimensions (LxWXH) 79" x 115" x 66" 126" x 137" x 52" 132" x 137" x 52" 132" x 137" x 75" 132" x 137" x 75"
Cast Iron Table Dimension (LxWxH) 32 1/2" x 21" x 35 1/2" 31 1/2" x 21" x 34 3/4" 35" x 21" x 34" 35" x 21" x 34" 35" x 21" x 34"
Sliding Table Dimension (LxW) 63" x 12" 126" x 14 3/4" 126" x 14" 126" x 14" 126" x 14"
Dust Collection Port (2) 4" 4" 4" 4" 4"
Minimum Dust Collection Requirement 1000 CFM 1000 CFM 1000 CFM 1000 CFM 1000 CFM
Electrical Specs 1 PH 220V 30 Amps 60 Hz 1 PH 220V 22 Amps 60 Hz

3 PH 220V 11 Amps 60 Hz

 1 PH 220V 30 Amps 60 Hz 3 Phase 220V 30 Amps 60 Hz 3 Phase 220V 40 Amps 60 Hz
Main Body Crate Dimension (LxW XH) 31 1/2" x 21" x 32" 88" x 48" x 43" 83" x 45" x 45" 83" x 45" x 45" 83" x 45" x 45"
Main Body Crate Weight 1000 lbs 1257 lbs 1254 Lbs 1470 lbs 1470 lbs
Sliding Table Crate Dimensions (LxWxH) 63" X 12" 140" x 19" x 8 1/2" 133" x 18" x 15" 133" x 18" x 15" 133" x 18" x 15"
Sliding Table Crate Weight 282" 274" 274" 274"
Sliding Table Width 14 3/4" 14 3/4" 14" 14" 14"
Sliding Table Mechanism Roller Bearings Roller Bearings Ball Bearings Ball Bearings Roller Bearings
