Maksiwa BMS.1600.IR Dado Edition BMS.1600.IR

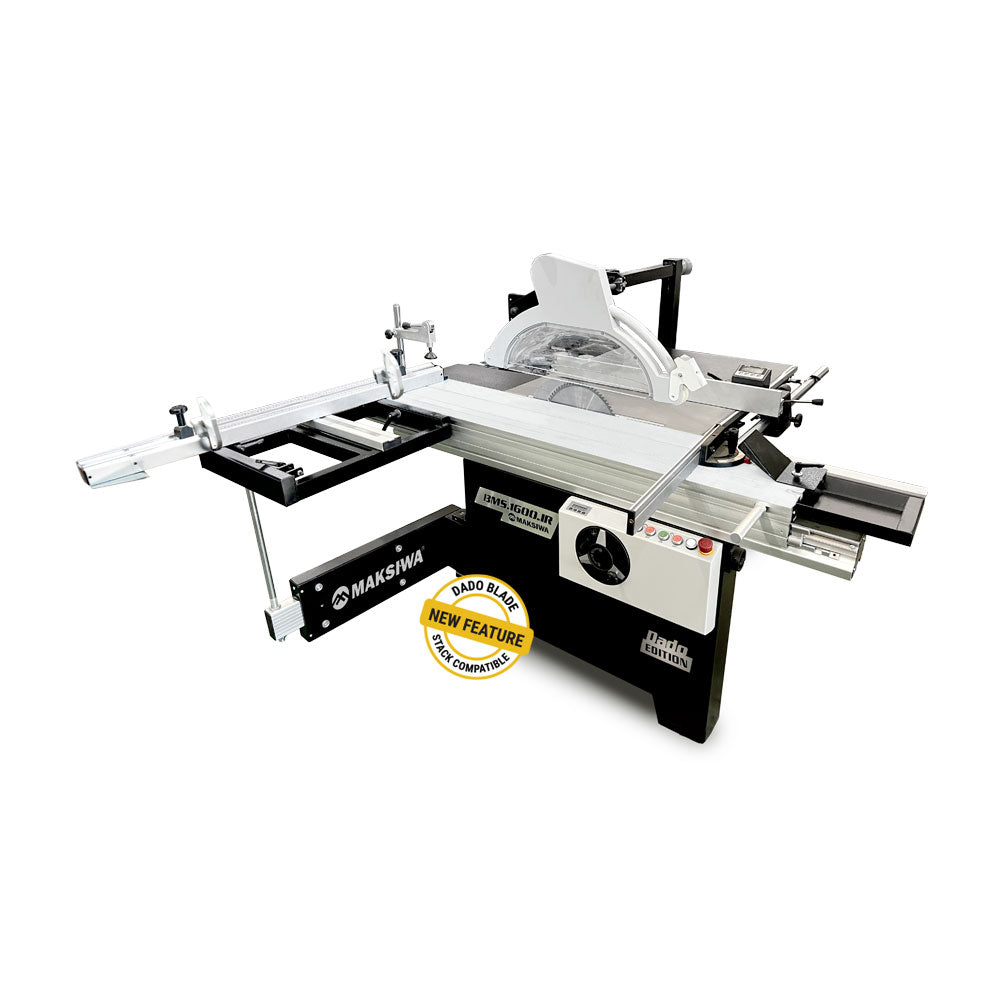

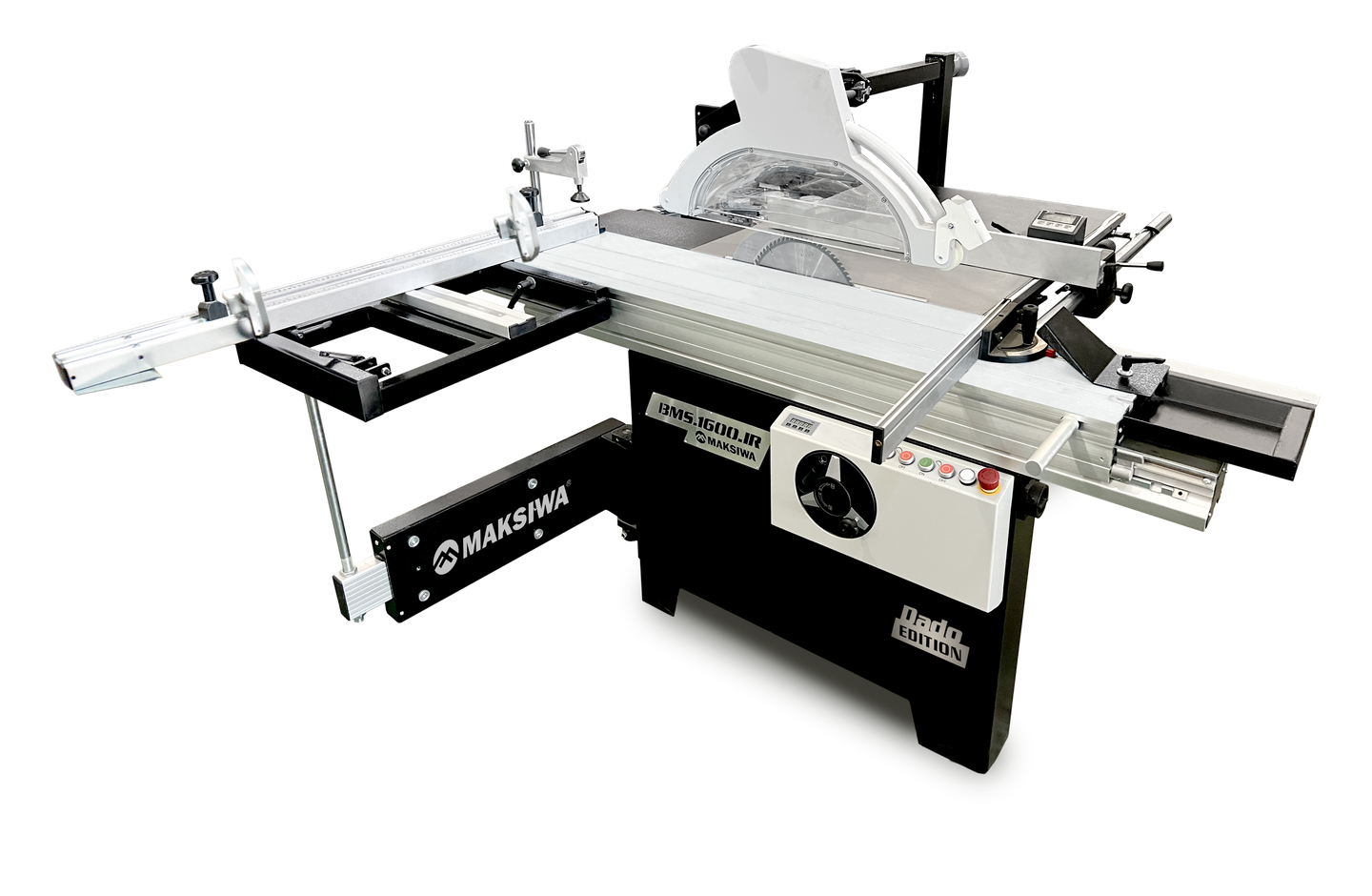

Maksiwa proudly introduces the BMS.1600.IR Dado Edition, an upgraded version of our popular sliding panel saw, now enhanced with dado blade stack compatibility. Designed for precision, power, and efficiency, this compact yet high-performance machine is perfect for shops that demand versatile cutting capabilities without sacrificing space.

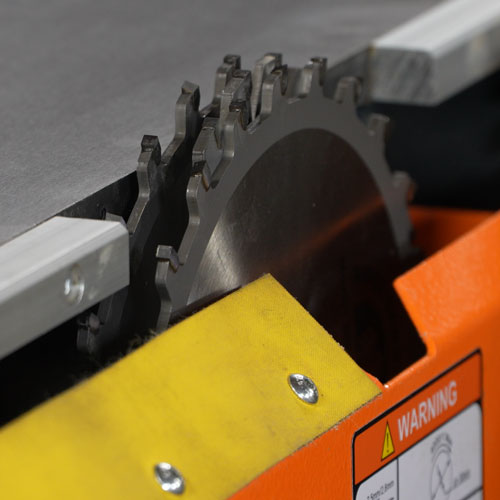

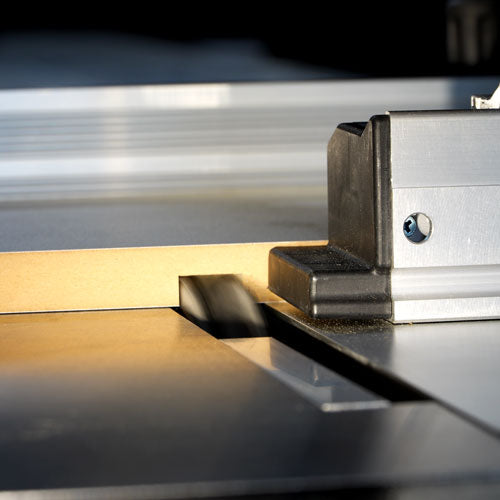

With the ability to support dado stacks up to 1-1/4″ using an 8″ blade, the BMS.1600.IR Dado Edition ensures chip-free precision for joinery and cabinetmaking applications. Plus, quick blade changes between dado and standard blades streamline workflow, maximizing productivity.

Experience the next level of cutting flexibility—upgrade to the BMS.1600.IR Dado Edition today!

Main Motor 5 HP 4000 RPM 3.7 Kw
Max Blade Diameter 12" | 305mm
Main Blade Arbor 30mm
Main Blade Max Cutting Height at 90º 3 1/2"
Main Blade Max Cutting Height at 45º 2 1/2"
Dado Width Capacity 3/4"
Max Dado Blade Diameter 8"

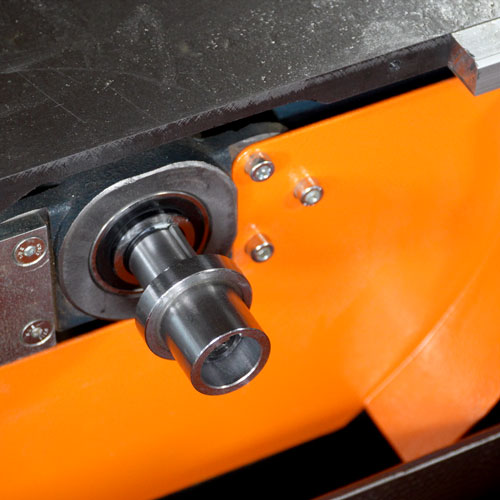

Dado Blade Arbor 1 3/16" | 30mm
Scoring Motor 1 HP 8000 RPM .74Kw
Scoring Blade 4 3/4" | 120mm
Scoring Blade Arbor 25/32" | 20mm
Scoring Blade Type Conical
Max Ripping Capacity 35 1/2" | 900mm
Crosscut Capacity 63"
Crosscut fence max. (Closed/Open) 48" / 80"

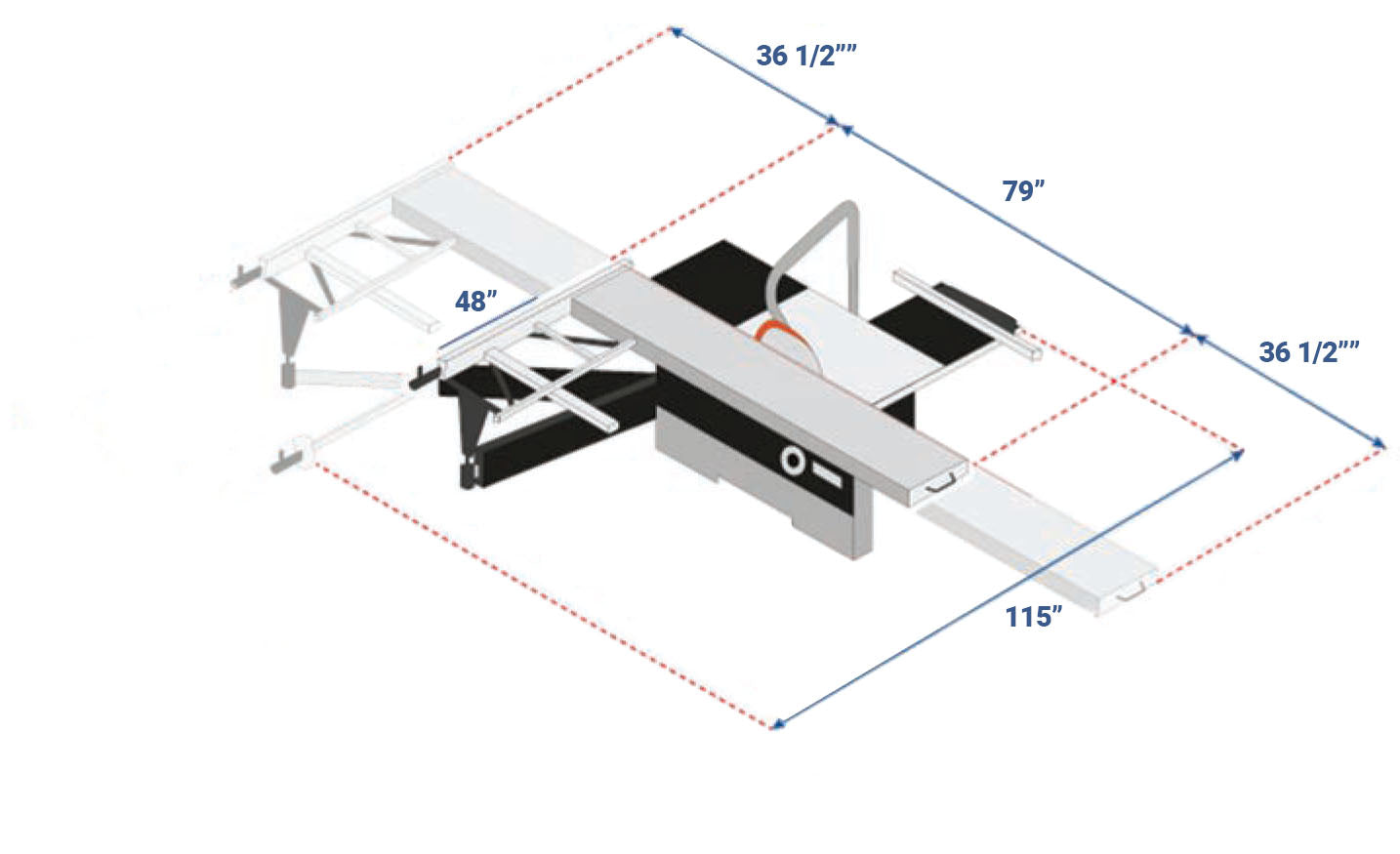

Machine Working Dimension (LxWxH) 79" x 115" x 66"
Sliding Table Dimension 63" x 12"
Cast Iron Table dimension (LxWxH) 32 1/2" x 21" x 35 1/2"
Max Tilt 45º
Dust Collection Port 4"
Electrical Specs 1 PH 220V 30 Amps 60Hzs
Weight 1000 lbs
Technical Info BMS.1600.IR BMS.3200.IR BMT.3200.IR BMP.3200.IR BMD.3200.IR
Warranty 2 Years 2 Years 2 Years 2 Years 2 Years
Digital Angle Display Yes Yes Yes Yes Yes / CNC
Eye Level Control Panel No No No Yes Yes / Touch Screen
Digital Fence Readout Yes No Yes Yes Yes/ CNC
Rip Fence Micro Adjustment Yes Yes Yes Yes Yes/ CNC
Main Motor 5HP 4000 RPM 3.7 Kw 5HP 4000 RPM 3.7 Kw 5HP 4000 RPM 3.7 Kw 7.5 HP 4000 RPM 5.5 Kw 10 HP 7.5 Kw RPM 3,000/4,000/5,000
Max Blade Diameter 12" | 305 mm 12" | 305 mm 12" | 305 mm 14" | 355 mm 14" | 355 mm
Main Blade Arbor 30 mm 30 mm 30 mm 30 mm 30 mm
Main Blade Max Cutting Height at 90º 3 1/2" | 90mm 3 1/2" | 90mm 3 1/2" | 90mm 4" | 101 mm 4" | 101 mm
Main Blade Cutting Height at 45º 2 1/8" | 53 mm 2 1/8" | 53 mm 2 7/16" | 63 mm 2 3/4" | 70mm 2 3/4" | 70mm
Scoring Motor 1 HP 8000 RPM .74 Kw 1 HP 8000 RPM .74 Kw 3/4 HP 8000 RPM .55 Kw 3/4 HP 8000 RPM .55 Kw 1 HP 8000 RPM .55 Kw
Scoring Blade 4 3/4" - 120 mm 4 3/4" - 120 mm 4 3/4" - 120 mm 4 3/4" - 120 mm 4 3/4" - 120 mm
Scoring Blade Arbor 25/32" | 20mm 25/32" | 20mm 25/32" | 20mm 25/32" | 20mm 25/32" | 20mm
Scoring Blade Type Conical Conical Conical Conical Conical
Max Ripping Capacity 35 1/2" 51" | 1300 mm 51" | 1300 mm 51" | 1300 mm 51" | 1300 mm
Crosscut Capacity 63" | 1600mm 126" | 3200 mm 126" | 3200 mm 126" | 3200 mm 126" | 3200 mm
Crosscut Fence Capacity Closed / Open 48" | 80" 74 3/4" | 108" 78" | 120" 78" | 120" 78" | 120"
Machine Working Dimensions (LxWXH) 79" x 115" x 66" 126" x 137" x 52" 132" x 137" x 52" 132" x 137" x 75" 132" x 137" x 75"
Cast Iron Table Dimension (LxWxH) 32 1/2" x 21" x 35 1/2" 31 1/2" x 21" x 34 3/4" 35" x 21" x 34" 35" x 21" x 34" 35" x 21" x 34"
Sliding Table Dimension (LxW) 63" x 12" 126" x 14 3/4" 126" x 14" 126" x 14" 126" x 14"
Dust Collection Port (2) 4" 4" 4" 4" 4"
Minimum Dust Collection Requirement 1000 CFM 1000 CFM 1000 CFM 1000 CFM 1000 CFM
Electrical Specs 1 PH 220V 30 Amps 60 Hz 1 PH 220V 22 Amps 60 Hz

3 PH 220V 11 Amps 60 Hz

 1 PH 220V 30 Amps 60 Hz 3 Phase 220V 30 Amps 60 Hz 3 Phase 220V 40 Amps 60 Hz
Main Body Crate Dimension (LxW XH) 31 1/2" x 21" x 32" 88" x 48" x 43" 83" x 45" x 45" 83" x 45" x 45" 83" x 45" x 45"
Main Body Crate Weight 1000 lbs 1257 lbs 1254 Lbs 1470 lbs 1470 lbs
Sliding Table Crate Dimensions (LxWxH) 63" X 12" 140" x 19" x 8 1/2" 133" x 18" x 15" 133" x 18" x 15" 133" x 18" x 15"
Sliding Table Crate Weight 282" 274" 274" 274"
Sliding Table Width 14 3/4" 14 3/4" 14" 14" 14"
Sliding Table Mechanism Roller Bearings Roller Bearings Ball Bearings Ball Bearings Roller Bearings
