Product Description

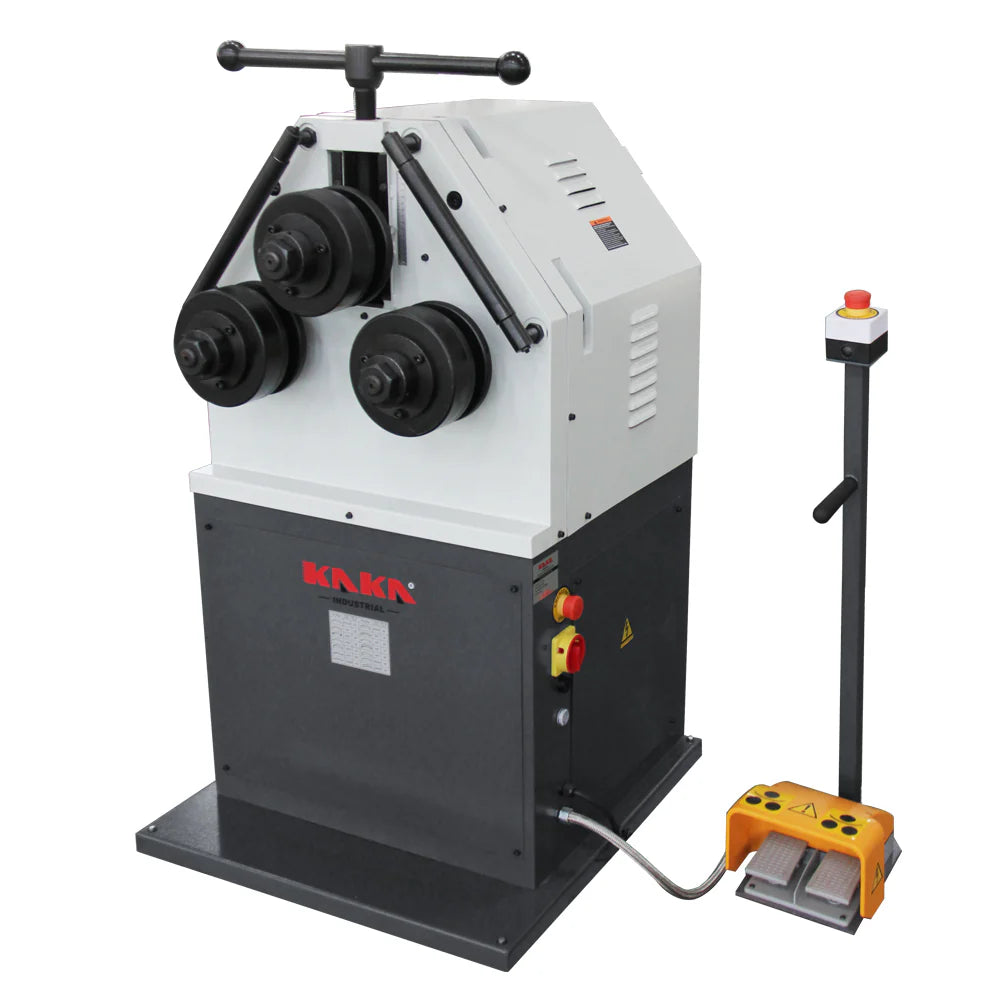

DUAL-OPERATION FLEXIBILITY & PRECISION CONTROL – Switches between horizontal and vertical modes for long pipes or wide plates. Features adjustable three-roll clearance and hardened steel rollers (1.97 inch diameter) for minimal material waste and consistent arcs.
INDUSTRIAL-GRADE CONSTRUCTION – Built with a reinforced steel frame (net weight 1,012 lbs / 460kg) and hardened components, ensuring stability under continuous heavy-duty use. Complies with CE and ISO 9001 standards for reliability.
SAFETY & EFFICIENCY INTEGRATION – Includes reversible foot pedal for hands-free control and emergency stop button (ANSI-compliant). Storage cabinet organizes tools for streamlined operations.
VERSATILE INDUSTRIAL APPLICATIONS – Ideal for structural rebar bending in construction, HVAC duct fabrication, and automotive roll cage forming. Handles steel, aluminum, and stainless steel with one set of standard rollers (optional rollers available)
Optional Tooling for Round Pipes – Extends functionality to round pipes with diameters from ø1.18" to ø2.76" (30–70mm) and a wall thickness of 0.08" (2mm), achieving a minimum bending diameter of 23.62" (600mm).
● Flat Bars: Processes sizes up to 4"x0.6" (100x15mm) with a minimum bending diameter of 36.22" (920mm). ● Square Tubes: Handles sections like 2"x2"x0.12" (50x50x3mm) at a minimum diameter of 21.65" (550mm). ● Angle Steel: Bends profiles such as 2.36"x0.2" (60x4mm) down to 19.69" (500mm). ● T-Section & C-Section Steel: Accommodates T-sizes up to 2.36"x0.28" (60x7mm) and C-sizes like 3.15"x1.57"x0.24" (80x45x6mm), with minimum diameters ranging from 19.69" to 29.53" (500–750mm). ● Solid Round Bars: Forms bars up to ø1.38" (35mm) at a minimum diameter of 23.62" (600mm).
BE CAREFUL
Carefully check whether the safety device is in good condition before use
Don't put hands and feet on the rollers and transmission parts during operation
Cut off the power supply after the operation is completed
Specification:
|
Item No. |
191011 |
||
|
Model |
RBM-50HV |
||
|
Dia. Of roller |
1.97” |
φ50 mm |
|
|
Power |
2.2kw/3HP |
||
|
Spindle speed |
@60Hz 10.8 R/min |
@50Hz 9 R/min |
|
|
Packing Size |
39”x32”x61” |
100x82x155 cm |
|
|
N.W./G.W. |
1012/1182 lbs |
460/537 kg |
|
|
Capacity |
Size(mm) |
Min Dia.(mm) |
|
 |
60x10 40x10 |
500 650 |
|
 |
100x15 60x10 |
920 1150 |
|
 |
35x35 20x20 |
600 780 |
|
 |
60x7 50x5 |
750 700 |
|
 |
60x7 50x5 |
750 700 |
|
 |
80x45x6 65x40x5 |
600 550 |
|
 |
80x45x6 65x40x5 |
650 550 |
|
 |
60x5 50x5 |
500 500 |
|
 |
60x5 50x5 |
700 700 |
|
 |
￠35 ￠30 |
600 650 |
|
 |
60x60x3 40x40x3 |
600 500 |
|
|
70x50x3 |
1200 |
|
|
50x40x3 |
800 |
||
All the above processing capacities can be finished by one set of standard combination roller
Special roller:
|
Profile |
Size(mm) |
Min Dia.(mm) |
 |
30x2 35x2 40x2 45x3 50x2 55x2 60x2 65x2 70x2 |
600 |
We can design the rollers for you as per your special requirements. And we can make the rollers in various materials such as nylon
