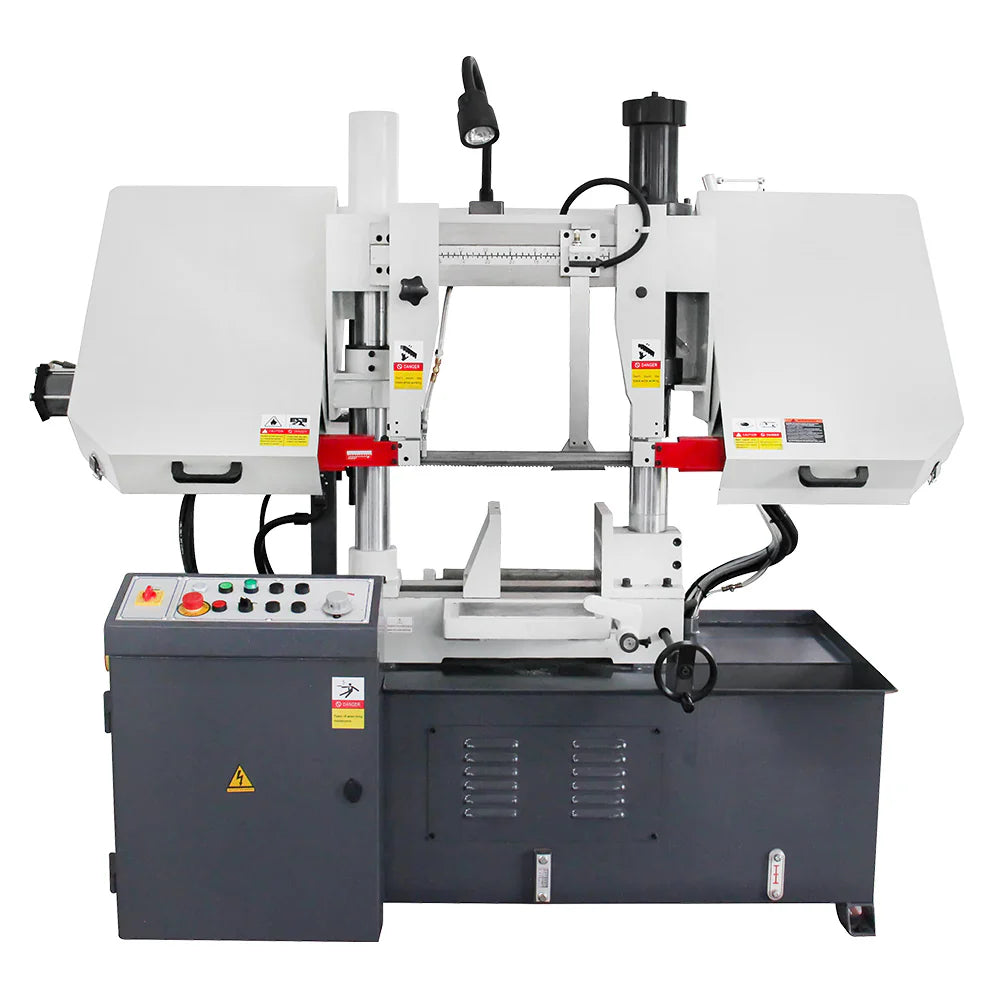

KaKa Industrial Kaka Industrial TGK-14 Double column horizontal band saw, Max cutting capacity 13.8 inch,vertical lifting, high stability. Cutting speed adopts hydraulic control, 230V-60HZ-3PH 188302V230

SKU: 188302V230
$10,099.00 Free Shipping
As low as $911.94/mo with shop
In Stock & Ready to Ship
Save 2% Today at Checkout
✓ Authorized Dealer
✓ Free And Fast Shipping
✓ Expert Product Support Call 888-688-5869
Secure checkout
Ach Direct Debit American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa
Secure Checkout
Manufacturer Warranty
Easy 30-Day Returns
Expert Support

Product Description

Powerful Cutting Ability
It runs on 230V power and is an industrial-grade double-column bandsaw. It uses a 2.2/2.8 kW double-speed motor to achieve two saw blade speeds of 45,69 m/min. Gear drive: The powerful motor provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately. This bandsaw can cut various materials, including metals, plastics, composites, wood, rubber, foam, ceramics, glass, and more.

Flexibility and Versatility
This metal-cutting bandsaw has all the features needed for professional results in metal cutting, allowing users to perform a variety of cuts: double-column structure, vertical lifting, and high stability.
With its 2-step blade speed options, you can easily adjust the cutting speed to match the material you're working with, guaranteeing optimal performance and clean cuts.
Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts. Plus, the built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.

Safety
Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process. The band saw features a coolant system and an automatic shut-off setting. It also has a heat-treated high-carbon steel blade, brass fittings, and a full belt and blade guards complement.

Wide Applications
The metal-cutting bandsaw is a versatile tool used in various industries and settings, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.

1. Double column structure, vertical lifting, high stability.
2. Cutting speed adopts hydraulic control, variable speed.
3. Hydraulic clamping, easy for operation.
4. Optional: Hydraulic clamping system with three positions.

Item No.
188302
Model
TGK-14
Max. cutting capacity
φ13.8"-13.8"x13.8"
Cutting speed @60Hz
177,272 ft./min
Feed speed
Hydraulic varable speed
Blade size
1.3"x0.04"x162"
Workpiece clamping
Hydraulic
Blade tensioning
Hydraulic
Main motor power
2.2/2.8 kW
Oil pump motor power
0.55kW
Coolant pump motor power
0.04kW
Drive
Gear
Packing size
88"x45"x68"
N.W./G.W.
1940/2183 lbs

Documents

TGK-14 Manual
