Key Features
✓
Twin wheelbarrow tank design with two 4.5 gallon tanks for balanced, stable transport
✓
Super hi-flo 3-cylinder, single-stage, cast iron pump for efficient air delivery
✓
H4X remote air hub included with easy on/off docking station
✓
Integrated control panel includes two quick connect air outlets, pressure regulator, and liquid filled gauges
✓
Two center-mounted, turf tread, semi-pneumatic tires provide easy maneuverability across jobsites
✓
Honda GX270 engine is reliable, easy to start, and quiet running, with electric start included
How It Compares
How The Industrial Air 9-Gallon Wheelbarrow Compressor Compares To The 30-Gallon Truck Mount
Contractors choosing between Industrial Air compressor configurations usually face this question: should I get this smaller, more maneuverable wheelbarrow-style 9-gallon unit, or the larger 30-gallon truck mount for higher air output?
| Feature | Industrial Air 9-Gal Wheelbarrow, Honda GX270 | Industrial Air 30-Gal Truck Mount, Honda GX390 |
|---|---|---|
| Air Output | 20.6 CFM at 90 PSI | 24 CFM at 90 PSI |
| Mounting | Wheelbarrow-style, semi-pneumatic tires | Truck mountable, fixed to a service vehicle |
| Weight | 355 lbs | 540 lbs |
| Best Suited For | Job sites needing a wheeled unit to move by hand | Service trucks with the compressor permanently mounted |

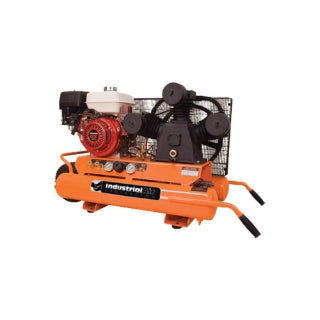

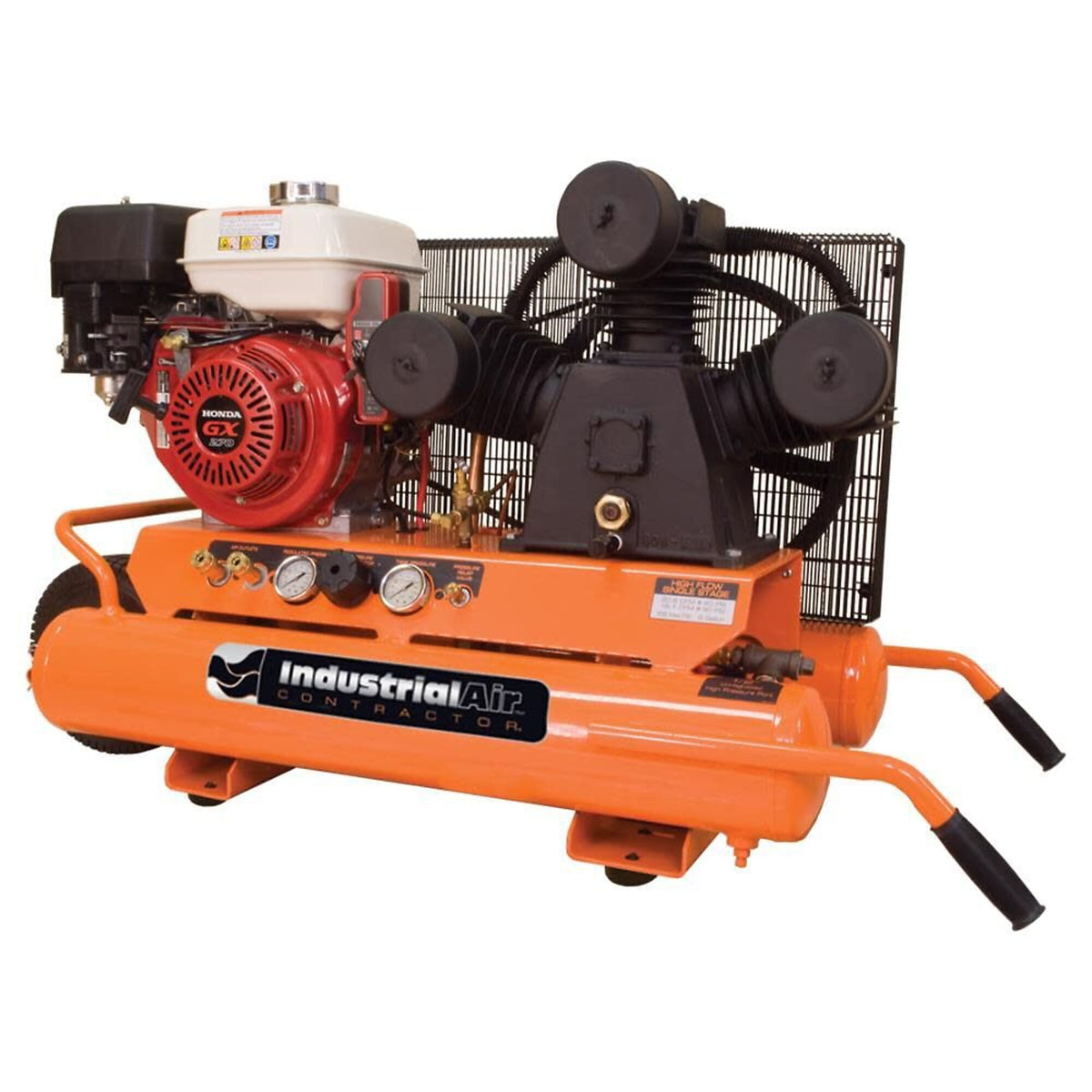

Product Description
The tough and mobile wheelbarrow style air compressor from Industrial Air is an excellent choice for contractors and larger jobsite applications. The semi-pneumatic tire and easy-grip handles offer easy maneuverability and the Honda GX160 gas engine is reliable, easy to start, and quiet running.
- Twin "wheelbarrow" tank design: two, 4.5 gallon tanks
- Super hi-flo 3- cylinder, single stage, cast iron pump
- H4X remote air hub included with easy on/off docking station
- Equipped with 1/2 in. unregulated high pressure port compatible with H4X Remote Air Hub system
- Air throttle cylinder
- Automotive style air cleaner
- Oil level sight glass
- Easily accessible oil fill and drain
- Transfers vibration to the ground
- Integrated control panel for added control and convenience includes: two quick connect air outlets, pressure regulator with large oversize knob, liquid filled tank and tool pressure gauges and pressure relief valve
- Shipped with synthetic oil for optimum performance and long life
- Two center mounted, turf tread, semi-pneumatic tires for greatest mobility
- Electric Start
| Equipment Type | Air Compressor (Portable) |
| CFM | 20.6 CFM @ 90 PSI |
| Displacement | 270cc |
| Drive | Belt |
| Dry Weight | 355 Lbs |
| Engine Brand | Honda |
| Engine Model | GX270 |
| Horsepower | 9 HP |
| Low Oil Shutdown | Yes |
| Motor Type | Gasoline |
| Mounting | Portable |
| Power Supply | Gas |
| PSI | 155 Max |
| Pump Type | Oil Lube |
| SKU | CTA9090980.ES.SAN |
| Starter | Electric |
| Tank | 9 Gal |
Full Spec Sheet
| Model | CTA9090980.ES.SAN |
| Equipment Type | Air Compressor, Portable |
| Engine | Honda GX270, 270cc, 9 HP |
| CFM | 20.6 at 90 PSI |
| Max Pressure | 155 PSI |
| Drive | Belt |
| Pump Type | Oil lube, single-stage, 3-cylinder |
| Tank | Two 4.5 gal, wheelbarrow style |
| Dry Weight | 355 lbs |
| Starter | Electric |
| Low Oil Shutdown | Yes |
