Key Features
Product Description

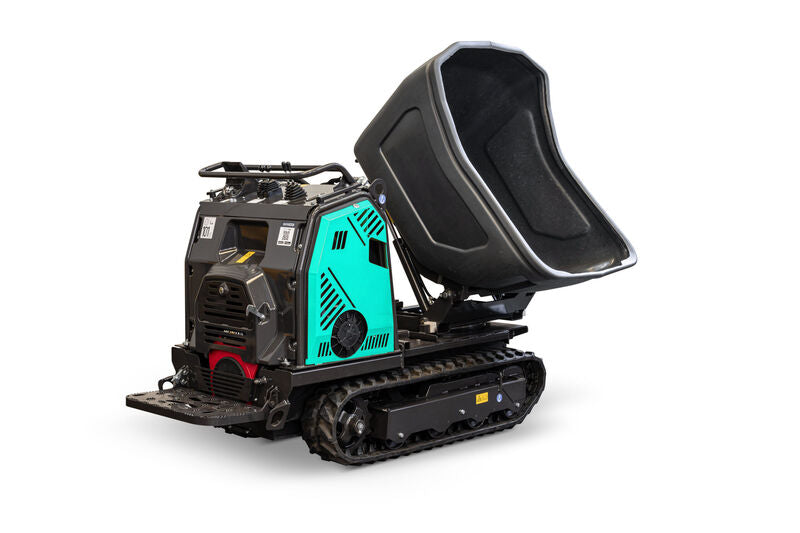

The Tracker 1624 checks all the columns for the busy concrete contractor. From driveways to patios and across rough terrain this tracked unit can handle it. Equipped with a poly drum and IMER’s expected dedication to quality of design and manufacturer this latest addition to IMER’s large line of track dumpers will satisfy your needs. Powered by Honda’s latest and most powerful electronic controlled gasoline engine it also features 3-level speed control, auto idle, and electronic controlled start up. Can Bus digital touch screen dashboard provides information on hours, battery voltage, fuel consumption, percentage engine load, and diagnostic capabilities. For operator comfort the platform is double rubber shock mounted and features a hydraulic joystick for speed control.
| Model # | 5110001 |
| Model # - Swivel | 5110002 |
| Weight | 1,521 lbs |
| Operating Load | 2,400 lbs |
| Payload Capacity (Struck / Heaped) | 16 cu ft / 19 cu ft |
| Speed | 6 mph |
| Max Slope - Empty | 20°- 36% |
| Max Slope - Loaded | 2.5 mph (2 mph) |
| Ground Clearance | 15°- 26% |
| Length | 7°- 12% |
| Height | 4 in |
| Width | 72 in x 44.5 in x 30 in |
| Start | Electric |
Downloads
Full Spec Sheet
| Model | 5110001 base, 5110002 swivel |
| Weight | 1,521 lbs |
| Operating Load | 2,400 lbs |
| Payload Capacity | 16 cu ft struck, 19 cu ft heaped |
| Speed | 6 mph |
| Ground Clearance | 4 in |
| Start | Electric |
