Key Features
✓
Pumps or sprays mortars, stuccos, grouts, restoration mortars, underlayments, and fireproofing
✓
3-phase power delivers more horsepower to push material further with more flow
✓
Pumps grouts with aggregates up to 3/8 inch
✓
7.5 HP, 2-speed, 3-phase motor rated for 100% duty cycle
✓
Remote control ready for hands-free operation
✓
Includes tow kit and 66-foot power cord
Product Description

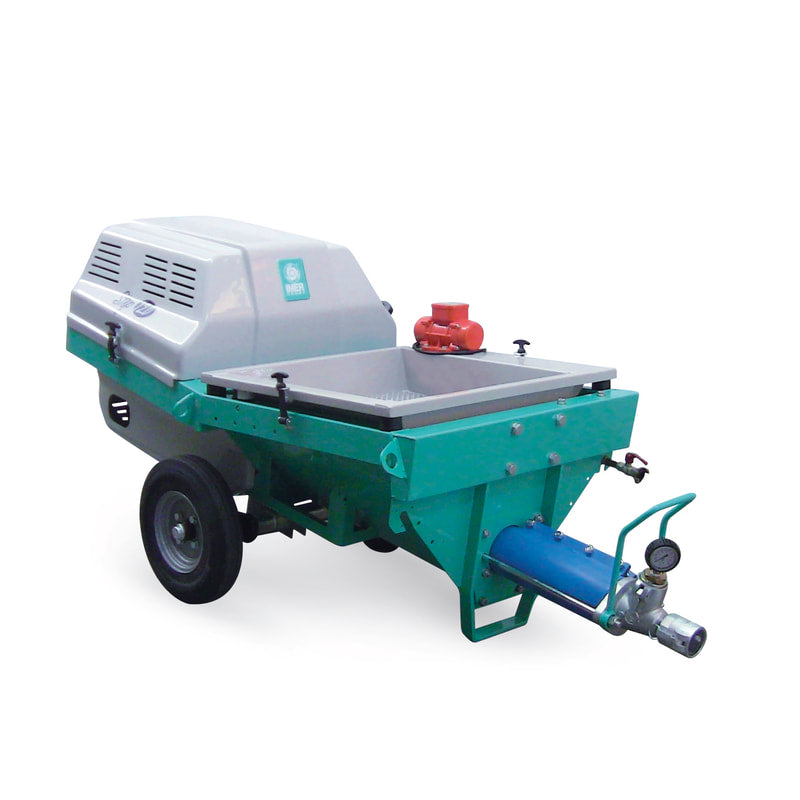

Step Up to IMER’s Step-Up 120 Series Spray and Grout Pumps
Pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofings and many other materials. The 3 phase power gives you more horsepower to push material further and with more flow. Pump grouts with up to 3/8” aggregates.
| Model # | 1106181 |
| Motor Power Rate | 7.5 HP - 208 V 3Ø |
| Max Aggregate Size | 3/8 in |
| Hopper Capacity | 4.25 cu ft |
| Dimensions w/l/h | 33 in x 80 in x 38 in |
| Weight | 616 lbs |
Standard Equipment

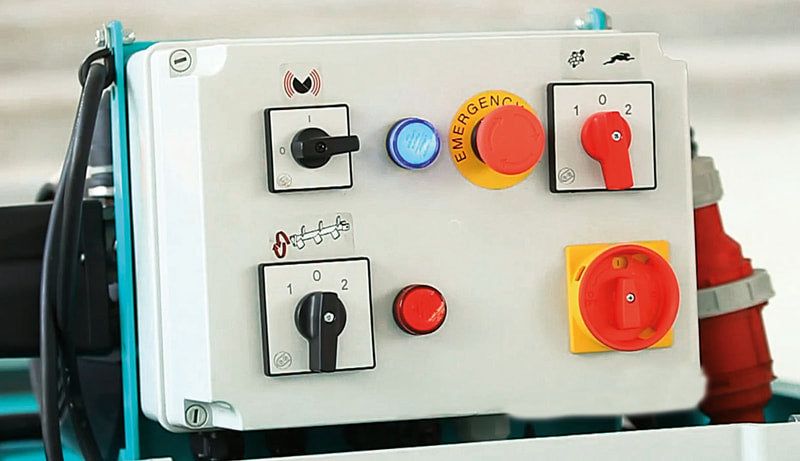

- 2 speed control panel
- 66' power cord
- Remote control ready
- 7.5 HP, 2 speed, 3 phase 100% duty cycle motor
- IM25L rotor/stator
- Tow kit

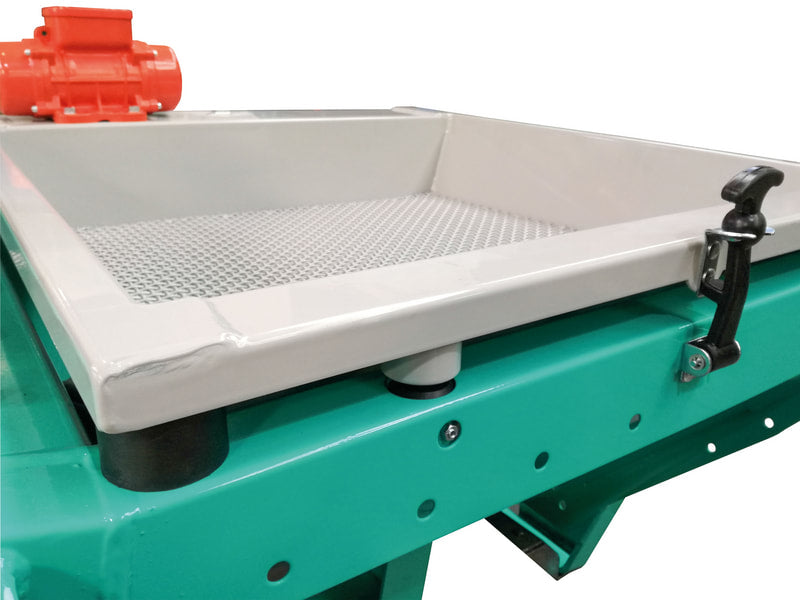

- Grate for premixed materials
- Accessory tool box
Downloads
Full Spec Sheet
| Model | 1106181 |
| Motor | 7.5 HP, 208V, 3-phase |
| Max Aggregate Size | 3/8 in |
| Hopper Capacity | 4.25 cu ft |
| Weight | 616 lbs |
| Dimensions | 33 in W x 80 in L x 38 in H |
