Key Features
Product Description

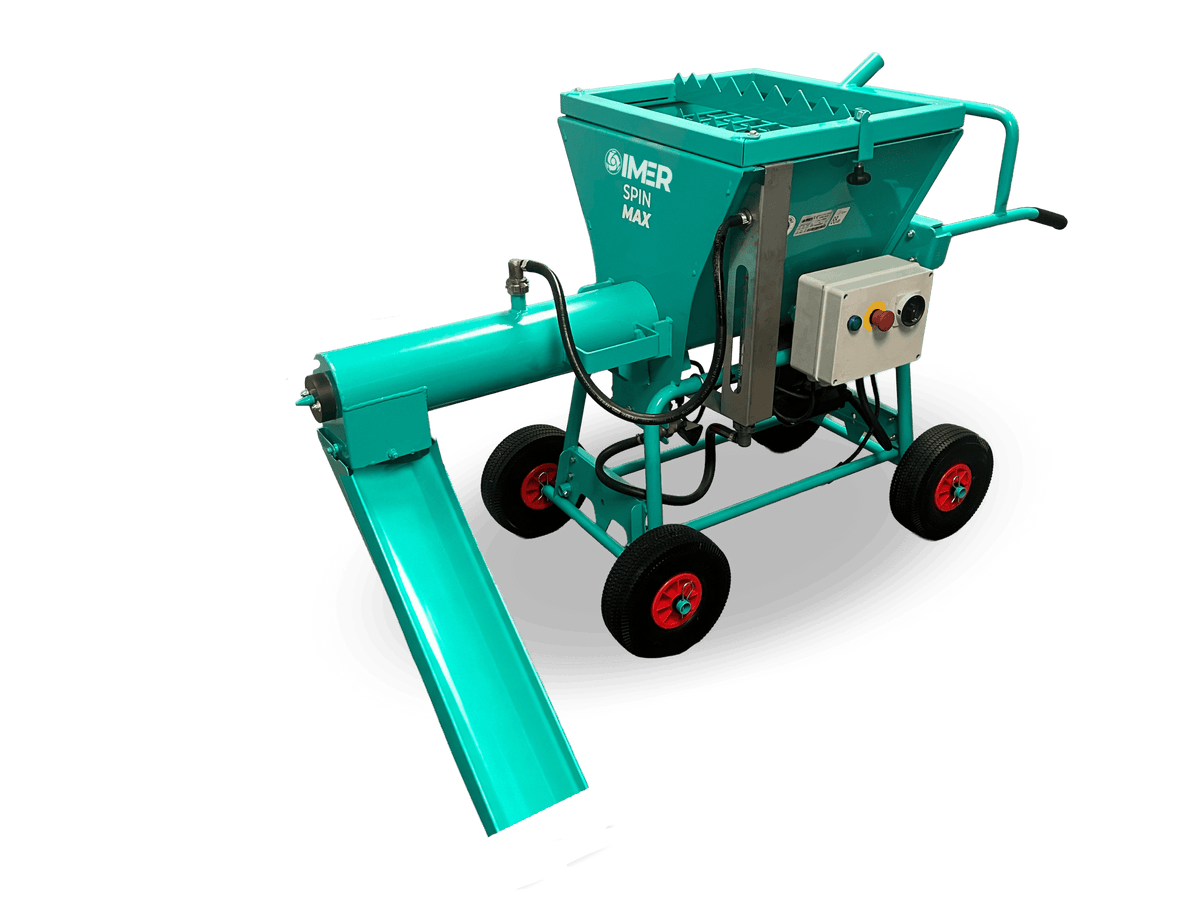

The IMER Spin Max (Model #1106200) is a professional-grade continuous mixer engineered for contractors handling preblended plasters, mortars, stuccos, grouts, self-leveling underlayments, floor screeds, fireproofing, and concrete. Delivering 3 cu yd/hr at 280 rpm with a 1.75 hp motor, the Spin Max processes up to 214 bags per hour. Its patented parallel axis gearbox and patented iDust grate extend service life, while the 3-position removable chute, onboard cleanout hose, and adjustable water flow meter keep crews moving between loads. At 215 lbs with flat-free wheels and a wheelbarrow-style handle, the Spin Max maneuvers easily across any job site. Hopper capacity: 6 x 50 lb. bags (285 lbs). Dimensions: 27.5 in x 54 in x 46 in. Call 800-275-5463 to order.
| Model # | 1106200 |
| Hopper Capacity | 6 - 50 lb. bags (300 lbs.) |
| Mixing Performance | 3 cu yds / hr |
| Mixer / Paddle Speed | 280 rpm |
| Motor Power Rate | 120V 1.75 HP |
| Dust Suppression Grate | Yes |
| Weight | 215 lbs |
| Dimensions w/l/h | 27.5 in x 54 in x 46 in |
Standard Equipment
- 120V 1.75 HP Electric Motor
- Adjustable Water Flow Meter (measured in l/hr)
- "iDust" Dust Suppression Grate
- Aggressive paddles to mix fast and complete
- 3-position, two piece chute
- Flat-free tires
Downloads
Spin Max vs the Competition
Higher output. Better control. Built for real jobs. See how the Spin Max stacks up against the mixers crews compare it to most.
 |
 |
 |
 |
|
|---|---|---|---|---|
| Output per hour | 3 YD³ | 3 YD³ | 1 YD³ | 1 YD³ |
| Mixes concrete mix | ✓ | ✓ | ✓ | ✓ |
| Mixes mortar, stucco, fireproofing | ✓ | — | — | — |
| Mixes grout, underlayment | ✓ | — | — | — |
| Surge-protected precision water control | ✓ | — | — | — |
| Includes dust grate | ✓ | — | — | — |
| Clean out in < 1 minute | ✓ | — | — | — |
| Motor rating | 1.5 HP 120V | 1.5 HP 120V | .5 HP 120V | .5 HP 120V |
| Weight | 215 lbs | 500 lbs | 145 lbs | 165 lbs |
| MSRP | $3,999 | $5,995 | $3,835 | $3,450 |
Full Spec Sheet
| Model | 1106200 |
| Hopper Capacity | 6 x 50 lb bags, 300 lbs |
| Mixing Performance | 3 cu yd per hr |
| Mixer/Paddle Speed | 280 rpm |
| Motor | 120V, 1.75 HP |
| Dust Suppression | Yes, iDust grate |
| Weight | 215 lbs |
| Dimensions | 27.5 in W x 54 in L x 46 in H |
