Key Features
Product Description

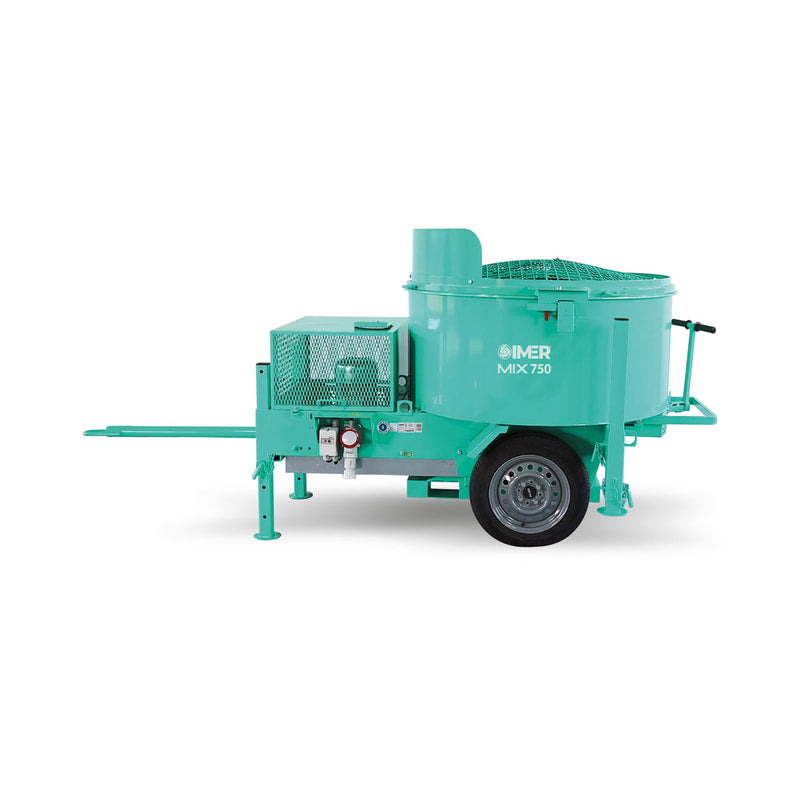

The Mix 750 is the perfect partner for busy precast mixing operations, and on bridge and highway jobs. The discharge system is easy to open and close and protected from being hit by a mud bucket or forklift. The safety grate is hinged, making access immediate. The Mix 750 is Mini-Batch Plant production for a fraction of the cost. These mixers develop vast amounts of mixing power, far more than any horizontal shaft mortar mixer. The ability to mix refractory mud or stiff, dry materials is unparalleled in the industry.
| Model # | 1194644 |
| Model # - 208V Three Phase 7.5 HP | 1194645 |
| Model # - 480V Three Phase 7.5 HP | 1194646 |
| Model # - 13 HP Honda GXV 390 | 1194648 |
| Model # - No Motor | 1194640 |
| Drum Capacity | 22 cu ft |
| Batch Output | 18 cu ft |
| Drum Diameter | 52 in |
| Max. Aggregate Size | 3/8 in |
| Discharge Height - Max / Min | 29 in / 23 in |
| Wheels | 22 in |
| Weight | 1,588 lbs |
| Width | 63 in |
| Length | 90 in |
| Height | 62 in |
Standard Equipment
- Auto-Shutdown Safety Grate
- Adjustable Leg Heights
- Tow Bar
- Torsion Bar Suspension
Downloads
Full Spec Sheet
| Model | 1194640 no motor, 1194644 base, 1194645 208V 3-phase, 1194646 480V 3-phase, 1194648 13 HP Honda |
| Drum Capacity | 22 cu ft |
| Batch Output | 18 cu ft |
| Max Aggregate Size | 3/8 in |
| Discharge Height | 23-29 in |
| Weight | 1,588 lbs |
| Dimensions | 63 in W x 90 in L x 62 in H |
