Key Features
✓
Vertical shaft design rotates paddles through the mix instead of lifting and dropping like conventional mixers
✓
Easily mixes very low slump materials like dry pack mortar, refractory cement, and UHPC
✓
Auto-shutdown safety grate for operator protection
✓
Torsion bar suspension and adjustable leg heights for towing and job site stability
✓
Available with 11 HP Honda GXV390 gas engine or 240V 5 HP electric motor
✓
Tow bar included for highway transport
Product Description

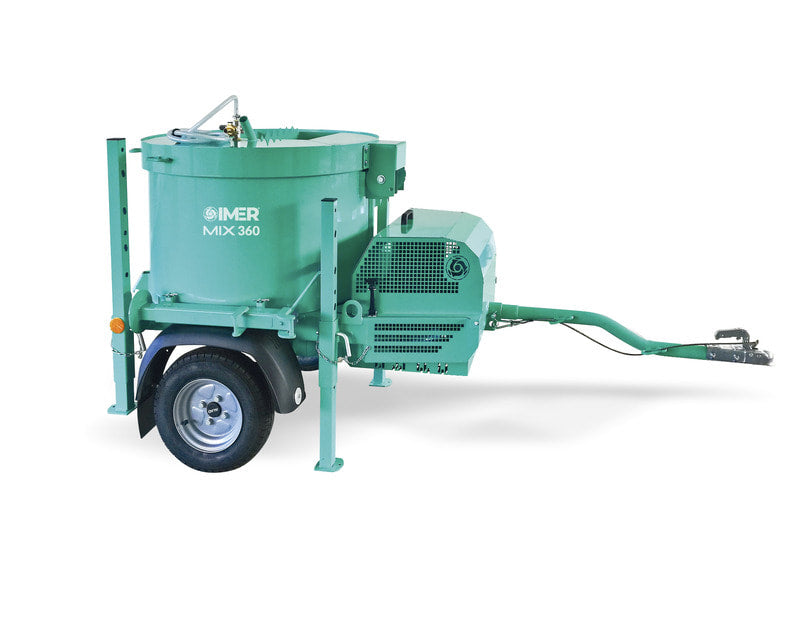

Vertical shaft mixers use the principles of concrete batch plant design, which allows for the paddles to rotate through the mix rather than lift and drop it as conventional mortar mixers do. The Mix 360 vertical shaft towable mixer easily mixes very low slump materials like dry pack mortar and refractory cement, as well as UHPC.
| Model # | 1194662 |
| Model # - Gas | 1194661 |
| Drum Capacity | 12 cu ft |
| Batch Output | 9 cu ft |
| Maximum Aggregate Size | 3/8 in |
| Discharge Height- Max / Min | 30 / 18 in |
| Wheel Size | 18 in |
| Weight (Gas) | 787 lbs (794 lbs) |
| Electric Motor | 240V 5 HP Single Phase |
| Gas Engine | 11 HP Honda GXV 390 |
| Width | 44 in |
| Length | 59 in |
| Height | 58 in |
Standard Equipment
- Auto-Shutdown Safety Grate
- Adjustable Leg Heights
- Tow Bar
- Torsion Bar Suspension
Downloads
Full Spec Sheet
| Model | 1194662 electric, 1194661 gas |
| Drum Capacity | 12 cu ft |
| Batch Output | 9 cu ft |
| Max Aggregate Size | 3/8 in |
| Engine | 11 HP Honda GXV390, or 240V 5 HP single phase |
| Discharge Height | 18-30 in |
| Weight | 787 lbs gas, 794 lbs electric |
| Dimensions | 44 in W x 59 in L x 58 in H |
