Key Features
✓
Cuts 8 in and 10 in blocks in a single pass, no foot pedal required
✓
Powerful 7.5 HP electric motor with a 30-inch blade delivers 12 inches of cutting depth
✓
Cuts through blocks, pavers, and precast concrete products with ease
✓
Frame and cutting tray hand-fabricated from heavy-duty steel
✓
Ergonomic design keeps operators comfortable through the workday
✓
Available in single-phase or three-phase power configurations
Product Description

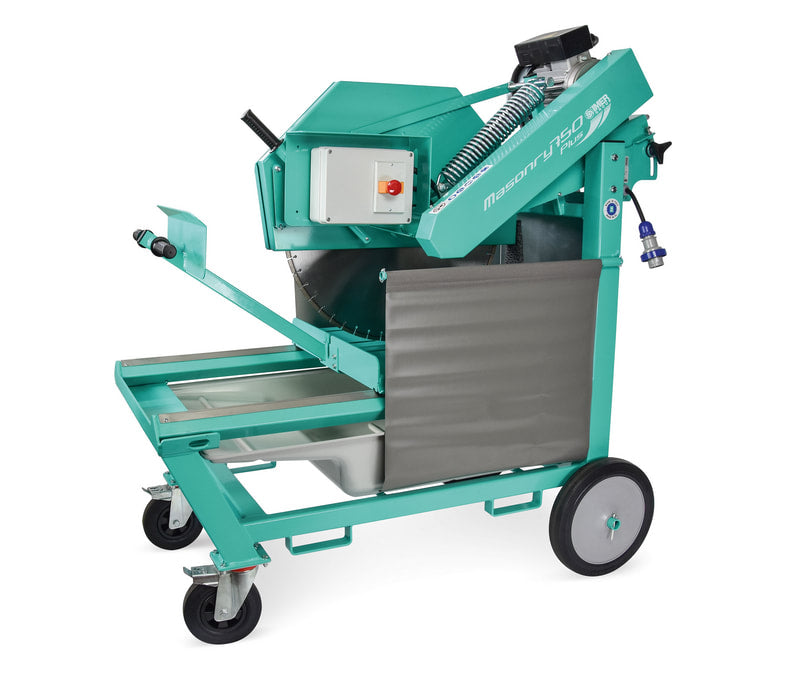

Masonry 750 Plus allows operators to cut 8" and 10" blocks in a single pass – without the added hassle and effort of a foot pedal. The powerful 7.5 hp electric motor combined with the 30" blade delivers 12" of cutting depth. Cut through blocks, pavers, and pre-cast concrete products with ease. The frame and cutting tray are hand fabricated using heavy-duty steel, and the ergonomic design ensures operator comfort throughout the workday.
| Model # | 1188863 |
| Model # 3Ø | 1188864 |
| Blade Diameter | 30 in |
| Blade Shaft Diameter | 1 in |
| Max. Cut Depth (w/ plunge) | 18 in (27 in) |
| Motor Rating 1Ø | 5.5 HP 220 V |
| Motor Rating 3Ø | 7.5 HP 208V |
| Blade Speed | 1,700 rpm |
| Weight | 440 lbs |
| Water Pan Capacity | 9 gal |
| Water Pump Flow | 3 gpm |
| Dimensions l/w/h | 61 in x 63 in x 33.5 in |
Downloads
Owner's ManualFull Spec Sheet
| Model | 1188863 single-phase, 1188864 three-phase |
| Blade Diameter | 30 in |
| Blade Shaft Diameter | 1 in |
| Max Cut Depth | 18 in, 27 in w/ plunge |
| Motor | 5.5 HP 220V single-phase, or 7.5 HP 208V three-phase |
| Blade Speed | 1,700 rpm |
| Weight | 440 lbs |
