Key Features
✓
Gearbox transfers power efficiently from the engine to the mixing paddles
✓
Produces perfect mortar, stucco, or grout with 2-2.5 bag capacity per batch
✓
Available with 5.5 HP Honda GX-160 gas engine or 120/240V electric motor
✓
Includes tow bar for job site mobility
✓
Aggressive paddles mix fast and complete
✓
Towable design for easy relocation across a site
Product Description

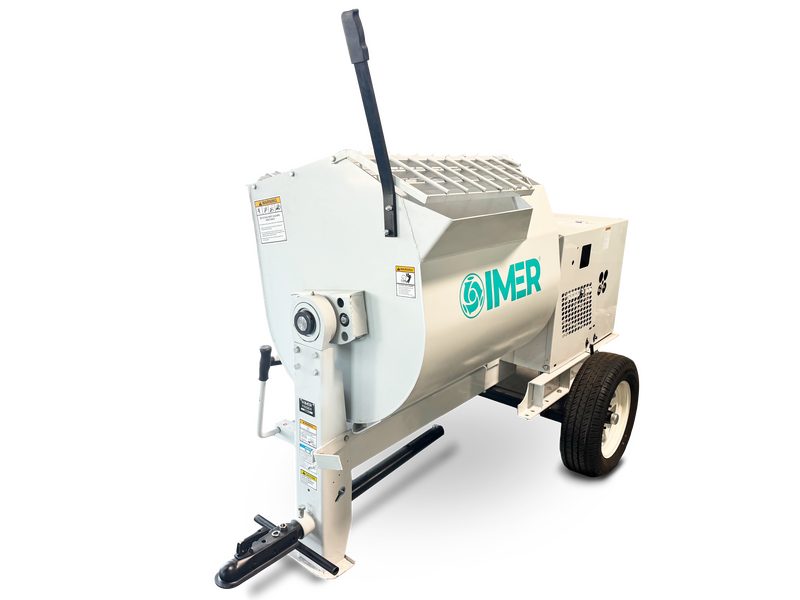

The HSM 6 towable mortar mixer utilizes a gearbox designed to transfer the power efficiently to the mixing paddles. Honda GX engine or a 120 / 240V industrial electric motor delivers the power to produce perfect mortar, stucco or grout efficiently.
| Model # | 1130061 (1130063) |
| Model # Electric / Steel (Poly) | 1130062 (1130064) |
| Bag Capacity | 2 - 2.5 |
| Batch Output | 6 cu ft |
| Gas Engine | 5.5 HP Honda GX-160 |
| Electric Motor | 120 v 240V 1.5 HP |
| Tire Size | 5.3 x 12 in |
| Charging Height | 57 1/2 in |
| Weight | 500 lbs |
| Width | 45 in |
| Length (with tow bar) | 75 (94 1/2) in |
| Height | 55 in |
Standard Equipment
- 5.5 HP Honda GX 160 or 120/240V 1.5 HP Electric Motor
- Tow Bar
- Aggressive paddles to mix fast and complete
Downloads
Full Spec Sheet
| Model | 1130061 gas steel, 1130062 electric steel |
| Bag Capacity | 2-2.5 bags |
| Batch Output | 6 cu ft |
| Engine | 5.5 HP Honda GX-160, or 120/240V 1.5 HP electric |
| Tire Size | 5.3 x 12 in |
| Weight | 500 lbs |
| Dimensions | 45 in W x 75 in L, 94.5 in with tow bar, x 55 in H |
