Free Shipping General Equipment Company Legacy Series Single Head Surface Grinder SG12/E

General Equipment Company

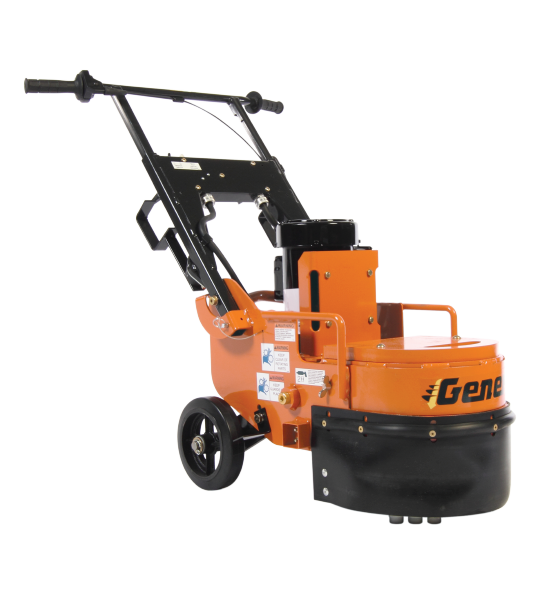

General Equipment Company Legacy Series Single Head Surface Grinder SG12/E

SKU: SG12/E

$4,495.50 Free Shipping

As low as $405.94/mo with shop

In Stock & Ready to Ship

Save 2% Today at Checkout

✓ Authorized Dealer

✓ Free And Fast Shipping

✓ Expert Product Support Call (888) 688-5869

Secure checkout

Secure Checkout

Manufacturer Warranty

Easy 30-Day Returns

Expert Support

Product Description

Features/Benefits:

Adjustable operator handle improves worker ergonomics, safety & productivity plus, reduces stress, strain & fatigue
Operator handle folds delivering convenient, compact transportation ease in small vehicles
Quik-Stop™ ON/OFF safety switch shuts machine down instantly in case of an emergency
Low RPM operation minimizes bouncing & shimmies for safe control, helps prevent surface damage
Balanced weight design for ease of handling and maneuverability reducing stress & strain increasing productivity
Gimbaled grinding head follows surface contours for optimal surface finishing results
Central bearing lubrication system & integral v-belt tensioning for quick maintenance & reduced downtime
Height adjustable rear wheels to match grinding attachments for even wear & grinding performance
Height adjustable dust shield matches grinding attachments, keeps dust contained & workers safe
Accepts interchangeable industry wedge-type retained attachments for max optimization & multi-job flexibility
37 foot extension cord w/GFCI safeguards against potential fire & electrocution, creates extended reach
Meets OSHA silica dust requirements keeping workers safe

Operating Environment
Operating Environment	Non-hazardous type locations
Surface Preparation Applications	Grinding, scraping, coatings removal, scarifying & polishing of concrete plus grinding & scarifying of asphalt

Power Source
Power Source	1.5 HP (1.1 Kw), 115 VAC, 60 HZ, 1 phase, electric motor

Frame
Frame	Unitized, welded steel plate
Drive System	Single V-belt/pulley reduction
Multi-Accessory Disc Configuration	One each, aluminum, 12.0 inch (304.8 mm) diameter, elastomeric mounted attachment disc for use with plastic wedges
Nominal Disc Rotation Speed	250.0 RPM
Dust Port Connection	3.0 inch (76.2 mm) diameter
Extension Cord	12-3, SJTW x 37.0 ft (11.3 M) L, w/GFCI

General
Product Dimensions (L x W x H)	Length, operator handle fully extended: 31.2 inches (792.5 mm) Width, at caster wheels: 19.6 inches (497.8 mm) Width, operator handle: 30.4 inches (772.2 mm) Height, operator handle fully extended: 39.8 inches (1010.9 mm) Length, operator handle folded, fully retracted: 27.3 inches (693.4 mm) Height, operator handle folded, fully retracted: 22.9 inches (581.7 mm)
Product Weight	237.0 lbs (107.5 kg), less grinding attachments

Literature	Description	Version
SG12E Legacy Series Single Head Surface Grinder	GEF01111020	1.4

Manuals	Description	Version
SG24 Surface Grinder Operator Manual (With SG12E PGOM v1.0)	GOM3259601	1.2

Parts	Description	Version
SG12 Series Surface Grinder Parts	PGOM_SG12E	1.0

Service information	Description	Version
J-6250-2 Elastomeric Mount Installation Instructions (All Products Serial Numbers)	GEF24030502	2.0
FCS16-1000A GFI Installation And Operating Instructions	GEF24081201w	1.0

Application Information	Description	Version
Guide To Silica Dust Control		1.0
Silica Dust Written Exposure Plan Template		1.0
Get the Facts OSHA Silica Dust Standard		1.0
Dispelling the Myths How to Choose a Dust Collection System		1.0
Surface Grinder Attachment Application Guide	GEF20090602	1.0
