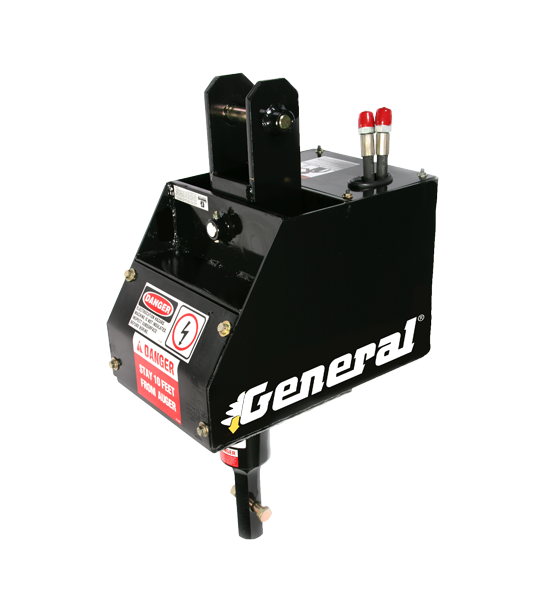

Product Description
Features/Benefits:
- Universal joint swivel keeps your auger vertical throughout the dig process
- Low-speed, high-torque, geroler-type motor for high output in tough soil conditions
- Roller chain reduction system provides higher power transfer/efficiency & low maintenance reducing friction, wear
- Timken®-type bearings for smooth, durable operation and sealed for long service life
Specifications
| Operating Environment | |
|---|---|
| Operating Environment | Non-hazardous type locations |
| Digging Applications | Larger fencing, decks, landscaping, sign installations, concrete sonotubes, soil sampling & other similar projects in loam, sand, soft clay plus, compacted clays, sandstone, fractured limestones, fracturable sandstone and limestone formations, caliche, hardpan, frozen ground & rubble soil classifications |
| Equipment Applications | Most often used with skid steer loaders. Not for use with skid steer loaders or carrier vehicles not equipped with protective barrier preventing contact with operator during operation. |
| Transmission & Auger | |
|---|---|
| Hydraulic System | Use with auxiliary hydraulic system of carrier vehicle |
| System Requirements | Flow range: Up to 25.0 GPM (94.6 lit/min) Pressure range: 1500.0-3000.0 PSI (105.4-210.9 kg/cm2) |
| Frame | Welded-steel plate |
| Bearings | High-capacity, sealed, ball-type |
| Plumb Line Mechanism | Double-jointed, universal-joint swivel with full-length sleeved pins |
| Mounting Pin | 1.0 inch (25.4 mm) diameter, zinc plated, steel alloy |
| Auger Drive Connection | 2.0 inch (50.8 mm) hexagon General® type |
| Max Drilling Torque | 1330.0 ft lbs (1803.2 N.m.) @ 3000.0 (210.9/kg/cm2) |
| Available Auger Diameter Range | Optional 6.0 to 36.0 inches (152.4 to 914.4 mm) |
| Standard Auger Digging Lengths | 48.0 & 60.0 inches (1219.2 & 1524.0 mm) |
| Available Auger Extensions | Optional 15.0 & 36.0 inch (381.0 & 914.4 mm), non-flighted plain tube |
| General | |
|---|---|
| Product Dimensions (L x W x H) | 21.0 x 13.5 x 35.5 inches (533.4 x 342.9 x 901.7 mm) |
| Product Weight | 250.0 lbs (113.4 kg), less auger |
Downloads
| Literature | Description | Version |
|---|---|---|
| 671-16 DIG-R-TACH® Series Hole Digger | GEF01111039 | 1.2 |
| Manuals | Description | Version |
|---|---|---|
| 671 and 753 DIG-R-TACH® Hydraulic Hole Digger Operator Manual | GOM-1028-7-88 | 1.0 |
| Parts | Description | Version |
|---|---|---|
| 671 And 753 DIG-R-TACH (Hydraulic Attachment) Parts | PGOM-1028-7-88 | 1.0 |
