Product Description
Features/Benefits:
- Exclusive SNAP-LOK™ Auger Storage System and large tires for exceptional on-site maneuverability
- Multi-purpose POW-R-PORT™ operates popular hydraulic tools for max machine optimization
- Auger side tilt adapts to terrain for digging vertical holes on slopes up to 20 degrees
- Large hydraulic fluid reservoir dissipates heat, no overheating, no auxiliary cooler required
- Integral hydraulic pump pressure relief valve senses overloads, protects equipment against costly damage
- Honda® GXV390 engine for reliable power & performance
- 276 ft lbs of best-in-class digging torque to power you through the toughest soil conditions
- Center-balanced design keeps auger in place, no manhandling required for reduced fatigue, stress and strain
- Wide stance safely tows at legal highway speeds, on straightaways, curves and when braking
Specifications
| Operating Environment | |
|---|---|
| Operating Environment | Non-hazardous type locations |
| Digging Applications | Larger fencing, decks, landscaping, sign installations, concrete sonotubes, soil sampling & other similar projects in loam, sand, soft clay plus, sandstone, fractured limestones, caliche, compacted clays & rubble soil classifications |
| Power Source | |
|---|---|
| Power Source | 13.0 HP (9.7 Kw) Honda GX390, 4 Stroke, gas engine |
| Starter | Hand rewind |
| Fuel | Gasoline, unleaded, automotive grade |
| Transmission & Auger | |
|---|---|
| Hydraulic System | Open center, 8.0 GPM (30.3 lit/min), 2000.0 PSI (140.6 kg/cm2) |
| Reservoir Capacity | 5.0 US gallons (18.9 L) |
| Reservoir Cap | Includes fluid level indicator & filtration screen for removal of debris |
| Maximum Drilling Torque | 276.0 ft lbs (374.2 N.m) |
| Frame | Unitized, welded-steel plate and tube |
| Nominal Auger Rotation Speed | 144.0 RPM, no load |
| Auger Drive Connection Options | 1.375 inch (34.9 mm) hexagon (General®), specify 660-5CLR auger coupler .875 inch (22.2 mm) square (Ground Hog®), specify 660-6CLR auger coupler |
| Available Auger Diameter Range | Optional 4.0 to 18.0 inches (101.6 to 457.2 mm) (Ground Hog®) |
| Standard Auger Digging Length | 36.0 inches (914.4 mm) |
| Available Auger Extension | Optional 15.0 inch (381.0 mm) plain, tube-type. Optional 36.0 inch (914.4 mm) continuous flighted. (General®) |
| Tires | 4.80-12 highway use rated |
| General | |
|---|---|
| Product Dimensions (L x W x H) | 119.0 x 41.0 x 54.0 inches (3022.6 x 1041.4 x 1371.6 mm) |
| Product Weight | 560.0 lbs (254.0 kg), less towbar & auger |
Downloads
| Literature | Description | Version |
|---|---|---|

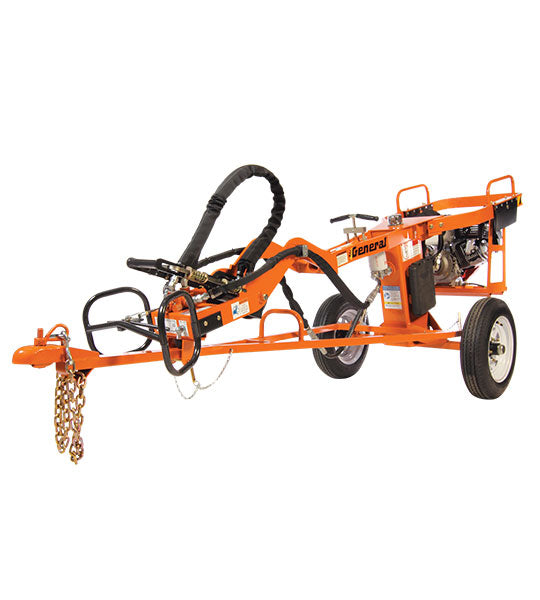

| 660H DIG-R-MOBILE® Towable Hole Digger | GEF01111034 | 1.2 |
| Manuals | Description | Version |
|---|---|---|
| 660H DIG-R-MOBILE® Operator Manual | GOM6309901 | 1.3 |
| Parts | Description | Version |
|---|---|---|
| 660H DIG-R-MOBILE® Parts | PGOM6309901 | 1.3 |
| Service information | Description | Version |
|---|---|---|
| 660H Clamp Assembly Adjustment Instructions (All Product Serial Numbers) | GEF24030504 | 1.0 |
| 660-0380 Triple Roll Pin Assembly (All Product Serial Numbers) | GEF24030501 | 1.0 |
| MSDS | Version |
|---|---|
| Fuel-Stabilizer | 1.0 |
| 300-Series-Transmission-Lubricant | 1.0 |
