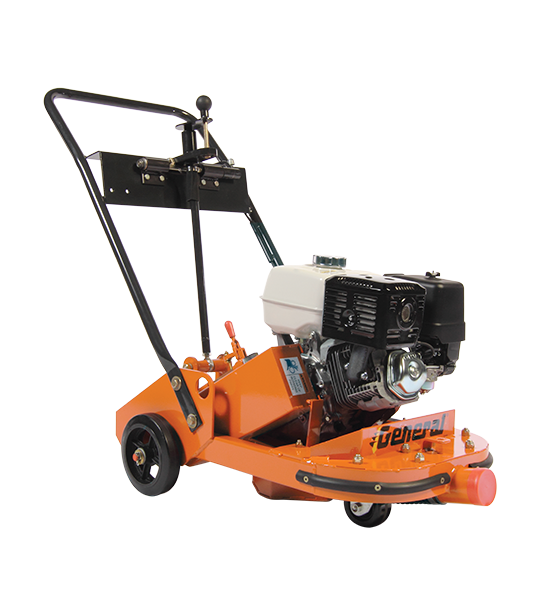

General Equipment Company Crack Saw CS8/GH

SKU: CS8/GH

$5,845.50 Free Shipping

As low as $527.85/mo with shop

In Stock & Ready to Ship

Save 2% Today at Checkout

✓ Authorized Dealer

✓ Free And Fast Shipping

✓ Expert Product Support Call (888) 688-5869

Secure checkout

Secure Checkout

Manufacturer Warranty

Easy 30-Day Returns

Expert Support

Product Description

Features/Benefits:

Quik-Pitch™ blade engagement system to raise & lower blade fast without affecting cut depth
Back-Saver™ blade cut depth control system for fast, on-the-fly adjustment, no bending or stooping
Exclusive center mount blade & caster system for superior operator control & ease in following cracks
Direct blade line of sight for productive safe handling and operation, no leaning to the side required
8 inch diamond multi-application blades for wet, dry, concrete & asphalt plus, reduced inventory requirements
Meets OSHA walk behind saw silica dust requirements keeping workers safe
External bearing lubrication system & v-belt tensioning for quick maintenance & reduced downtime
Quick access arbor wrench for fast blade changeout & improved productivity
Honda® GXV390 engine for reliable power & performance

Operating Environment
Operating Environment	Non-hazardous type locations
Surface Applications	For following, cutting & cleanout of irregular cracks when prepping for crack sealing in concrete & asphalt

Frame
Power Source	13.0 HP (9.7 Kw) Honda, GXV390, 4 stroke, gasoline engine
Starter	Hand rewind
Fuel	Gasoline, unleaded, automotive grade
Frame	Unitized, welded steel plate
Blade Type/Diameter	Combination matrix/8.0 inch (203.2 mm)
Available Blade Widths	Optional .250, .375 & .500 inch (6.4, 9.5 & 12.7 mm)
Blade Depth Adjustment	Back-Saver™ system, screw-type
Drive System	V-belt reduction
Bearings	High capacity, twin row, ball-type
Arbor Shaft Diameter	1.0 inch (25.4 mm)
Dust Port Connection	3.0 inch (76.2 mm) diameter for moving heavy fines

General
Product Dimensions (L x W x H)	53.3 x 27.3 x 43.3 inches (1353.8 x 693.4 x 1099.8 mm)
Product Weight	285.0 lbs (129.3 kg), less blade

Literature	Version
CS8GH CRAKCHASER™ Random Crack Saw	1.0

Manuals	Description	Version
CS8GH Random Crack Saw Operator Manual	GOM5229601	1.2

Parts	Description	Version
CS8GH Random Crack Saw Parts	PGOM5229601	1.2

Application Information	Version
Guide To Silica Dust Control	1.0
Silica Dust Written Exposure Plan Template	1.0
Get the Facts OSHA Silica Dust Standard	1.0
Dispelling the Myths How to Choose a Dust Collection System	1.0

MSDS	Version
Fuel Stabilizer	1.0
300-Series-Transmission-Lubricant	1.0
