Ercolina Rotary Draw Benders MG030

Description

Minimum external diameter:

⌀ 5 mm
Maximum bend capacity:

⌀ 76 x 3 mm
Control System:

EDT Plus, RC0063, TC Plus
Minimum bend radius:

10 mm
Maximum bend radius:

380 mm

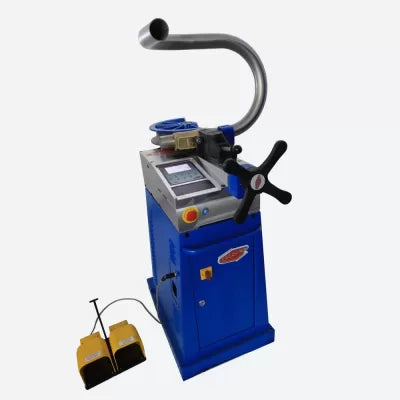

The Ercolina MG030 tube bender is extraordinary, the standard tube bending capacity is 76 x 3 mm, it is easy to move thanks to the wheels and the retractable handle and allows operator to always have free hands, thanks to the convenient pedal control.


FEATURES

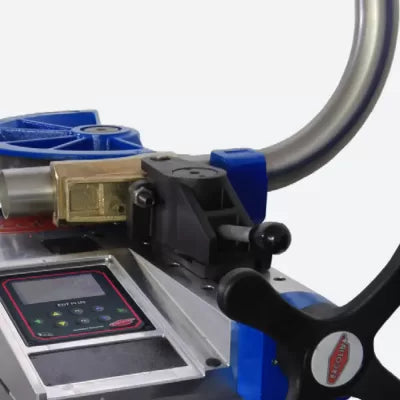

  • Electromechanical bending C axis with digital value display
  • Micrometric control with X axis position display
  • Single Bend Speed
  • Overload control system with flashing warning lights
  • Available with three-phase and single-phase motor
  • Possibility of adding an (optional) 2-axis positioner (A40/P) to allow the serial production of bends on different planes

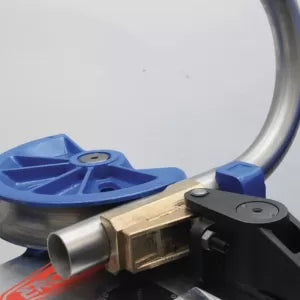

  • Simple and fast tool change system (Ercolina® patent)
  • Easy to move thanks to the built-in wheels and retractable handle.
  • Foot pedal control
  • To bend narrower radii it is possible to purchase the 15 meter mandrel bench (as an option).

Video

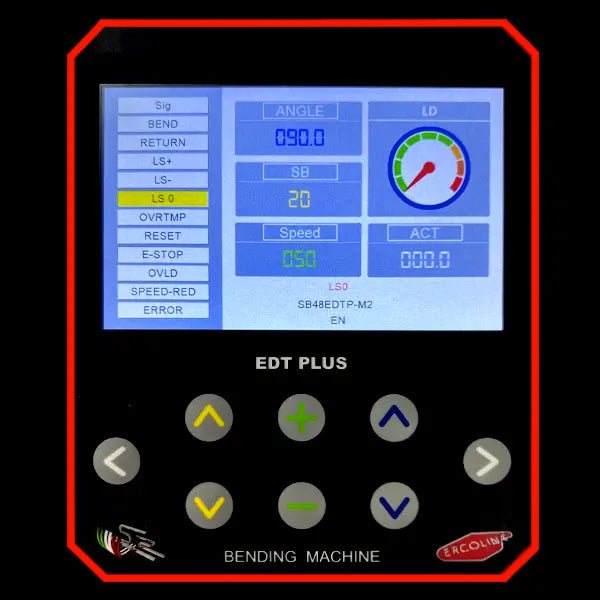

EDT PLUS Control

  • Easy and intuitive control
  • 5.0″ display
  • Multilingual
  • Bend angle programming
  • Bend speed setting
  • Insertion of compensation value for springback
  • Display of load percentage during bending

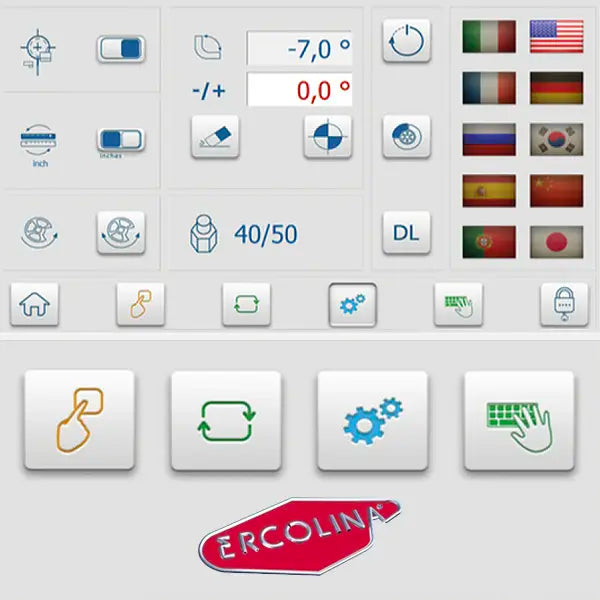

TC PLUS control

  • Intuitive and simplified iconography
  • 4.3″ display
  • Bend angle programming
  • Bend speed setting
  • Insertion of compensation value for springback
  • Each program can contain up to 30 bends
  • Control with manual or programmable mode
  • Can bend to the right or left
  • Tool database according to the program used
  • Immediate language change
  • Auto-tuning of the main machine components (only on 7″)
  • Quick change function from mm to inches and back
  • Ready for 4.0 (optional)
  • LAN / Wi-Fi connection (optional)

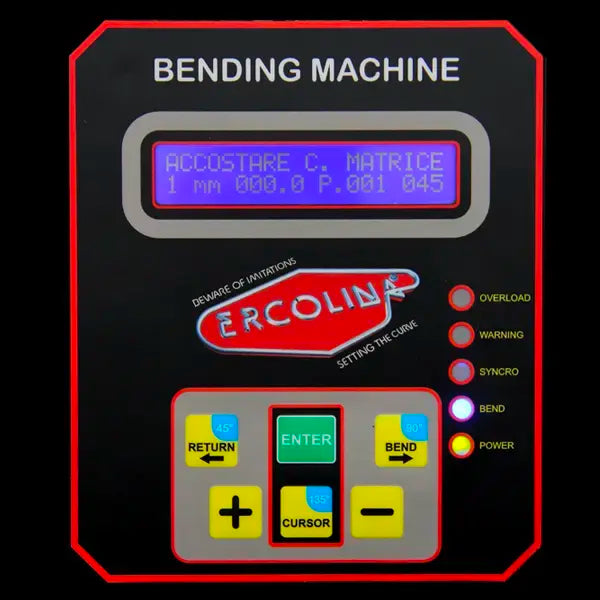

RC0063 Control

  • Easy to program
  • Digital display
  • Multilingual
  • Bend angle programming
  • Insertion of compensation value for springback
  • Display of load percentage during bending
Flexion modulus 15 cm³
Minimum external diameter 5 mm
Max. bend radius (CLR) 380 mm
Min. bend radius (CLR) 10 mm
Installed power 3.5 kW
Supply voltage 220 – 400 V 1
3 ph / 50-60 Hz
Bend speed min. 0.68 rpm – max 2.13 rpm (MG030T – MG030M)
1 speed = 2 rpm – 2 speeds = 4 rpm (MG030V2T)
at 50 Hz = 0.7 rmp (MG030EDTP-M)
Dimensions (Length x Width x Height) 680 x 910 x 370 mm
Weight 193 kg
