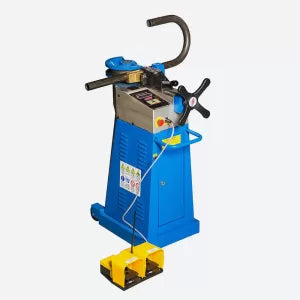

Ercolina Rotary Draw Bender SB48

The SB48 is a revolutionary machine, with compact dimensions, robust structure, and enormous bending capabilities. Available with Three-phase or Single-phase motor.

FEATURES

• Standard Steel Tube Capacity: 48 x 3.5 mm
• Capacity : 1″ 1/2 x 3.68 mm
• Square tube capacity (FE42): 40x40x3 mm
• Large bend radius:: from R10 to R300 mm
• Overload control system with flashing warning lights
• Available with three-phase and single-phase motor
• Possibility of adapting (optional) a two-axis positioner (A40/P) to allow serial production
• Simple and fast tool change system (Ercolina^® Patent)
• Easy to move thanks to the built-in wheels and retractable handle.
• Pedal control

Video

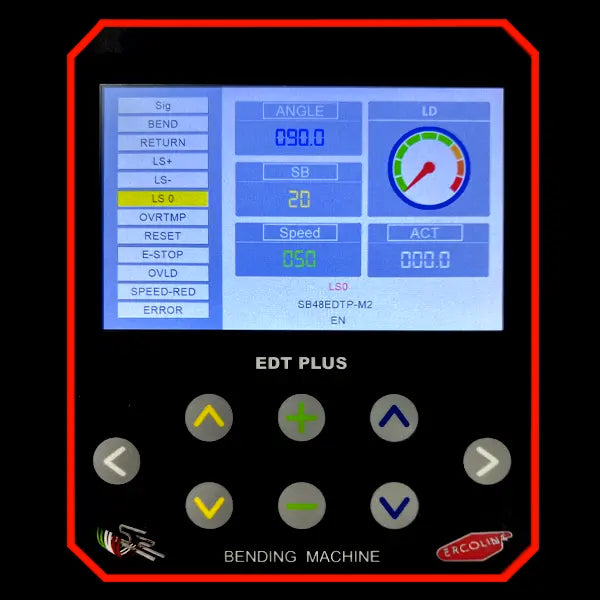

EDT PLUS Control

• Easy and intuitive control
• 5.0″ display
• Multilingual
• Bend angle programming
• Bend speed setting
• Insertion of compensation value for springback
• Display of load percentage during bending

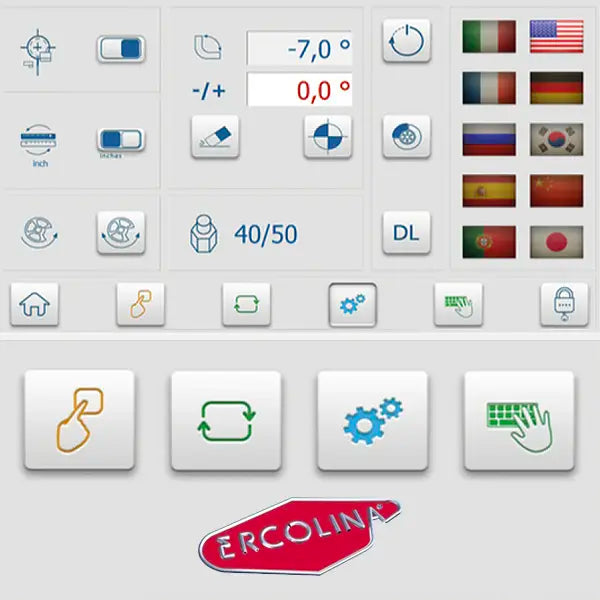

TC PLUS control

• Intuitive and simplified iconography
• 4.3″ display
• Bend angle programming
• Bend speed setting
• Insertion of compensation value for springback
• Each program can contain up to 30 bends
• Control with manual or programmable mode
• Can bend to the right or left
• Tool database according to the program used
• Immediate language change
• Auto-tuning of the main machine components (only on 7″)
• Quick change function from mm to inches and back
• Ready for 4.0 (optional)
• LAN / Wi-Fi connection (optional)

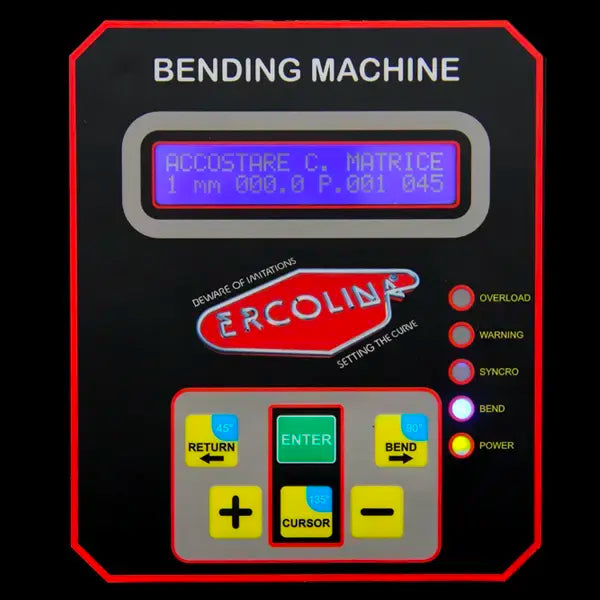

RC0063 Control

• Easy to program
• Digital display
• Multilingual
• Bend angle programming
• Insertion of compensation value for springback
• Display of load percentage during bending
