Product Description
Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.

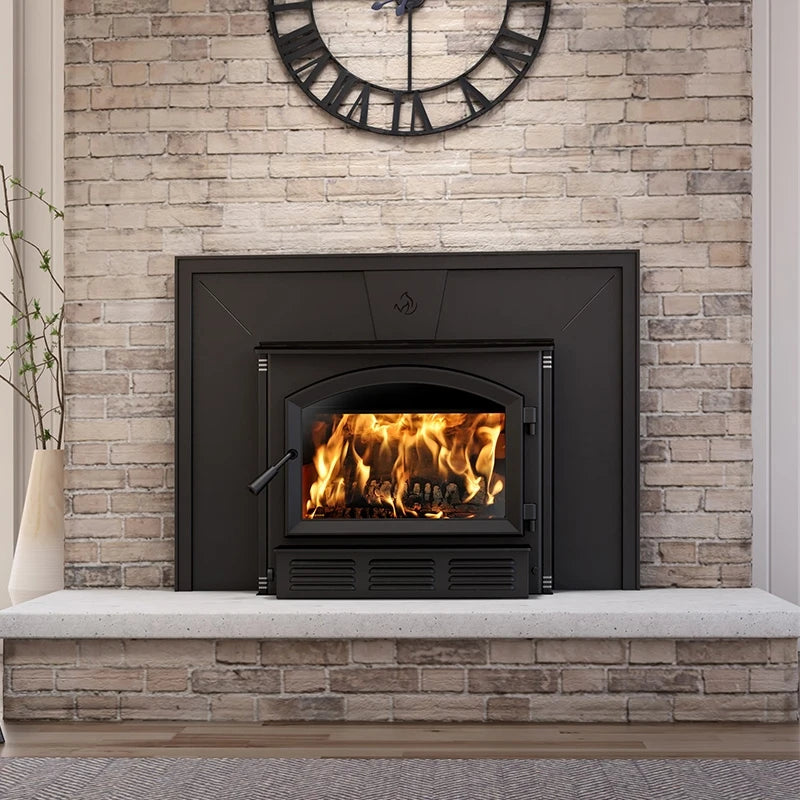

When the winter season sets in, it also brings "cocooning" rituals. Designed to replace your old ineffective masonry fireplace, the Solution 3.5 is your best choice for creating the perfect ambiance. Comfort, performance, pleasure, economy and saving are at the core of your heating experience with this wood insert designed for large spaces, in addition to being very respectful of the environment.
Thanks to its new ultra-efficient and clean secondary combustion system, this non-catalytic appliance offers a dazzling spectacle as the flames roll between the logs, through the large glass surface.
Complete your installation with the faceplate and trims of your choice. A firescreen is also available for those who wish to fully experience the crackle of a good wood fire.
General features
| Combustion technology | Non-catalytic |
| Maximum burn time | 10 h |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 22" |
| Log positioning | Loading over width and over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 562 lb (255 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18 3/4" X 12 1/2" |
| Glass air-wash system | Yes |
| Overall dimension (Height) | 24 7/8" |
| Overall dimension (Width) | 30 3/8" |
| Overall dimension (Depth) | 29 1/2" |
| Door opening – dimension (Height) | 10 5/8" |
| Door opening - dimension (Width) | 19" |
| Firebox – dimension (Height) | 12 7/8" |
| Firebox – dimension (Width) | 22 7/8" |
| Firebox – dimension (Depth) | 20 1/8" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/8" |
| Fireplace opening – minimum (Height) | 26 1/4" |
| Fireplace opening – minimum (Width) | 31" |
| Fireplace opening – minimum (Depth) | 18 3/8" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
|
Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
| Canada | United-States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84" | 84" |
| Clearance – combustible side mantle to unit | 9" | 9" |
| Clearance – combustible top mantle to unit | 27" | 27" |
| Clearance – combustible side wall to unit | 19" | 19" |
| Clearance - from the top of the unit to the shelf | 27" | |
| Clearance – from the top of the insert to the shelf | 27" | |
|
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). |
||
|
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
||
Solution 3.5-I insert install & owner's manual
(PDF - 8.3 Mo)Solution 3.5-I dimensions
(PDF - 0.6 Mo)
