Product Description
Warning: Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.

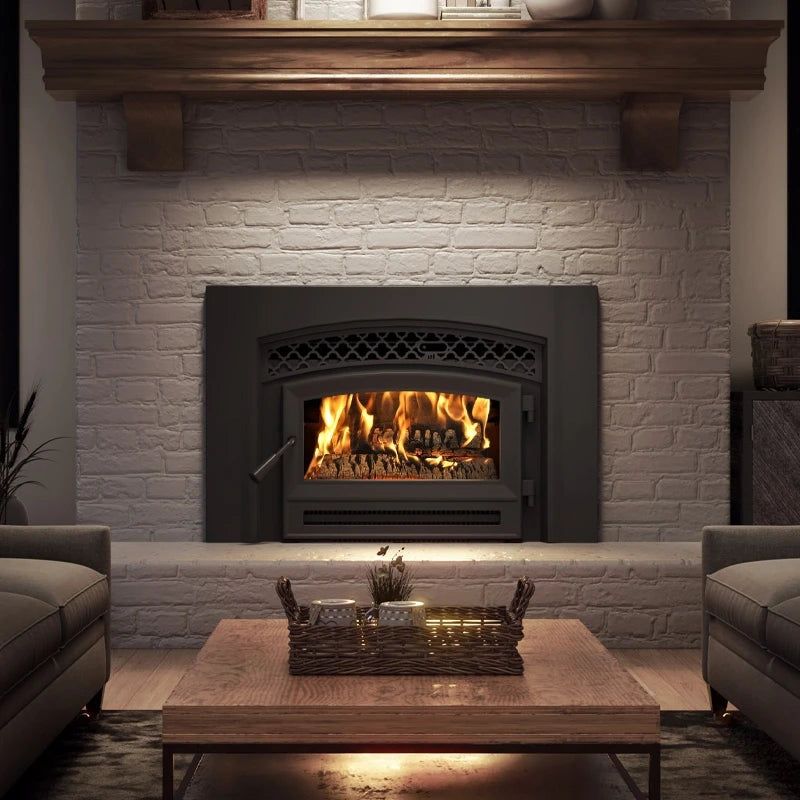

Designed for the smallest masonry hearths thanks to its tapered shape, the Destination 1.9 is a compact and easy to install wood insert. Its non-catalytic combustion and its 75% efficiency rate (the highest in its category) make it the perfect choice for those who want to transform their open fireplace into a clean and efficient heat source. To facilitate use and maintenance, its firebox has a hollow bottom for the accumulation of ashes, which helps reduce the frequency of cleaning.
Enjoy a panoramic view of the fire thanks to its large ceramic glass and arched cast iron door, fitted with a discreet black wood handle. The flush mount blower and the removable handle air control concealed in the faceplate louver give the Destination 1.9 a modern, clean finish that showcases the beauty of the flames.
General features
| Combustion technology | Non-catalytic |
| Maximum burn time | 7 h |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 17" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 336 lb (152 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18" X 8 1/8" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 90 |
| Overall dimension (Height) | 23 7/8" |
| Overall dimension (Width) | 36" |
| Overall dimension (Depth) | 21" |
| Door opening – dimension (Height) | 7 7/8" |
| Door opening - dimension (Width) | 18 1/4" |
| Firebox – dimension (Height) | 8 7/8" |
| Firebox – dimension (Width) | 16 3/4" |
| Firebox – dimension (Depth) | 12 3/8" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/16" |
| Fireplace opening – minimum (Height) | 19" |
| Fireplace opening – minimum (Width) | 25" |
| Fireplace opening – minimum (Depth) | 15 1/2" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
|
Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm) |
||
| Canada | United-States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 72" | 72" |
| Clearance – combustible side mantle to unit | 1" | 1" |
| Clearance – combustible top mantle to unit | 1" | 1" |
| Clearance – combustible side wall to unit | 16" | 16" |
| Clearance - from the shelf to the base of the fireplace | 34" | 34" |
|
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). |
||
|
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
||
Wood insert manual | Safety notifications & general information
(PDF - 2.5 Mo)Destination 1.9-I wood insert installation & operation requirements
(PDF - 5.1 Mo)Destination 1.9-I wood insert dimensions
(PDF - 0.5 Mo)
